- New Touch Screen Display
- Backing Pump Capacity: 250 l/min
- Pumping Speed for Helium: 2.5 l/s
- Three Detectable Gases: 4He, 3He, H2
Shopping Cart ( )
Pfeiffer Vacuum ASM 340, Helium Leak Detector Wet Version, Touch Screen Display, Configurable I/O Interface Board, 100/110 V, 50/60 Hz, 2000031937 / JSVA02A2ML9A
Condition:
New
In Stock
Item#:PN40656
Mfr Part#:2000031937 / JSVA02A2ML9A
Manufacturer:Pfeiffer Vacuum
Features:
Pfeiffer Vacuum ASM 340, Helium Leak Detector Wet Version, Touch Screen Display, Configurable I/O Interface Board, 100/110 V, 50/60 Hz, 2000031937 / JSVA02A2ML9A
Pfeiffer ASM 340 Features:
- Leak Detector
- Tool Kit
- Cover
- Power Cable 115V
- Oil A200
- ASM Software
- Funnel
- Oil Drain Fitting
- Manuals
- Brochure
- High sensitivity of 5*E-12 atm. cc/sec. helium for inboard vacuum testing and 5E-9 atm. cc/sec. helium for outboard sniffer testing.
- Quantitative inlet port test pressure of up to 25 mbar (18,750 microns) and 100 mbar (75,000 microns) qualitative testing for massive leak identification.
- High helium pumping speed at inlet of 2.5 L/S He. for quick response and recovery time.
- High-resolution 3-mass (He4, He3, H2) 180-degree deflection mass spectrometer with VHS preamplifier (multi-channel electron multiplier) for added sensitivity, stability and repeatability.
- Large, detachable color touch screen control/display panel with SD card for recording capability and user-friendly interface.
- Pump Details: High-performance 53 L/S Pfeiffer hybrid turbo molecular drag pump with added superior compression ratio and low maintenance requirements.
- Independent ramped dual yttria-coated iridium filaments concealed within analyzer, to enhance durability and reliability while lowering maintenance.
- High roughing capacity of 11 CFM with reliable low RPM rotary vane mechanical pump for added performance and continuous long life operation.
- Integrated helium-calibrated leak for fully automatic calibration with temperature and age compensation.

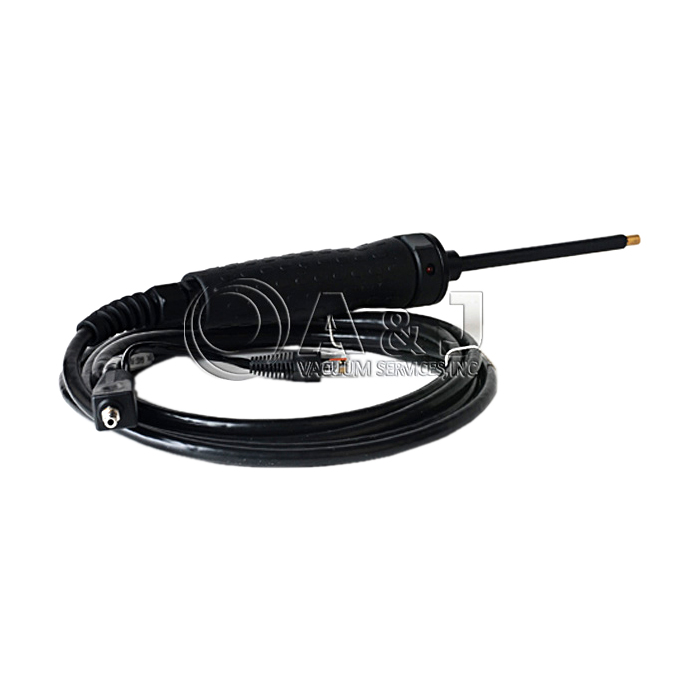

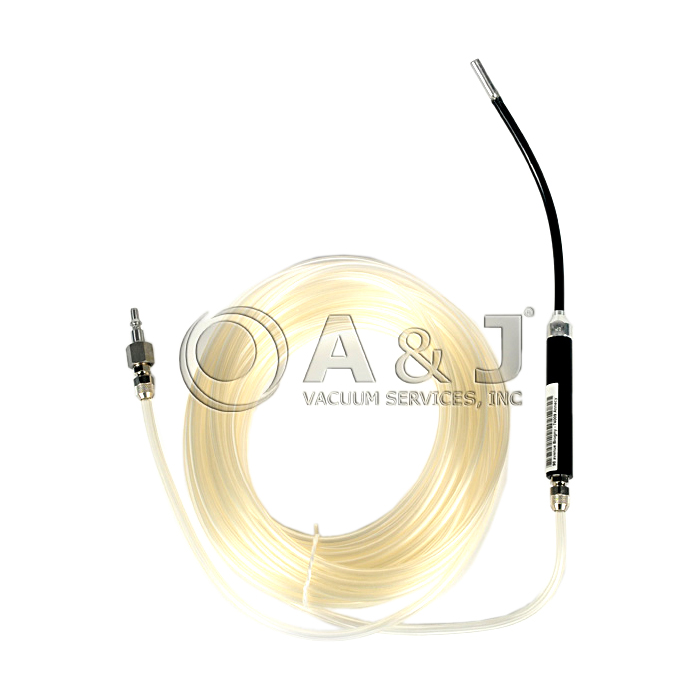

- Wired or wireless remote control and sniffer probes available as accessories
- Touch Screen Display with Integrated selectable languages with digital voice for worldwide recognition. Available languages include: English, French, German, Italian, Spanish, Russian, Japanese, Chinese, Korean.
ASM 340 / 2000031937 Overview:
The Pfeiffer ASM 340 Wet Leak Detector is a high performance and very easy operation. Pfeiffer ASM 340 W guarantees high performance in a vacuum and sniffing leak detection. Pfeiffer ASM 340W Detector has various applications in small production environments for maintenance. The ASM 340-W has an effective pumping system and is available in two different versions dry or conventional. ASM 340 Wet is ultra-fast response time, short recovery time, easy operation. Pfeiffer ASM 340 W is the ideal solution for testing every day.
The Pfeiffer Adixen ASM 340W tourch screen display is a fully automatic, multi-purpose, compact tabletop helium / hydrogen with intrernal oil lubricated backing pump leak detector. The product consists of a Pfeiffer hybrid turbomolecular drag high-vacuum pump and a large integrated 11 CFM rotary vane roughing/backing pump. It is ideally suited for rapid repetitive and non-repetitive sequential testing applications requiring high-performance operation for both inboard vacuum testing and outboard sniffer testing.
A&J Vacuum Services offers full repair/service of Pfeiffer Vacuum 340W (Wet Version) Helium Leak Detectors, along with all other brands of helium leak detectors offered on our website. AJVS also services Pfeiffer turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Pfeiffer Vacuum ASM 340, Helium Leak Detector Wet Version, Touch Screen Display, Configurable I/O Interface Board, 100/110 V, 50/60 Hz, 2000031937 / JSVA02A2ML9A
Pfeiffer ASM 340 Technical Data:
| Connecting flange | DN 25 ISO-KF |
| Connection flange (in) | DN 25 ISO-KF |
| Detectable Gases | 4He 3He H2 |

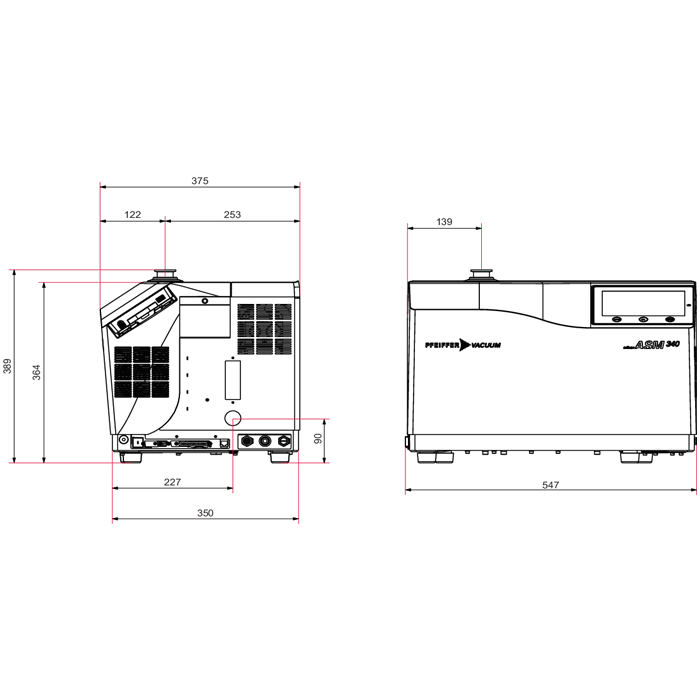

| Dimensions (L x W x H) | 547 x 375 x 389 mm | 21.54 x 14.76 x 15.31 inch |
| Emission sound pressure level (EN ISO 2151) | 54 dB(A) |
| I/O Interfaces | RS232, USB |
| Inlet test pressure max. | 25 hPa | 18.75 Torr | 25 mbar |
| Input voltage(s) | 100 – 110 V AC, 50/60 Hz |
| Interface: Connection, device side | Configurable I/O 37 pins |
| Mains frequency compatibility | 50 Hz 60 Hz |
| Minimum detectable leakage rate for helium (sniffing leak detection) | 5 · 10-10 Pa m³/s | 3.75 · 10-9 Torr l/s | 5 · 10-9 mbar l/s |
| Minimum detectable leakage rate for helium (vacuum leak detection) | 1E-13 Pa m³/s | 7.5 · 10-13 Torr l/s | 1 · 10-12 mbar l/s |
| Operating temperature, hard vacuum test | 0 – 45 °C | 32 – 113 °F | 273.15 – 318.15 K |
| Operating temperature, sniffing test | 0 – 35 °C | 32 – 95 °F | 273.15 – 308.15 K |
| Power consumption max. | 850 W |
| Protection degree | IP20 |
| Pumping speed backing pump at 50/60 Hz | 15 m³/h | 8.83 cfm | 250 l/min |
| Pumping speed for He max. | 2.5 l/s |
| Start-up time (20°C) without calibration | 3 min |
| Test method | Vacuum leak detection Sniffing leak detection |
A&J Vacuum Services offers full repair/service of Pfeiffer Adixen 340W (Wet Version) Helium Leak Detectors, along with all other brands of helium leak detectors offered on our website. AJVS also services Pfeiffer turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Pfeiffer Adixen ASM 340 Maintenance Instructions ASM340 Touch Screen Display
Pfeiffer Adixen ASM 340 Operating Instructions ASM340 Touch Screen Display
Pfeiffer Adixen ASM 340 I/O 37 Communication Instructions ASM340
