- Compression ratio for N2 > 1 · 1011
- Flange (in) DN 100 ISO-K
- Flange (out) DN 16 ISO-KF/G ¼"
- Fore-vacuum max. for N2 15 hPa | 11.25 Torr | 15 mbar
Shopping Cart ( )

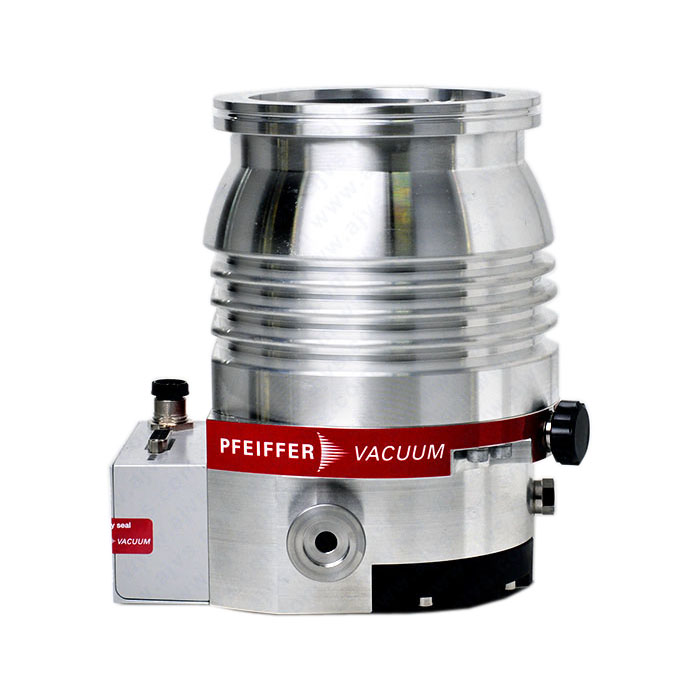

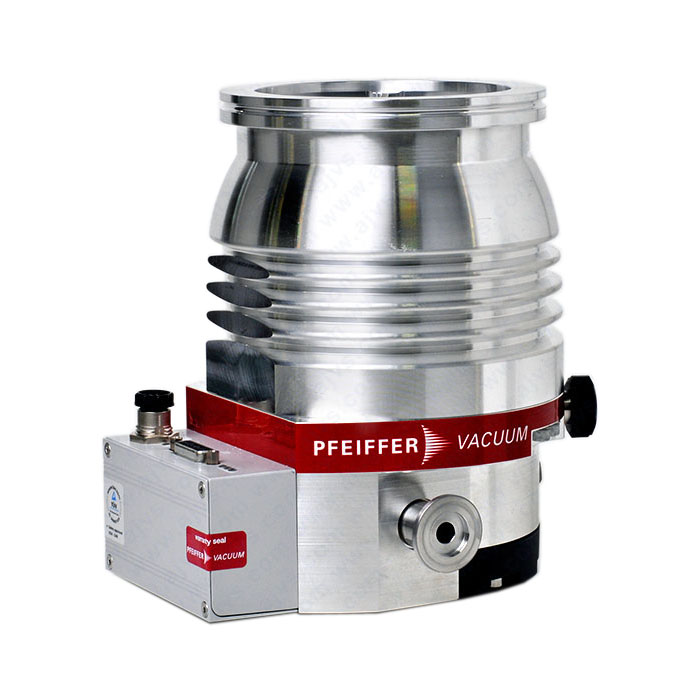

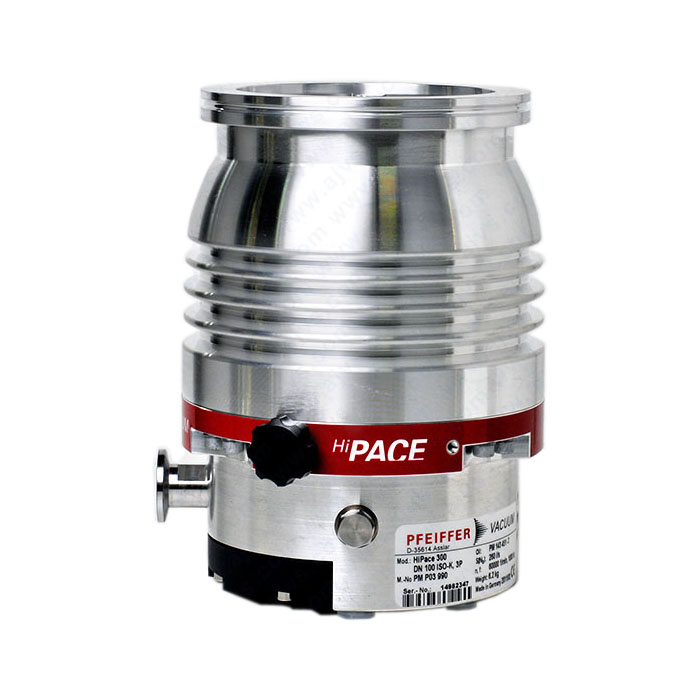

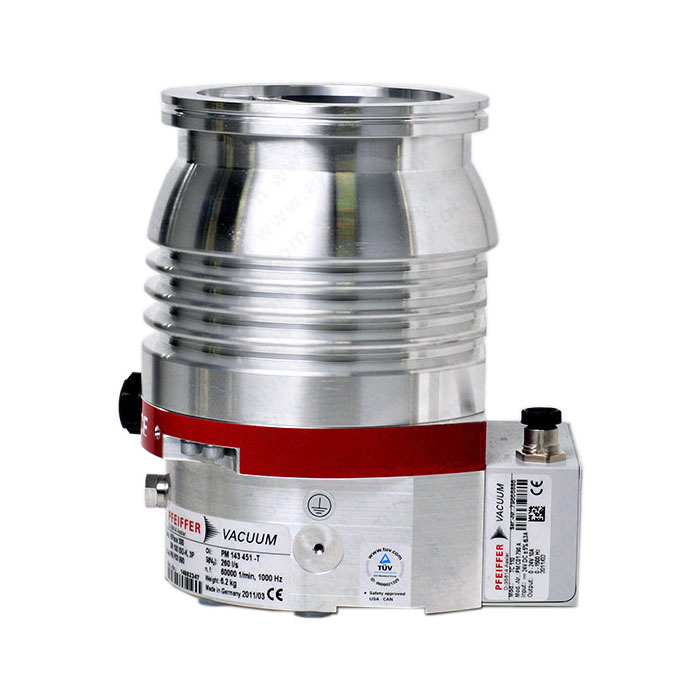

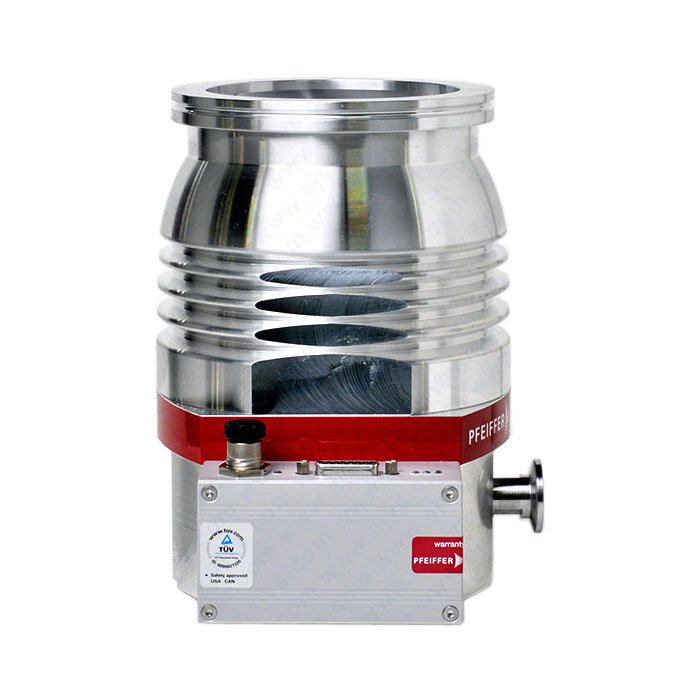

Pfeiffer Vacuum HiPace 300 Turbo Pump with TC 110 Controller, DN 100 ISO-K, 2000015724 / PM P03 990 / PMP03990
Condition:
New
Item#:PN00005
Mfr Part#:2000015724 / PM P03 990 / PMP03990
Manufacturer:Pfeiffer Vacuum
Features:
Pfeiffer Vacuum HiPace 300 Turbo Pump with TC 110 Controller, DN 100 ISO-K, 2000015724 / PM P03 990 / PMP03990
Pfeiffer HiPace 300 Features:
- Rugged, powerful turbopump with a pumping speed of up to 260 l/s for N2
- Integrated TC 110 drive electronics
- Inlet Flange: DN 100 ISO-K
- Ideal for UHV applications
- For installation in any orientation
- Extensive accessories expand the range of applications
HiPace 300 / PMP03990 Overview:
The Pfeiffer HiPace 300 PMP03990 DN 100 ISO-K is a complete line of compact yet powerful turbopump featuring pumping speeds that range from 10 - 2,000 liters per second. These models are cost-effective and offer flexible installation in any orientation.
The Pfeiffer Hipace 300 Turbo Vacuum Pump's proven bearing system provides unrivaled dependability and their sophisticated rotor design makes for higher pumping speeds, higher backing pump compatibility, higher gas throughputs and good compression for light gasses.
The turbopump HiPace 300 forms a complete unit together with the electronic drive unit TC 110. This turbopump offers water as well as air cooling. This pump has not integrated power supply.
Complete Operating Instruction for HiPace 300 PM P03 990 is available in PDF format below.
HiPace300 Scope of Delivery:
- Turbopump with electronic drive unit
- Protective cover for the high vacuum connection
- Protective cover for the fore-vacuum connection
- Operating instructions
HiPace300 Applications:
- Automotive and Transport
- Battery
- Chemical
- Fish farming
- Hydrogen Economy
- Medical
- Metallurgy
- Pharma and Biotech
- Power Generation
- R&D
- Refrigeration and Air Condition
- Scientific Instruments
- Semiconductor
- Technical Gases
- Thin Film Coating
A&J Vacuum Repair / Rebuild and Service all Pfeiffer Vacuum Hipace 300 Turbo Pumps along with all other Pfeiffer Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
This item is non-returnable/non-refundable
Pfeiffer Vacuum HiPace 300 Turbo Pump with TC 110 Controller, DN 100 ISO-K, 2000015724 / PM P03 990 / PMP03990
Pfeiffer HiPace 300 Technical Data:
| Bearing | Hybrid |
| Compression ratio for Ar | 1 · 1011 |
| Compression ratio for H2 | 9 · 105 |
| Compression ratio for He | 1 · 108 |
| Compression ratio for N2 | 1 · 1011 |
| Connection flange | DN 100 ISO-K / DN 16 ISO-KF | G 1/4" Thread |
| Connection flange (in) | DN 100 ISO-K |
| Connection flange (out) | DN 16 ISO-KF | G ¼" |
| Cooling method | Natural convection |
| Cooling method, optional | Water Air (forced convection) |
| Cooling water flow | 50 l/h |
| Cooling water temperature | 15 – 35 °C | 59 – 95 °F | 288.15 – 308.15 K |
| Current, max. | 7.5 A |
| Electronic drive unit | TC 110 |
| Emission sound pressure level (EN ISO 2151) | ≤50 dB(A) |
| Fore-vacuum max. for N2 | 15 hPa | 11.25 Torr | 15 mbar |
| Gas throughput at final rotational speed for Ar | 2 hPa·l/s |
| Gas throughput at final rotational speed for H2 | 14 hPa·l/s |
| Gas throughput at final rotational speed for He | 8 hPa·l/s |
| Gas throughput at final rotational speed for N2 | 5 hPa·l/s |
| I/O interaces | RS-485, Remote |
| Input voltage(s) | 24 V DC |
| Integral leak rate | 1 · 10-8 Pa m³/s | 7.5 · 10-8 Torr l/s | 1 · 10-7 mbar l/s |
| Interfaces, extended | Profibus DeviceNet E74 |
| Mounting orientation | Arbitrary |
| Permissible radial magnetic field max. | 5.5 mT |
| Position of power supply pack | External power supply pack |
| Power consumption max. | 180 W |
| Protection degree | Type 12 IP44 |
| Pumping principle | Dry |
| Pumping speed | 792 – 936 m³/h | 466.17 – 550.93 cfm | 13,200.03 – 15,600.03 l/min |

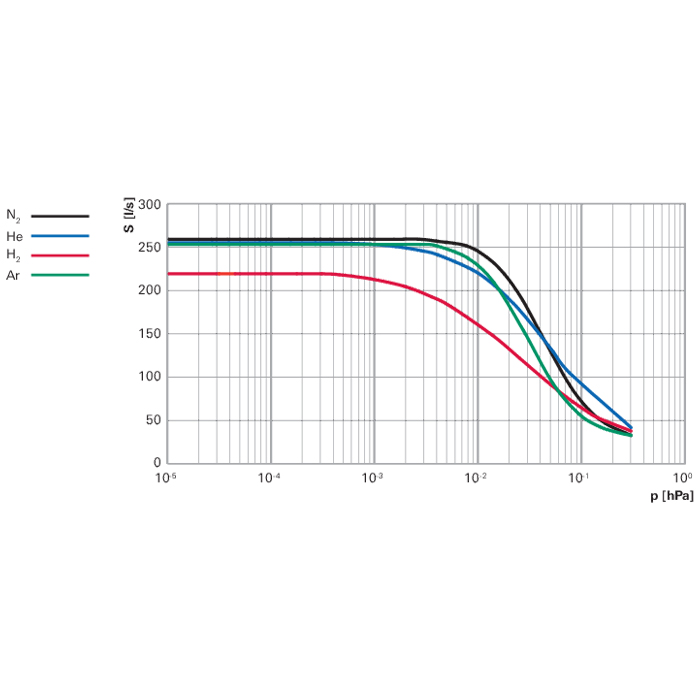

| Pumping speed for Ar | 255 l/s |
| Pumping speed for H2 | 220 l/s |
| Pumping speed for He | 255 l/s |
| Pumping speed for N2 | 260 l/s |
| Rotation speed variable | 35 - 100 % |
| Rotation speed ± 2 % | 60000 rpm | 60,000 min-1 |
| Run-up time | 3.5 min |
| Type of electronic drive unit installation | Integrated electronic drive unit |
| Ultimate pressure | 1 · 10-7 hPa | 7.5 · 10-8 Torr | 1 · 10-7 mbar |
| Venting connection | G 1/8" |
| Weight | 6.2 kg | 13.67 lb |
A&J Vacuum Repair / Rebuild and Service all Pfeiffer Vacuum Hipace 300 Turbo Pumps along with all other Pfeiffer Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
