- Pumping speed 0.6 m³/h | 0.35 cfm | 10 l/min
- Ultimate pressure without gas ballast ≤ 1 hPa | ≤ 0.75 Torr | ≤ 1 mbar
- Flange (out) G 1/8" with silencer (separate package)
- PN PKT05072
Shopping Cart ( )
Pfeiffer Vacuum MVP 010-3 DC Diaphragm Vacuum Pump, 24 V, Pumping speed 0.6 m³/h, 2000020747 / PK T05 072 / PKT05072
Condition:
New
In Stock
Item#:PN22759
Mfr Part#:2000020747 / PK T05 072 / PKT05072
Manufacturer:Pfeiffer Vacuum
Features:
Pfeiffer Vacuum MVP 010-3 DC Diaphragm Vacuum Pump, 24 V, Pumping speed 0.6 m³/h, 2000020747 / PK T05 072 / PKT05072

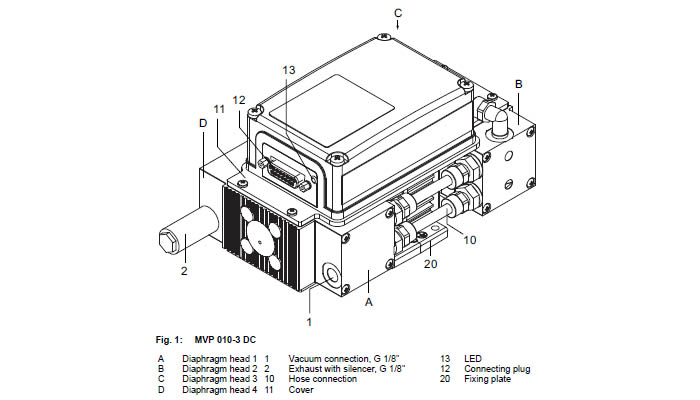

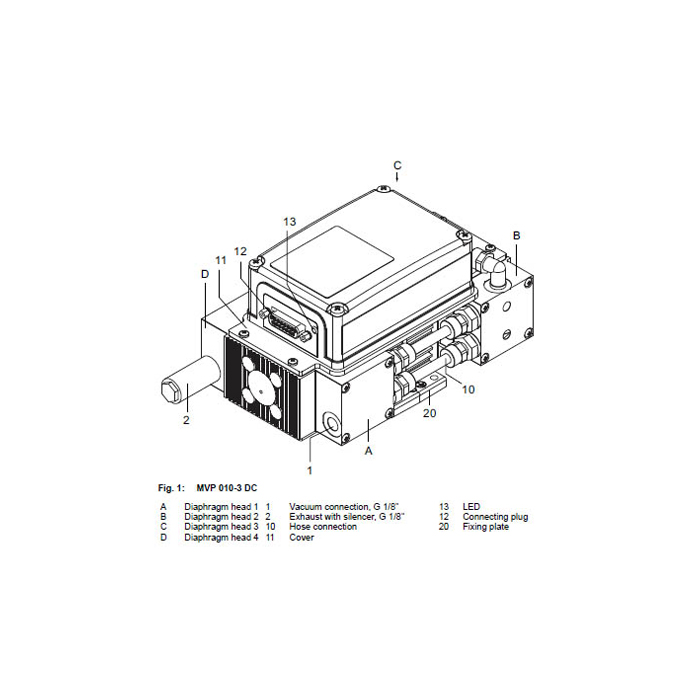

Pfeiffer MVP 010-3 DC Diaphragm Vacuum Pump Overview:
Pfeiffer MVP 10 Diaphragm Vacuum Pump is a dry compressor vacuum pump with four pump stages.
Pfeiffer MVP010 diaphragm pumps are positive displacement pumps with a periodic change of size of the suction chamber produced by the movement of the diaphragm. The gas flow causes the valves to open and close automatically. The pump units are directly connected to the drive motor.
The Pfeiffer Vacuum MVP 010 3 DC Vacuum Pump Applications:
- Pumping Stations
- Plants
- Research
- Laboratories
- Analytical
- Chemistry
- Leak Detection
A&J Vacuum repair / rebuild and service all Pfeiffer Adixen MVP Series Pumps along with all other Pfeiffer Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Pfeiffer Vacuum MVP 010-3 DC Diaphragm Vacuum Pump, 24 V, Pumping speed 0.6 m³/h, 2000020747 / PK T05 072 / PKT05072
Technical Data:
| Pumping speed | 0.6 m³/h | 0.35 cfm | 10 l/min |
| Ultimate pressure without gas ballast | ≤ 1 hPa | ≤ 0.75 Torr | ≤ 1 mbar |
| Flange (in) | G 1/8" |
| Number of pumping stages | 4 |
| Flange (out) | G 1/8" with silencer (separate package) |
| Motor version | DC motor |
| Voltage: Range | ± 10 % |
| Current max. | 2.5 A |
| Rated current absorption | 1.3 A |
| Short circuit current of power supply, max. | 45 A |
| Protection category | IP 20 |
| Operating altitude, max. | 2000 m |
| Rotation speed | 540-3,000 rpm | 540-3,000 min-1 |
| Cooling method, standard | Convection cooled |
| Ambient temperature | 5-40 °C | 41-104 °F | 278-313 K |
| Temperature: Storage | 5-40 °C | 41-104 °F | 278-313 K |
| Intake pressure max. | 1,100 hPa | 825 Torr | 1,100 mbar |
| Exhaust pressure, max. | 1,100 hPa | 825 Torr | 1,100 mbar |
| I/O interfaces | RS-485 |
| Sound pressure level | 50 dB(A) |
| Emission sound pressure level without gas ballast or purge | 50 dB(A) |
| Switch New | No |
| Leak rate | ≤ 5 · 10-4 Pa m3/s | ≤ 3.75 · 10-3 Torr l/s | ≤ 5 · 10-3mbar l/s |
| Weight | 2 kg | 4.41 lb |
