- P/N PU E22 001-T
- Diaphragm Vacuum Pump Replacement Kit,
- OEM Replacement Kit
- Pfeiffer Vacuum
Shopping Cart ( )
Pfeiffer Vacuum MVP 015-2 Diaphragm Vacuum Pump Overhaul Kit, 2000005849 / PU E22 001 -T / PUE22001-T
Condition:
New
In Stock
Item#:PN06800
Mfr Part#:2000005849 / PU E22 001 -T / PUE22001-T
Manufacturer:Pfeiffer Vacuum
Features:

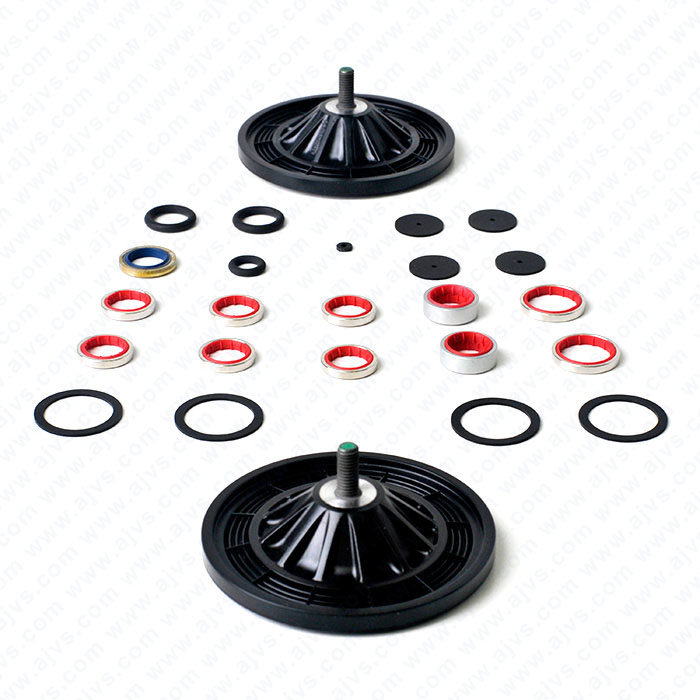

Pfeiffer Vacuum MVP 015-2 Diaphragm Vacuum Pump Overhaul Kit, 2000005849 / PU E22 001 -T / PUE22001-T

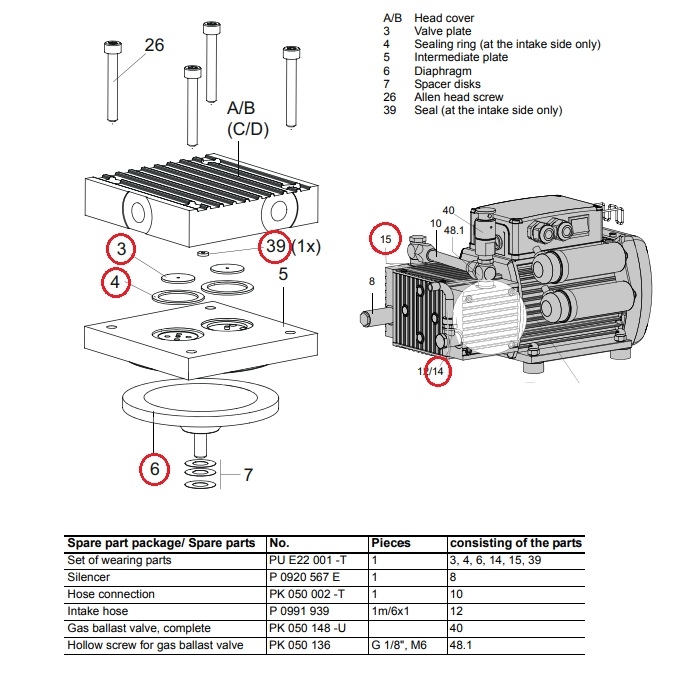

Pfeiffer PUE22001-T Diaphragm kit Includes the following part form the MVP 015 parts diagram:
#3, 4, 6, 14, 15, 30
The MVP015-2 diaphragm vacuum pump of the series MVP 015-2 is a two stage, dry compressor vacuum pump The pumps are positive displacement pumps with a periodic change of size of the suction chamber produced by the movement of the diaphragm. The gas flow causes the valves to open and close automatically. The pump units are directly connected to the drive motor.
- The intake side on the front side of the MVP015-2 pump is provided with a swivelling screw fitting (G1/8) and screw (G1/4) for connection to a Pfeiffer Vacuum turbopump.
- A pressure connection (silencer G1/8) on the front side of the MVP015-2 pump.
- Mains connection via cold unit socket with safety strap (mains cable not included in the standard version delivery consignment).
- MVP015-2 comes with ON/OFF mains switch.
A&J Vacuum also repair / rebuild and service all Alcatel Adixen Turbo Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page.
Pfeiffer Vacuum MVP 015-2 Diaphragm Vacuum Pump Overhaul Kit, 2000005849 / PU E22 001 -T / PUE22001-T
Pfeiffer PUE22001-T Diaphragm kit Includes the following part form the MVP 015 parts diagram:
#3, 4, 6, 14, 15, 30
The MVP015-2 diaphragm vacuum pump of the series MVP 015-2 is a two stage, dry compressor vacuum pump The pumps are positive displacement pumps with a periodic change of size of the suction chamber produced by the movement of the diaphragm. The gas flow causes the valves to open and close automatically. The pump units are directly connected to the drive motor.
- The intake side on the front side of the MVP015-2 pump is provided with a swivelling screw fitting (G1/8) and screw (G1/4) for connection to a Pfeiffer Vacuum turbopump.
- A pressure connection (silencer G1/8) on the front side of the MVP015-2 pump.
- Mains connection via cold unit socket with safety strap (mains cable not included in the standard version delivery consignment).
- MVP015-2 comes with ON/OFF mains switch.
A&J Vacuum also repair / rebuild and service all Pfeiffer Vacuum Diaphragm Pumps, Turbomolecular Pumps, Booster Pumps, Leak Detectors and manyu more. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page.
Pfeiffer Vacuum MVP-015 Diaphragm Replacement Tutorial
Pfeiffer Vacuum MVP 015-2 Diaphragm Vacuum Pump Overview, MVP015
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
We can repair your:
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
