- Final Pressure: < 0.5 mbar
- Exhaust Pressure Max: 1100 hPa
- Pumping Speed 0.7 m3/h
- Rotational Speed (50 Hz): 1500 rpm
Shopping Cart ( )
Pfeiffer Vacuum MVP 015-4 Diaphragm Vacuum Pump, pumping speed of 0.7 m3/h, 230 V (+ 5 % /- 10 %), 50 Hz, 2000020737 / PK T05 065 A / PKT05065A
Condition:
New
Item#:PN07544
Mfr Part#:2000020737 / PK T05 065 A / PKT05065A
Manufacturer:Pfeiffer Vacuum
Features:
Pfeiffer Vacuum MVP 015-4 Diaphragm Vacuum Pump, pumping speed of 0.7 m3/h, 230 V (+ 5 % /- 10 %), 50 Hz, 2000020737 / PK T05 065 A / PKT05065A

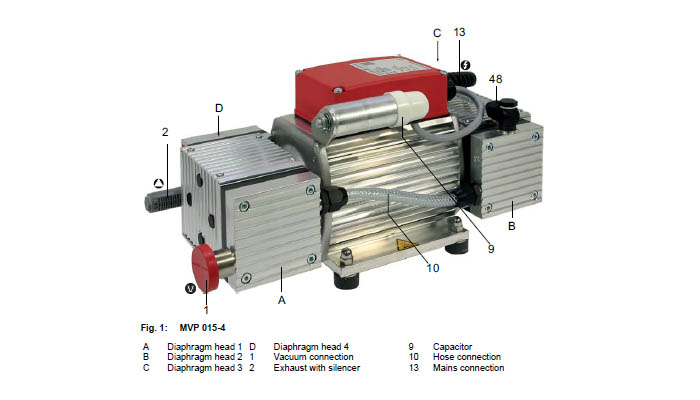

The Pfeiffer MVP 015 4 Diaphragm Pump Overview:
The Pfeiffer MVP 015-4 Diaphragm Pump can be applied in all areas where an oil-free, dry vacuum is required. Particularly the pump is suitable as backing pump for many Pfeiffer Vacuum turbo pumps in applications involving light gas loads only.
The Pfeiffer Vacuum MVP 015 Vacuum Pump Applications:
- Pumping Stations
- Plants
- Research
- Laboratories
- Analytical
- Chemistry
- Leak Detection
A&J Vacuum repairs, rebuilds, and services Pfeiffer Vacuum Pumps, including Diaphragm Pumps and Turbo Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
This item is non-returnable/non-refundable
Pfeiffer Vacuum MVP 015-4 Diaphragm Vacuum Pump, pumping speed of 0.7 m3/h, 230 V (+ 5 % /- 10 %), 50 Hz, 2000020737 / PK T05 065 A / PKT05065A
Technical Data:
| Ambient temperature | 12-40 °C | 53.6-104 °F | 285-313 K |
| Cooling method, standard | Convection cooled |
| Current max. | 0,95 A |
| Emission sound pressure level without gas ballast or purge | 52 dB(A) |
| Exhaust pressure, max. | 1,100 hPa | 825 Torr | 1,100 mbar |
| Flange (in) | DN 16 ISO-KF; G 1/8" |
| Flange (out) | G 1/8” with silencer |
| Intake pressure max. | 1,100 hPa | 825 Torr | 1,100 mbar |
| Leak rate | ≤ 5 · 10-4 Pa m3/s | ≤ 3.75 · 10-3 Torr l/s | ≤ 5 · 10-3mbar l/s |
| Mains cable | Yes |
| Mains requirement: voltage | 230 V |
| Mains requirement: voltage (range) | ± 10 % |
| Motor version | 1-ph motor |
| Number of pumping stages | 4 |
| Operating altitude, max. | 2000 m |
| Protection category | IP54 |
| Pumping speed at 50 Hz | 0.7 m³/h | 0.29 cfm | 8.33 l/min |
| Rated current absorption | 0.3 A |
| Rotation speed at 50 Hz | 1,500 rpm | 1,500 min-1 |
| Sound pressure level | 52 dB(A) |
| Switch New | No |
| Temperature: Medium | -10 °C | -50 °F | -283 K |
| Temperature: Storage | 5-40 °C | 41-104 °F | 278-313 K |
| Ultimate pressure without gas ballast | 5 · 10-1 hPa | 3.75 · 10-1Torr | 5 · 10-1 mbar |
| Weight | 7.5 kg | 16.53 lb |
