- Pfeiffer Vacuum
- Diaphragm Dry Vacuum Pump Relay Box
- For TC 110 / Plug M8
- PN PM 071 282-X
Shopping Cart ( )

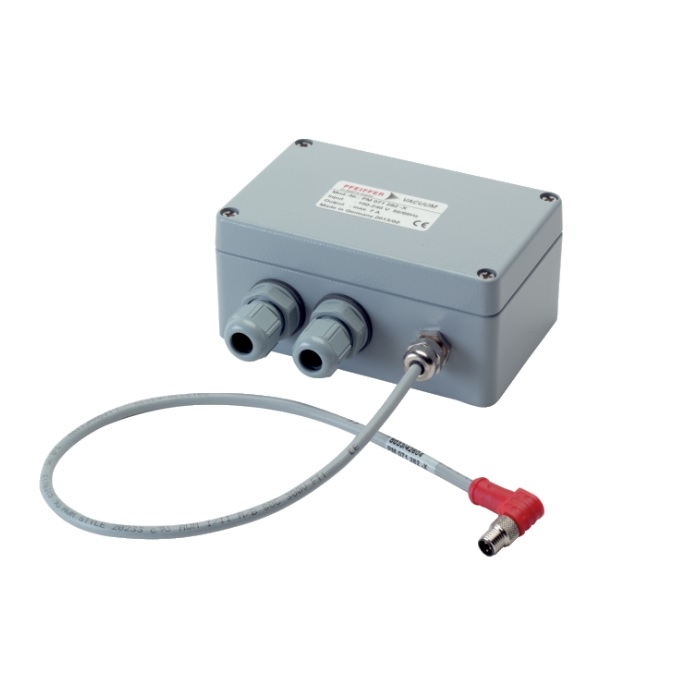

Pfeiffer Vacuum TC 110 Diaphragm Dry Vacuum Pump Relay Box Shielded 7 A single-phase, Plug M8, 2000018251 / PM 071 282 -X / PM071282-X
Condition:
New
Item#:PN22766
Mfr Part#:2000018251 / PM 071 282 -X / PM071282-X
Manufacturer:Pfeiffer Vacuum
Features:
Pfeiffer Vacuum TC 110 Diaphragm Dry Vacuum Pump Relay Box Shielded 7 A single-phase, Plug M8, 2000018251 / PM 071 282 -X / PM071282-X
Pfeiffer Vacuum Diaphragm Pump Relay Box, PM071282-X is compatible with TC 400, TC 1200, TM 700, TM 3000, Diaphragm Dry Vacuum Pumps.
- To control backing pumps connected with drive electronics TC 110/120 and TCP 350
- 1-phase (e. g. diaphragm pumps) with a maximum of 7 A starting current
- Can be directly connected with a M8 plug to the accessory outlets from the connection cable, TCS 12/13 as well as TC 110/120 with interface (PB, E74, RS)
- With accessory cable, can be connected to TCP 350
- Control lead (0.45 m) included in scope of delivery
A&J Vacuum repair / rebuild and service all Pfeiffer Vacuum Diaphragm Dry Pumps along with all other Pfeiffre Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
This item is non-returnable/non-refundable
Pfeiffer Vacuum TC 110 Diaphragm Dry Vacuum Pump Relay Box Shielded 7 A single-phase, Plug M8, 2000018251 / PM 071 282 -X / PM071282-X
Technical Data
| Contact rating | 1-phase 7 A |
| Control voltage | 24 V DC |
| Electronic drive unit | TC 110/120 | TC 400 with PB | TC 1200 | TM 700 |
| Mains requirement: voltage (range) | 100–240 (± 10 %) V AC |
| Plug | M8 |
| Shielded | Yes |
A&J Vacuum repair / rebuild and service all Pfeiffer Vacuum Diaphragm Dry Pumps along with all other Pfeiffre Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
