- Pumping Speed at 50 Hz: 3.8 m3/h
- Pumping Speed at 60 Hz: 4.3 m3/h
- Exhaust Pressure: 1100 hPa
- Leak Rate: 2 · 10-3 Pa m3/s

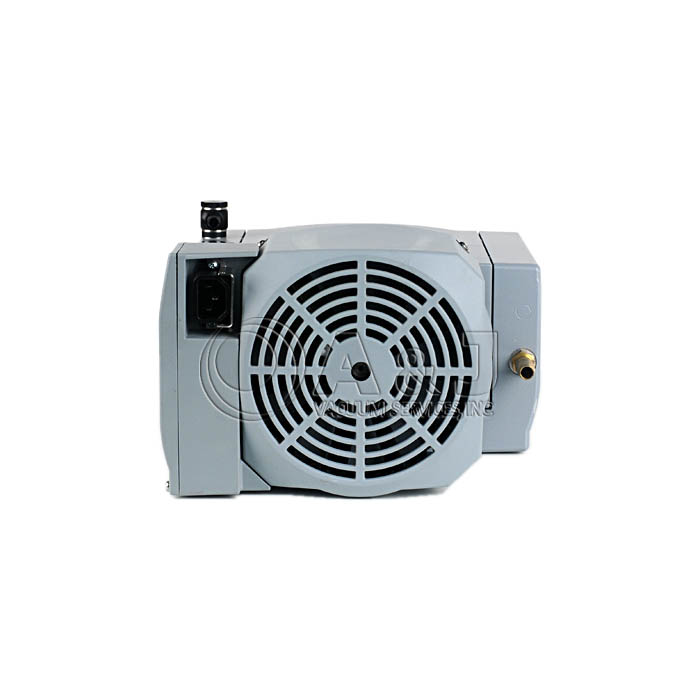

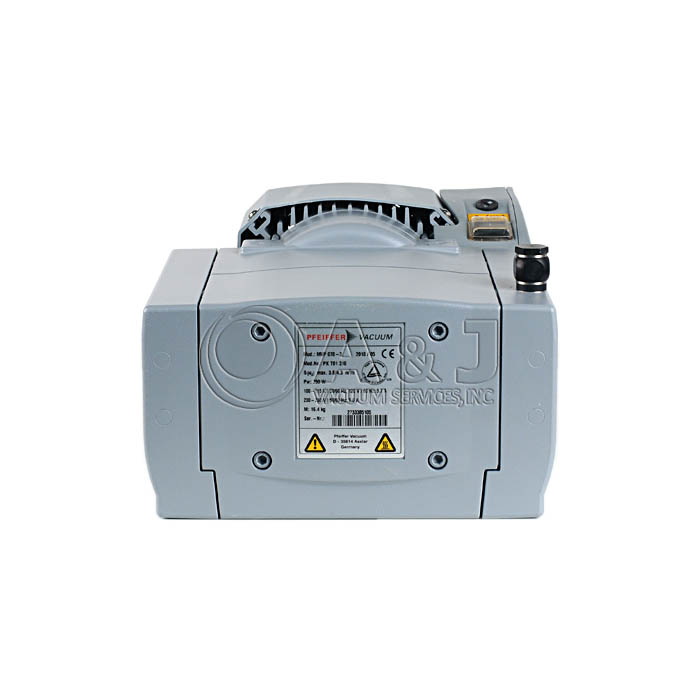

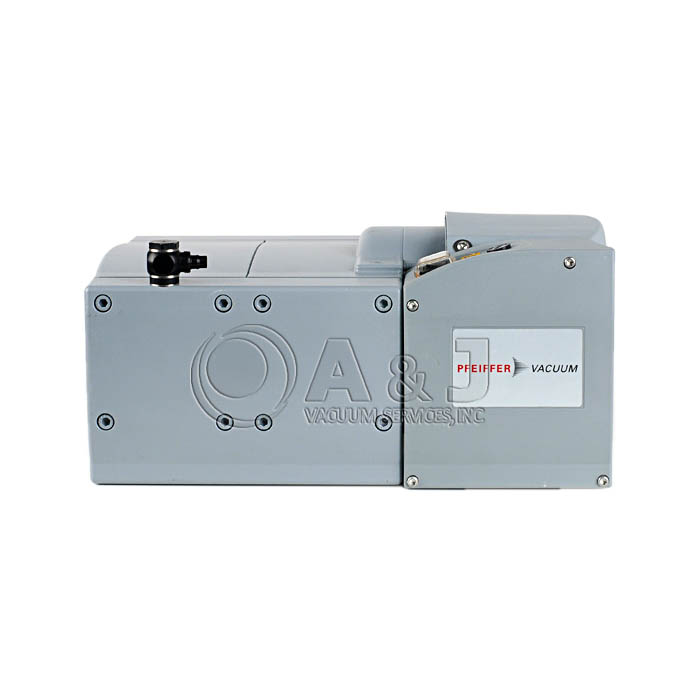

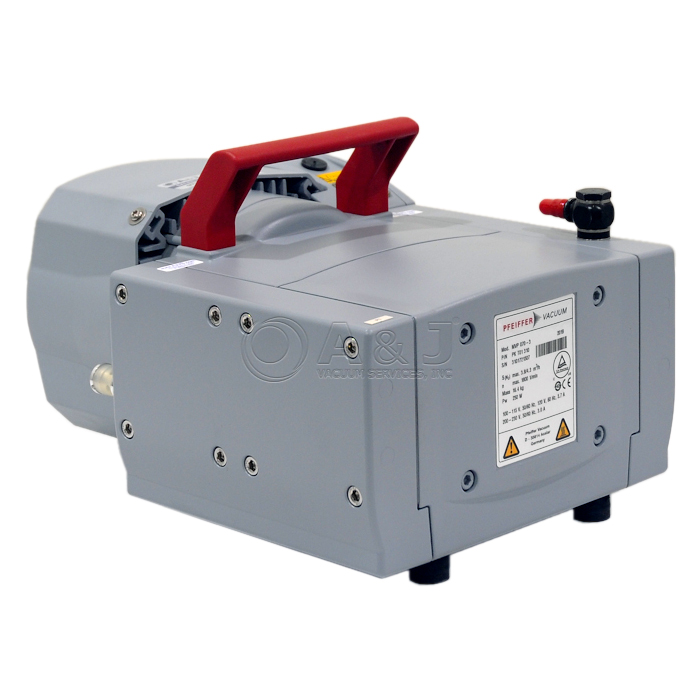

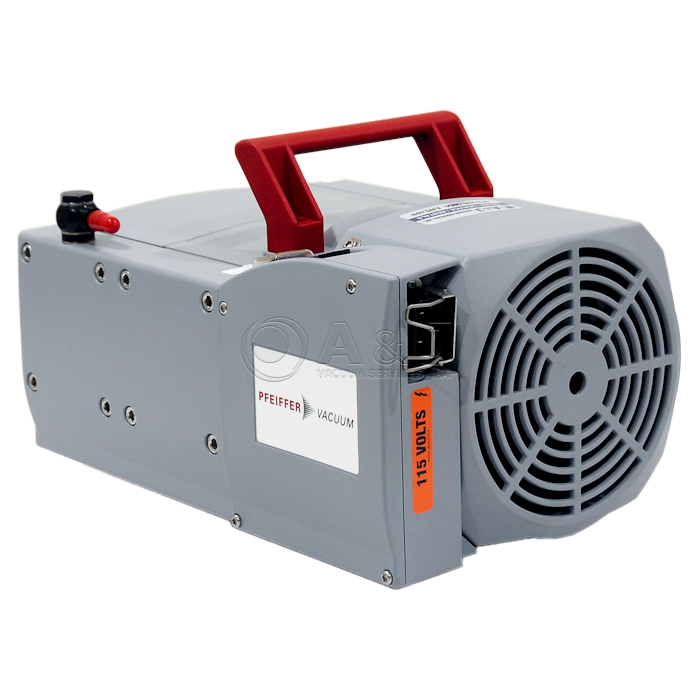

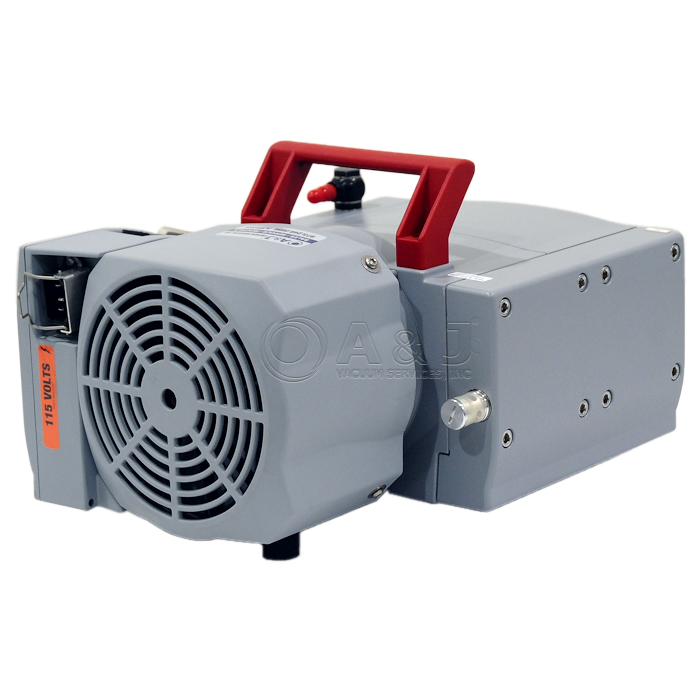

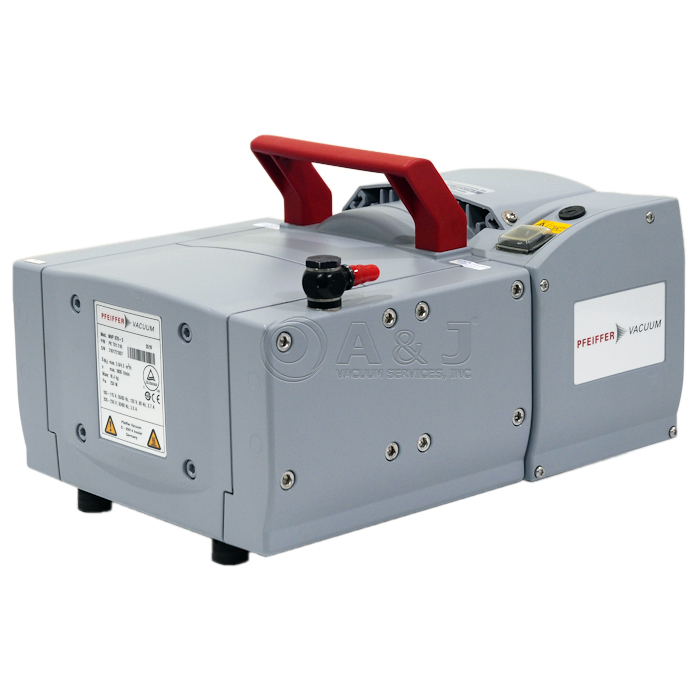

Pfeiffer Vacuum MVP 070-3 Diaphragm Dry Vacuum Pump, 100-115 V, 50/60 Hz; 120 V, 60 Hz; 200-230 V, 50/60 Hz, PKT01310 / PK T01 310
Pfeiffer MVP 070-3 Features:
- Dry and oil-free
- Low noise level
- Compact design
MVP 070-3 / PK T01 310 Overview:
The diaphragm vacuum pumps of the series MVP 070-3 are three stage and those of the MVP 040-2 series are two stage, dry compressor vacuum pumps. The pumps are positive displacement pumps with a periodic change of size of the suction chamber produced by the movement of the diaphragm. The gas flow causes the valves to open and close automatically. The pump units are directly connected to the drive motor.
MVP070-3 Applications:
- Pump with mains power supply (switchable) via rubber socket
- Locking caps for vacuum and exhaust flange
- Operating manual
A&J Vacuum services and repairs Pfeiffer MVP 070-3 and 040-2 diaphragm dry pump, along with all other Pfeiffer Vacuum and Diaphragm Dry Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Pfeiffer Vacuum MVP 070-3 Diaphragm Dry Vacuum Pump, 100-115 V, 50/60 Hz; 120 V, 60 Hz; 200-230 V, 50/60 Hz, PKT01310 / PK T01 310
Pfeiffer MVP 070-3 Technical Data:
| Flange (in) | G 1/4" elbow union with enclosed hose 10/8, 1000 mm with an elbow union in G 1/4" at the end |
| Flange (out) | G 1/4" + silencer |
| Pumping speed at 50 Hz | 3.8 m3/h |
| Pumping speed at 60 Hz | 4.3 m3/h |
| Ultimate pressure without gas ballast | 1.0 hPa |
| Intake pressure max. | 1100 hPa |
| Exhaust pressure, max. | 1100 hPa |
| Rotation speed at 50 Hz | 1500 min-1 |
| Rotation speed at 60 Hz | 1800 min-1 |
| Leak rate | 2 · 10-3 Pa m3/s |
| Emission sound pressure level without gas ballast | ≤ 55 dB (A) |
| Ambient temperature | 12-40 °C |
| Protection category | IP 40 |
| Mains requirement: voltage 50 Hz | 100-115; 200-230 V |
| Mains requirement: voltage 60 Hz | 100-115; 120; 200-230 V |
| Switch | Yes |
| Current consumption | 5.7 A |
| Altitude of site, max | 2000 m |
| Weight | 16.4 kg | 36.2 lb |
| Cooling method, standard | Air |
A&J Vacuum services and repairs Pfeiffer MVP 070-3 and 040-2 diaphragm dry pump, along with all other Pfeiffer Vacuum and Diaphragm Dry Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Pfeiffer MVP 040-2, MVP 070-3, MVP 070-3C Operation Manual
|
Service and Repair - Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
Overview
Pfeiffer Vacuum MVP 070-3 Diaphragm Dry Vacuum Pump, 100-115 V, 50/60 Hz; 120 V, 60 Hz; 200-230 V, 50/60 Hz, PKT01310 / PK T01 310
Pfeiffer MVP 070-3 Features:
- Dry and oil-free
- Low noise level
- Compact design
MVP 070-3 / PK T01 310 Overview:
The diaphragm vacuum pumps of the series MVP 070-3 are three stage and those of the MVP 040-2 series are two stage, dry compressor vacuum pumps. The pumps are positive displacement pumps with a periodic change of size of the suction chamber produced by the movement of the diaphragm. The gas flow causes the valves to open and close automatically. The pump units are directly connected to the drive motor.
MVP070-3 Applications:
- Pump with mains power supply (switchable) via rubber socket
- Locking caps for vacuum and exhaust flange
- Operating manual
A&J Vacuum services and repairs Pfeiffer MVP 070-3 and 040-2 diaphragm dry pump, along with all other Pfeiffer Vacuum and Diaphragm Dry Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Specifications
Pfeiffer Vacuum MVP 070-3 Diaphragm Dry Vacuum Pump, 100-115 V, 50/60 Hz; 120 V, 60 Hz; 200-230 V, 50/60 Hz, PKT01310 / PK T01 310
Pfeiffer MVP 070-3 Technical Data:
| Flange (in) | G 1/4" elbow union with enclosed hose 10/8, 1000 mm with an elbow union in G 1/4" at the end |
| Flange (out) | G 1/4" + silencer |
| Pumping speed at 50 Hz | 3.8 m3/h |
| Pumping speed at 60 Hz | 4.3 m3/h |
| Ultimate pressure without gas ballast | 1.0 hPa |
| Intake pressure max. | 1100 hPa |
| Exhaust pressure, max. | 1100 hPa |
| Rotation speed at 50 Hz | 1500 min-1 |
| Rotation speed at 60 Hz | 1800 min-1 |
| Leak rate | 2 · 10-3 Pa m3/s |
| Emission sound pressure level without gas ballast | ≤ 55 dB (A) |
| Ambient temperature | 12-40 °C |
| Protection category | IP 40 |
| Mains requirement: voltage 50 Hz | 100-115; 200-230 V |
| Mains requirement: voltage 60 Hz | 100-115; 120; 200-230 V |
| Switch | Yes |
| Current consumption | 5.7 A |
| Altitude of site, max | 2000 m |
| Weight | 16.4 kg | 36.2 lb |
| Cooling method, standard | Air |
A&J Vacuum services and repairs Pfeiffer MVP 070-3 and 040-2 diaphragm dry pump, along with all other Pfeiffer Vacuum and Diaphragm Dry Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Service & Repair
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
