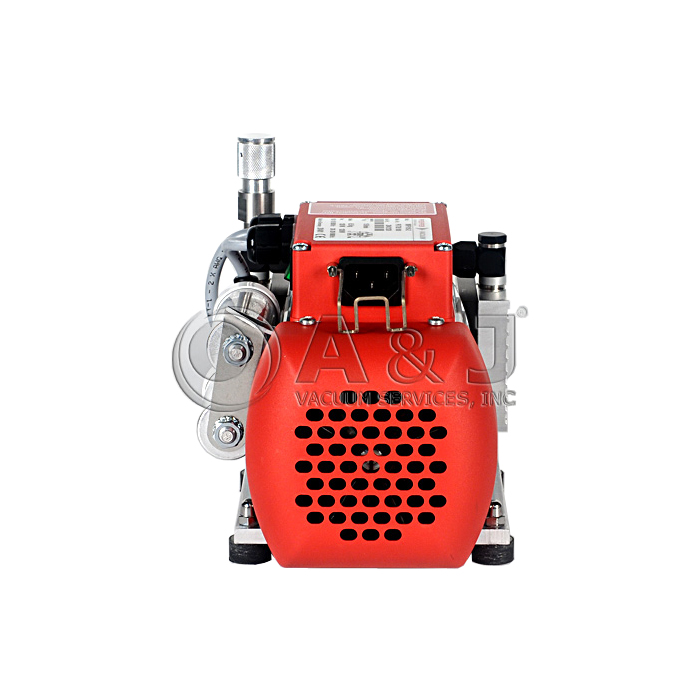

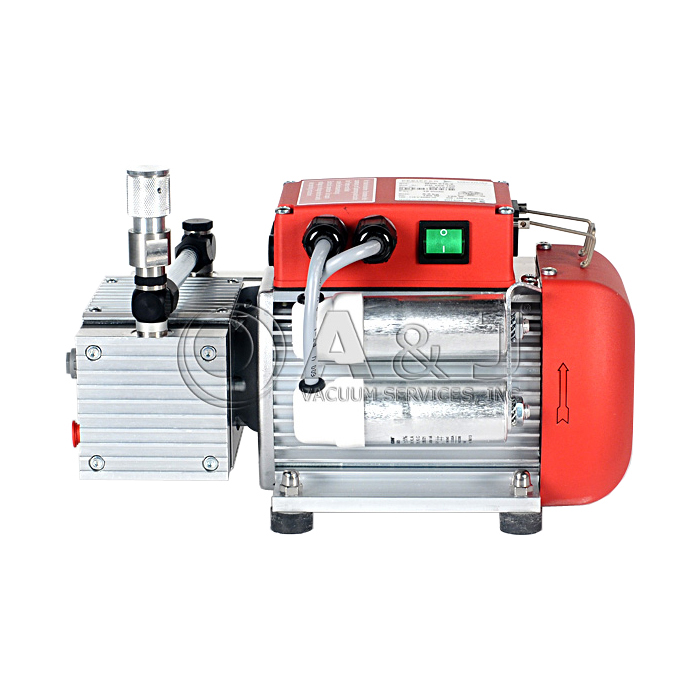

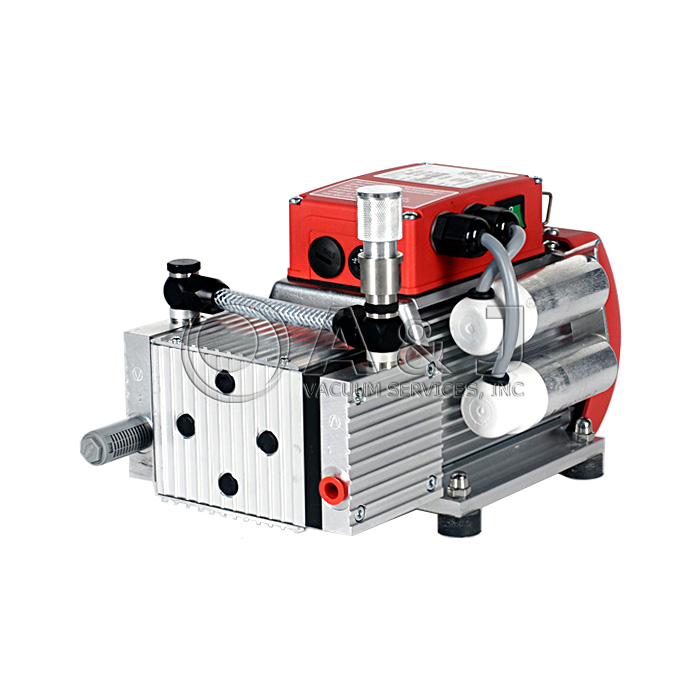

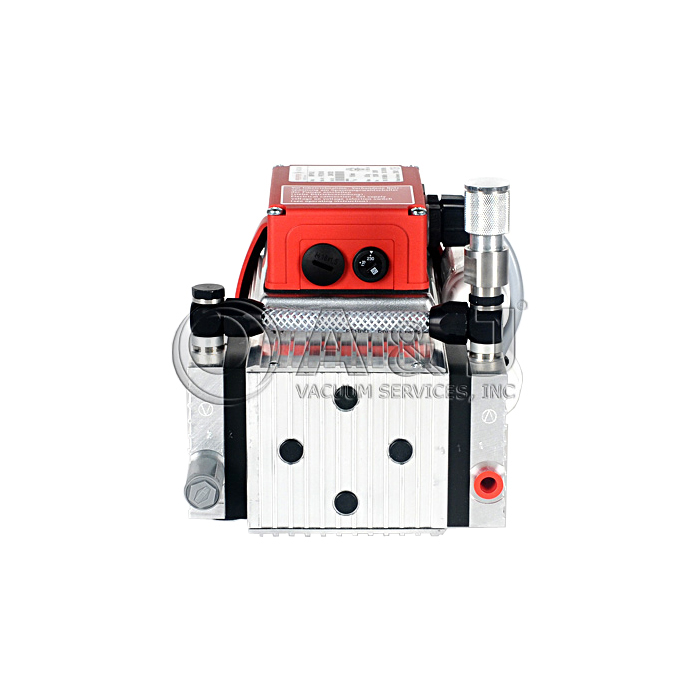

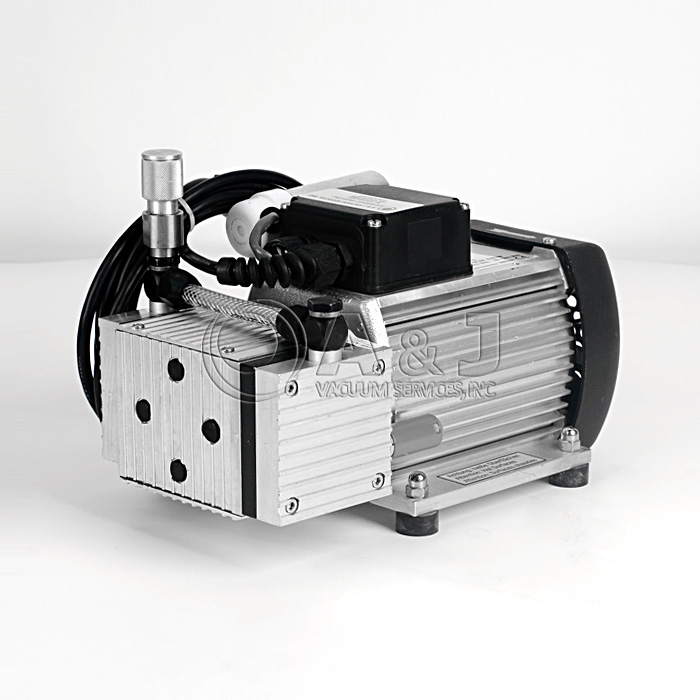

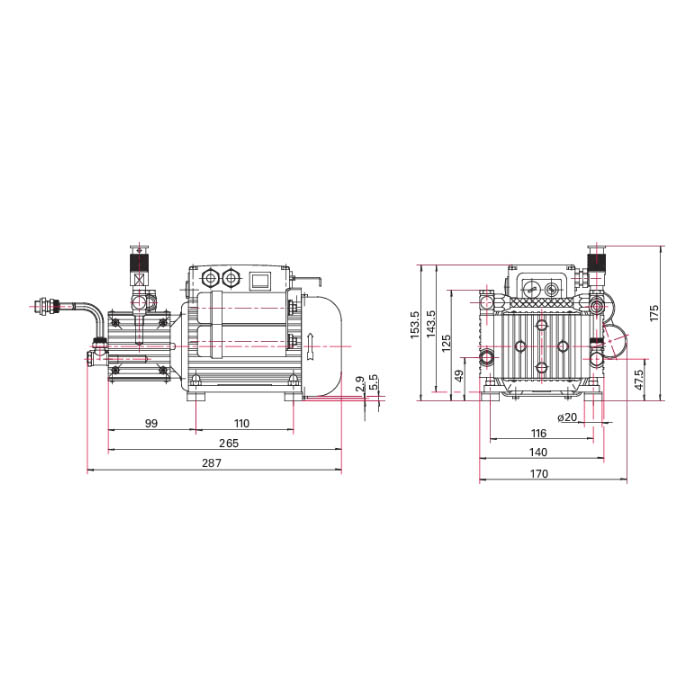

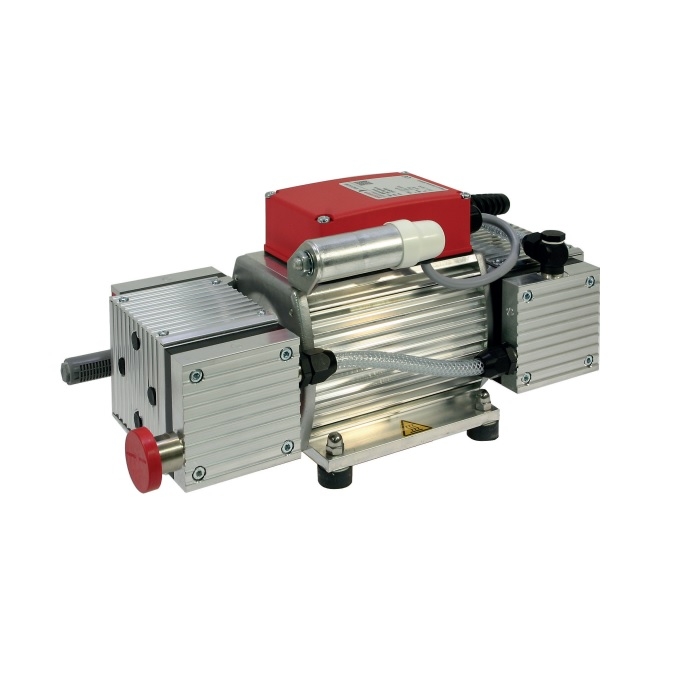

PFEIFFER VACUUM MVP 015-2 Diaphragm Vacuum Pump, 90-127/187-265 V, 50/60 Hz, PKT05100, MVP015
Overview:
The MVP015 is a direct replacement for discontinued Pfeiffer DUO 2.5 Vacuum Pump.
Pfeiffer MVP 15 Diaphragm vacuum pump is a two stage, dry compressor vacuum pump.
Pfeiffer MVP015 diaphragm pumps are positive displacement pumps with a periodic change of size of the suction chamber produced by the movement of the diaphragm. The gas flow causes the valves to open and close automatically. The pump units are directly connected to the drive motor.
- The intake side on the front side of the pump is provided with a swivelling screw fitting (G1/8) and screw (G1/4) for connection to a Pfeiffer Vacuum turbopump.
- A pressure connection (silencer G1/8) on the front side of the pump.
- Mains connection via cold unit socket with safety strap (mains cable not included in the standard version delivery consignment).
- ON/OFF mains switch.
Pfeiffer MVP 015 Specifications:
Final Pressure: < 3.5 mbar
Ambient Temperature: 12-40 °C
Exhaust Pressure Max: 1100 hPa

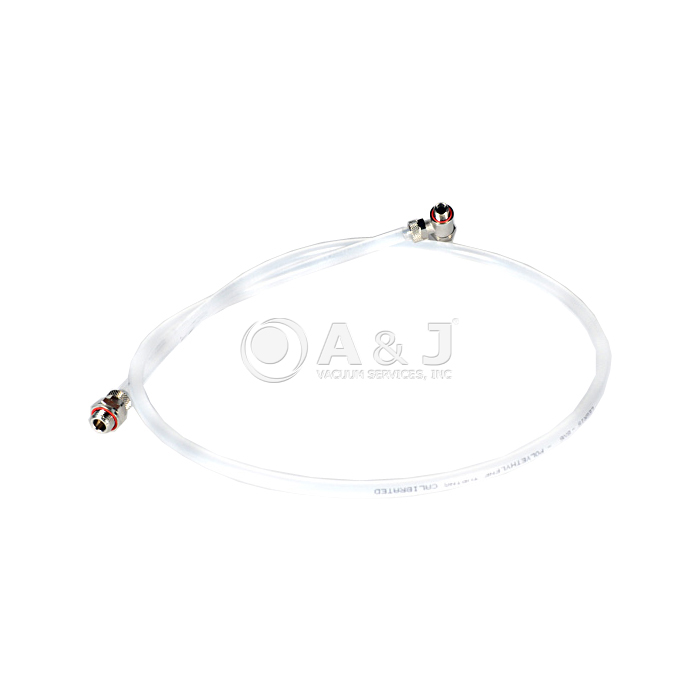

Flange In: G 1/8" elbow union plus enclosed hose; DN 6 x 1000 mm with a straight union in G 1/4" at the end
Flange Out: G 1/8" plus silencer
Intake Pressure Max: 1100 hPa
Leak Rate: < 5 x 10-3 hPa l/s
Motor Rating: 120 W
Rotational Speed (50 Hz): 1500 rpm
Rotational Speed (60 Hz): 1800 rpm

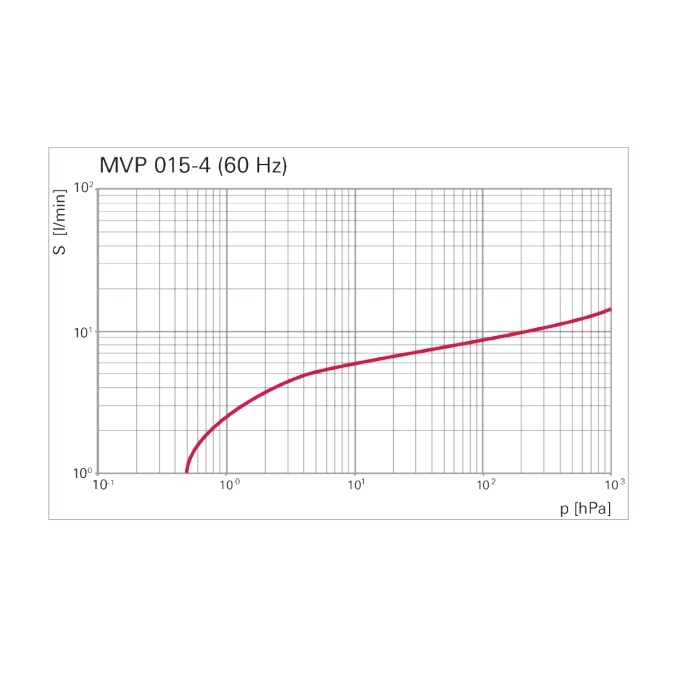

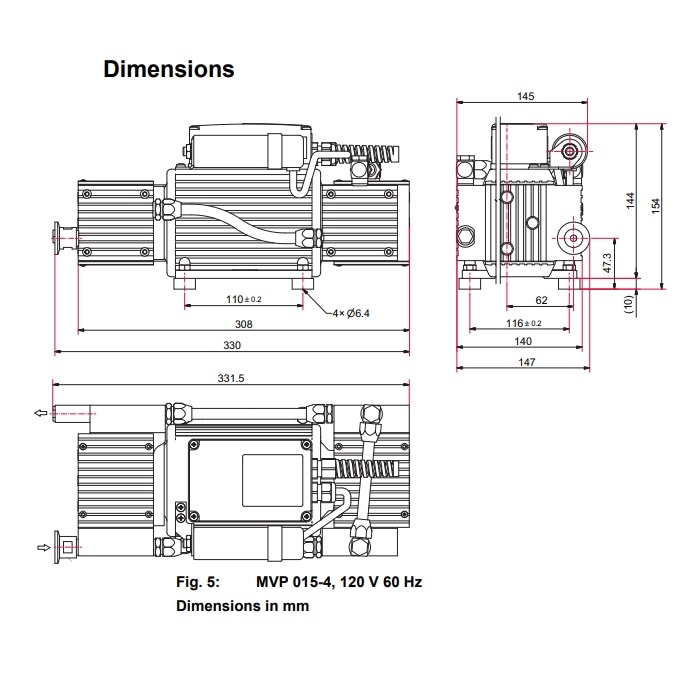

A&J Vacuum repair / rebuild and service all Pfeiffer Adixen MVP015-2 or MVP015-4 Dry Pumps along with all other Pfeiffre Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854

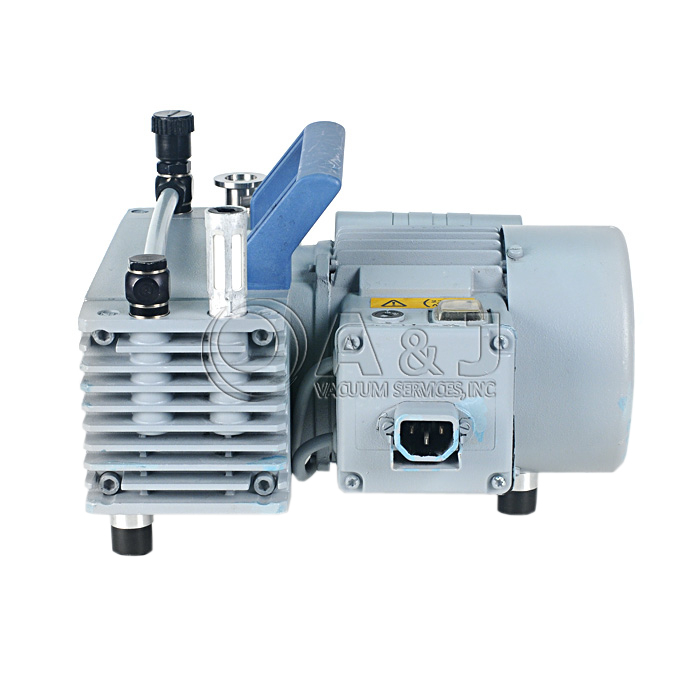

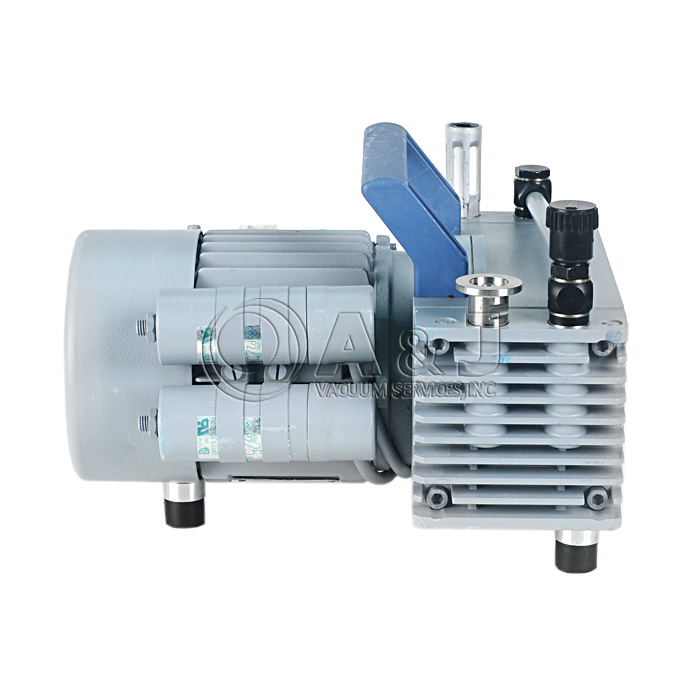

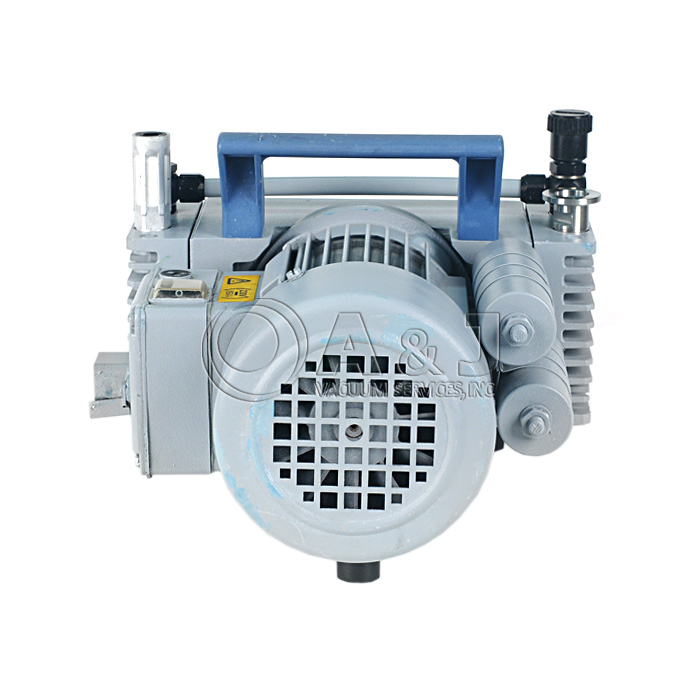

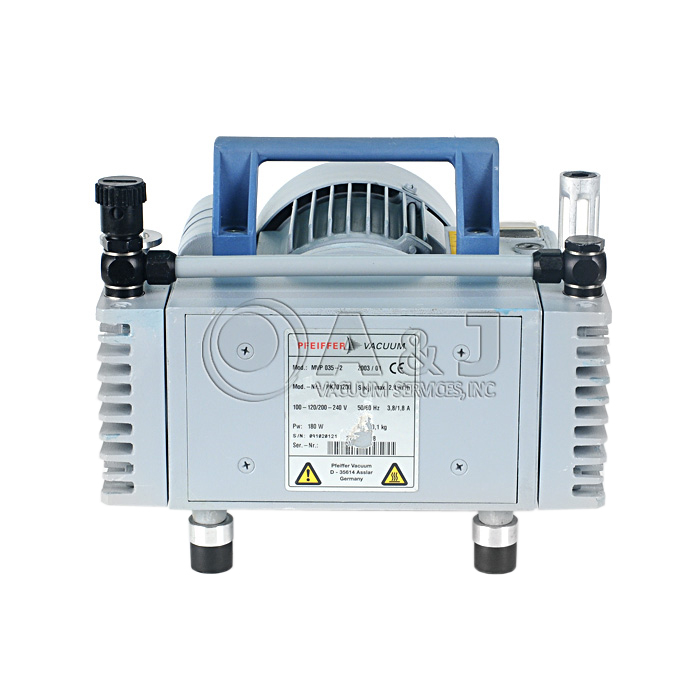

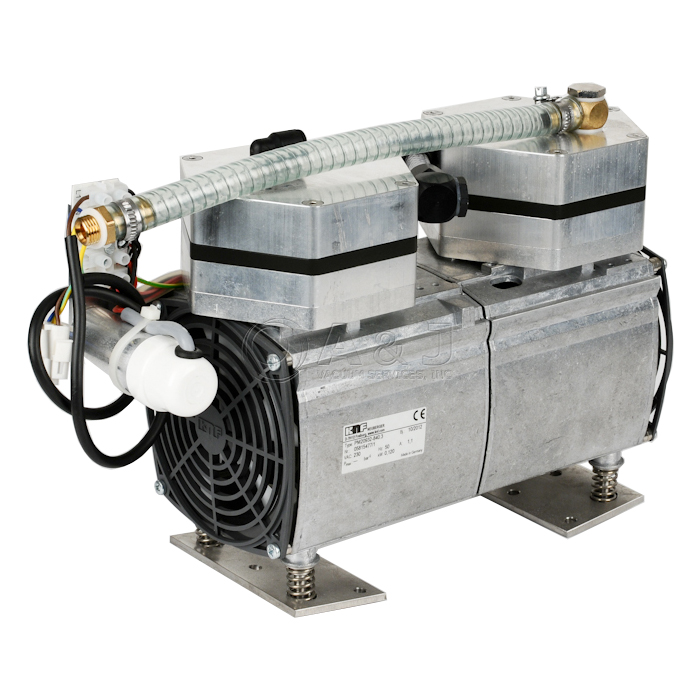

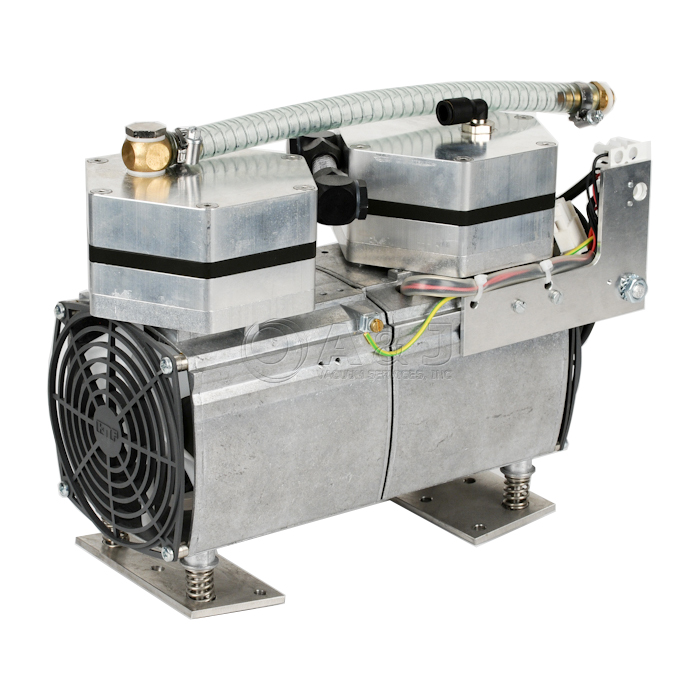

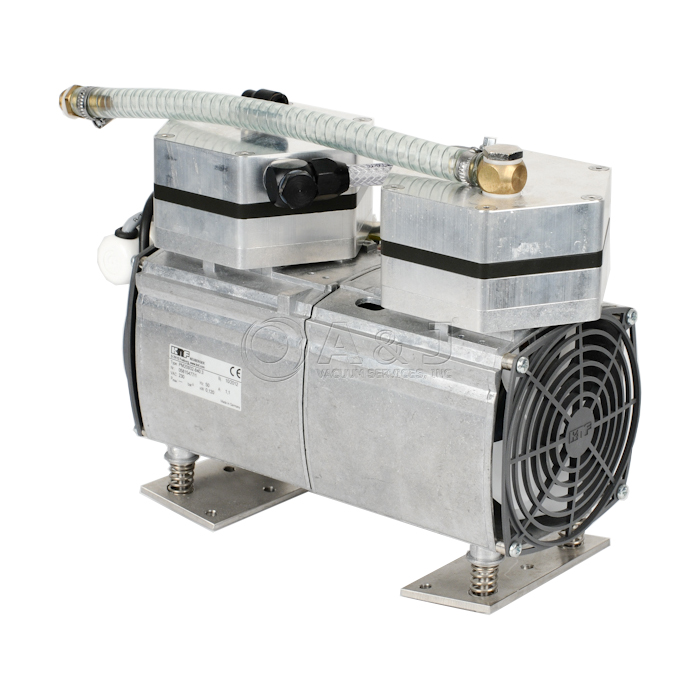

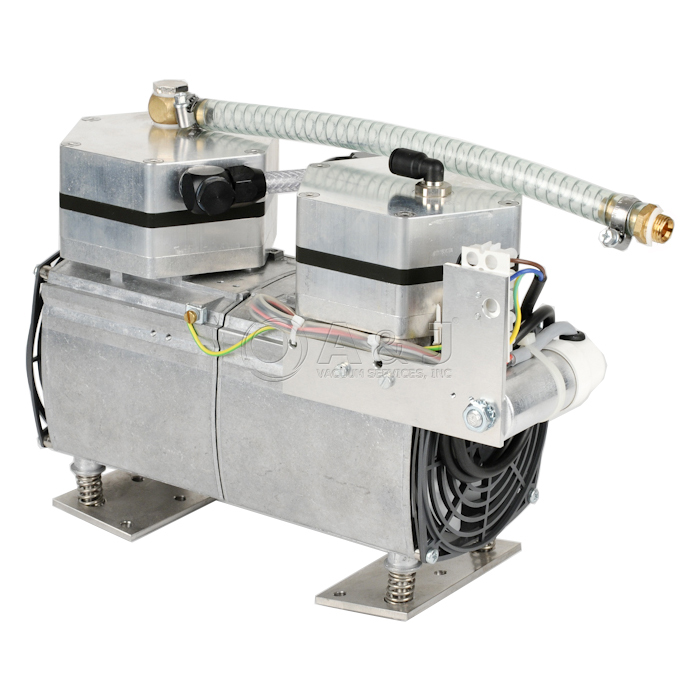

Pfeiffer Vacuum MVP 035 Diaphragm Vacuum Pump for HLT 270 and HLT 570 Helium Leak Detectors 230 V, 50 Hz; B8199999EM
Overview:
The Pfeiffer diaphragm pump of the series MVP 035 series are two stage dry compressing pumps designed for Pfeiffer HLT 270 and Pfeiffer HLT 570 Helium Leak Detectors.
This means that any medium being pumped is not brought into contact with lubricating agents.
The Pfeiffer diaphragm pumps are of the displacement type where the movement of the diaphragm causes a periodic change in the size of the working chamber.
The flow of gas causes the self-acting valves to open and close.
The pumping units are directly connected to the drive motor.
A&J Vacuum also repair / rebuild and service Pfeiffer Helium Leak Detectors, Turbo Pumps along with all other Edwards pumps and Pfeiffer Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854

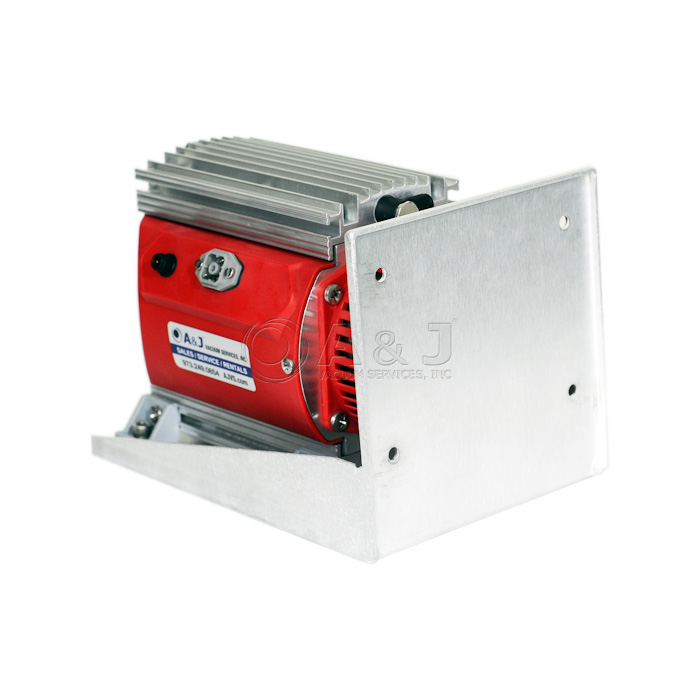

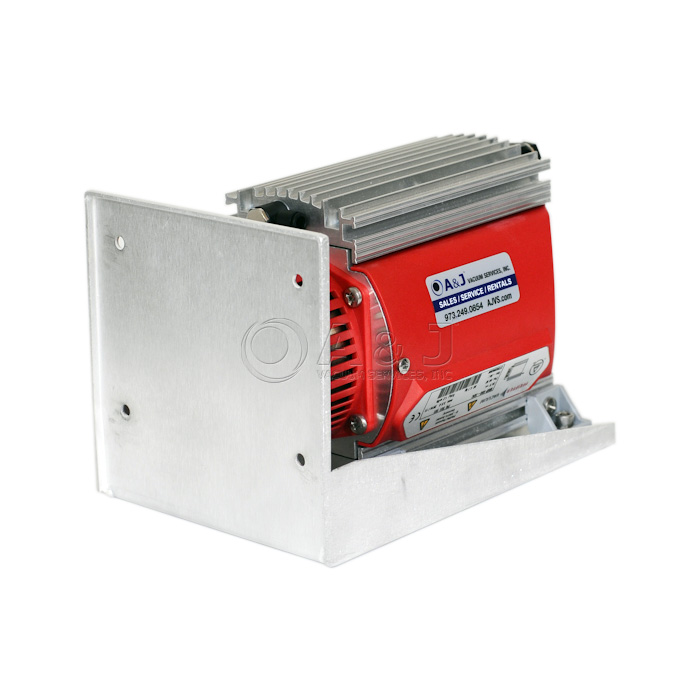

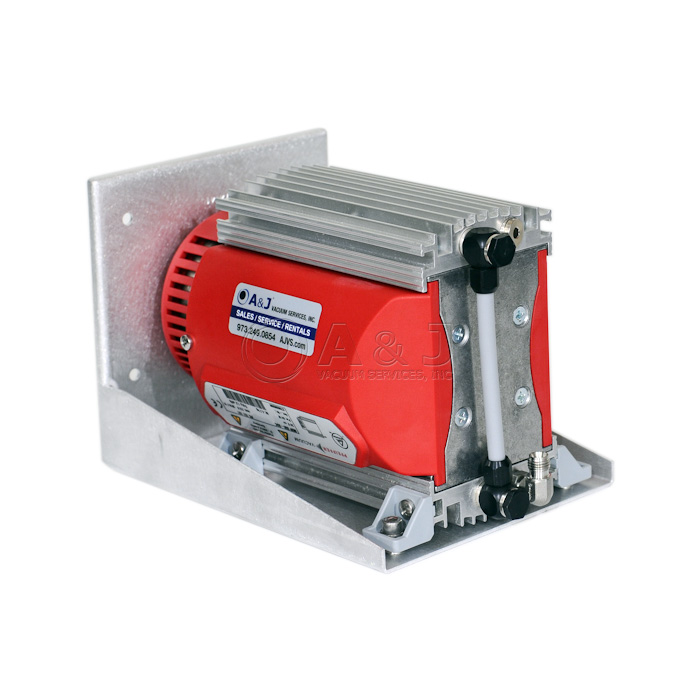

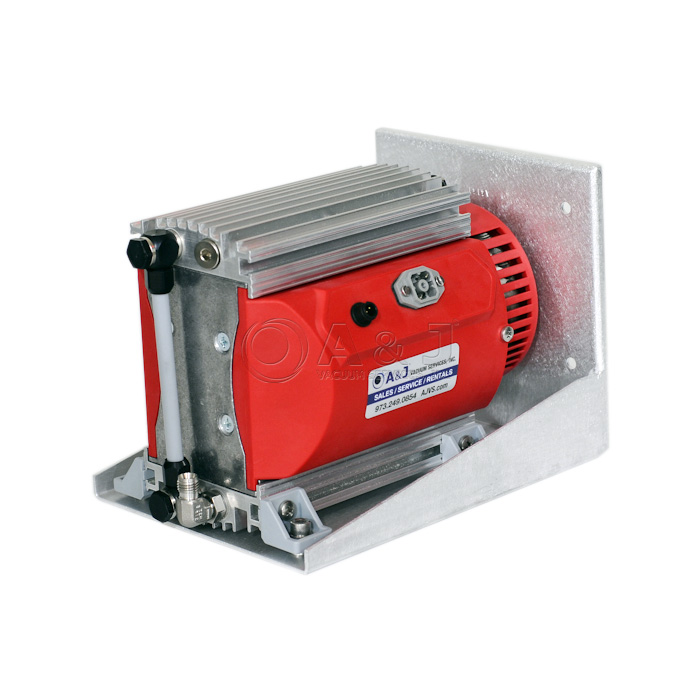

Fully Refurbished Pfeiffer MVP030-3 DC Diaphragm Pump, 24 V, PKT01191, for Bruker Mass Spectrometer, MVP 030-3
Please note: Metal bracket shown on the pictures is not included.
Overview:
The MVP-030 Diaphragm vacuum pumps of the series MVP030-3 VDC are three stage, dry diaphragm pumps mounted on custom bracket for Bruker Mass Spectrometer.
The Pfeiffer MVP030 pumps are positive displacement pumps with a periodic change of size of the suction chamber produced by the movement of the diaphragm.
The gas flow causes the valves to open and close automatically.
The Pfeiffer MVP diaphragm pump units are directly connected to the drive motor.
A&J Vacuum repair / rebuild and service all Pfeiffer Vacuum MVP-030-3DC / PKT01191 Diaphragm Pumps along with all other Pfeiffer Vacuum Pumps , Turbo Pump and all other Pfeiffer Leak Detector Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854

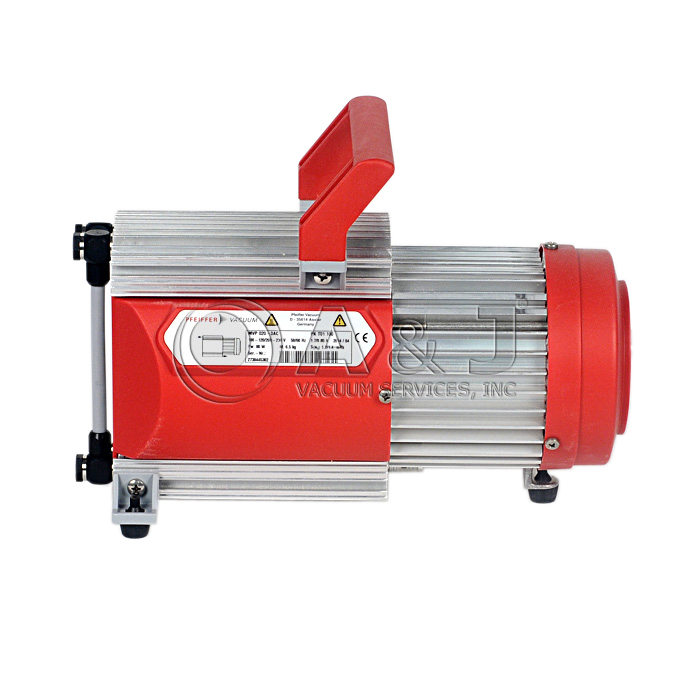

Pfeiffer Vacuum MVP 020-3 AC Diaphragm Pump, 100-120/200-230 V, 50/60 Hz, PKT01100, PK T01 100
Pfeiffer Vacuum MVP-020 3 Diaphragm Pump Overview:
The Diaphragm Vacuum Pumps of the series MVP 020-3 AC/DC are three stage, dry compressor vacuum pumps.The pumps are positive displacement pumps with a periodic change of size of the suction chamber produced by the movement of the diaphragm.The gas flow causes the valves to open and close automatically. The pump units are directly connected to the drive motor.
The Pfeiffer Vacuum MVP 020 Vacuum Pump Applications:
- Pumping Stations
- Plants
- Research
- Laboratories
- Analytical
- Chemistry
- Leak Detection
A&J Vacuum repairs, rebuilds, and services Pfeiffer Vacuum Pumps, including Diaphragm Pumps and Turbo Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.

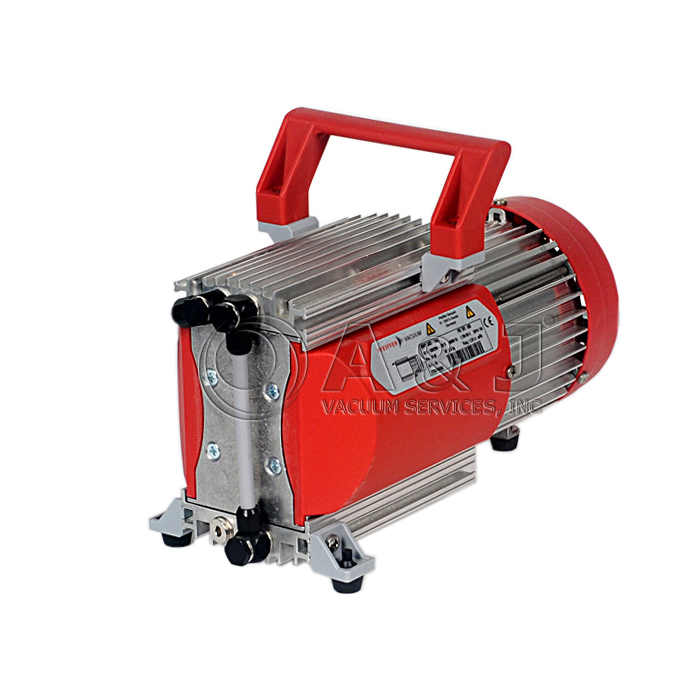

Fully Re-manufactured Pfeiffer Vacuum MVP 020-3 AC Diaphragm Pump, 100-120/200-230 V, 50/60 Hz, Pumping speed 0.7 m³/h PKT01110, PK T01 110
Pfeiffer Vacuum MVP 020 3 AC Diaphragm Pump Overview:
The Diaphragm Vacuum Pumps of the series MVP 020-3 AC PKT01110 are three stage, dry compressor vacuum pumps.The pumps are positive displacement pumps with a periodic change of size of the suction chamber produced by the movement of the diaphragm.The gas flow causes the valves to open and close automatically. The pump units are directly connected to the drive motor.
The Pfeiffer Vacuum MVP 020 AC / PK T01 110 Vacuum Pump Applications:
- Pumping Stations
- Plants
- Research
- Laboratories
- Analytical
- Chemistry
- Leak Detection
A&J Vacuum repairs, rebuilds, and services Pfeiffer Vacuum Pumps, including Diaphragm Pumps and Turbo Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.

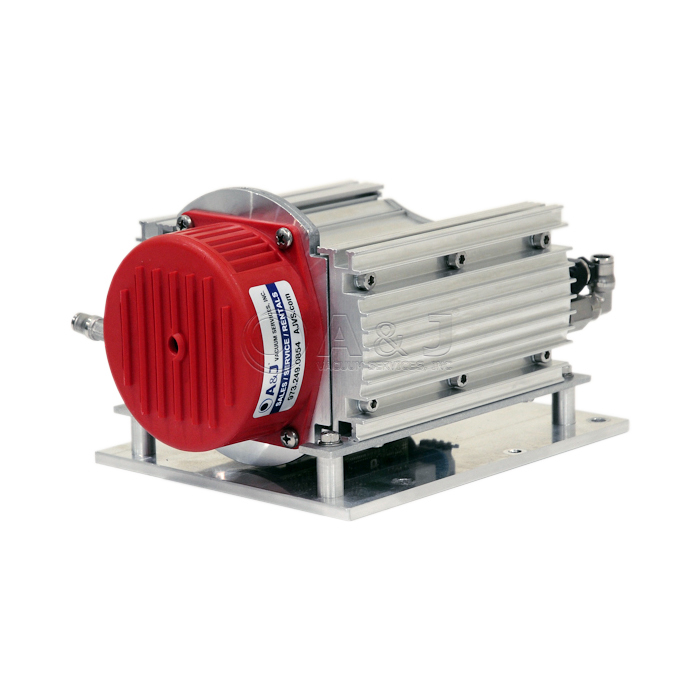

Fully Refurbished Pfeiffer MVP020-3 DC Diaphragm Pump, 24 V, PKT01150, for The Pfeiffer Vacuum ThermoStar GSD 301 T3 Benchtop Mass Spectrometer, PK T01 151-A / PKT01151
Pfeiffer MVP 020-3 DC / PK T01 151-A / PKT01151-A Overview:
The MVP-020 Diaphragm vacuum pumps of the series MVP020-3 AC/DC are three stage, dry diaphragm pumps mounted on custom bracket for Bruker Mass Spectrometer.
The Pfeiffer MVP020 pumps are positive displacement pumps with a periodic change of size of the suction chamber produced by the movement of the diaphragm.
The gas flow causes the valves to open and close automatically.
The Pfeiffer MVP diaphragm pump is designed for Pfeiffer Thermostar GSD301 T3 Mass Spectrometer.
A&J Vacuum repair / rebuild and service all Pfeiffer Vacuum MVP 020-3DC / PK T01 151A Diaphragm Pumps along with all other Pfeiffer Vacuum Pumps , Turbo Pump and all other Pfeiffer Leak Detector Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Overview:
The diaphragm pumps of the series MVP 035-2 series are two stage dry compressing pumps.
This means that any medium being pumped is not brought into contact with lubricating agents.
The pumps are of the displacement type where the movement of the diaphragm causes a periodic change in the size of the working chamber.
The flow of gas causes the self-acting valves to open and close.
The pumping units are directly connected to the drive motor.
Overview:

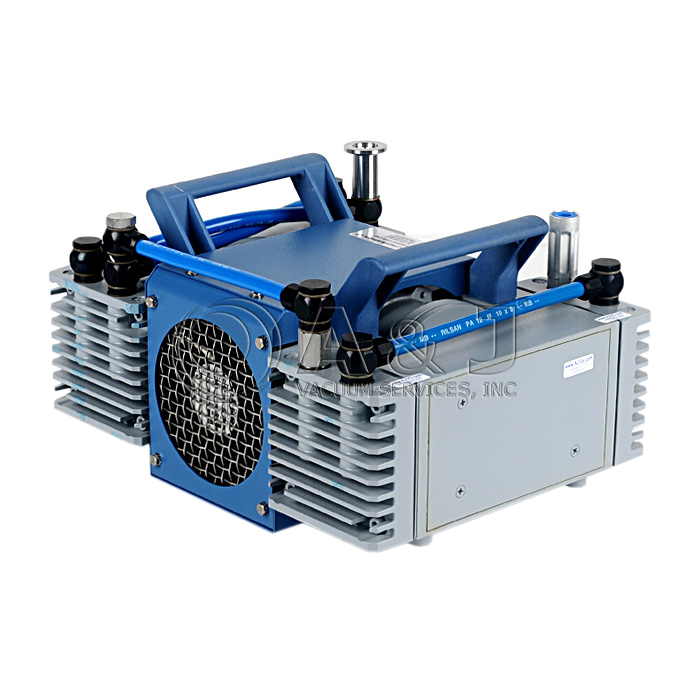

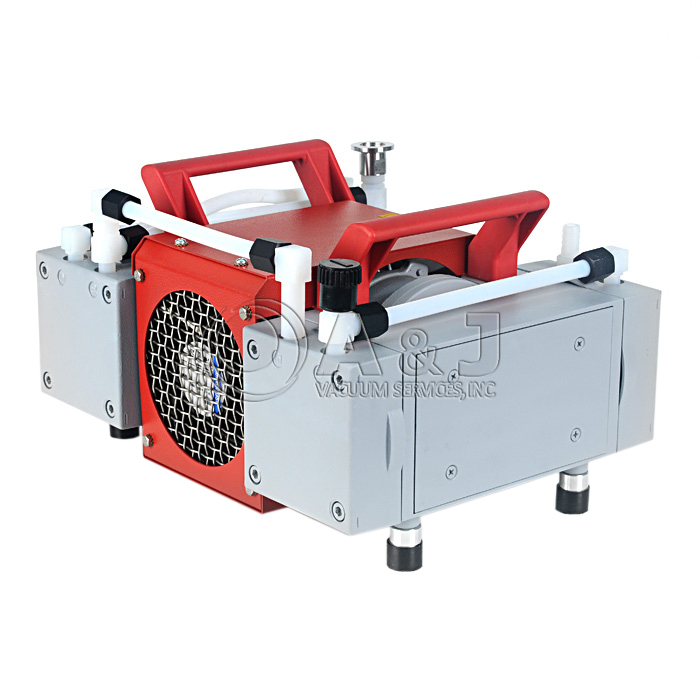

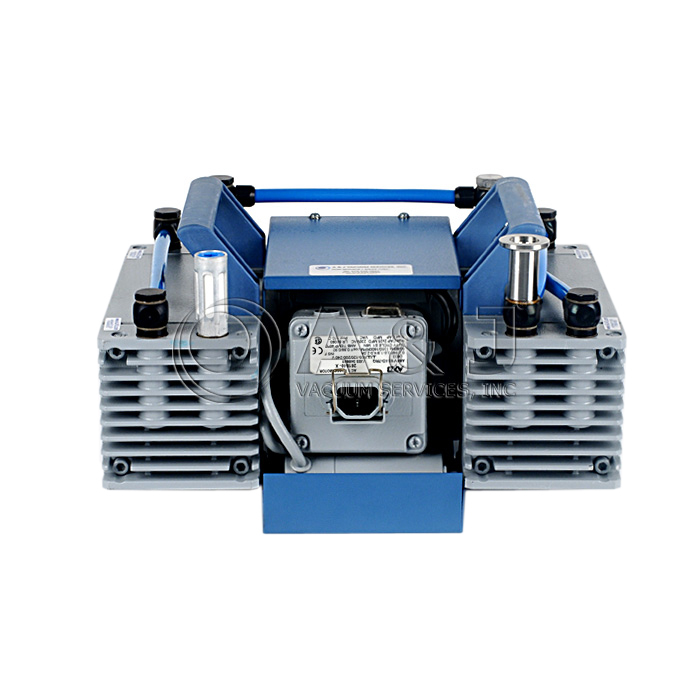

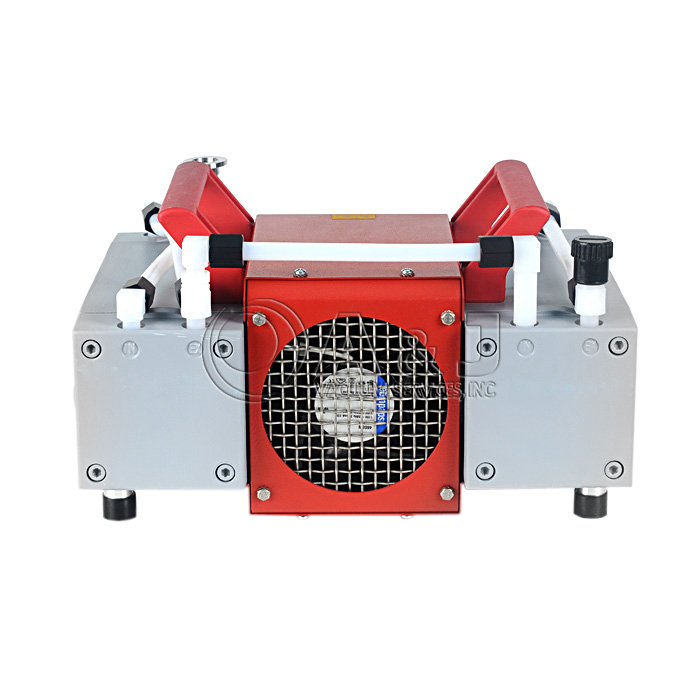

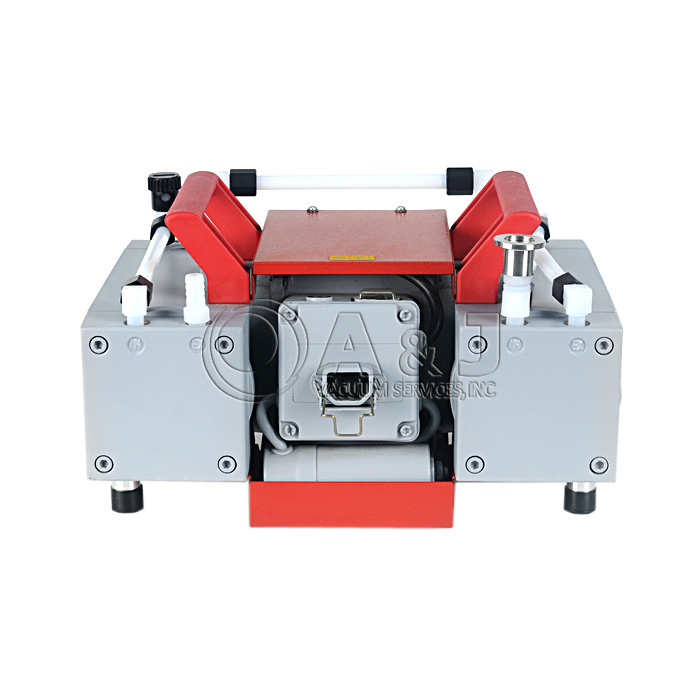

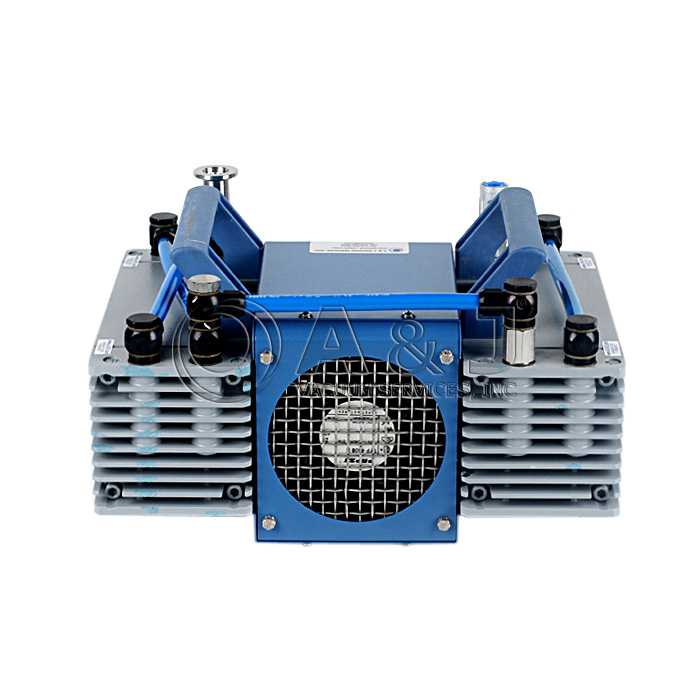

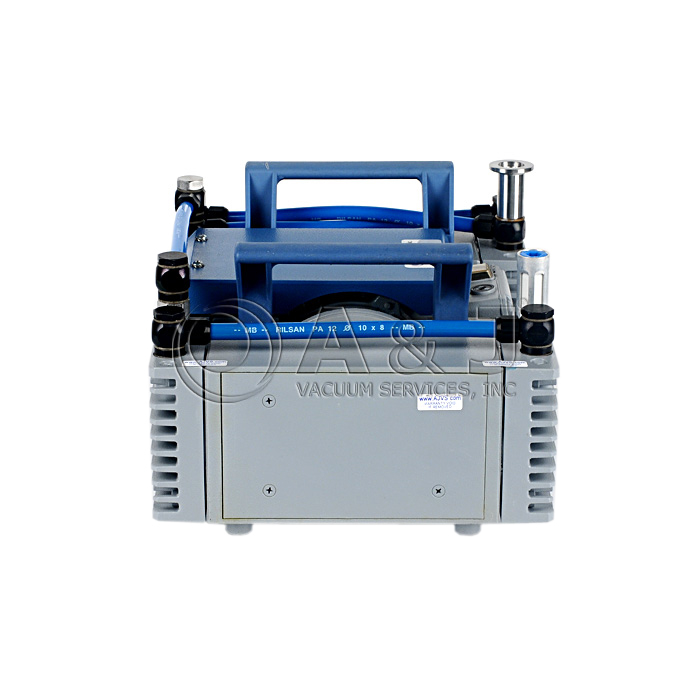

The diaphragm pumps of the series MVP 055-3 series are three stage dry compressing pumps.
This means that any medium being pumped is not brought into contact with lubricating agents.
The pumps are of the displacement type where the movement of the diaphragm causes a periodic change in the size of the working chamber.
The flow of gas causes the self-acting valves to open and close.
The pumping units are directly connected to the drive motor.

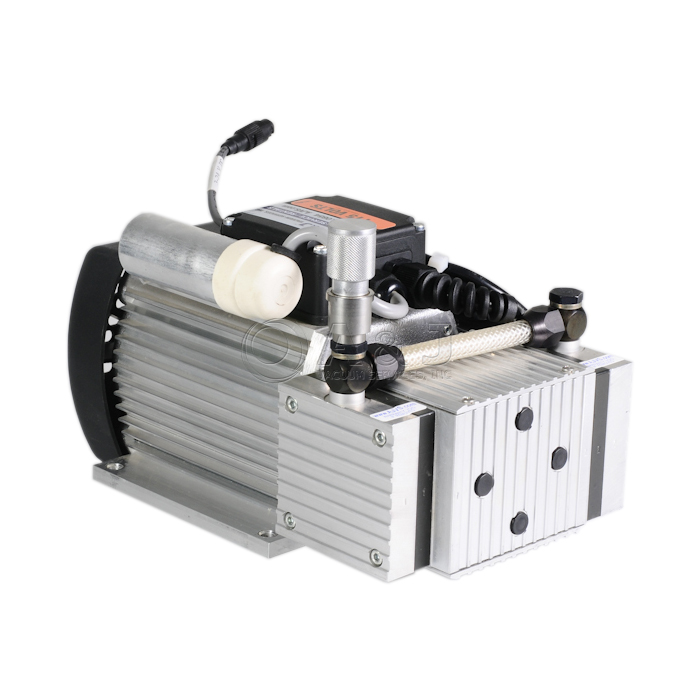

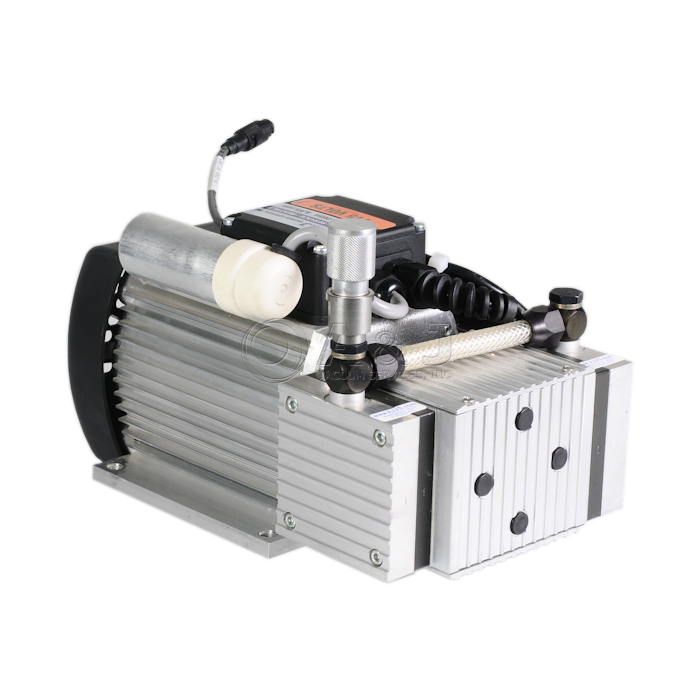

Fully Remanufactured Pfeiffer MVP015T Diaphragm Pump, PKT05058A, PK T05 058-A
This Pfeiffer MVP-015 T is a replacement pump for Backing pump inside TSH/U 071 pumping station.
This MVP 015-T pump is equipped with Fore Vacuum connector, which is plugged directly into TC-600 Control Box.
The diaphragm vacuum pump of the series MVP 015 is a two stage, dry compressor vacuum pump The pumps are positive displacement pumps with a periodic change of size of the suction chamber produced by the movement of the diaphragm. The gas flow causes the valves to open and close automatically. The pump units are directly connected to the drive motor.
- The intake side on the front side of the pump is provided with a swivelling screw fitting (G1/8) and screw (G1/4) for connection to a Pfeiffer Vacuum turbopump.
- A pressure connection (silencer G1/8) on the front side of the pump.
- Mains connection via cold unit socket with safety strap (mains cable not included in the standard version delivery consignment).
- ON/OFF mains switch.
A&J Vacuum repair / rebuild and service Pfeiffer MVP015-T Diaphragm Pumps, PKT05058 Pfeiffer Backing Pumps along with all other Pfeiffer Vacuum Pumps and all other Pfeiffer Leak Detector Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Overview:

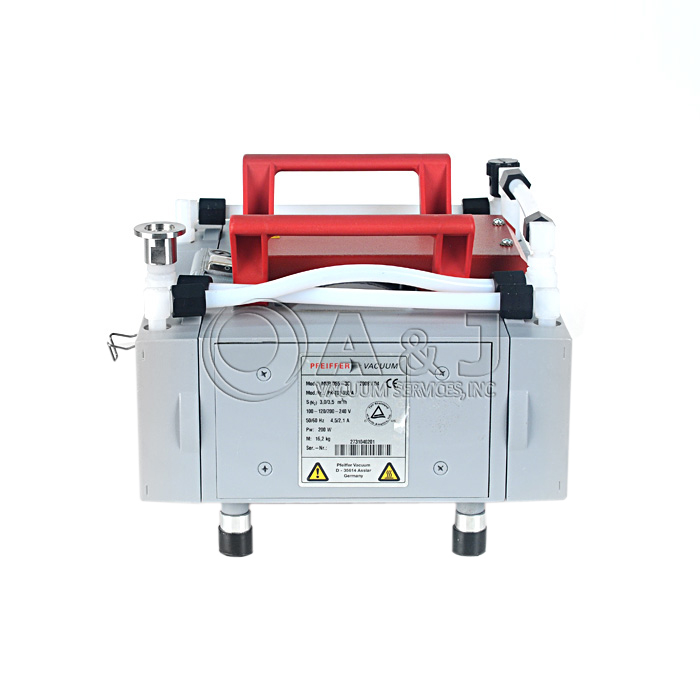

The diaphragm pumps of the series MVP 055-3 series are three stage dry compressing pumps.
This means that any medium being pumped is not brought into contact with lubricating agents.
The pumps are of the displacement type where the movement of the diaphragm causes a periodic change in the size of the working chamber.
The flow of gas causes the self-acting valves to open and close.
The pumping units are directly connected to the drive motor.
