Pfeiffer Vacuum MVP 160-3 Diaphragm Dry Vacuum Pump, 230 V, 50/60 Hz, Pumping speed 10.4 m³/h, PKT01400, PK T01 400
Condition:
Discontinued
Item#:PN22762
Mfr Part#:PKT01400
Manufacturer:Pfeiffer Vacuum
This product has been discontinued and is no longer available for sale
VIEW REPLACEMENT
Features:
Pfeiffer Vacuum MVP 160-3 Diaphragm Dry Vacuum Pump, 230 V, 50/60 Hz, Pumping speed 10.4 m³/h, PKT01400, PK T01 400

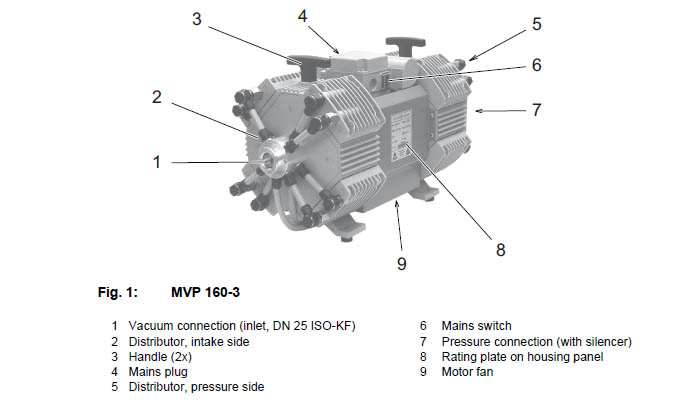

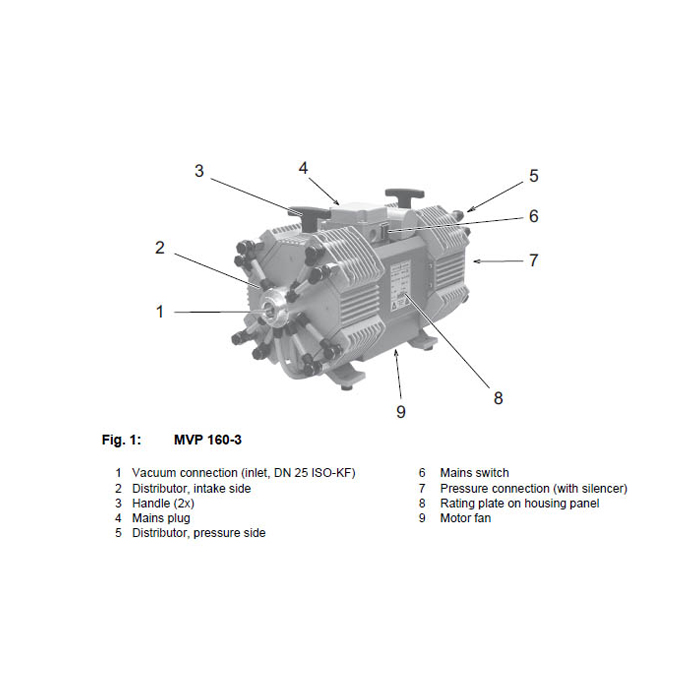

Pfeiffer Vacuum MVP 160 Diaphragm Pump Overview:
The diaphragm vacuum pumps of the series MVP 160-3 are high-performance dry compressor vacuum pumps with 8 pumping stages and pumping speed of up to 10.4 m3/h. The pumps are positive displacement pumps with a periodic change of size of the suction chamber produced by the movement of the diaphragm. The gas flow causes the valves to open and close automatically. The pump units are directly connected to the drive motor.
The Pfeiffer Vacuum MVP 160 Vacuum Pump Applications:
- Pumping Stations
- Plants
- Research
- Laboratories
- Analytical
- Chemistry
- Leak Detection
A&J Vacuum repairs, rebuilds, and services Pfeiffer Vacuum Pumps, including Diaphragm Pumps and Turbo Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Pfeiffer Vacuum MVP 160-3 Diaphragm Dry Vacuum Pump, 230 V, 50/60 Hz, Pumping speed 10.4 m³/h, PKT01400, PK T01 400
Technical Data:
| Pumping speed at 50 Hz | 9.6 m³/h | 5.65 cfm | 160 l/min |
| Pumping speed at 60 Hz | 10.4 m³/h | 6.12 cfm | 173.33 l/min |
| Ultimate pressure without gas ballast | ≤ 2 hPa | ≤ 1.5 Torr | ≤ 2 mbar |
| Flange (in) | DN 25 ISO-KF |
| Number of pumping stages | 8 |
| Flange (out) | G 1/4” with silencer |
| Motor version | 1-ph motor |
| Protection category | IP20 |
| Operating altitude, max. | 2000 m |
| Cooling method, standard | Air |
| Motor protection | Thermal winding protection |
| Ambient temperature | 10-40 °C | 50-104 °F | 283-313 K |
| Temperature: Storage | -10-60 °C | 14-140 °F | 263-333 K |
| Intake pressure max. | 1,100 hPa | 825 Torr | 1,100 mbar |
| Exhaust pressure, max. | 1,100 hPa | 825 Torr | 1,100 mbar |
| Sound pressure level | 52 dB(A) |
| Emission sound pressure level without gas ballast or purge | 52 dB(A) |
| Switch New | Yes |
| Leak rate | ≤ 2 · 10-3 Pa m3/s | ≤ 1.5 · 10-2 Torr l/s | ≤ 2 · 10-2mbar l/s |
| Weight | 25 kg | 55.12 lb |
