- Wide Measurement Range of 5 * 10^[-5] to 1.5 * 10^3 hPa
- Bakeout Remperature: 80 °C
- PT120041T / PT 120 041-T
- Spare measurement system replacement
Shopping Cart ( )

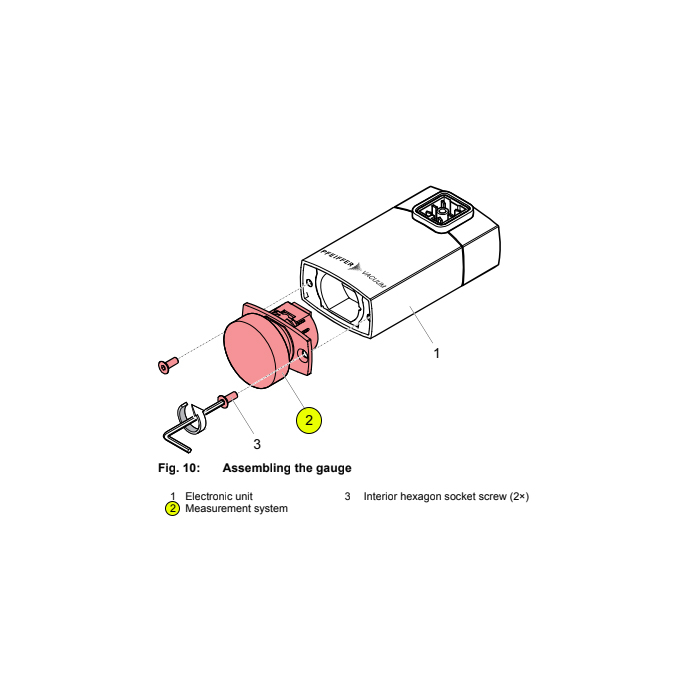

Pfeiffer Vacuum PCR 280 Spare measurement system replacement, 2000008075 / PT120041-T / PT 120 041 -T
Condition:
New
Item#:PN24443
Mfr Part#:2000008075 / PT120041-T / PT 120 041 -T
Manufacturer:Pfeiffer Vacuum
Features:
Pfeiffer Vacuum PCR 280 Spare measurement system replacement, 2000008075 / PT120041-T / PT 120 041 -T
Product Features - Pfeiffer Vacuum Pirani / Capcitance PCR280 Gauge (w/ DN 16 Flange):
- Utilized for Accurate Gas-Type Independent Pressure Measurement of Venting Procedures
- Display Range: 5 * 10^[-5] to 1500 hPa
- Two Sensors / Modes of Measurement in One Gauge Head (Pirani and Capacitance Diaphragm)
- Metal-Sealed Upon Arrival
- Bakeout Remperature: 80 °C
- Output Signal: 1.2 – 8.68 V Logarithm of Pressure
- Voltage supply: 15 – 30 V DC
This item is non-returnable/non-refundable
Pfeiffer Vacuum PCR 280 Spare measurement system replacement, 2000008075 / PT120041-T / PT 120 041 -T
Technical Data:
| Accuracy (1) | 1 * 10^[-3] – 100 hPa ± 15 % |
| Accuracy (1) | 100 – 950 hPa ± 5 % |
| Accuracy (2) | 5 * 10^[-4] – 1 * 10^[-3] hPa ± 50 % |
| Accuracy (2) | 950 – 1050 hPa ± 2.5 % |
| Ambient Temperature | 10-50 °C | 50-122 °F | 283-323 K |
| Bakeout Temperature | 80 °C |
| Feature (Material) | Stainless Steel, Metal Sealed |
| Feedthrough | Glass |
| Filament | Tungsten |
| Flange Material | Stainless Steel |
| Measurement Range | 5 * 10^[-5] – 1.5 * 10^3 hPa |
| Nominal Diameter / Flange Model | DN 16 ISO-KF |
| Output Signal: Measurement Range | 1.2–8.68 V |
| Output Signal: Minimum Load | 10 kΩ |
| Pressure (Maximum) | 5,000 hPa | 3,750 Torr | 5,000 mbar |
| Repeatability: 1 * 10^[-3] – 1100 hPa | ± 2 % |
| Seal | Metal |
| Sensor cable length min. | 100 m |
| Supply: Power Consumption Max. | 2.5 W |
| Supply: Voltage V DC | 15 – 30 V DC |
| Temperature: Storage | -20-65 °C | -4-149 °F | 253-338 K |
| Volume | 8 cm³ |
| Weight | 120 g |
