- Oil-free Vacuum Pump
- Pumping Speed @ 1000 mbar: 7.5 m3/h
- Fully Remanufactured
- POP01151 Variation
Shopping Cart ( )
Pfeiffer XtraDry 150-2 Piston Dry Pump, Oil Free, 115 VAC, POP01151
Condition:
Remanufactured
In Stock
Item#:PN19934
Mfr Part#:POP01151
Manufacturer:Pfeiffer Vacuum
Features:
Pfeiffer XtraDry150-2 Piston Dry Vacuum Pump, Oil Free, 115 VAC, POP01151
Pfeiffer XtraDry 150-2 Overview:
The Pfeiffer Vacuum XtraDry 150-2 is an oil free vacuum pump, which is based and operates on the piston principle. Each compression stage consists of a cylinder in which a piston reciprocates in a cylinder.
In the Pfeiffer XtraDry 150-2, two compression stages are internally connected in series. Gas coming from the inlet enters the compression space of the first piston. After compression, the now higher pressure gas enters the compression space of the second piston. Once the gas reaches a pressure slightly above atmosphere it leaves the pump via a one way valve.
The XtraDry 150 is equipped with a pressure switch for automatic rotation speed control. The rotation speed is reduced automatically at final vacuum to minimize power consumption and the emission sound pressure level of the pump.
The XtraDry pump has two modes of gas ballast operation. They differ in the amount of gas admitted to the pump. At the hose connection a filter is installed to prevent dust deposits in the gas ballast inlet.
The Pfeiffer XtraDry 150-2 piston pump is excellent for medium vacuum applications that require clean operation. The Pfeiffer XtraDry is designed to prevent contamination in your process and features a unique seal design that prevents gasses from backstreaming in your system.

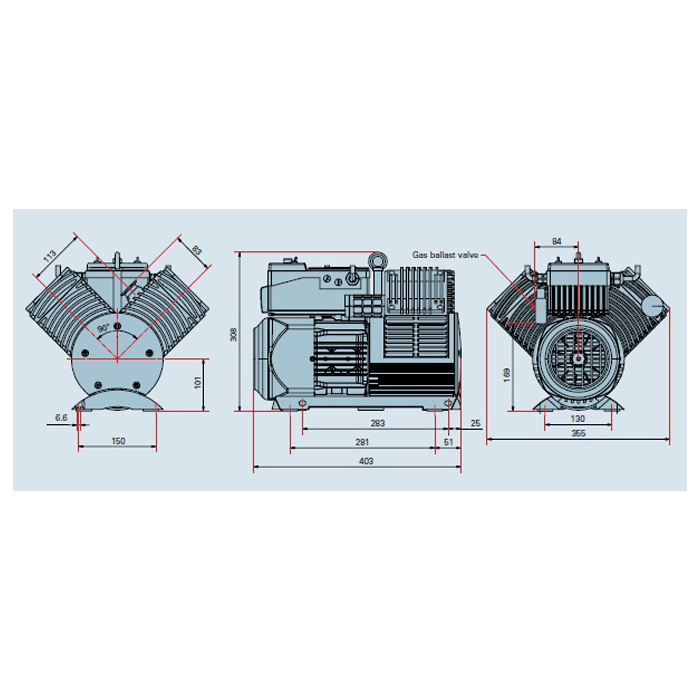

Pfeiffer XtraDry 150-2 Dimensions:
The 230 VAC version of the XtraDry 150-2 is also available. Please click here to view the listing.
Click Here for Pfeiffer XtraDry 150-2 Manual
A&J Vacuum also repairs, rebuilds, and services all Pfeiffer ExtraDry pumps, Pfeiffer wet pumps, and Pfeiffer turbo pumps. Please contact us for information on the service program or click here http://www.ajvs.com/service.php to go to our Service page.
Pfeiffer XtraDry150-2 Piston Dry Vacuum Pump, Oil Free, 115 VAC, POP01151

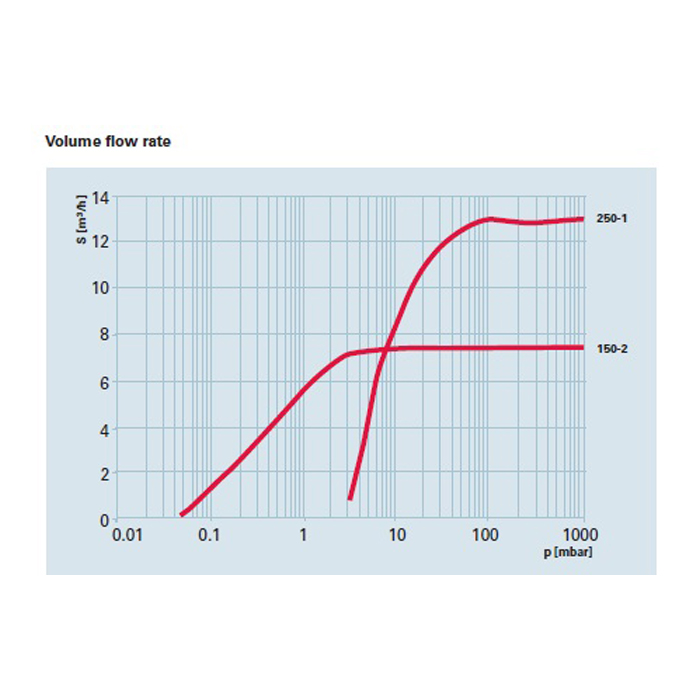

Pfeiffer XtraDry 150-2 Technical Data:
The 230 VAC version of the XtraDry 150-2 is also available. Please click here to view the listing.
Click Here for Pfeiffer XtraDry 150-2 Manual
A&J Vacuum also repairs, rebuilds, and services all Pfeiffer ExtraDry pumps, Pfeiffer wet pumps, and Pfeiffer turbo pumps. Please contact us for information on the service program or click here http://www.ajvs.com/service.php to go to our Service page.
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
We can repair your:
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
