PFPE 501 Grease is now NSF H1 approved, high quality grease is a sealant and lubricant that is safe to use with food research and manufacturing machinary, such as:
The Apiezon PFPE501 family of high vacuum greases are known around the world for their high quality, consistency and excellent compatibility for high vacuum applications. The new Apiezon range of high vacuum grease delivers the quality and reliability synonymous with the Apiezon brand.
Apiezon PFPE 501 is a chemically inert, high temperature and extreme pressure lubricant. With an upper operating temperature of 250 degrees Celsius and vapor pressure of 1.3 x 10-12 at 25 degrees Celsius, it is robust, versatile and can be used for sealing and lubricating under the most extreme operating conditions. This includes environments where aggressive chemicals and strong oxidizing agents are regularly used.
Features:
Compatibility:
Apiezon PFPE 501 is compatible with all types of material including plastics, metals, ceramics, polymers, elastomers, ethers, alcohols and hydrocarbons. PFPE 501 is compatible with all chemicals, corrosives and solvents except those with a perfluorinated base.
What is PFPE?
PFPE or Perfluoropolyether, is a long chain polymer which consists of carbon, oxygen and fluorine atoms. The molecular structure can be branched, linear, or a combination thereof depending on the desired physical properties.
The fluorine and oxygen atoms are very strongly bonded to the carbon atoms, and as a result they reject electron interactions with surrounding atoms. As no part of the molecule is available for a reaction to take place, it is extremely inert. This inertness provides excellent high temperature performance and makes PFPE extremely useful in the presence of highly reactive chemicals such as corrosives, acids and liquid oxygen.
The outer layer of non-reactive fluorine atoms means that adjacent molecules will easily slip by each other, allowing PFPE to form film layers across surfaces. This can be very useful in reducing friction and minimizing wear.
When under heavy load these linear molecules slip across each other forming a very thin barrier between the surfaces which is not beneficial for lubricant longevity. Heavily branched molecules cannot slip across each other as easily and will form thicker and longer-lasting barriers between surfaces.
This heavily branched structure does however bring disadvantages at lower temperatures. For example, the more rigid structure results in a higher pour point.
To ensure both wide temperature range and good lubricity under heavy load, a partially branched molecule will provide the necessary balance of physical properties, hence the reason a partially branched molecular structure was selected for PFPE 501.

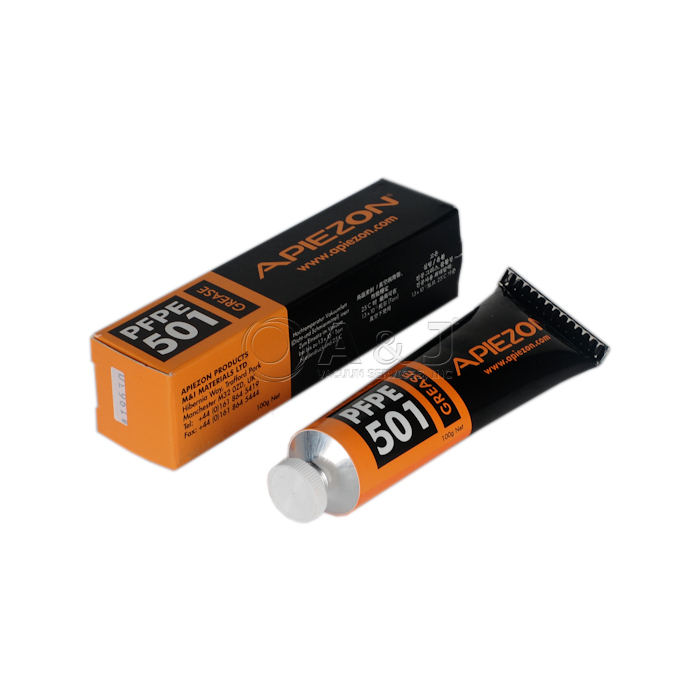

Apiezon PFPE 501 Vacuum Grease, Low Vapor Pressure, High Vacuum Grease
PFPE 501 Grease is now NSF H1 approved, high quality grease is a sealant and lubricant that is safe to use with food research and manufacturing machinary, such as:
Main areas of application: High temperature lubricating
Working Temperature: -15 to 250 degrees Celsius / 5 to 482 degrees Fahrenheit

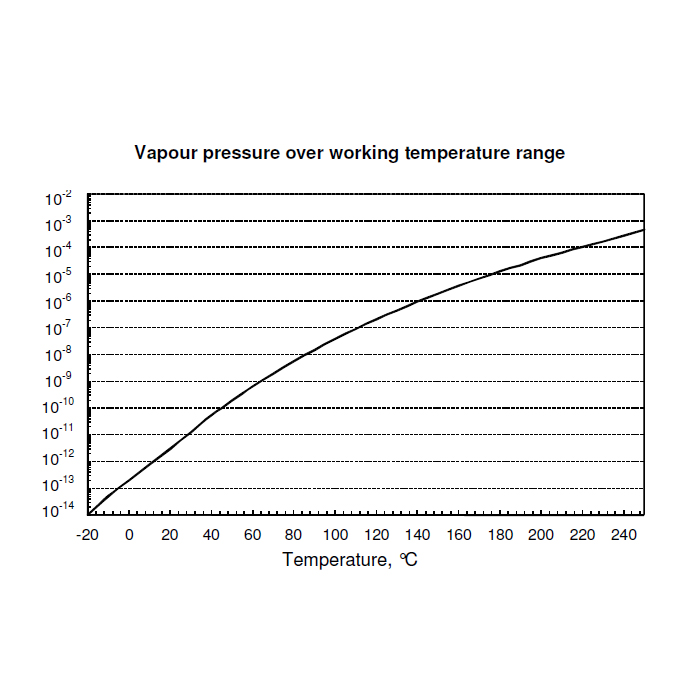

Vapor Pressure at 25 degrees Celsius: < 1.3 x 10-12 Torr
Relative Density at 25 degrees Celsius: 2.003
Evaporation 24 hrs at 100 degrees Celsius: 0.02
Oil separation 24 hrs at 100 degrees Celsius: 2.10
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
