- PN 1397PP
- Outstanding Quality
- For Welch Pump 1397
- Primary Kit, Major Repair Kit
Shopping Cart ( )

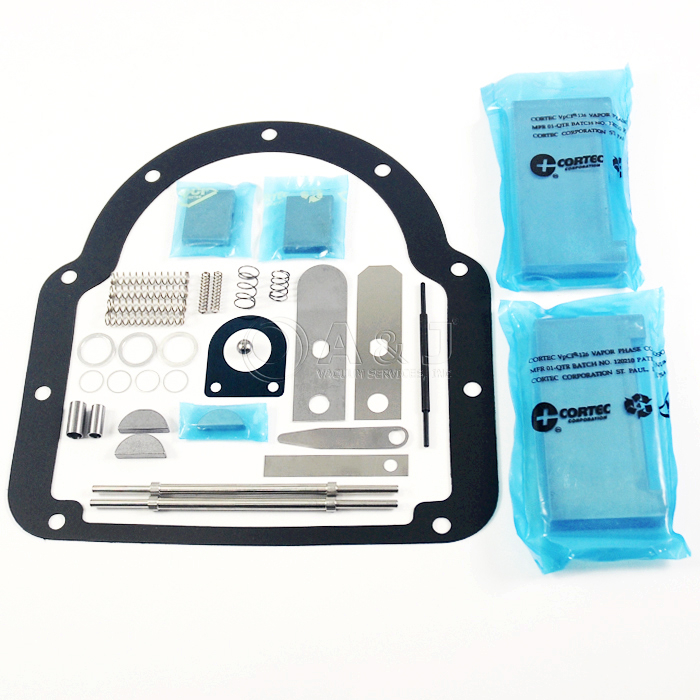

Primary Kit for Major Overhaul, Lip - Phenolic Vanes, for Welch Rotary Vane Pump Model 1397, 1397PP
Condition:
New
In Stock
Item#:PN13531
Mfr Part#:1397PP
Manufacturer:Welch
Features:
Primary Kit for Major Overhaul, Lip - Phenolic Vanes, for Welch Rotary Vane Pump Model 1397, 1397PP
Primary Kits include all componenta of secondary kits plus vanes necessary for a major overhaul.
The Primary Kit 1397PP includes the following parts:
410055 Spacer, qty.1
410696 Holder,Spring, qty.1
410715 V-Belt,Cogged, qty.2
410992 Valve,Pressure Relief, qty.1
411056 Washer,Alum, qty.4
411137 Washer,Alumina, qty.3
411266 Washer,Tension, qty.2
411267 Washer,Rubber, qty.2
411304 Spring,Ss, qty.2
411401f-01 Kit,Shaft Seal,1.00", qty.1
411462 Vane,Phenolic,1st Stage, qty.2
411488 Spring,Compression,S/S, qty.4
411489 Holder,Spring, qty.2
411490 Key,Woodruff,Cut, qty.2
411495 Gasket,Intake Cover, qty.1
411496 Gasket,Case, qty.1
411507 O'ring,Buna,78.97 X 3.53 Mm, qty.1
411508 Gasket,Valve, qty.1
411516 Key,Small Rotor,1374 & 1397, qty.1
412035 Vane,Phenolic,2nd Stg,Small, qty.2
412161 Valve,Pressure Relief,Steel, qty.1
412256 Spring,Coil, qty.1
412257 Sleeve,Hardened, qty.1
412258 Sleeve,Hardened, qty.1
412259 Spring,Coil, qty.1
4401200 Ball,Steel, qty.1
618538a Valve,Backer, qty.1
618539a Valve,Flapper, qty.1
670520a Instructions,Replacement, qty.1
A&J Vacuum Repairs / Rebuilds and Services all Welch 1397, 1398, 1399 Vane Pumps including belt driven Welch pumps service pumps and all other Welch vacuum pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Primary Kit for Major Overhaul, Lip - Phenolic Vanes, for Welch Rotary Vane Pump Model 1397, 1397PP
Primary Kits include all componenta of secondary kits plus vanes necessary for a major overhaul.
The Primary Kit 1397PP includes the following parts:
410055 Spacer, qty.1
410696 Holder,Spring, qty.1
410715 V-Belt,Cogged, qty.2
410992 Valve,Pressure Relief, qty.1
411056 Washer,Alum, qty.4
411137 Washer,Alumina, qty.3
411266 Washer,Tension, qty.2
411267 Washer,Rubber, qty.2
411304 Spring,Ss, qty.2
411401f-01 Kit,Shaft Seal,1.00", qty.1
411462 Vane,Phenolic,1st Stage, qty.2
411488 Spring,Compression,S/S, qty.4
411489 Holder,Spring, qty.2
411490 Key,Woodruff,Cut, qty.2
411495 Gasket,Intake Cover, qty.1
411496 Gasket,Case, qty.1
411507 O'ring,Buna,78.97 X 3.53 Mm, qty.1
411508 Gasket,Valve, qty.1
411516 Key,Small Rotor,1374 & 1397, qty.1
412035 Vane,Phenolic,2nd Stg,Small, qty.2
412161 Valve,Pressure Relief,Steel, qty.1
412256 Spring,Coil, qty.1
412257 Sleeve,Hardened, qty.1
412258 Sleeve,Hardened, qty.1
412259 Spring,Coil, qty.1
4401200 Ball,Steel, qty.1
618538a Valve,Backer, qty.1
618539a Valve,Flapper, qty.1
670520a Instructions,Replacement, qty.1
A&J Vacuum Repairs / Rebuilds and Services all Welch 1397, 1398, 1399 Vane Pumps including belt driven Welch pumps service pumps and all other Welch vacuum pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
We can repair your:
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
