- Final Pressure: 7 mbar
- Pumping Speed: 1.3 cfm (50 Hz)
- Max. Back Pressure: 2 bar
- Motor Speed: 1500 min-1 (50 Hz)
Shopping Cart ( )
Refurbished Vacuubrand MZ 2 NT Diaphragm Vacuum Pump, Ultimate Pressure 7 mbar, Pumping Speed 1.3 cfm, 100-115 V, 50/60 Hz, 732003, 20732003
Condition:
Remanufactured
Call us for Availability
Item#:PN23494
Mfr Part#:732003, 20732003
Manufacturer:BRANDTECH / Vacuubrand
Price upon request
CONTACT US
Features:
Refurbished Vacuubrand MZ 2 NT Diaphragm Vacuum Pump, Ultimate Pressure 7 mbar, Pumping Speed 1.3 cfm, 100-115 V, 50/60 Hz, 732003, 20732003
Vacuubrand MZ 2 NT Overview:
Fully Remanufactured Vacuubrand MZ 2 NT Diaphragm pumps are an excellent solution for continuous, oil-free evacuation and pumping of gases.
All parts in contact with pumped media are made of aluminum and selected plastics and allow a wide range of applicaitons for non corrosive gases.
The two-stage construction of MZ 2 NT provides the advantageous combination of high pumping speed and an ultimate vacuum down to 7 mbar.
The highly flexible fabric-reinforced double diaphragm made of FKM is ideal for extended operating life of Vacuubrand MZ 2 NT
Vacuubrand MZ 2 NT Features:
- Contamination-free pumping and evacuation
- High flow rate even near ultimate vacuum
- Whisper quiet
- Very low vibration
- Exceptionally long diaphragm life and maintenance-free drive system for low lifetime costs.

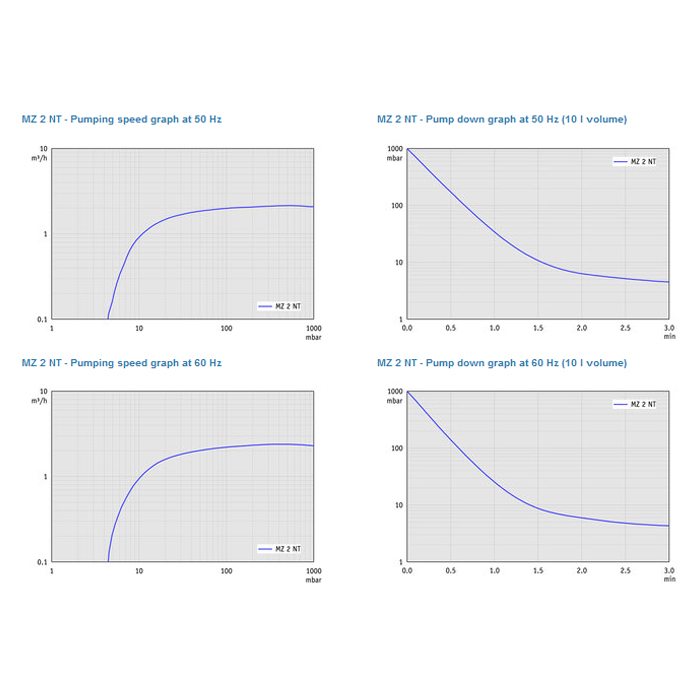

Vacuubrand MZ 2 NT Pumping Speed

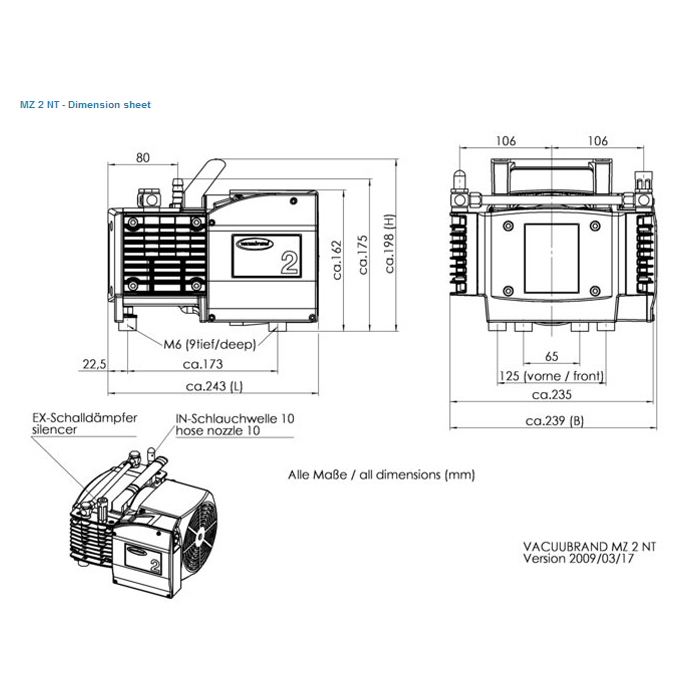

Vacuubrand MZ 2 NT Dimensions
Click Here for Vacuubrand MZ 2 NT Manual
A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
This item is non-returnable/non-refundable
Refurbished Vacuubrand MZ 2 NT Diaphragm Vacuum Pump, Ultimate Pressure 7 mbar, Pumping Speed 1.3 cfm, 100-115 V, 50/60 Hz, 732003, 20732003
Vacuubrand MZ 2 NT Technical Data:
| Technical data | Unit | MZ 2 NT |
|---|---|---|
| Number of heads / stages | 2 / 2 | |
| Max. pumping speed at 50/60 Hz | m3/h | 2.2 / 2.4 |
| Max. pumping speed at 50/60 Hz | cfm | 1.3 / 1.4 |
| Ultimate vacuum (abs.) | mbar/torr | 7 / 5.2 |
| Ambient temperature range (operation) | °C | 10 - 40 |
| Ambient temperature range (storage) | °C | -10 - 60 |
| Max. back pressure (abs.) | bar | 2 |
| Inlet connection | Hose nozzle DN 8-10 mm | |
| Outlet connection | Silencer / G1/4" | |
| Rated motor power | kW | 0.18 |
| Rated motor speed at 50/60 Hz | min-1 | 1500/1800 |
| Degree of protection | IP 40 | |
| Dimensions (L x W x H) | mm | 243 x 239 x 198 |
| Weight | kg | 11.0 |
| Noise level at 50 Hz, typ. | dBA | 45 |
| NRTL certification | Canada and the USA | |
| ATEX conformity (only 230V) | II 3G IIC T3 X Internal Atm. only | |
| Items supplied | Pump completely mounted, ready for use, with manual. |
Click Here for Vacuubrand MZ 2 NT Manual
A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
