Found 5 products
Item#: PN01354 Mfr Part#: PK D61 732D / PKD61732D Manufacturer: Pfeiffer Vacuum
PRICE: $6,633.00
WEB SAVINGS: $603.00
YOU PAY: $6,030.00

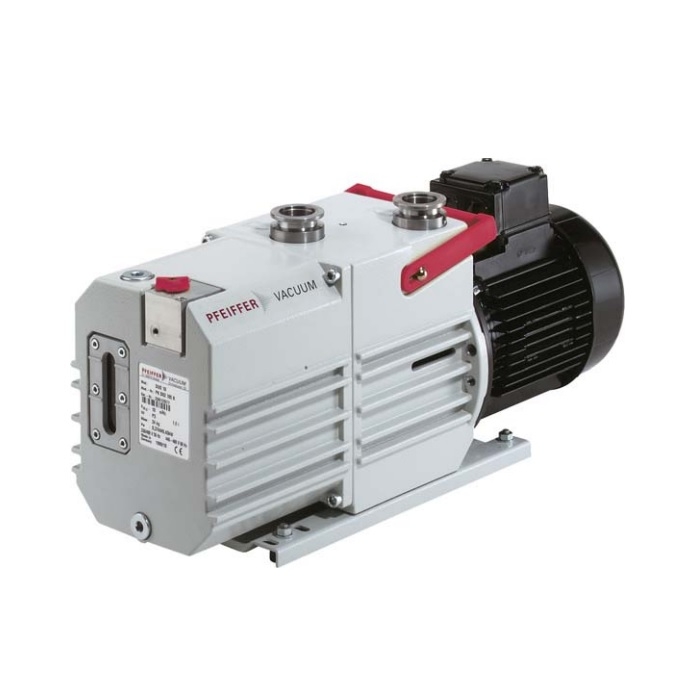

Pfeiffer Vacuum DUO 5 MC Rotary Vane Pump, Single Phase, 200-240 V (50 Hz), 208-240 V (60 Hz), PK D61 732D / PKD61732D, DUO5MC

The Pfeiffer DuoLine Series of pumps are dual stage rotary vane pumps and are used primarily for rough and medium vacuum applications. The pumps are fitted with a hydraulically controlled vacuum safety valve which, when the pump is at a stillstand, closes the vacuum chamber vacuum tight and at the same time vents the pump. The integrated magnetic coupling functions free of contact and friction. Therefore it is not subjected to any mechanical wear and is completely maintenance free compared to a conventional shaft feedthrough.

Pfeiffer Duo Rotary Vane Pumps cover all applications in the low and medium vacuum range of up to 10-3 mbar. These pumps offer reliable operation even for such critical industrial applications as drying processes, metallurgical processes or resin potting and casting systems – either as a standalone pump or as a backing pump in roots pumping stations or turbo pumping stations.



The use of a magnetic coupling minimizes maintenance requirements and leads to considerable cost savings per pump and maintenance interval.

Reliable, clean, low maintenance. Compact design - Excellent performance data. Integrated safety and gas ballast valve. Contains no non-ferrous metals. Various motor voltages afford worldwide employment. M = Magnetically coupled


Condition: New
Item#: PN01356 Mfr Part#: PK D61 125D / PKD61125D Manufacturer: Pfeiffer Vacuum
PRICE: $5,710.00
WEB SAVINGS: $285.50
YOU PAY: $5,424.50

Pfeiffer Vacuum DUO 5 MC Rotary Vane Pump, Three Phase, 220-240/380-420 V (50 Hz), 250-277/440-480 V (60 Hz), DUO5MC, PK D61 125D / PKD61125D

The Pfeiffer DuoLine Series of pumps are dual stage rotary vane pumps and are used primarily for rough and medium vacuum applications. The pumps are fitted with a hydraulically controlled vacuum safety valve which, when the pump is at a stillstand, closes the vacuum chamber vacuum tight and at the same time vents the pump. The integrated magnetic coupling functions free of contact and friction. Therefore it is not subjected to any mechanical wear and is completely maintenance free compared to a conventional shaft feedthrough.

Pfeiffer Duo Rotary Vane Pumps cover all applications in the low and medium vacuum range of up to 10-3 mbar. These pumps offer reliable operation even for such critical industrial applications as drying processes, metallurgical processes or resin potting and casting systems – either as a standalone pump or as a backing pump in roots pumping stations or turbo pumping stations.



The use of a magnetic coupling minimizes maintenance requirements and leads to considerable cost savings per pump and maintenance interval.

Reliable, clean, low maintenance. Compact design - Excellent performance data. Integrated safety and gas ballast valve. Contains no non-ferrous metals. Various motor voltages afford worldwide employment. M = Magnetically coupled


Condition: New
Item#: PN01360 Mfr Part#: PK D61 727D / PKD61727D Manufacturer: Pfeiffer Vacuum
PRICE: $6,633.00
WEB SAVINGS: $603.00
YOU PAY: $6,030.00

Pfeiffer DUO 5 MC Rotary Vane Pump, Single Phase, 95-120 V (50 Hz), 105-120 V (60 Hz), DUO5MC, PK D61 727D / PKD61727D

The Pfeiffer DuoLine Series of pumps are dual stage rotary vane pumps and are used primarily for rough and medium vacuum applications. The pumps are fitted with a hydraulically controlled vacuum safety valve which, when the pump is at a stillstand, closes the vacuum chamber vacuum tight and at the same time vents the pump. The integrated magnetic coupling functions free of contact and friction. Therefore it is not subjected to any mechanical wear and is completely maintenance free compared to a conventional shaft feedthrough.

Pfeiffer Duo Rotary Vane Pumps cover all applications in the low and medium vacuum range of up to 10-3 mbar. These pumps offer reliable operation even for such critical industrial applications as drying processes, metallurgical processes or resin potting and casting systems – either as a standalone pump or as a backing pump in roots pumping stations or turbo pumping stations.



The use of a magnetic coupling minimizes maintenance requirements and leads to considerable cost savings per pump and maintenance interval.

Reliable, clean, low maintenance. Compact design - Excellent performance data. Integrated safety and gas ballast valve. Contains no non-ferrous metals. Various motor voltages afford worldwide employment. M = Magnetically coupled


Condition: New
Item#: PN34692 Mfr Part#: PK D45 202 E / PKD45202E Manufacturer: Pfeiffer Vacuum
PRICE: $13,500.00
WEB SAVINGS: $2,575.00
YOU PAY: $10,925.00

Pfeiffer DUO 35 C, 3-Phase Motor Rotary Vane Vacuum Pump, 230/400 V, 50 Hz, 265/460 V, 60 Hz, PK D45 202 E / PKD45202E

Power cable is not included. Please view the accessories tab for compatible cables.



Pfeiffer DUO35 C Rotary Vane Pump - Product Overview:


The Pfeiffer DUO 35 Rotary Vane Vacuum Pump series includes oil-sealed, two-stage Rotary Vane Vacuum Pumps. Our Pfeiffer DUO 35 rotary vane vacuum pumps arrive equipped with a high vacuum safety valve, which, when the pump is at a standstill, tightly closes the vacuum chamber while simultaneously allowing for ventilation of the pump.



Pfeiffer DUO 35, 230/400 V, 50 Hz, 265/460 V, 60 Hz Key Features & Attributes:


  • Dual Stage, High Performance Rotary Vane Pump with a pumping speed of to 36 m3/h
  • With 3 Phase Motor
  • With temperature sensor (3TF) for optimum motor protection
  • Integrated gas ballast and HV safety valve
  • For all low and medium vacuum applications
  • Included Special Feature: Various Motor Voltages for
    Worldwide Employment & Application
  • Other Motor Voltages Available Upon Request



Pfeiffer Rotary Vane Pumps - Technical Information:


Pfeiffer Vacuum manufactures some of the most widely-utilized varieties of advanced rotary vane used in a variety of industrial applications in the twenty-first century, including laboratory processes, chemical and process engineering, among others. These products are ideally utilized for the low-to-medium intensity vacuum range. Pfeiffer vacuum pumps are especially known for their durability and wide range of application.

A rotary vane pump functions as a displacement pump, creating a low-pulsation suction volume flow. Rotary vane pumps include an eccentrically-supported rotor with two rotating vanes, encased and revolving within a housing. The Pfeiffer Rotary Vane Pumps offered to our clients are oil-lubricated (wet-version pumps); these operating fluids help to enhance the insulation of pump components and ensure maximum durability and efficiency of the product.

We offer both single-stage and dual-stage Pfeiffer Rotary Vane Vacuum Pumps on our website. Single-stage pumps are the preferred choice for low-intensity vacuum applications, while dual-stage pumps are the recommended choices for the medium and upper intensity range of vacuum applications.




A&J Vacuum services and repairs Pfeiffer DUO 1.6, DUO 16, DUO 3, DUO 35, along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.


Condition: New
Item#: PN34693 Mfr Part#: PK D46 202 E / PKD46202E Manufacturer: Pfeiffer Vacuum
PRICE: $19,580.00
WEB SAVINGS: $1,780.00
YOU PAY: $17,800.00

Pfeiffer DUO 65 C, 3-Phase Motor PTC Rotary Vane Vacuum Pump, 230/400 V, 50 Hz, 265/460 V, 60 Hz, PK D46 202 E / PKD46202E

Power cable is not included. Please view the accessories tab for compatible cables.



Pfeiffer DUO65 C Rotary Vane Pump - Product Overview:


The Pfeiffer DUO 65 C Rotary Vane Vacuum Pump series includes oil-sealed, two-stage Rotary Vane Vacuum Pumps. Our Pfeiffer DUO 65 rotary vane vacuum pumps arrive equipped with a high vacuum safety valve, which, when the pump is at a standstill, tightly closes the vacuum chamber while simultaneously allowing for ventilation of the pump.



Pfeiffer DUO 65 C, 230/400 V, 50 Hz, 265/460 V, 60 Hz Key Features & Attributes:


  • Dual Stage, High Performance Rotary Vane Pump with a pumping speed of to 70 m3/h
  • With 3 Phase Motor
  • With temperature sensor (PTC) for optimum motor protection
  • Integrated gas ballast and HV safety valve
  • For all low and medium vacuum applications
  • Included Special Feature: Various Motor Voltages for
    Worldwide Employment & Application



Pfeiffer Rotary Vane Pumps - Technical Information:


Pfeiffer Vacuum manufactures some of the most widely-utilized varieties of advanced rotary vane used in a variety of industrial applications in the twenty-first century, including laboratory processes, chemical and process engineering, among others. These products are ideally utilized for the low-to-medium intensity vacuum range. Pfeiffer vacuum pumps are especially known for their durability and wide range of application.

A rotary vane pump functions as a displacement pump, creating a low-pulsation suction volume flow. Rotary vane pumps include an eccentrically-supported rotor with two rotating vanes, encased and revolving within a housing. The Pfeiffer Rotary Vane Pumps offered to our clients are oil-lubricated (wet-version pumps); these operating fluids help to enhance the insulation of pump components and ensure maximum durability and efficiency of the product.

We offer both single-stage and dual-stage Pfeiffer Rotary Vane Vacuum Pumps on our website. Single-stage pumps are the preferred choice for low-intensity vacuum applications, while dual-stage pumps are the recommended choices for the medium and upper intensity range of vacuum applications.




A&J Vacuum services and repairs Pfeiffer DUO 1.6, DUO 16, DUO 3, DUO 35, DUO 65, along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.


Condition: New
