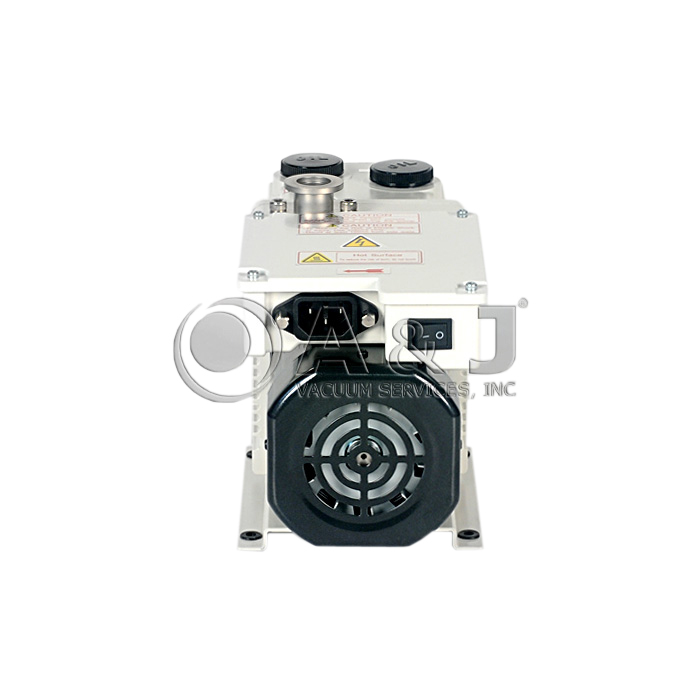

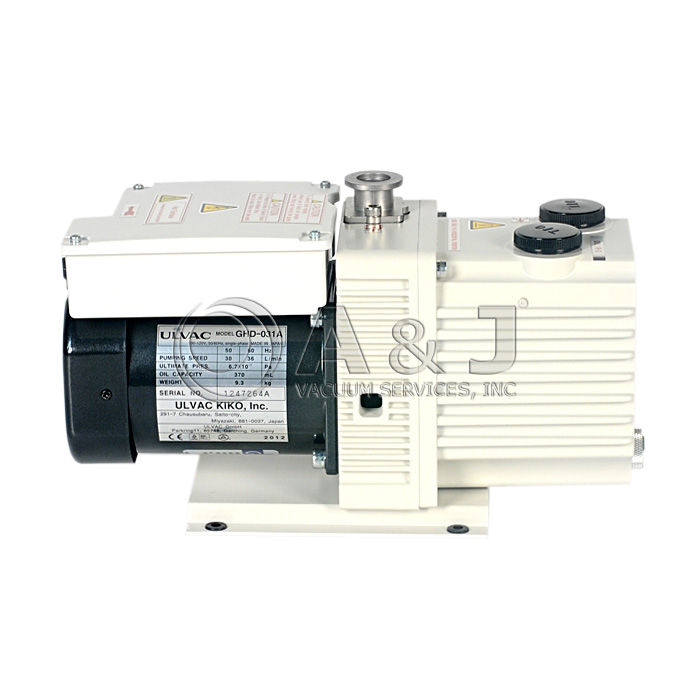

The pumping speed of Ulvac GHD-031 up to 36 L/min at 60 Hz. GHD 031(1045151) has the ultimate pressure at 0.67 Pa. The weight of GHD 031 is 9.3 kg. Inlet port is KF-16. Ulvac GHD-031 overall dimensions is 120(W) mm x 288.5(L) mm x 163(H) mm.
The GHD Series of small vacuum pumps is a family of oil-sealed rotary vane pumps designed for a wide variety of applications including use in analytical and laboratory equipment and as a backing pump for the industry leading HELIOT 900 Helium Leak Detector. The GHD is designed with a magnetically coupled motor to eliminate the problem of shaft seal leakage, and improve the life of the motor. Available in multiple sizes to accommodate the precise needs of your application.
Click Here for Ulvac GHD-031 Manual
A&J Vacuum Services offers full repair/service of Ulvac Pumps, along with all other brands offered on our website. AJVS also services Ulvac Turbo Pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
The pumping speed of Ulvac GHD031B up to 36 L/min at 60 Hz. GHD 031(1045151) has the ultimate pressure at 0.67 Pa. The weight of GHD 031 is 9.3 kg. Inlet port is KF-16. Ulvac GHD-031 overall dimensions is 120(W) mm x 288.5(L) mm x 163(H) mm.
The GHD 031B Series of small vacuum pumps is a family of oil-sealed rotary vane pumps designed for a wide variety of applications including use in analytical and laboratory equipment and as a backing pump for the industry leading HELIOT 900 Helium Leak Detector. The GHD 031 B is designed with a magnetically coupled motor to eliminate the problem of shaft seal leakage, and improve the life of the motor. Available in multiple sizes to accommodate the precise needs of your application.
Click Here for Ulvac GHD-031 Manual
A&J Vacuum Services offers full repair/service of Ulvac Pumps, along with all other brands offered on our website. AJVS also services Ulvac Turbo Pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
