- Final Pressure: 2 mbar
- Pumping Speed: 7.1 cfm (50 Hz)
- Max. Back Pressure: 1.1 bar
- Motor Speed: 1650 min-1 (50/60 Hz)
Shopping Cart ( )

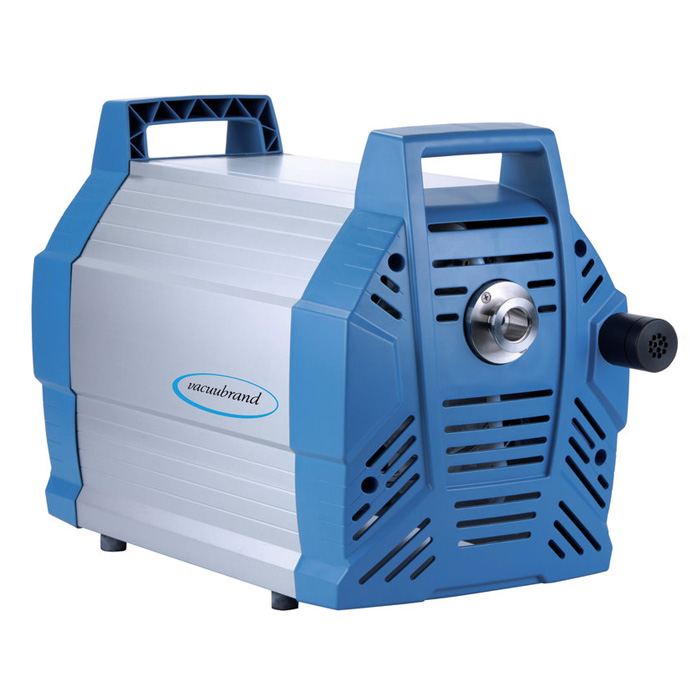

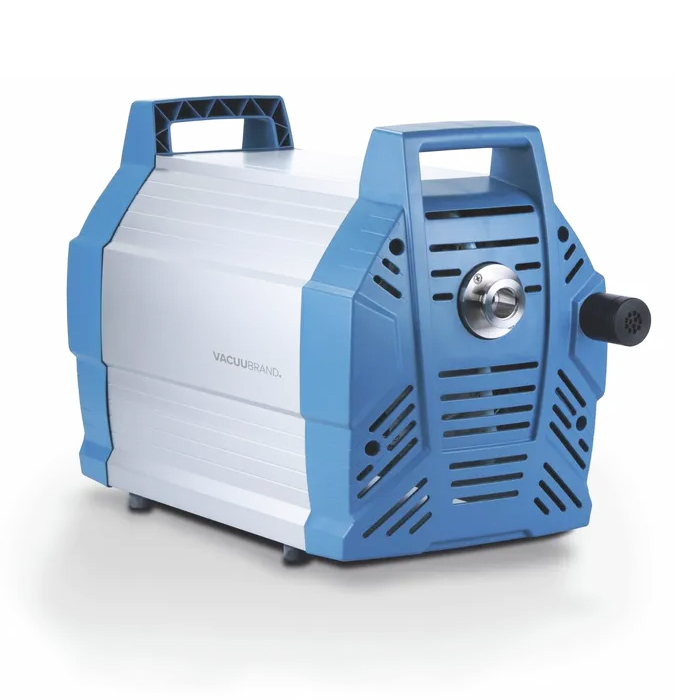

Vacuubrand MD 12 NT Diaphragm Vacuum Pump, 100 - 120V / 50 - 60Hz, US Power Cord, 7.5 CFM, 2 mbar, 743003 / 20743003
Condition:
New
Item#:PN07538
Mfr Part#:743003 / 20743003
Manufacturer:BRANDTECH / Vacuubrand
Features:
Vacuubrand MD 12 NT Diaphragm Vacuum Pump, 100 - 120V / 50 - 60Hz, US Power Cord, 7.5 CFM, 2 mbar, 743003 / 20743003
Vacuubrand MD 12 NT Features:
- Super quiet
- Ultra low vibration
- High chemical resistance
- Space saver
- Simple to use
- Maintenance free drive system
MD 12 NT / 20743003 Overview:
The MD 12 NT diaphragm pump is an especially powerful pump for oil-free evacuation and pumping of non aggressive gases.
The three-stage design of this eight-cylinder pump provides the advantageous combination of very high pumping speed and excellent ultimate vacuum. The flow path consists of aluminum, stainless steel and carefully selected plastics to permit a wide range of applications. The fabric-reinforced double diaphragms are made of highly flexible FKM for extended operating life and high vacuum performance.
Eight-cylinder NT pumps feature quiet operation, with smooth and easy-to-clean surfaces.
Like all VACUUBRAND diaphragm pumps they operate absolutely oil-free and do not have any sliding components in the gas path. In normal operation they are completely free of abrasion. This eliminates most of the particulate impurities frequently generated inside of scroll or piston pumps.
MD12NT Scope of Delivery:
- Pump completely mounted
- Manual
MD12NT Applications:
- Drying
- Rotary evaporation
- Vacuum concentration
- Filtration
- Local area vacuum networks
- Reactors & synthesis applications
- Fore vacuum generation for turbomolecular pumps
A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
This item is non-returnable/non-refundable
Vacuubrand MD 12 NT Diaphragm Vacuum Pump, 100 - 120V / 50 - 60Hz, US Power Cord, 7.5 CFM, 2 mbar, 743003 / 20743003
Vacuubrand MD 12 NT Technical Data:
- Max. pumping speed 50 Hz: 12.1 m3/h
- Max. pumping speed 60 Hz: 7.1 cfm

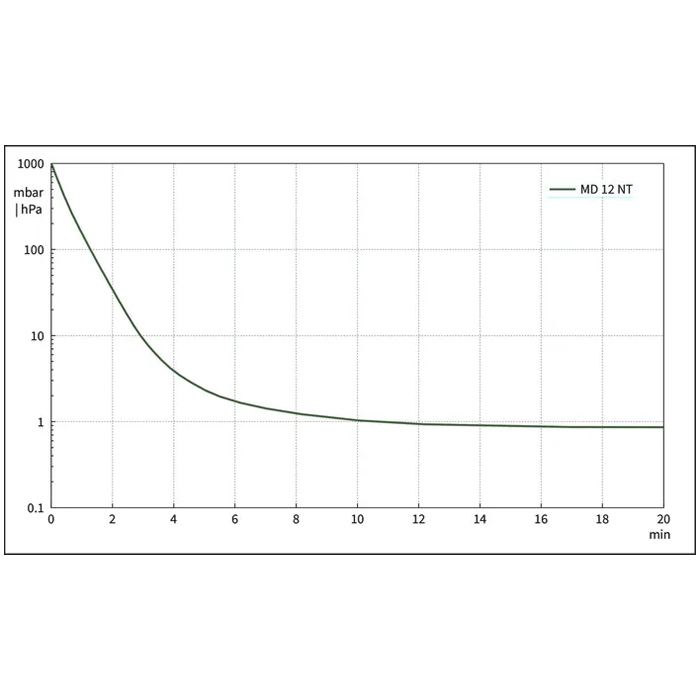

- Ultimate vacuum: 2 mbar / 1.5 torr
- Number of heads: 8
- Number of stages: 3
- Lower ambient temperature (operation): 10 °C
- Upper ambient temperature (operation): 40 °C
- Lower ambient temperature (storage): -10 °C
- Upper ambient temperature (storage): 60 °C
- Max. back pressure (abs.): 1.1 bar
- Inlet connection: small flange KF DN 25
- Outlet connection: G1/2"
- Rated motor power: 0.53 kW
- Rated motor speed at 50/60 Hz: 1650 min-1
- Protection class IEC 60529: IP 40

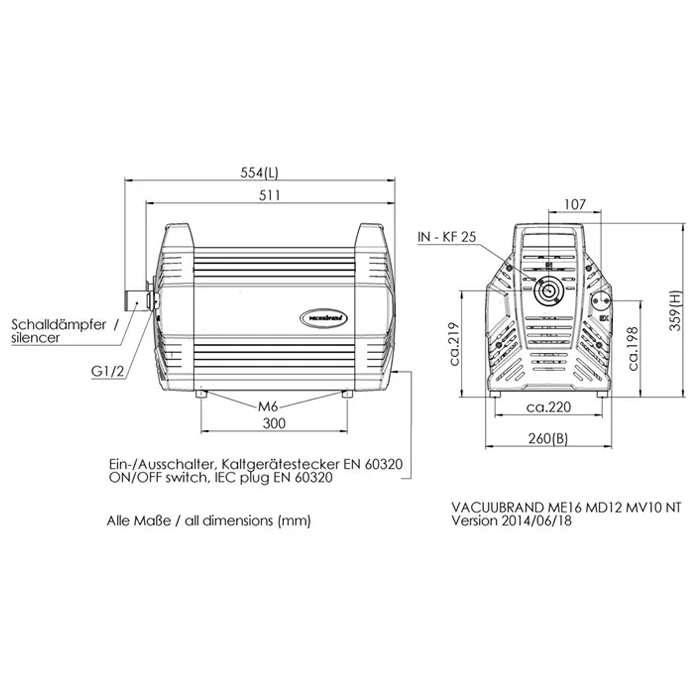

- Dimension L in mm: 554 mm
- Dimension B in mm: 260 mm
- Dimension H in mm: 359 mm
- Weight: 30.3 kg | 67 lb
- Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®): 50 dBA
- NRTL certification: No
- Rated mains voltage range 1: 100-120 V
- Mains frequency 1: 50-60 Hz
A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
