Vacuubrand PC 101 NT Chemistry Diaphragm Pumping Unit, 100-120V / 50-60Hz, US Power Cord, 1.4 CFM, 7 mbar, 733003 / 20733003

Vacuubrand PC 101 NT Features:

• Lab quiet with very low vibration
• Excellent for parallel operations of several vacuum ports
• High performance
• Outstanding chemical resistance
• Long diaphragm life
• Perfect for lab vacuum
• Manual pressure control with analog display

PC 101 NT / 20733003 Overview:

Vacuubrand PC101NT Corrosion Resistant Diaphragm pumping System has a wide range of chemical vacuum applications such as evacuation, evaporation and pumping of chemical, biological gases and pharmaceutical laboratories.

Most common applications include rotary evaporators and vacuum dying ovens. The manual flow control valve allows end user to accurate and efectively regulate pumping speed at the vacuum connection.

PC 101 NT is equipped with analog vacuum display. PC101NT is also equipped with the waste vapor condenser at the outlet (EK) Vacuubrand vapor condenser is very compact and highly efficient.

The PC 101NT condenser enables almost 100 percent solvent recovery. Recycling and efficient vapor recovery will help to protect our environment.

PC101NT Scope of Delivery:

• Pump completely mounted
• Manual

PC101NT Applications:

• Drying
• Rotary evaporation
• Vacuum concentration
• Filtration
• Local area vacuum networks
• Reactors & synthesis applications
• Fore vacuum generation for turbomolecular pumps

A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.

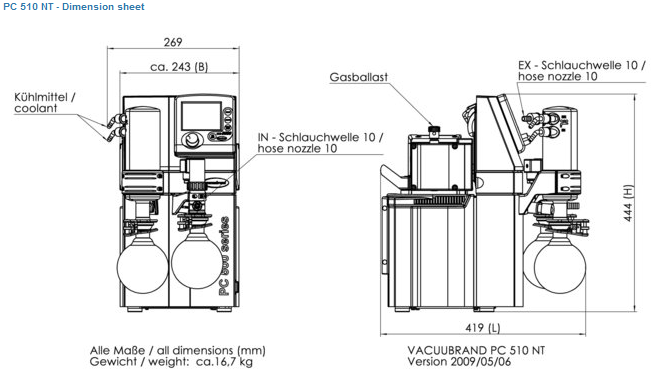

Vacuubrand PC 510 NT Chemistry Diaphragm Pumping unit, 100-120V / 50-60Hz, US Power Cord, 1.2 CFM, 7 mbar, 733103 / 20733103

Vacuubrand PC510NT Corrosion Resistant Diaphragm pumping System has a wide range of chemical vacuum applications such as evacuation, evaporation and pumping of chemical, biological gases and pharmaceutical laboratories.

Popular Vacuubrand MZ 2C NT corrosive diaphragm pump is installed inside this pumping systrem, along with popular CVC 3000 vacuum controller with a solenoid valve for electronic vacuum control.

Most common applications include rotary evaporators and vacuum dying ovens. The manual flow control valve alows end user to accurate and efectively regulate pumping speed at the vacuum connection.

PC 510 NT is equiped with analog vacuum display. PC 510NT is also equipped with the waste vapor condenser at the outlet (EK) Vacuubrand vapor condenser is very compact and highly efficient.

The PC 510NT condenser enables almost 100 percent solvent recovery. Recycling and efficient vapor recovery will help to protect our enviroment.

PC 510NT Performance features;

• Lab quiet with very low vibration

• Excelent for parallel operations of several vacuum ports

• High performance

• Outstanding chemical resistance

• hemistry design flow control valve with large cross section for best performance.

• Electronic CVC 3000 pressure controller with integrated venting valve

A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854

Vacuubrand PC 201 NT Chemistry Diaphragm Pumping Unit, 100-120V / 50-60Hz, US Power Cord, 2.2 CFM, 1.5 mbar, 737003 / 20737003

Vacuubrand PC 201 NT Features:

• Lab quiet with very low vibration
• Excellent for parallel operations of several vacuum ports
• High performance
• Outstanding chemical resistance
• Long diaphragm life
• Perfect for lab vacuum
• Manual pressure control with analog display

PC 201 NT / 20737003 Overview:

Vacuubrand PC201NT Corrosion Resistant Diaphragm pumping System has a wide range of chemical vacuum applications such as evacuation, evaporation and pumping of chemical, biological gases and pharmaceutical laboratories.

Most common applications include rotary evaporators and vacuum dying ovens. The manual flow control valve alows end user to accurate and efectively regulate pumping speed at the vacuum connection.

PC 201 NT is equiped with analog vacuum display. PC201NT is also equipped with the waste vapor condenser at the outlet (EK) Vacuubrand vapor condenser is very compact and highly efficient.

The PC 201NT condenser enables almost 100 percent solvent recovery. Recycling and efficient vapor recovery will help to protect our environment.

PC201NT Scope of Delivery:

• Pump completely mounted
• Manual

PC201NT Applications:

• Drying
• Rotary evaporation
• Vacuum concentration
• Filtration
• Local area vacuum networks
• Reactors & synthesis applications
• Fore vacuum generation for turbomolecular pumps

A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.

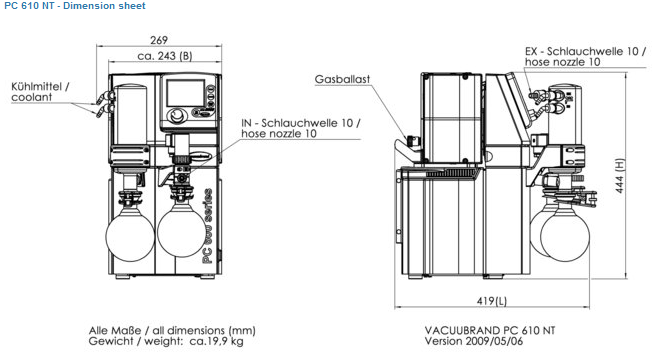

Vacuubrand PC 610 NT Chemistry Diaphragm Pumping Unit, 100-120V / 50-60Hz, US Power Cord, 2.0 CFM, 1.5 mbar, 737103 / 20737103

Vacuubrand PC610NT Corrosion Resistant Diaphragm pumping System has a wide range of chemical vacuum applications such as evacuation, evaporation and pumping of chemical, biological gases and pharmaceutical laboratories.

Popular Vacuubrand MD 4C NT corrosive diaphragm pump is installed inside this pumping systrem, along with popular CVC 3000 vacuum controller with a solenoid valve for electronic vacuum control.

Most common applications include rotary evaporators and vacuum dying ovens. The manual flow control valve alows end user to accurate and efectively regulate pumping speed at the vacuum connection.

PC 610 NT is equiped with analog vacuum display. PC 510NT is also equipped with the waste vapor condenser at the outlet (EK) Vacuubrand vapor condenser is very compact and highly efficient.

The PC 610NT condenser enables almost 100 percent solvent recovery. Recycling and efficient vapor recovery will help to protect our enviroment.

PC 610NT Performance features;

• Lab quiet with very low vibration
• Excelent for parallel operations of several vacuum ports
• High performance
• Outstanding chemical resistance
• hemistry design flow control valve with large cross section for best performance.
• Electronic CVC 3000 pressure controller with integrated venting valve

A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854

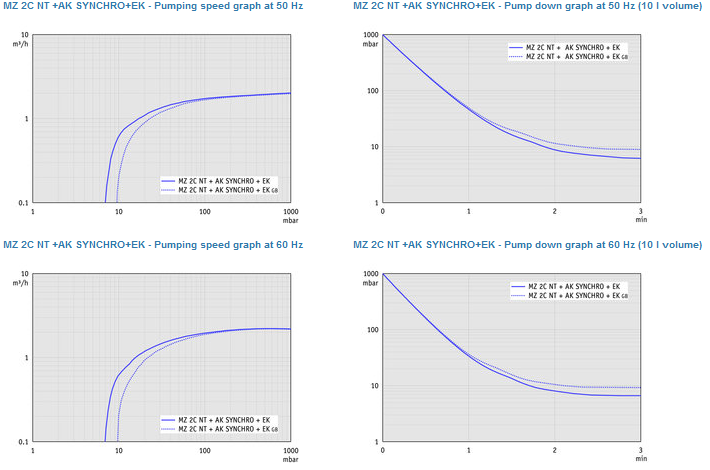

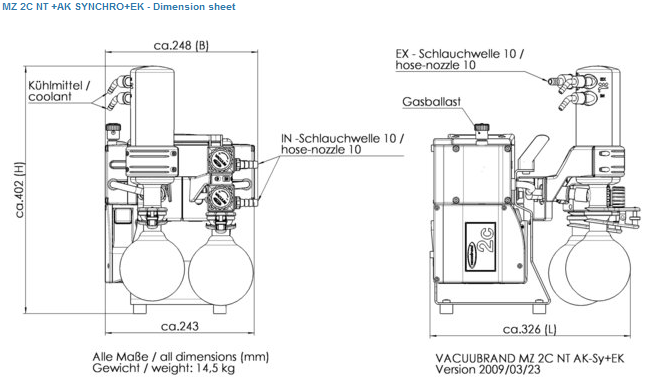

Vacuubrand MZ 2C NT +AK SYNCHRO + EK Chemistry Diaphragm Pump, with Separator, 100-120V / 50-60Hz, US Power Cord, 1.4 CFM, 7 mbar, 732803 / 20732803

Vacuubrand MZ 2C NT +AK SYNCHRO + EK Features:

• Lab quiet with very low vibration
• Excellent for parallel operations of several vacuum ports
• High performance
• Outstanding chemical resistance
• Long diaphragm life
• Perfect for lab vacuum
• Manual pressure control with analog display

MZ 2C NT +AK SYNCHRO +EK / 20732803 Overview:

Vacuubrand MZ 2C NT +AK SYNCHRO + EK is the one stage chemical resistant version diaphragm pump with exellent performance and continuous dry vacuum pumping of gases and vapors at low vacuum requirement. MZ2C NT +2AK SYNCHRO offers great vacuum pressure down to 7 mbar with simultaneous operation of two independent vacuum applications, with reliable check valves to prevent interference between applications.

Vacuubrand MZ2C NT +2AK SYNCHRO is equipped with the separator at the Inlet (AK) made of glass with protective coating. The separator retains liquid droplets and particles. The seperator at the outlet port collects condensate, and also avoids condensate backflow towards the diaphragm pump. Seperator contribute to quiet pump operation.

MZ2C NT +2AK SYNCHRO New Technology pumps are ideal for vacuum ovens, vacuum manifolds, filtration process. One Stage design provides the combination of low ultimate vacuum and high pumping speed.

MZ2CNT+AK SYNCHRO+EK Scope of Delivery:

• Pump completely mounted
• Manual

MZ2CNT+AK SYNCHRO+EK Applications:

• Drying
• Rotary evaporation
• Vacuum concentration
• Filtration
• Local area vacuum networks
• Reactors & synthesis applications
• Fore vacuum generation for turbomolecular pumps

A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.

Vacuubrand PC 511 NT Chemistry Diaphragm Pumping Unit, 100-120V / 50-60Hz, US Power Cord, 1.2 CFM, 7 mbar, 733203 / 20733203

Vacuubrand PC511NT Corrosion Resistant Diaphragm pumping System has a wide range of chemical vacuum applications such as evacuation, evaporation and pumping of chemical, biological gases and pharmaceutical laboratories.

PC 511 NT design allows simultAneous operation of two independent vacuum applications, with well proven check valves to prevent interference between systems. PC 511NT comes with one electronic vacuum controller and one manual vacuum controller.

Popular Vacuubrand MZ 2C NT corrosive diaphragm pump is installed inside this pumping systrem, along with popular CVC 3000 vacuum controller with a solenoid valve for electronic vacuum control.

Most common applications include rotary evaporators and vacuum dying ovens. The manual flow control valve alows end user to accurate and efectively regulate pumping speed at the vacuum connection.

PC 511 NT is equiped with analog vacuum display. PC 511NT is also equipped with the waste vapor condenser at the outlet (EK) Vacuubrand vapor condenser is very compact and highly efficient.

The PC 511NT condenser enables almost 100 percent solvent recovery. Recycling and efficient vapor recovery will help to protect our enviroment.

PC 510NT Performance features;

• Lab quiet with very low vibration

• PC 511 NT design allows simultAneous operation of two independent vacuum applications, with well proven check valves to prevent interference between systems.

• Excelent for parallel operations of several vacuum ports

• High performance

• Outstanding chemical resistance

• Hemistry design flow control valve with large cross section for best performance.

• Electronic CVC 3000 pressure controller with integrated venting valve

A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854

Vacuubrand PC 520 NT Chemistry Diaphragm Pumping Unit, 100-120V / 50-60Hz, US Power Cord, 1.2 CFM, 7 mbar, 733303 / 20733303

Vacuubrand PC520NT Corrosion Resistant Diaphragm pumping System has a wide range of chemical vacuum applications such as evacuation, evaporation and pumping of chemical, biological gases and pharmaceutical laboratories.

PC 520 NT design allows simultaneous operation of two independent vacuum applications, with well proven check valves to prevent interference between systems. PC 511NT comes with two CVC 3000 electronic vacuum controllers and two solenoid vacuum valves.

Popular Vacuubrand MZ 2C NT corrosive diaphragm pump is installed inside this pumping systrem, along with popular CVC 3000 vacuum controllers with a solenoid valves for electronic vacuum control.

Most common applications include rotary evaporators and vacuum dying ovens. The manual flow control valve alows end user to accurate and efectively regulate pumping speed at the vacuum connection.

PC 520 NT is equiped with analog vacuum display. PC 520NT is also equipped with the waste vapor condenser at the outlet (EK) Vacuubrand vapor condenser is very compact and highly efficient.

The PC 520NT condenser enables almost 100 percent solvent recovery. Recycling and efficient vapor recovery will help to protect our enviroment.

PC 510NT Performance features;

• Lab quiet with very low vibration

• 2 Electronic CVC 3000 pressure controllers with integrated venting valves

• PC 520 NT design allows simultaneous operation of two independent vacuum applications, with well proven check valves to prevent interference between systems.

• Excelent for parallel operations of several vacuum ports

• High performance

• Outstanding chemical resistance

• Hemistry design flow control valve with large cross section for best performance.

A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
