- Final Pressure: 4 mbar
- Pumping Speed: 1.5 cfm (50 Hz)
- Max. Back Pressure: 1.1 bar
- Motor Speed: 1500 min-1, 1800 min-1 (50/60 Hz)
Shopping Cart ( )

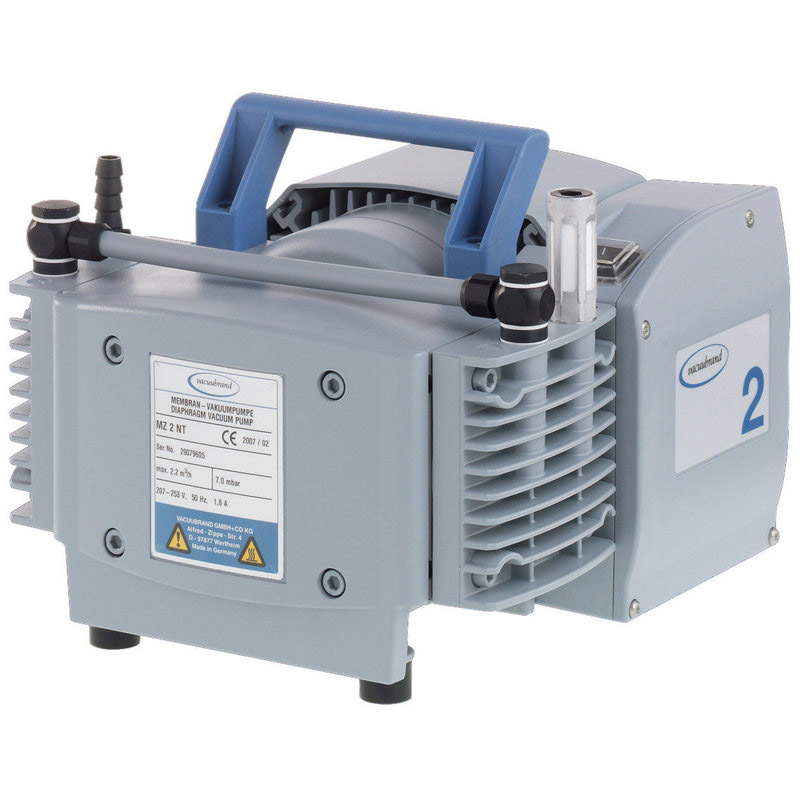

Vacuubrand MZ 2D NT Diaphragm Vacuum Pump, 4 mbar, 1.5 cfm, 200-230 V / 50 - 60 Hz, 732205 / 20732205
Condition:
New
Item#:PN07532
Mfr Part#:732205 / 20732205
Manufacturer:BRANDTECH / Vacuubrand
Features:
Vacuubrand MZ 2D NT Diaphragm Vacuum Pump, 4 mbar, 1.5 cfm, 200-230 V / 50 - 60 Hz, 732205 / 20732205
Vacuubrand MZ 2D NT Features:
- Contamination-free pumping and evacuation
- High flow rate even near ultimate vacuum
- Whisper quiet
- Very low vibration
- Exceptionally long diaphragm life and maintenance-free drive system for low lifetime costs
MZ 2D NT / 20732205 Overview:
Diaphragm pumps are an excellent solution for continuous, oil-free evacuation and pumping of gases.
All parts in contact with pumped media are made of aluminum and selected plastics and allow a wide range of applications for non corrosive gases.
The two-stage construction provides the advantageous combination of high pumping speed and an ultimate vacuum down to 7 mbar. The highly flexible fabric-reinforced double diaphragm made of FKM is ideal for extended operating life.
MZ2DNT Scope of Delivery:
- Pump completely mounted
- Manual
MZ2DNT Applications:
- Drying
- Rotary evaporation
- Vacuum concentration
- Filtration
- Local area vacuum networks
- Reactors & synthesis applications
- Fore vacuum generation for turbomolecular pumps
A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
This item is non-returnable/non-refundable
Vacuubrand MZ 2D NT Diaphragm Vacuum Pump, 4 mbar, 1.5 cfm, 200-230 V / 50 - 60 Hz, 732205 / 20732205
Vacuubrand MZ 2D NT Technical Data:
- Max. pumping speed 50 Hz: 2.3 m3/h
- Max. pumping speed 60 Hz: 1.5 cfm
- Ultimate vacuum: 4 mbar / 3 torr
- Number of heads: 2
- Number of stages: 2
- Lower ambient temperature (operation): 10 °C
- Upper ambient temperature (operation): 40 °C
- Lower ambient temperature (storage): -10 °C
- Upper ambient temperature (storage): 60 °C
- Max. back pressure (abs.): 1.1 bar
- Inlet connection: small flange KF DN 16
- Outlet connection: Silencer / G1/4"
- Rated motor power: 0.18 kW
- Rated motor speed at 50/60 Hz: 1500/1800 min-1
- Protection class IEC 60529: IP 40
- Dimension L in mm: 246 mm
- Dimension B in mm: 242 mm
- Dimension H in mm: 198 mm
- Weight: 11.4 kg | 25 lb
- Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®): 47 dBA
- ATEX conformity: II 3/- G Ex h IIC T3 Gc X Internal Atm. only
- NRTL certification: Yes
- Rated mains voltage range 1: 200-230 V
- Rated mains voltage range 2: 100-115 V
- Rated mains voltage range 3: 120 V
- Mains frequency 1: 50-60 Hz
- Mains frequency 2: 50-60 Hz
- Mains frequency 3: 60 Hz
