- Final Pressure: 1 mbar
- Max. Back Pressure: 1.1 bar
- Motor Speed: 1500 min-1 (50 Hz), 1800 min-1 (60 Hz)
- Pumping Speed: 2.5 cfm (50 Hz)
Shopping Cart ( )

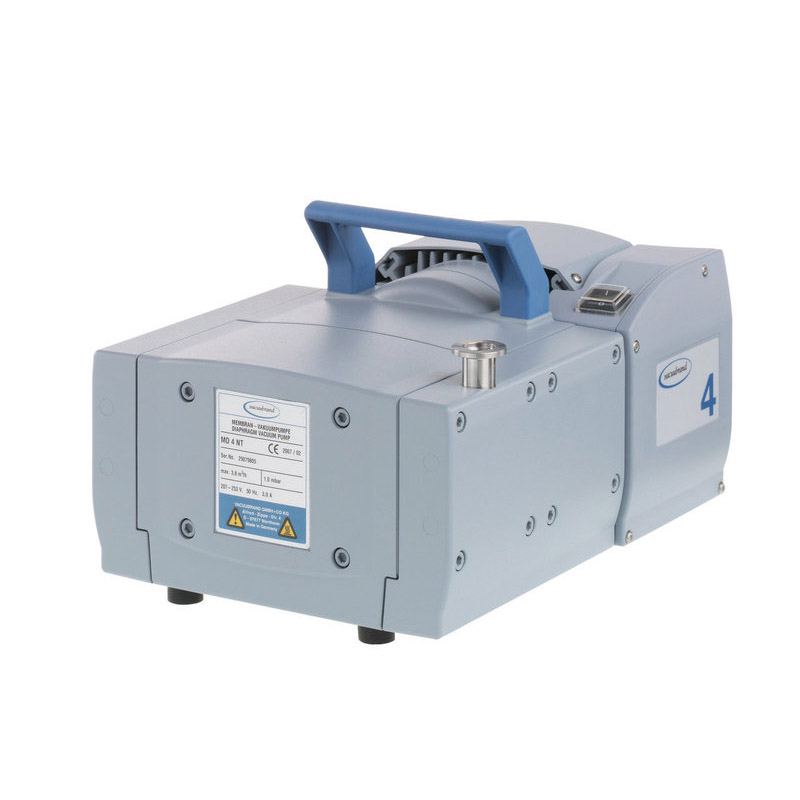

Vacuubrand MD 4 NT Diaphragm Vacuum Pump, 100 - 120V / 50 - 60Hz, US Power Cord, 2.5 CFM, 1 mbar, 736000 / 20736000
Condition:
New
Item#:PN00402
Mfr Part#:736000 / 20736000
Manufacturer:BRANDTECH / Vacuubrand
Features:
Vacuubrand MD 4 NT Diaphragm Vacuum Pump, 100 - 120V / 50 - 60Hz, US Power Cord, 2.5 CFM, 1 mbar, 736000 / 20736000
Vacuubrand MD 4 NT Features:
- Super quiet
- Ultra low vibration
- High chemical resistance
- Space saver
- Simple to use
- Maintenance free drive system
MD 4 NT / 20736000 Overview:
These three-stage diaphragm pumps are an excellent solution for continuous, oil-free pumping of non-corrosive gases. They reach an excellent ultimate vacuum of 1 mbar.
All parts in contact with pumped gases and vapors are made of aluminum, stainless steel and carefully selected plastics suitable for a wide range of applications with non-corrosive gases.
The new NT-series provides whisper quiet and ultra-low vibration operation, high leak tightness and improved performance.
The highly flexible fabric-reinforced double diaphragm made of FKM is ideal for extended operating life.
MD4NT Scope of Delivery:
- Pump completely mounted
- Manual
MD4NT Applications:
- Drying
- Rotary evaporation
- Vacuum concentration
- Filtration
- Local area vacuum networks
- Reactors & synthesis applications
- Fore vacuum generation for turbomolecular pumps
A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
This item is non-returnable/non-refundable
Vacuubrand MD 4 NT Diaphragm Vacuum Pump, 100 - 120V / 50 - 60Hz, US Power Cord, 2.5 CFM, 1 mbar, 736000 / 20736000
Vacuubrand MD 4 NT Technical Data:
- Max. pumping speed 50 Hz: 3.8 m3/h
- Max. pumping speed 60 Hz: 2.5 cfm
- Ultimate vacuum: 1 mbar / 0.75 torr
- Number of heads: 4
- Number of stages: 3
- Lower ambient temperature (operation): 10 °C
- Upper ambient temperature (operation): 40 °C
- Lower ambient temperature (storage): -10 °C
- Upper ambient temperature (storage): 60 °C
- Max. back pressure (abs.): 1.1 bar
- Inlet connection: small flange KF DN 16
- Outlet connection: Silencer / G 1/4"
- Rated motor power: 0.25 kW
- Rated motor speed at 50/60 Hz: 1500/1800 min-1
- Protection class IEC 60529: IP 40
- Dimension L in mm: 328 mm
- Dimension B in mm: 239 mm
- Dimension H in mm: 198 mm
- Weight: 16.4 kg | 36.20 lb
- Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®): 45 dBA
- NRTL certification: Yes
- Rated mains voltage range 1: 100-115 V
- Rated mains voltage range 2: 120 V
- Mains frequency 1: 50-60 Hz
- Mains frequency 2: 60 Hz
A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
