- Ambient operating temperature range 5 to 40 °C
- Inlet connection: NW40
- Outlet connection: NW25
- Peak pumping speed 50 HZ - 25 m3 h-1 (14.7 cfm)
Shopping Cart ( )
Edwards GVSP 30 Dry Scroll Vacuum Pump, ED-GVSP30
Condition:
Remanufactured
Call us for Availability
Item#:PN00303
Mfr Part#:ED-GVSP30
Manufacturer:Edwards Vacuum
Price upon request
CONTACT US
Features:
Fully Refurbished Edwards Vacuum GVSP 30 Dry Scroll Vacuum Pump
Edwards GVSP 30 Overview:
The Edwards GVSP 30 Dry Scroll Vacuum Pump is the right combination of size, performance and low cost to replace more expensive dry pumps currently used in clean applications that demand oil-free pumping.
The GVSP30 pump is not suitable for use with explosive, flammable, toxic or corrosive substances, or substances which contain particulates or powders. If you want to pump condensable vapours, or if you will regularly use the GVSP30 to pump down from atmospheric pressure in a humid environment you must use gas ballast.
The body of the pump includes stationary scrolls and an orbiting scroll. The orbiting scroll is driven by the electric motor through an eccentric cam on the motor drive shaft. The movement of the orbiting scroll, meshed with the stationary scrolls, forms successive crescent shaped volumes in the pump.
Edwards GVSP 30 Features:
- Ideal for chamber roughing
- Ideal backing pump for mag-lev bearing turbo or roots pumps used in a wide range of clean R & D applications
- Features a gas ballast and a well positioned outlet port that allows any condensate to drain from the pump

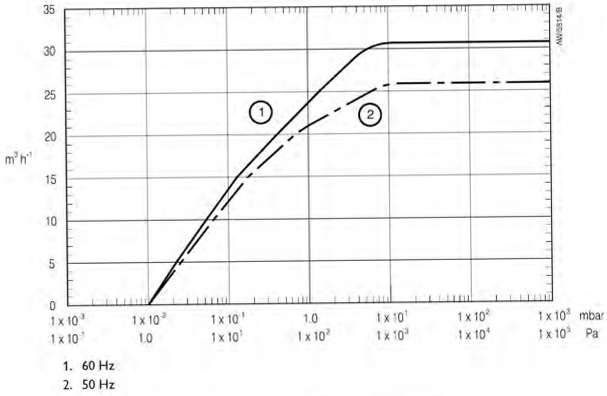

Edwards GVSP30 Pumping Speed:
Edwards GVSP30 Pumping Speed:
A&J Vacuum Repair / Rebuild and Service EDWARDS SCROLL PUMPS and all pump service along with all other EdwardsVacuum Rotary Vane Pumps, Edwards Turbomolecular Pumps repair, Edwards Leak Detector Repair and all other Edwards Vacuum pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
This item is non-returnable/non-refundable
Fully Refurbished Edwards Vacuum GVSP 30 Dry Scroll Vacuum Pump

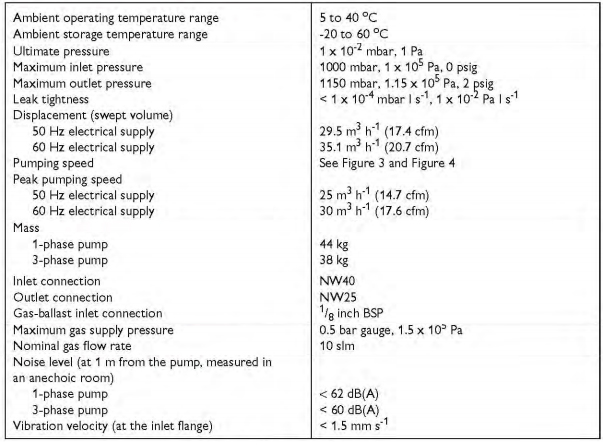

Edwards GVSP 30 Technical Data:
A&J Vacuum Repair / Rebuild and Service EDWARDS SCROLL PUMPS and all pump service along with all other EdwardsVacuum Rotary Vane Pumps, Edwards Turbomolecular Pumps repair, Edwards Leak Detector Repair and all other Edwards Vacuum pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Item#:PN01504
Mfr Part#:P71004800
Condition: Out of Stock
New
$2,290.00
Item#:PN06966
Mfr Part#:71004026
Condition: Ships Within 1-3 Days
New
$1,641.00
Item#:PN11198
Mfr Part#:71003012
Condition: Ships Within 1-3 Days
New
$780.00
Item#:PN11199
Mfr Part#:71004006
Condition: In Stock
New
In Stock
$466.00
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
