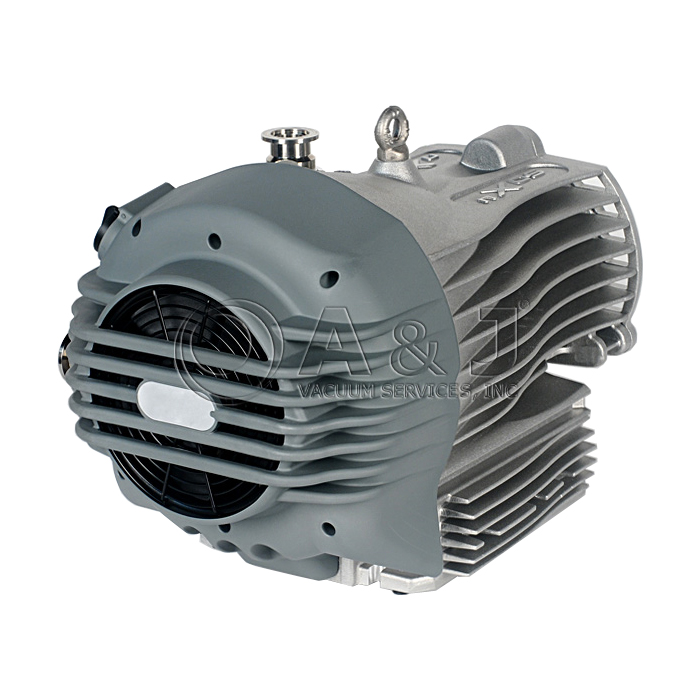

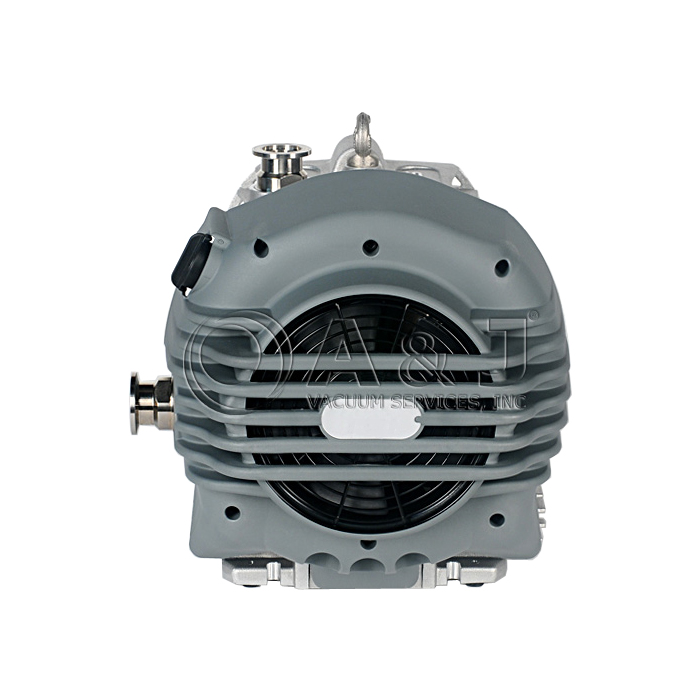

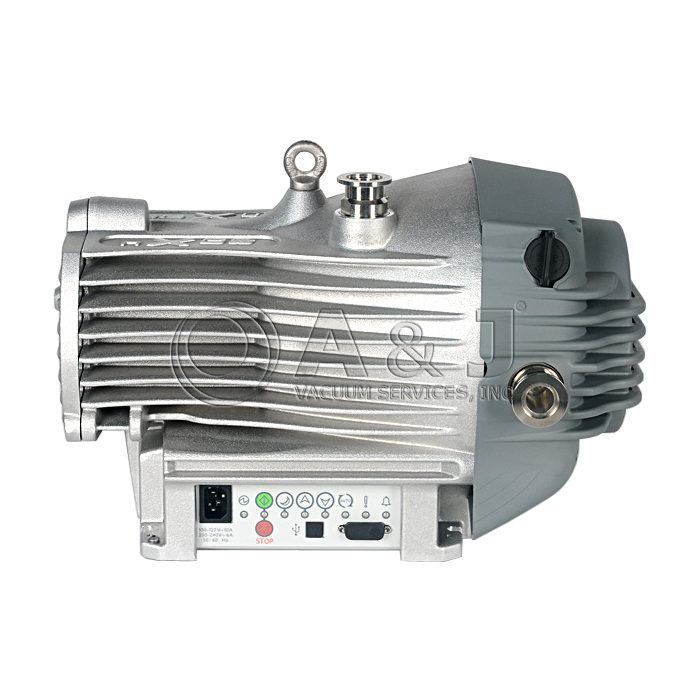

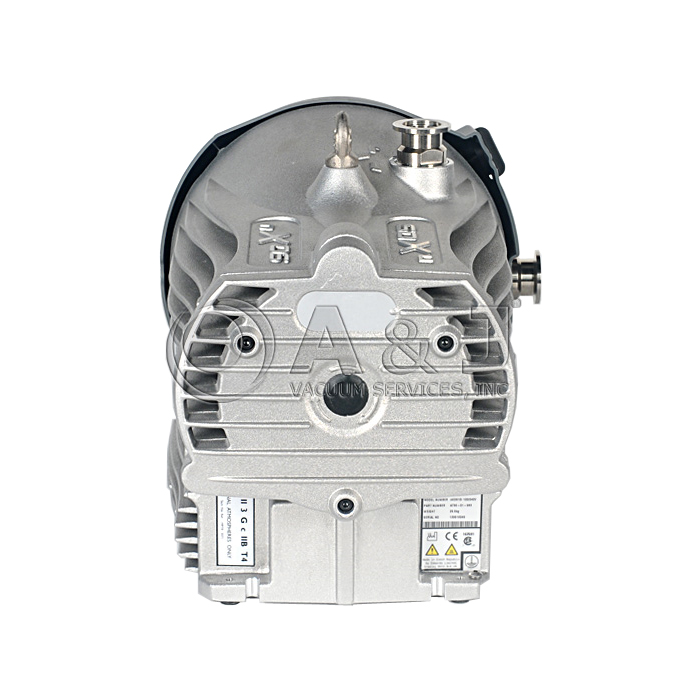

nXDS - Edwards Scroll Dry Pumps

Edwards nXDS6iR improves on legacy XDS series pumps by offering increased pumping speeds, combined with lower ultimate pressures, lower power consumption and lower noise. Gas ballast allows for pumping of condensable vapours including, water, solvents, dilute acids and bases.

Edwards nXDS6iR pumps also feature the latest in tip seal technology giving significantly longer life between tip seal changes. Integrated inverter drive with auto sensing voltage input delivers optimized pumping performance globally. Edwards nXDS6iR pumps are designed to be completely field serviceable.

Edwards nXDS 6iR Characteristic:

Edwards nxds6i characteristic

Edwards nXDS 6iR Features:

Lubricant-free within the vacuum envelope and hermetically sealed means totally clean and dry vacuum to prevent cross contamination
Thermaly controlled fan for reduced noise
No atmosphere to vacuum shaft seals means bearing are completely isolated, which prevents process attack and means the bearings run cooler and last longer
Simple single sided scroll arrangement combined with an innovative motor and bearing design allows for easy field service with a minimum of special tooling for low cost of ownership and maximum up-time
Improved motor and drive efficiencies for reduced power and cost of ownership
Advanced interface provides a variety of traditional, analogue and digital control methods enabling remote control/monitoring via USB, RS232 or RS485

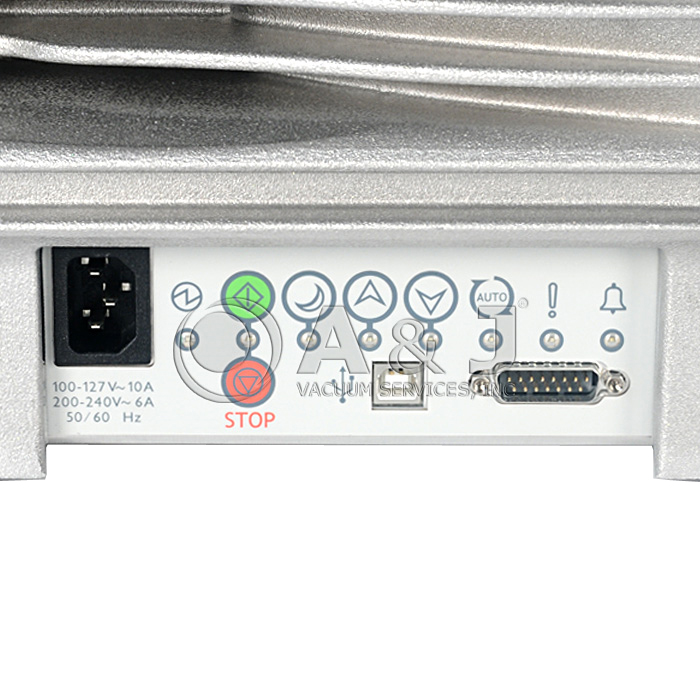

Edwards nXDS 6iR Front Panel:

Edwards nxds6i front panel, A73501983

Edwards nXDS 6iR Dimensions (mm):

Edwards nxds6i Dimensions, A73501983

Edwards nXDS6i, nXDS10i, and nXDS15i Available Spare Parts, Service Kits and Accessories:

Click here for Edwards nXDS6iR Operation Manual A73503983 https://www.ajvs.com/library/Edwards_nXDS_Dry_Scroll_Pump_Instruction_Manual.pdf

Click here for Edwards nXDS6iR Dry Scroll Vacuum Pump Broshure https://www.ajvs.com/library/Edwards_nXDS_Dry_Scroll_Pump_Brochure.pdf

A&J Vacuum Repair / Rebuild and Service Varian EDWARDS NXDS SCROLL PUMPS, XDS Pumps and all Scroll pump service along with all other EdwardsVacuum Rotary Vane Pumps, Edwards Turbomolecular Pumps repair, Edwards Leak Detector Repair and all other Edwards Vacuum pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854

Condition: Remanufactured Ships Within 1-3 Weeks

Edwards nXDS20i Dry Scroll Vacuum Pump, 12.9 CFM / 100 - 127 V, 200 - 240 V, Single Phase, 50/60 Hz, A73801983, NXDS 20i

Item#: PN20697 Mfr Part#: A73801983 Manufacturer: Edwards Vacuum

Price upon request

OEM Certified Fully Remanufactured Edwards nXDS20i Scroll Dry Vacuum Pump, 100 - 127 V, 200 - 240 V, Single Phase, 50/60 Hz, A738-01-983, 73801983, NXDS 20i

Edwards nXDS 20i Overview:

The Edwards nXDS20i is the next generation in completely oil free, dry scroll pumps and replaces the Edwards XDS20i.

Edwards nXDS20i improves on legacy XDS series pumps by offering increased pumping speeds, combined with lower ultimate pressures, lower power consumption and lower noise. Gas ballast allows for pumping of condensable vapours including, water, solvents, dilute acids and bases.

Edwards nXDS20i pumps also feature the latest in tip seal technology giving significantly longer life between tip seal changes. Integrated inverter drive with auto sensing voltage input delivers optimized pumping performance globally. Edwards nXDS20i pumps are designed to be completely field serviceable.

Edwards nXDS 20i Characteristic:

Edwards nxds10i characteristic

Edwards nXDS 20i Features:

Lubricant-free within the vacuum envelope and hermetically sealed means totally clean and dry vacuum to prevent cross contamination
Thermaly controlled fan for reduced noise
No atmosphere to vacuum shaft seals means bearing are completely isolated, which prevents process attack and means the bearings run cooler and last longer
Simple single sided scroll arrangement combined with an innovative motor and bearing design allows for easy field service with a minimum of special tooling for low cost of ownership and maximum up-time
Improved motor and drive efficiencies for reduced power and cost of ownership
Advanced interface provides a variety of traditional, analogue and digital control methods enabling remote control/monitoring via USB, RS232 or RS485

Edwards nXDS 20i Front Panel:

Edwards nxds10i front panel, A73601983

Edwards nXDS 20i Dimensions (mm):

Edwards nxds10i Dimensions, A73601983

Edwards nXDS6i, nXDS10i, and nXDS15i Available Spare Parts, Service Kits and Accessories:

Click here for Edwards nXDS20i Operation Manual A73701983 https://www.ajvs.com/library/Edwards_nXDS_Dry_Scroll_Pump_Instruction_Manual.pdf

Click here for Edwards nXDS20i Dry Scroll Vacuum Pump Brochure https://www.ajvs.com/library/Edwards_nXDS_Dry_Scroll_Pump_Brochure.pdf

Condition: Remanufactured Ships Within 1-3 Weeks

Edwards nXDS6iC Dry Scroll Vacuum Pump, Corrosive, 3.6 CFM / 100 - 127 V, 200 - 240 V, Single Phase, 50/60 Hz, A73502983

Item#: PN22810 Mfr Part#: A73502983 Manufacturer: Edwards Vacuum

Price upon request

Fully remanufactured Edwards nXDS6 iC Dry Scroll Vacuum Pump, Corrosive, 3.6 CFM 100 - 127 V, 200 - 240 V, Single Phase, 50/60 Hz, A735-02-983, 73502983 EDWARDS NXDS 6iC

Edwards nXDS 6iC Overview:

The Edwards nXDS6iC is the next generation in completely oil free, dry scroll pumps and replaces the Edwards nXDS6iC.

Edwards nXDS6iC improves on legacy XDS series pumps by offering increased pumping speeds, combined with lower ultimate pressures, lower power consumption and lower noise. Gas ballast allows for pumping of condensable vapours including, water, solvents, dilute acids and bases.

Edwards nXDS6iC pumps also feature the latest in tip seal technology giving significantly longer life between tip seal changes. Integrated inverter drive with auto sensing voltage input delivers optimized pumping performance globally. Edwards nXDS6iC pumps are designed to be completely field serviceable.

Edwards nXDS 6iC Characteristic:

Edwards nxds6i characteristic

Edwards nXDS 6iC Features:

Lubricant-free within the vacuum envelope and hermetically sealed means totally clean and dry vacuum to prevent cross contamination
Thermaly controlled fan for reduced noise
No atmosphere to vacuum shaft seals means bearing are completely isolated, which prevents process attack and means the bearings run cooler and last longer
Simple single sided scroll arrangement combined with an innovative motor and bearing design allows for easy field service with a minimum of special tooling for low cost of ownership and maximum up-time
Improved motor and drive efficiencies for reduced power and cost of ownership
Advanced interface provides a variety of traditional, analogue and digital control methods enabling remote control/monitoring via USB, RS232 or RS485

Edwards nXDS 6iC Front Panel:

Edwards nxds6i front panel, A73501983

Edwards nXDS 6iC Dimensions (mm):

Edwards nxds6i Dimensions, A73501983

Edwards nXDS6i, nXDS10i, and nXDS15i Available Spare Parts, Service Kits and Accessories:

Click here for Edwards nXDS6iC Operation Manual A73502983 https://www.ajvs.com/library/Edwards_nXDS_Dry_Scroll_Pump_Instruction_Manual.pdf

Click here for Edwards nXDS6iC Dry Scroll Vacuum Pump Broshure https://www.ajvs.com/library/Edwards_nXDS_Dry_Scroll_Pump_Brochure.pdf

Condition: Remanufactured Out of Stock

Edwards nXDS10i Dry Scroll Vacuum Pump, 6.7 CFM 100 - 127 V, 200 - 240 V, Single Phase, 50/60 Hz, A73601983

Item#: PN24350 Mfr Part#: A73601983 Manufacturer: Edwards Vacuum

Price upon request

Edwards nXDS10i Scroll Dry Vacuum Pump, 100 - 127 V, 200 - 240 V, Single Phase, 50/60 Hz, A736-01-983, 73601983, NXDS 10i

Edwards nXDS 10i Overview:

The Edwards nXDS10i is the next generation in completely oil free, dry scroll pumps and replaces the Edwards XDS10.

Edwards nXDS10i improves on legacy XDS series pumps by offering increased pumping speeds, combined with lower ultimate pressures, lower power consumption and lower noise. Gas ballast allows for pumping of condensable vapours including, water, solvents, dilute acids and bases.

Edwards nXDS10i pumps also feature the latest in tip seal technology giving significantly longer life between tip seal changes. Integrated inverter drive with auto sensing voltage input delivers optimized pumping performance globally. Edwards nXDS10i pumps are designed to be completely field serviceable.

Edwards nXDS 10i Characteristic:

Edwards nxds10i characteristic

Edwards nXDS 10i Features:

Lubricant-free within the vacuum envelope and hermetically sealed means totally clean and dry vacuum to prevent cross contamination
Thermaly controlled fan for reduced noise
No atmosphere to vacuum shaft seals means bearing are completely isolated, which prevents process attack and means the bearings run cooler and last longer
Simple single sided scroll arrangement combined with an innovative motor and bearing design allows for easy field service with a minimum of special tooling for low cost of ownership and maximum up-time
Improved motor and drive efficiencies for reduced power and cost of ownership
Advanced interface provides a variety of traditional, analogue and digital control methods enabling remote control/monitoring via USB, RS232 or RS485

Edwards nXDS 10i Front Panel:

Edwards nxds10i front panel, A73601983

Edwards nXDS 10i Dimensions (mm):

Edwards nxds10i Dimensions, A73601983

Edwards nXDS6i, nXDS10i, and nXDS15i Available Spare Parts, Service Kits and Accessories:

Click here for Edwards nXDS10i Operation Manual A73601983 https://www.ajvs.com/library/Edwards_nXDS_Dry_Scroll_Pump_Instruction_Manual.pdf

Click here for Edwards nXDS10i Dry Scroll Vacuum Pump Broshure https://www.ajvs.com/library/Edwards_nXDS_Dry_Scroll_Pump_Brochure.pdf

Condition: Remanufactured Out of Stock
