- PN G13101
- Exhaust Flange: DN25
- Rotation Speed: 27000 rpm
- Pumping Speed: N2 l/s: 100
Shopping Cart ( )

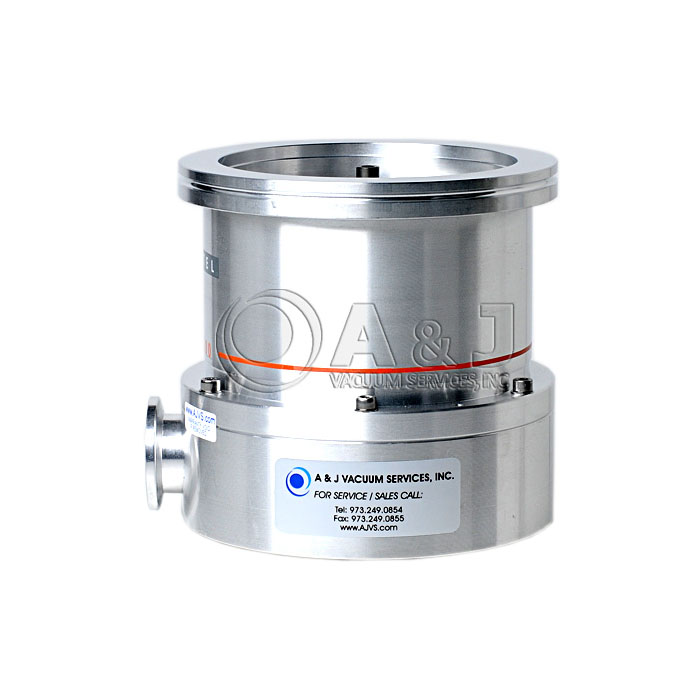

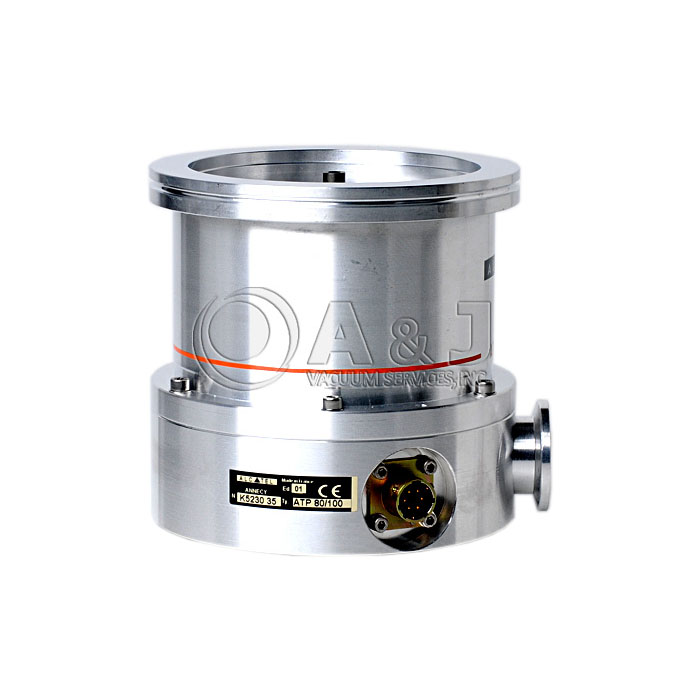

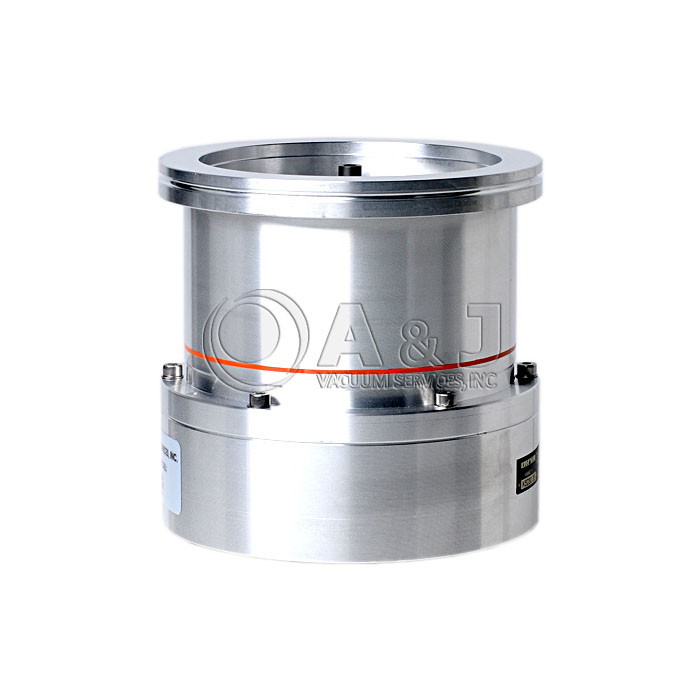

Alcatel Adixen ATP 100 Turbo Pump, DN 100 ISO, Natural Cooling, G13101
Condition:
Discontinued
Item#:PN00376
Mfr Part#:G13101
Manufacturer:Adixen / Alcatel
This product has been discontinued and is no longer available for sale
VIEW REPLACEMENT
Features:
Alcatel Adixen ATP 100 Turbo Pump, DN 100 ISO, Natural Cooling, G13101
Alcatel Adixen ATP 100 Features:
- Ceramic ball bearings lubricated with grease
- Adjustable rotation speed between 6000 and 27000 rpm
- Natural convection, air or water cooling
- "C" version for corrosive application with nitrogen purge
- "HPC" high pressure version for semiconductor applications
ATP 100 / G13101 Overview:
The reliable and strudy design of ATP pumps ensures performance suited to the fields of application concerned. In molecular operation, the gas molecules of the vacuum system arrive at the pump intake. They are trapped between the rotating disks of the rotor and the stationary disks of the stator and carried to the exhaust of the pump.
ATP100 Applications:
- Industry: Cryogenics, Freeze drying, Vacuum drying, etc.
- Instrumentation: Mass spectrometry, Surface analysis, etc.
- Research and Development: Ultra-high vacuum systems, Particle accelerators, etc.
A&J Vacuum also repair / rebuild and service Alcatel ATP100 and Adixen ATP 100 Turbo Pumps along with all other Alcatel Vacuum pumps and Adizen Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
This item is non-returnable/non-refundable
Alcatel Adixen ATP 100 Turbo Pump, DN 100 ISO, Natural Cooling, G13101

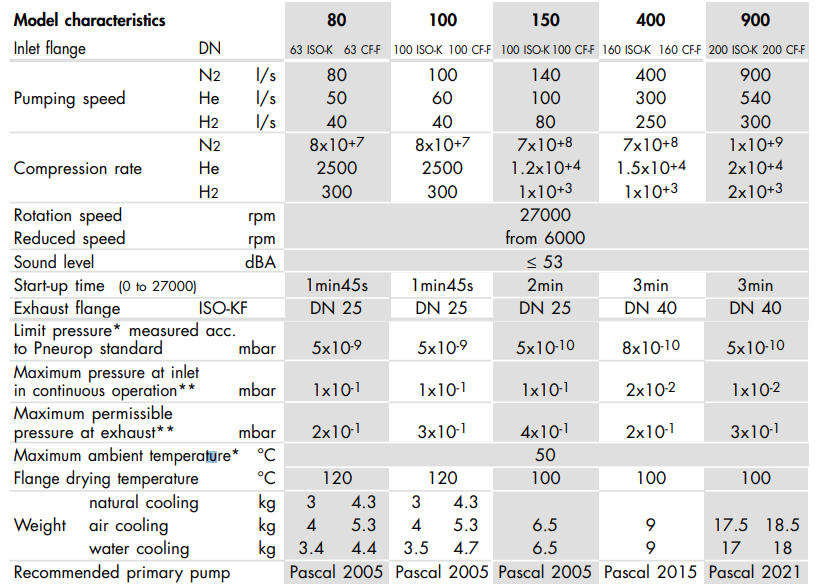

Alcatel Adixen ATP 100 Technical Data:
A&J Vacuum also repair / rebuild and service Alcatel ATP100 and Adixen ATP 100 Turbo Pumps along with all other Alcatel Vacuum pumps and Adizen Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Item#:PN07047
Mfr Part#:PN07047
Condition: In Stock
Remanufactured
In Stock
$257.50
Item#:PN19685
Mfr Part#:13256
Condition: Out of Stock
New
Price upon request
Item#:PN07047
Mfr Part#:PN07047
Condition: In Stock
Remanufactured
In Stock
$257.50
Item#:PN07048
Mfr Part#:2000044879 / 056993 / 200027
Condition: In Stock
New
In Stock
$244.99
Item#:PN15830
Mfr Part#:2000036974 / A463207-035
Condition: In Stock
New
In Stock
$515.00
Item#:PN16849
Mfr Part#:PN16849
Condition: Ships Within 1-3 Days
New
$895.00
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
We can repair your:
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
