Pfeiffer Vacuum

Pfeiffer Vacuum Pirani Measurement Boards have two independent medium vacuum measurement circuits, each with one gauge cable connector, two trimmer potentiometers and one analog signal output. When the control unit is on, the Pirani measurement circuits are in continuous operation. The analog signals are constantly available, independent of what is shown on the pressure display.

*THERE ARE NO RETURNS ON THIS ITEM IF ITEM IS OPENED OR USED*

Condition: Demo In Stock

Pfeiffer TPG 300 Cold Cathode Measurement Board PE 300 DC9 for 2 IKR 050 Gauge Heads, PT441375-T

Item#: PN16127 Mfr Part#: PT441375-T Manufacturer: Pfeiffer Vacuum

PRICE: $704.95

WEB SAVINGS: $13.82

YOU PAY: $691.13

Demo Unit Pfeiffer Vacuum Cold Cathode Measurement Board PE 300 DC9 for 2 IKR 050 Gauge Heads, PT441375-T

Measurement Board Overview:

Pfeiffer Vacuum Cold Cathode Measurement Boards for the measurement of high and ultra high vacuum contain one or two measurement circuits, each with one gauge cable connector and one analog signal output. When the gauge is turned on, the analog signals are constantly available, independent of what is shown on the pressure display.

This measurement board contains special electronics to limit the measurement current to 100 uA, a feature that considerably extends the lifetime of the gauge.

*THERE ARE NO RETURNS ON THIS ITEM IF ITEM IS OPENED OR USED*

Condition: Demo In Stock

Pfeiffer TPG 300 Interface and Relay Board IF 300 B, RS-232-C, 120 W, 1000 VA, PT441250-T

Item#: PN16129 Mfr Part#: PT441250-T Manufacturer: Pfeiffer Vacuum

PRICE: $599.00

WEB SAVINGS: $49.00

YOU PAY: $550.00

Demo Unit Pfeiffer Vacuum Interface and Relay Board IF 300 B, RS-232-C, 120 W, 1000 VA, PT441250-T

Pfeiffer Interface Overview:

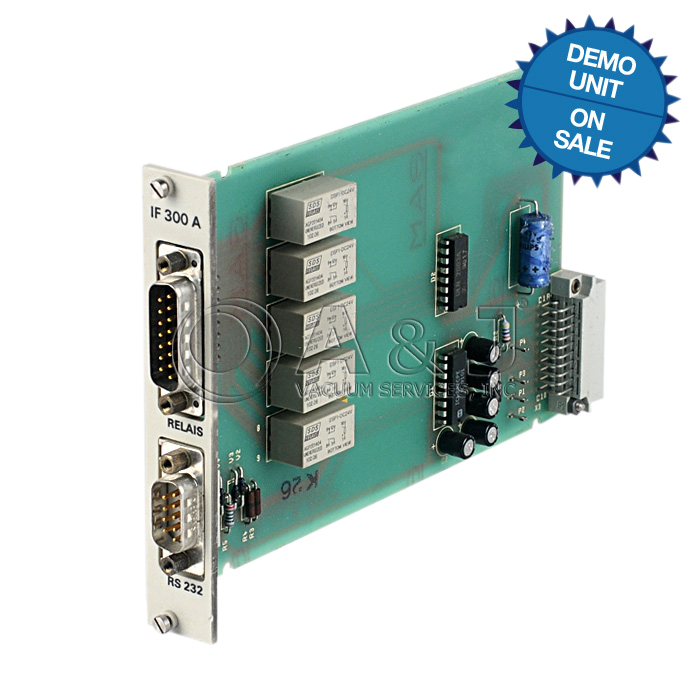

Pfeiffer Vacuum offers four types of interface and relay boards. Two contain an RS232C interface, one an RS422 and one Profibus-DP interface. All four types have five relays with one floating changeover contact each. The main difference between these four boards is the switching voltage of the relays and the type of interface port.

*THERE ARE NO RETURNS ON THIS ITEM IF ITEM IS OPENED OR USED*

Condition: Demo In Stock

Pfeiffer Vacuum Dual Gauge TPG 252 A Controller, PTG28270

Item#: PN06943 Mfr Part#: PTG28270 Manufacturer: Pfeiffer Vacuum

Price upon request

Pfeiffer Vacuum Dual Gauge TPG 252 A (TPG252A) Controller, PTG28270

Pfeiffer TPG 252 A Overview:

Vacuum measurement and control unit for Compact Gauges

The DualGauge™ (TPG 252 A) is used together with Pfeiffer Vacuum Compact Gauges for total pressure measurement.

Compatible Gauges:

Compact Pirani Gauges	TPR 250, TPR 260,
	TPR 261, TPR 265
Compact Cold Cathode Gauges	IKR 250, IKR 251,
	IKR 260, IKR 261, IKR 270
Compact FullRange™ CC Gauges	PKR 250, PKR 251,
	PKR 260, PKR 261
Compact Process Ion Gauges	IMR 260
Compact Capacitance Gauges	CMR 261, CMR 262,
	CMR 263, CMR 264,
	CMR 271, CMR 272,
	CMR 273, CMR 274,
	ACR 261, ACR 262,
	ACR 263, ACR 274

Unit is fully rebuilt and comes with a FULL 6-MONTH WARRANTY!

THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.

Condition: Remanufactured Out of Stock

Pfeiffer TPG 300 Pirani Cold Cathode Measurement Board CP 300 C9 for TPR 010 / 018 and IKR 050 Gauge Head, PT441000-T

Item#: PN16126 Mfr Part#: PT441000-T Manufacturer: Pfeiffer Vacuum

PRICE: $518.48

WEB SAVINGS: $10.17

YOU PAY: $508.31

Demo Unit Pfeiffer Vacuum Pirani Cold Cathode Measurement Board CP 300 C9 for TPR 010 / 018 and IKR 050 Gauge Head, PT441000-T

Pfeiffer Measurement Board Overview:

Pfeiffer Vacuum Pirani/Cold Cathode Measurement Boards are combined boards containing one Pirani and one cold cathode measurement circuit each.

Measurement boards for the range of 10-10 and 10-11 mbar contain special electronics to limit the measurement current to 100 uA, a feature that considerably extends the lifetime of the gauge.

*THERE ARE NO RETURNS ON THIS ITEM IF ITEM IS OPENED OR USED*

Condition: Demo Out of Stock

Pfeiffer TPG 300 Pressure Gauge Controller, Basic Unit, PT546900-T

Item#: PN06944 Mfr Part#: PT546900-T Manufacturer: Pfeiffer Vacuum

PRICE: $2,360.00

WEB SAVINGS: $835.00

YOU PAY: $1,525.00

Fully Refurbished Pfeiffer Vacuum TPG300 TPG 300 Pressure Gauge Controller, Basic Unit, PT546900-T

Product Features - Pfeiffer TPG 300 Pressure Gauge Controller:

Power Supply
3 Free Slots for Measurement, Interface and Relay Boards.
Universal Power Supply Units for Worldwide Use
Measuring From Atmospheric Pressure to 1 * 10^[-11]
To Connect Pirani Vacuum Gauges (TPR) and Cold Cathode Gauges (IKR)
Basic Unit w/ Power Supply and 2 Free Slots for Measurement Boards & One Free Slot for Interface and Relay Boards
Mains Cable for TPG 300 Basic Unit Available Separately

Depending upon the option chosen, the Pfeiffer TPG 300 can measure total pressure from atmosphere to 10^[-11] mbar. It comes with the ability to trigger a number of pressure-dependent functions to control and monitor vacuum devices and their respective processes.

A Brief Overview of Pressure Measurement Within a Vacuum System:

Pressure measurement is the analysis of an applied force by a fluid (liquid or gas) on a surface. Pressure is typically measured in units of force per unit of surface area - the Pascal (Pa) is the SI unit commonly used to measure pressure, equivalent to one newton per square meter. Alternatively, pounds per square inch (psi) can also be used as a unit of pressure measurement. In determining the degree of pressure within a vacuum or system, most gauges measure pressure relative to atmospheric pressure, a level referred to as the zero point. Vacuum gauges are especially precise instruments, as they are able to detect the slightest deviations from a state of total vacuum. Any reading greater than total vacuum in such a state constitutes a form of pressure, and thus a vacuum gauge uses total vacuum as the zero point. A vacuum gauge utilizes an absolute scale, whereby the lever begins at the zero point (a complete absence of pressure within a state of total vacuum) and can only change in one direction (as pressure increases).

Differential pressure is likewise an important concept in the field of pressure measurement, as it conveys the difference in pressure between two points or systems. Often times, this refers to the difference between standard atmospheric pressure (typically about 100 kPa at sea level) and the pressure within a vacuum environment. Differential pressure analyses are commonly used in industrial processing systems, and are incorporated within many of the products sold and serviced by A&J Vacuum Services. Differential pressure gauges feature two inlet ports, each connected to one of the two environments where pressure is to be monitored. By monitoring the pressure differential between a near-vacuum environment and one featuring standard atmospheric pressure, the user/operator may obtain an accurate pressure reading by subtracting the difference in total pressure between the two systems.

*THERE ARE NO RETURNS ON THIS PRODUCT IF OPENED OR USED*

Controller Dimensions:

A&J Vacuum services and repairs Pfeiffer Vacuum TPG 300 Pressure Gauge Controllers, along with all other Pfeiffer Vacuum controllers and pressure measurement devices available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.

Condition: Demo Out of Stock
