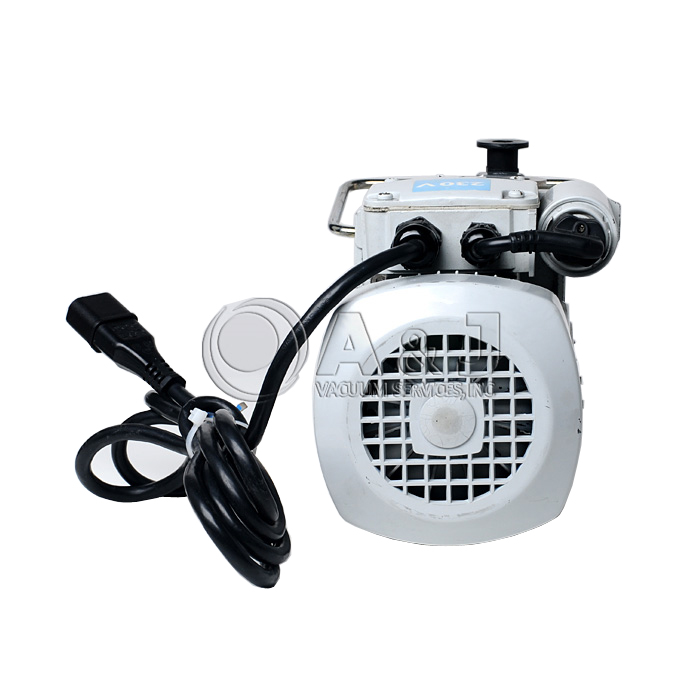

Refurbished Edwards E2M1.5 Vacuum Pump, Dual Stage, Rotary Vane Pump, Hydrocarbon Elite Z oil, 100-120VAC, A37132902
The E2M1.5 pumps are two-stage, direct drive, sliding vane pumps. The pump is oil-sealed and designed for reliable, long-term operation. The pump is a free-standing unit. The drive is provided through a coupling by a single-phase motor.
The motor is totally enclosed and is cooled by the motor-cooling fan which directs air along the motor fins. The motors are fitted with a thermal overload device. When the motor is too hot, the thermal overload device switches off the pump. The thermal overload device has an automatic reset; when the motor cools down, the device resets and the motor will restart.
An oil pressure system lubricates the pump shaft bearing surfaces and rotor sealing faces. The pump has an oil distribution valve which prevents discharge of oil to the pump interior (suckback) after the pump stops. The pumping chambers are air-tight, so this arrangement prevents oil suckback unless the gasballast valve is open.
You can inspect the level and condition of oil in the oil box reservoir through a sight-glass. An oil filler-plug is fitted to the top of the oil box. An oil drain-plug is fitted at the bottom of the oil box. The pump has a carrying handle, inlet-port, outlet nozzle and gas-ballast control. The pump is mounted on a steel baseplate on rubber pads.
Unit is fully rebuilt and comes with a FULL 6-MONTH WARRANTY!
Technical Data:
| Maximum displacement |
E2M0.7 |
E2M1.5 |
| 50 Hz electrical supply |
0.9 m3 h-1 (0.53 ft3 min-1) |
1.8 m3 h-1 (1.06 ft3 min-1) |
| 60 Hz electrical supply |
1.1 m3 h-1 (0.65 ft3 min-1) |
2.2 m3 h-1 (1.30 ft3 min-1) |
| Maximum pumping speed - Pneurop |
|
|
| 50 Hz electrical supply |
0.75 m3 h-1 (0.44 ft3 min-1) |
1.6 m3 h-1 (0.94 ft3 min-1) |
| 60 Hz electrical supply |
0.95 m3 h-1 (0.56 ft3 min-1) |
2.0 m3 h-1 (1.18 ft3 min-1) |
| Motor rotational speed |
|
|
| 50 Hz electrical supply |
1400 r min-1 |
2800 r min-1 |
| 60 Hz electrical supply |
1700 r min-1 |
3400 r min-1 |
| Ultimate vacuum |
|
|
| without gas-ballast (partial pressure) |
7 x 10-4 mbar, 7 x 10-2 Pa |
5 x 10-4 mbar, 5 x 10-2 Pa |
| |
(5.2 x 10-4 Torr) |
(3.7 x 10-4 Torr) |
| without gas-ballast (total pressure) |
3 x 10-3 mbar, 3 x 10-1 Pa |
1.5 x 10-3 mbar, 1.5 x 10-1 Pa |
| |
(2.2 x 10-3 Torr) |
(1.1 x 10-3 Torr) |
| with full gas-ballast (partial pressure) |
2 x 10-1 mbar, 2 x 10-1 Pa |
2.5 x 10-2 mbar, 2.5 Pa |
| |
(1.5 x 10-1 Torr) |
(1.9 x 10-2 Torr) |
| Maximum water vapour inlet pressure |
15 mbar (11.2 Torr) |
15 mbar (11.2 Torr) |
| Maximum water vapour pumping rate |
8 g h-1 |
16 g h-1 |
| Maximum permitted outlet pressure |
0.5 bar gauge |
0.5 bar gauge |
| (at full pump throughout) |
1.5 bar absolute |
1.5 bar absolute |
| |
1.5 x 105 Pa (21.75 psi) |
1.5 x 105 Pa (21.75 psi) |
PN06445
Service and Repair Information
Edwards E2M1.5 Vacuum Pump, Dual Stage, Rotary Vane Pump, Hydrocarbon Elite Z oil, 100-120VAC, A37132902
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service. Due to our confidence in the quality parts and service we guarantee 6-12 month warranty for parts and labor.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
