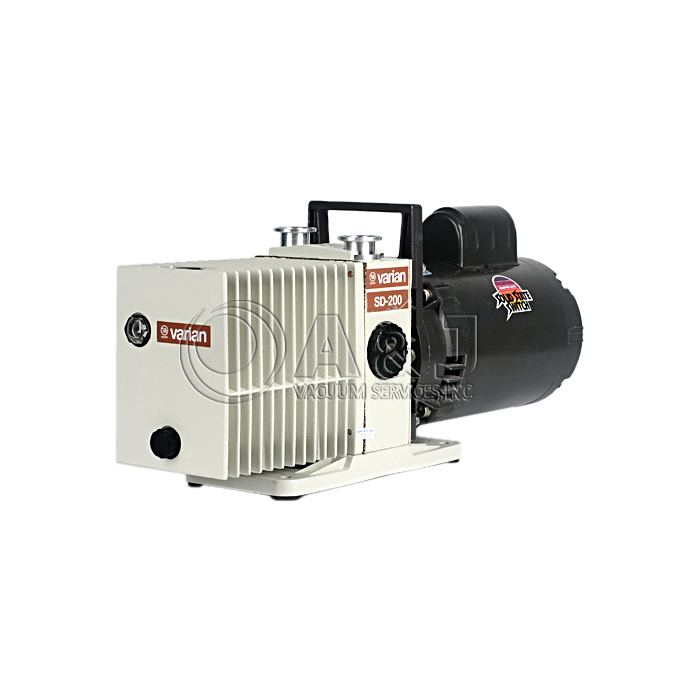

Varian SD 200 Vacuum Pump Dual Stage Rotary Vane, 115/208-230 VAC, 60/50 Hz, 1/2 HP, 0421.P1211.307, SD-200
The Varian SD 200 Dual Stage Rotary Vane Pump has a peak pumping velocity of 7 cfm and a final pressure of 1 x 10-3 Torr. It has been thoroughly examined and is ready for a broad range of applications within the research and industrial industries.
Applications:

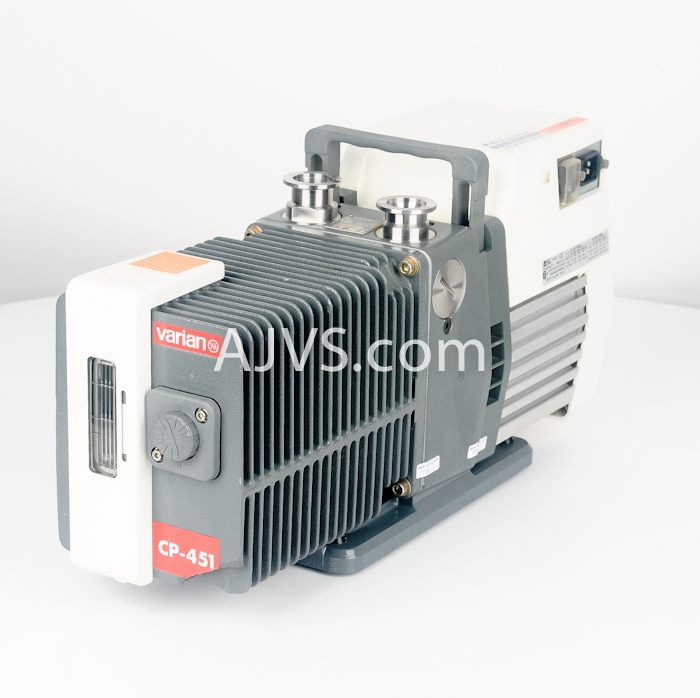

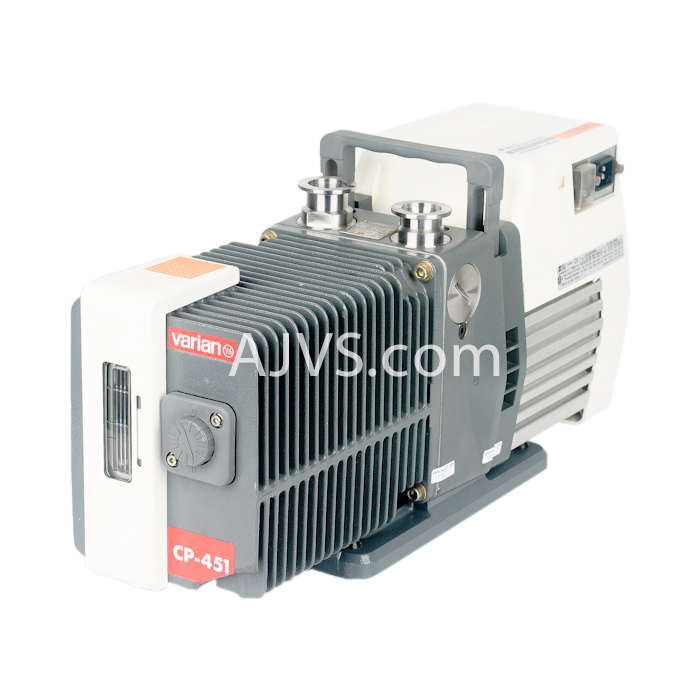

Varian CP451, CP-451 Rotary Vane Pump, coupled with a KF 25 Inlet Flange and KF 25 Outlet Flange. This CP451, CP-451 Rotary Vane Pump has a peak pumping velocity of 10.6 cfm and a final pressure of 3 x 10-3 Torr.
CP451, CP-451 has been thoroughly examined and is ready for broad range of applications within the research and industrial industries.
Peak Pumping Speed: 24 cfm
Inlet Flange: 40NW/KF
Outlet Flange: 40NW/KF
Ultimate Pressure: 1 x 10-3 Torr.
Wired for 230 Volts
A&J Vacuum repair / rebuild and service all Varian SD90, SD200, SD300, SD400, SD700, SD1400. Series Vacuum Pumps along with all other Varian, Alcatel, Edwards, Bush, Leybold, Pfeiffer, Ulvac Oil lubricated Pumps, Varian Scroll Dry Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854

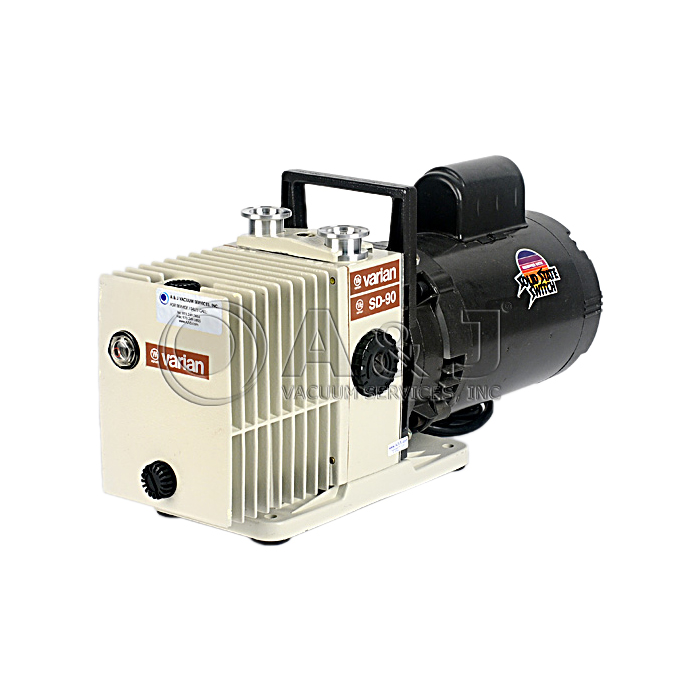

Varian SD90 Dual Stage Rotary Vane Pump, 115VAC coupled with a 25NW/KF Inlet Flange and 25NW/KF Outlet Flange. This Varian / Agilent SD 90 Rotary Vane Pump has a peak pumping velocity of 3.2 cfm and a final pressure of 1 x 10-3 Torr. It has been thoroughly examined and is ready for broad range of applications within the research and industrial industries. Varian SD 90 uses AJVS Elite Z vacuum fluid.

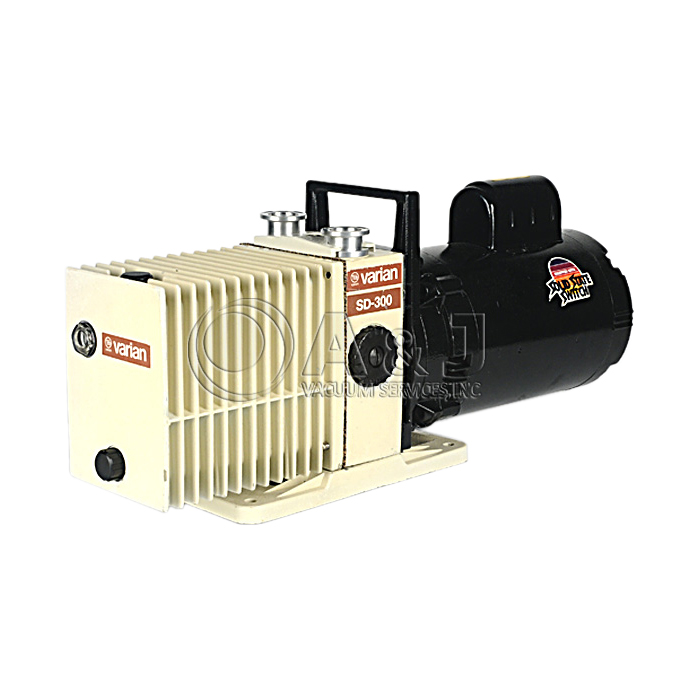

Fully refurbished Varian SD 300 Vacuum Pump Dual Stage Rotary Vane Pump coupled with a 25 NW/KF Inlet Flange and 25 NW/KF Outlet Flange. This Rotary Vane Pump has a peak pumping velocity of 11 cfm and a final pressure of 1 x 10-3 Torr. It has been thoroughly examined and is ready for broad range of applications within the research and industrial industries.
Peak Pumping Speed: 24 cfm
Inlet Flange: 40NW/KF
Outlet Flange: 40NW/KF
Ultimate Pressure: 1 x 10-3 Torr.
Wired for 230 Volts
A&J Vacuum repair / rebuild and service all Varian SD90, SD200, SD300, SD400, SD700, SD1400. Series Vacuum Pumps along with all other Varian, Alcatel, Edwards, Bush, Leybold, Pfeiffer, Ulvac Oil lubricated Pumps, Varian Scroll Dry Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Varian SD 2500 Dual Stage Rotary Vane Pump coupled with a 50NW/KF Inlet Flange and 50NWKF Outlet Flange. This Varian / Agilent Rotary Vane Pump has a peak pumping velocity of 85 cfm and a final pressure of 1 x 10-3 Torr. It has been thoroughly examined and is ready for broad range of applications within the research and industrial industries.
The Varian SD 1400 Rotary Vane Pump has an anti-suckback system that ensures the tightness of the pump during accidental or voluntary shutdowns. A gas ballast enables the pumping of condensable vapors. The universal three-phase motor can be disassembled independently of the rest of the pump, without the need to drain the oil case. On the oil case, a sight glass can be used to inspect the oil level easily when filling the oil case and during the operation of the pump. The inlet and exhaust end fittings are standardized. They can be used to connect many different kinds of accessories.

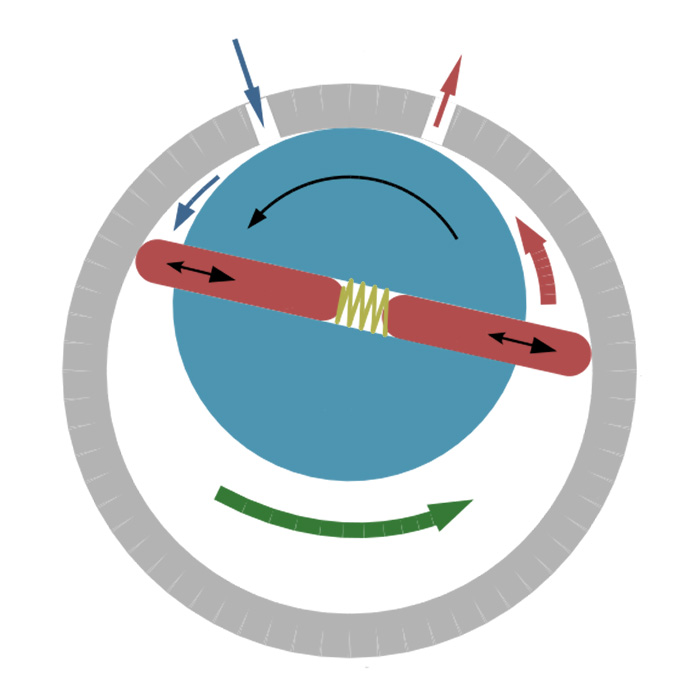

To improve the backing pressure and flowrate at low pressure, two stages are connected in the series. The second is similar to the first both structurally and operationally. The gases pulled in by the first stage (low pressure) are transferred to the second stage (high pressure) and discharged through the high pressure (HP) valve.

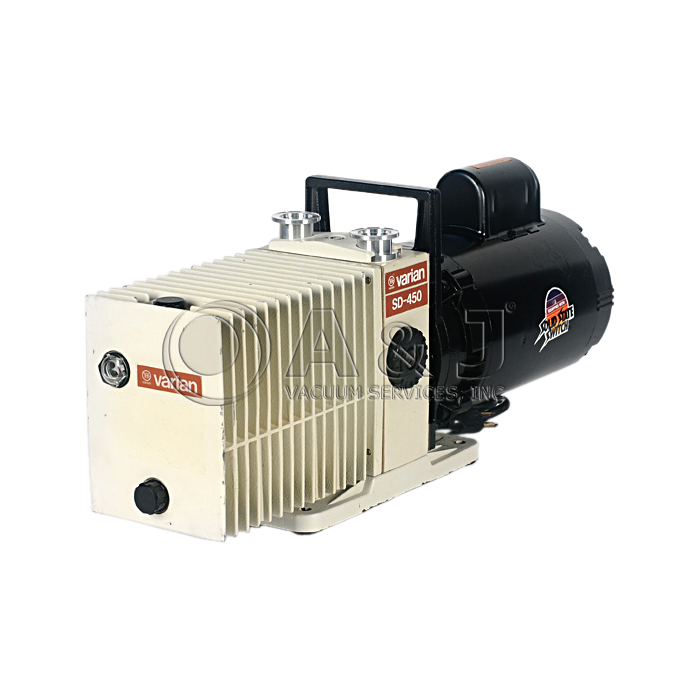

Fully Remanufactured Varian SD450 Dual Stage Rotary Vane Pump coupled with a KF 25 inlet flange and KF 25 outlet flange.
This Varian SD-450 Vacuum Pump has a peak pumping velocity of 16 cfm and a final pressure of 1 x 10-3 Torr. It has been thoroughly examined and is ready for broad range of applications within the research and industrial industries.
A&J Vacuum repair / rebuild and service all Varian SD90, SD200, SD300, SD400, SD700, SD1400. Series Vacuum Pumps along with all other Varian, Alcatel, Edwards, Bush, Leybold, Pfeiffer, Ulvac Oil lubricated Pumps, Varian Scroll Dry Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Varian SD 301 Rotary Vane Pump, coupled with a KF 25 Inlet Flange and KF 25 Outlet Flange. This Rotary Vane Pump has a peak pumping velocity of 10.6 cfm and a final pressure of 3 x 10-3 Torr.
It has been thoroughly examined and is ready for broad range of applications within the research and industrial industries.
