Fully refurbished Alcatel 2008A Pascal Dual Stage Rotary Vane Pump coupled with a KF 25 inlet flange and KF 25 outlet flange. This Alcatel Rotary Vane Pump has a peak pumping velocity of 7cfm and a final pressure of 1 x 10-3 Torr. It has been thoroughly examined and is ready for broad range of applications within the research and industrial industries.
A&J Vacuum also repair / rebuild and service all Alcatel 2008A Vacuum Pumps along with all other Edwards Turbo Pumps, Edwards Dry Pumps, Edwards Scroll Pumps and all other Edwards Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
A&J Vacuum services and repairs Pfeiffer Pascal, along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Fully refurbished Alcatel/Adixen 2033 CP Chemical Resistant Rotary Vane Pump coupled with a KF-40 Inlet Flange and KF-40 Outlet Flange. This Alcatel/Adixen Rotary Vane Pump has a peak pumping velocity of 27cfm and a final pressure of 1 x 10-3 Torr. It has been thoroughly examined and is ready for broad range of applications within the research and industrial industries. The Alcatel/Adixen 2033 CP Pump comes with an entire 12-Month Warranty.
This pump is fully rebuilt and comes with a FULL 12-MONTH WARRANTY!
A rotary vane pump can be described as a positive-displacement pump that is comprised of vanes mounted to a rotor that rotates inside of an enclosure. In some instances these vanes can be of varying length and tensioned to maintain contact with the walls as the pump rotates.
The simplest rotary vane pump is a circular rotor revolving inside of a larger round enclosure. The centers of these two bands are offset, inducing eccentricity. Vanes are allowed to slide in and out of the rotor and seal on all edges, making vane chambers that do the pumping work. On the intake side of the pump, the vane chambers are increasing in volume. These increasing volume vane chambers are filled with fluid forced in by the inlet pressure. Inlet pressure level is actually the pressure level from the system being pumped, frequently just the atmosphere. On the exhaust side of the pump, the vane chambers are decreasing in volume, forcing fluid out of the pump. The activity of the vane drives out the same volume of fluid with each rotation. Multistage rotary vane vacuum pumps can reach pressures levels as low as 103 mbar (0.1 Pa).Visit the rotary vane pump wiki page for more information.
A&J Vacuum Services offers full repair/service of Alcatel Adixen 2033 CP, along with all other brands of rotary vane pumps offered on our website. AJVS also services Pfeiffer turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.

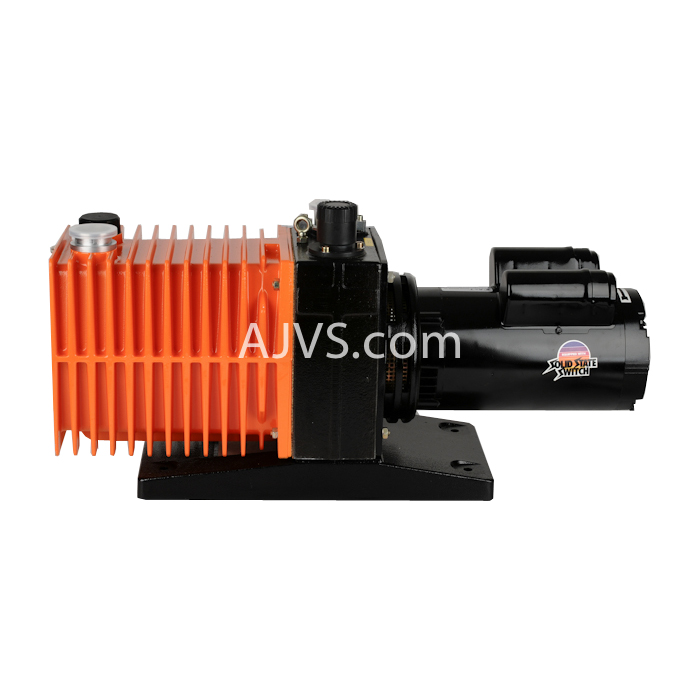

Fully Refurbished Alcatel/Adixen 2033 C Rotary Vane Pump. It is coupled with a DN 40 Inlet Flange and DN 40 Outlet Flange. This Alcatel/Adixen Rotary Vane Pump has a peak pumping velocity of 23.3cfm and a final pressure of 1 x 10-3 Torr. It has been thoroughly examined and is ready for broad range of applications within the research and industrial industries.
Unit is fully rebuilt and comes with a FULL 12-MONTH WARRANTY!
A&J Vacuum Services offers full repair/service of Alcatel / Adixen Vacuum Pumps, along with all other brands offered on our website. AJVS also services Alcatel / Adixen turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Fully refurbished Alcatel/Adixen 2002 Dual Stage Rotary Vane Pump coupled with a KF-16 Inlet Flange and KF-16 Outlet Flange.
This Alcatel/Adixen Rotary Vane Pump has a peak pumping velocity of 1.5 cfm and a final pressure of 1 x 10-3 Torr.
It has been thoroughly examined and is ready for broad range of applications within the research and industrial industries.
Unit is fully rebuilt and comes with a FULL 12-MONTH WARRANTY!
A&J Vacuum also repair / rebuild and service all Alcatel 2002 Vacuum Pumps along with all other Edwards Turbo Pumps, Edwards Dry Pumps, Edwards Scroll Pumps and all other Edwards Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Fully remanufactured Alcatel Adixen 2005 Pascal Dual Stage Rotary Vane Vacuum Pump, 2005SD
This pump has been thoroughly examined and is ready for a broad range of applications within the research and industrial industries.
This unit is fully rebuilt and comes with a FULL 12-MONTH WARRANTY!
A&J Vacuum also repair / rebuild and service all Alcatel 2005 SD Vacuum Pumps along with all other Edwards Turbo Pumps, Edwards Dry Pumps, Edwards Scroll Pumps and all other Edwards Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Fully refurbished Alcatel 2004 A Dual Stage Rotary Vane Pump coupled with a KF-25 Inlet Flange and KF-25 Outlet Flange.
This Alcatel 2004 Rotary Vane Pump has a peak pumping velocity of 3.2 cfm and a final pressure of 1 x 10-3 Torr. It has been thoroughly examined and is ready for broad range of applications within the research and industrial industries.
A rotary vane pump can be described as a positive-displacement pump that is comprised of vanes mounted to a rotor that rotates inside of an enclosure. In some instances these vanes can be of varying length and tensioned to maintain contact with the walls as the pump rotates.
The simplest rotary vane pump is a circular rotor revolving inside of a larger round enclosure. The centers of these two bands are offset, inducing eccentricity. Vanes are allowed to slide in and out of the rotor and seal on all edges, making vane chambers that do the pumping work. On the intake side of the pump, the vane chambers are increasing in volume. These increasing volume vane chambers are filled with fluid forced in by the inlet pressure. Inlet pressure level is actually the pressure level from the system being pumped, frequently just the atmosphere. On the exhaust side of the pump, the vane chambers are decreasing in volume, forcing fluid out of the pump. The activity of the vane drives out the same volume of fluid with each rotation. Multistage rotary vane vacuum pumps can reach pressures levels as low as 103 mbar (0.1 Pa).Visit the rotary vane pump wiki page for more information.
A&J Vacuum also repair / rebuild and service all Alcatel 2004 Vacuum Pumps along with all other Edwards Turbo Pumps, Edwards Dry Pumps, Edwards Scroll Pumps and all other Edwards Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Fully Refurbished Alcatel 2012A Rotary Vane Vacuum Pump, Hydrocarbon Oil, Elite Z, 110/220 VAC.
This pump has been thoroughly examined and is ready for a broad range of applications within the research and industrial industries.
Unit is fully rebuilt and comes with a FULL 12-MONTH WARRANTY!
A&J Vacuum Services offers full repair/service of Alcatel / Adixen Vacuum Pumps, along with all other brands offered on our website. AJVS also services Alcatel / Adixen turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Fully refurbished Alcatel 2008AC Chemical Resistant Rotary Vane Pump coupled with a KF25 Inlet Flange and KF25 Outlet Flange. This Alcatel Rotary Vane Pump has a peak pumping velocity of 7cfm and a final pressure of 1 x 10-3 Torr. It has been thoroughly examined and is ready for broad range of applications within the research and industrial industries. The Alcatel 2008AC Pump comes with an entire 12-Month Warranty.
A&J Vacuum also repair / rebuild and service all Alcatel 2008AC Vacuum Pumps along with all other Edwards Turbo Pumps, Edwards Dry Pumps, Edwards Scroll Pumps and all other Edwards Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854

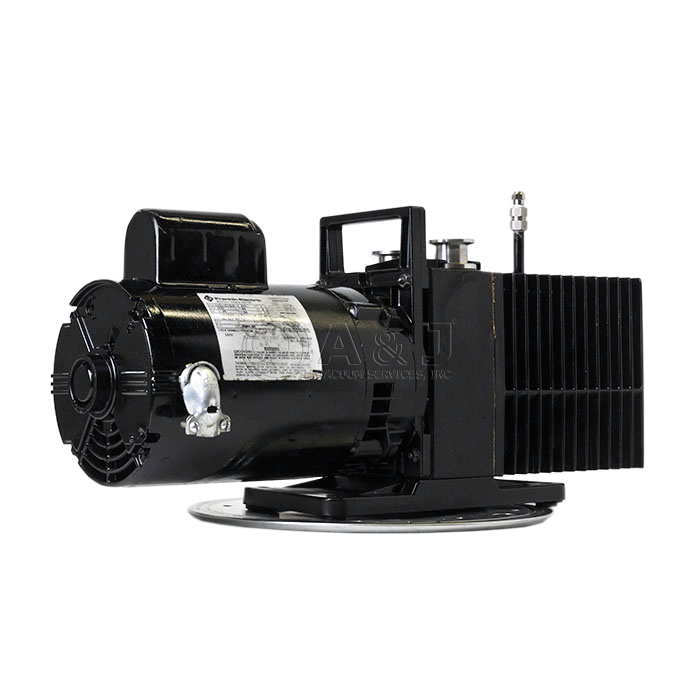

Fully refurbished Alcatel 2012 AC Dual Stage Rotary Vane Pump coupled with a KF25 Inlet Flange and KF25 Outlet Flange. This Alcatel Rotary Vane Pump has a peak pumping velocity of 11cfm and a final pressure of 1 x 10-3 Torr. It has been thoroughly examined and is ready for broad range of applications within the research and industrial industries. The Alcatel 2012 AC Pump comes with an entire 12-Month Warranty.
Unit is fully rebuilt and comes with a FULL 12-MONTH WARRANTY!
A&J Vacuum Services offers full repair/service of Alcatel / Adixen Vacuum Pumps, along with all other brands offered on our website. AJVS also services Alcatel / Adixen turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
