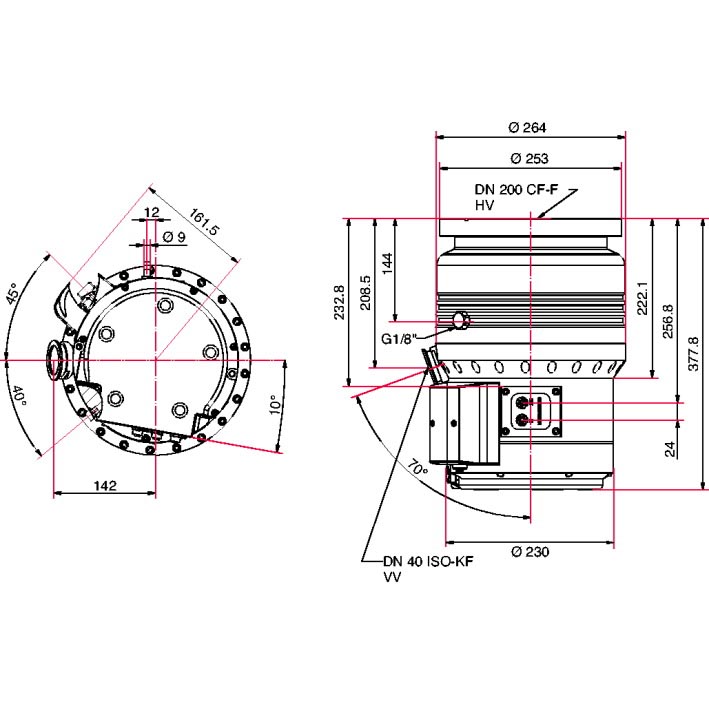

Pfeiffer Vacuum HiPace 1200 C Turbomolecular Pump, DN 200 CF-F, PMP03917
HiPace stands for a complete line of compact yet powerful turbopumps featuring pumping speeds that range from 10 – 2,000 liters per second. These models afford cost-effective yet flexible installation in any orientation. The proven bearing system affords unrivaled dependability. And their sophisticated rotor design makes for higher pumping speeds, higher backing pump compatibility and higher gas throughputs, as well as very good compression for light gases. - Powerful turbopump with a pumping speed of up to 1250 l/s
- DN 200 ISO-F flange
- Integrated TC 1200 drive electronics with power supply
- Integrated sealing gas system with electric sealing gas valve 24 V DC
- Cooling: Water cooling
- Corrosive gas version
- Protection Class IP 54
- Interfaces: RS-485, Remote, (Profibus/DeviceNet on request)
- Extensive accessories expand the range of applications
Technical data: | Bearing | Hybrid | | Compression ratio for Ar | > 1 · 108 | | Compression ratio for CF4 | > 1 · 108 | | Compression ratio for H2 | 6 · 103 | | Compression ratio for He | 2 · 105 | | Compression ratio for N2 | > 1 · 108 | | Cooling method, standard | Water | | Cooling water consumption | 100 l/h | | Cooling water temperature | 15-35 °C | | Corrosive gas version | yes | | Electronic drive unit | with TC 1200 | | Flange (in) | DN 200 ISO-F | | Flange (out) | DN 40 ISO-KF | | Fore vacuum max. for N2 | 2 mbar | | Gas throughput at full rotational speed for Ar | 11 mbar l/s | | Gas throughput at full rotational speed for CF4 | 12 mbar l/s | | Gas throughput at full rotational speed for H2 | > 30 mbar l/s | | Gas throughput at full rotational speed for He | > 30 mbar l/s | | Gas throughput at full rotational speed for N2 | 20 mbar l/s | | Integrated power supply | yes | | Interface, extended | no | | Interfaces | RS-485, Remote | | Low vibrations | no | | Mounting orientation | Standard (0°-90°) | | Operating voltage | no | | Particulate matter | yes | | Permissible magnetic field max. | 6 mT | | Protection category | IP 54 | | Pumping speed for Ar | 1200 l/s | | Pumping speed for CF4 | 950 l/s | | Pumping speed for H2 | 1100 l/s | | Pumping speed for He | 1300 l/s | | Pumping speed for N2 | 1250 l/s | | Rotation speed ± 2 % | 37800 rpm | | Run-up time | 2.5 min | | Separat electronic drive unit | no | | Sound pressure level | ≤ 50 dB (A) | | Ultimate pressure with OnTool™ DryPump | < 1 · 10-7 mbar | | Venting connection | G 1/8" | | Weight | 28 kg |
PN06501
