- Oil-free, for no contamination of the vacuum system
- Peak pumping speed (60 Hz): 60 L/m, 3.6 m³/hr, 2.1 cfm
- Peak pumping speed (50 Hz): 50 L/m, 3.0 m³/hr, 1.8 cfm
- Ultimate pressure: 2.5 × 10-1 torr (3.3 × 10-1 mbar, 33 Pa)
Shopping Cart ( )
Agilent IDP 3 Dry Scroll Pump, Single Phase, 100 VAC, 50/60 Hz, IDP3C01, Agilent IDP-3, IDP3
Condition:
New
Item#:PN06761
Mfr Part#:IDP3C01
Manufacturer:Agilent Technologies / Varian
Price upon request
CONTACT US
Features:

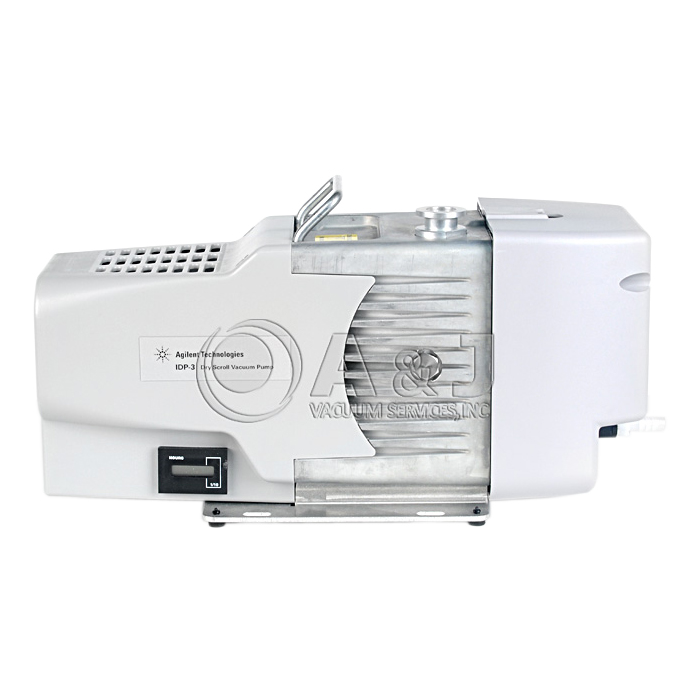

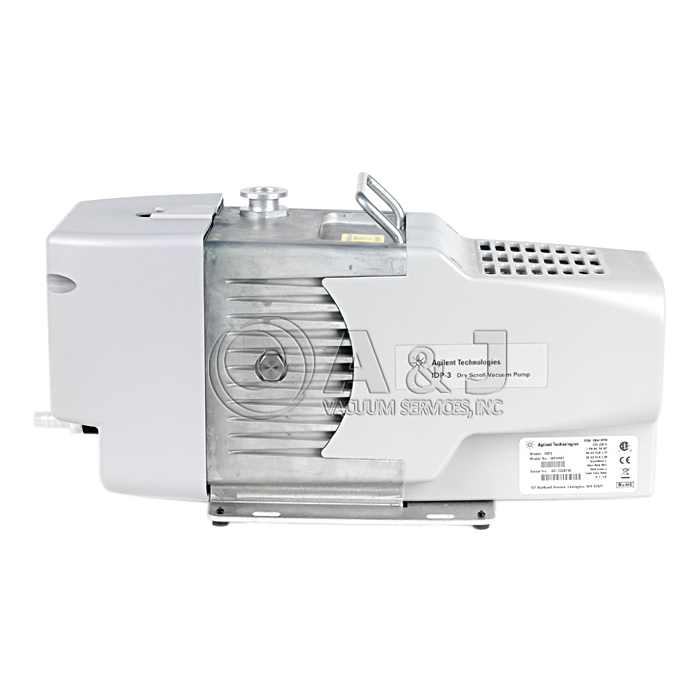

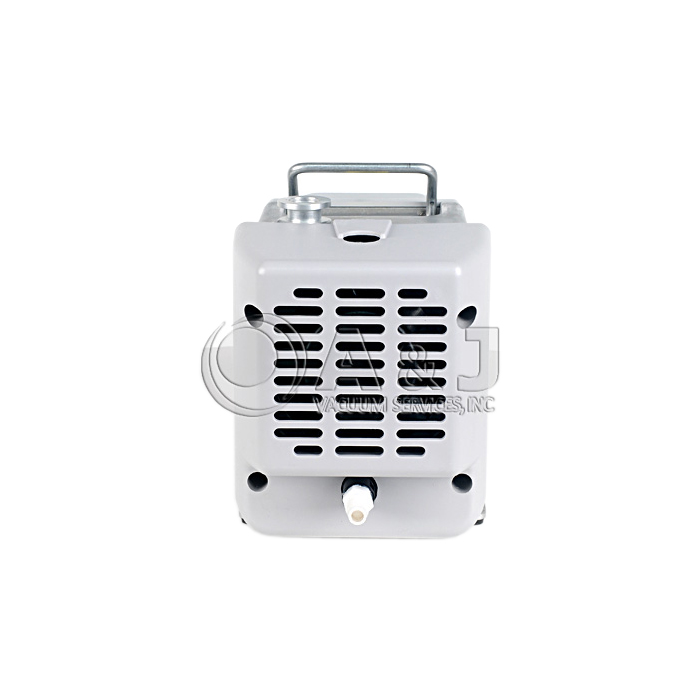

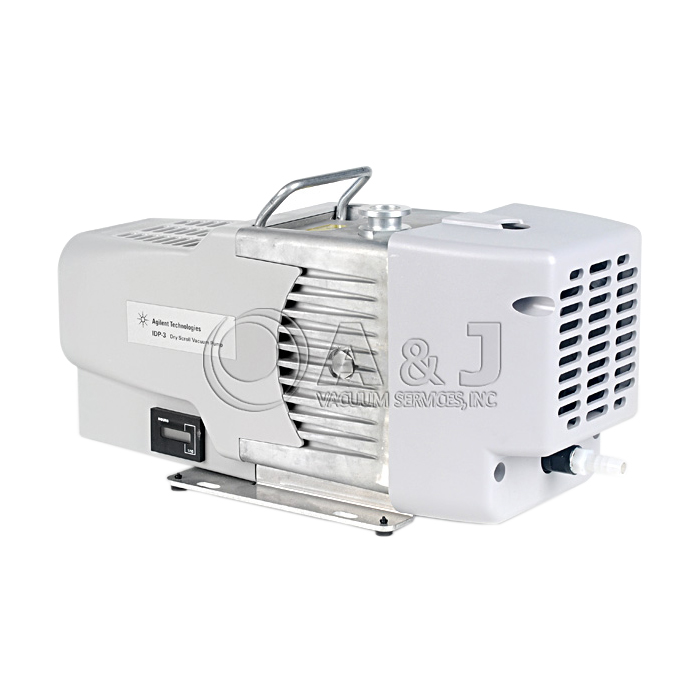

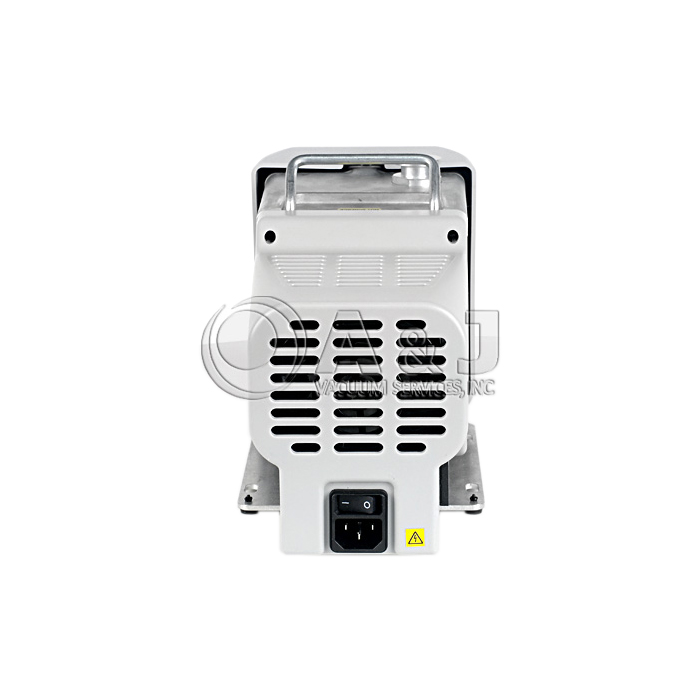

Agilent Varian IDP 3 Dry Scroll Vacuum Pump IDP 3, Single Phase, 100 VAC, 50/60 Hz, IDP3C01
The Agilent Technologies / Varian IDP3 Dry Scroll Vacuum Pump is an innovative, compact, high-performance, oil-free vacuum pump that is suitable for a wide variety of applications. It is the smallest scroll pump made for general vacuum applications, which makes it easy to integrate it into OEM systems, IDP-3 weighs only 21 pounds (9.5 kg). Yet with a pumping speed of 60 liters/min and a very low base pressure of 250 millitorr, it is the highest-performing dry pump in its class.
Features:
- Oil-free, for no contamination of the vacuum system
- Hermetic design with fully isolated motor and bearings
- Small size: 14 × 7 × 6 inches (351 × 181 × 140 mm)
- Lower base pressure than diaphragm pumps
- No mechanisms subject to catastrophic failure
- Low noise and vibration
This item is non-returnable/non-refundable
Agilent Varian IDP3 Dry Scroll Vacuum Pump IDP 3, Single Phase, 100 VAC, 50/60 Hz, IDP3C01
Peak pumping speed (60 Hz): 60 L/m, 3.6 m³/hr, 2.1 cfm
Peak pumping speed (50 Hz): 50 L/m, 3.0 m³/hr, 1.8 cfm
Ultimate pressure: 2.5 × 10-1 torr (3.3 × 10-1 mbar, 33 Pa)
Exhaust Connection: 1⁄4-in. female nat’l pipe thread (10 mm hose barb provided)
Exhaust Connection Adapter: NW16 KF
Gas Ballast Connection: 1⁄8-in. female nat’l pipe thread
Weight: 9.5 kg (21 lbs)
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
We can repair your:
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
