- Operating Voltage (HV range): 3 kV DC
- Sensitivity: 2.5 A/Torr plus 100 percent
- Measurement Range: 10-3 to 10-11 Torr
- Electrical Connector: SHV style, 5 kV rated
Shopping Cart ( )
Agilent Technologies IMG 300 UHV Inverted Magnetron Vacuum Gauge, 2 3/4" CFF, R0343301
Condition:
New
Item#:PN17366
Mfr Part#:R0343301
Manufacturer:Agilent Technologies / Varian
Price upon request
CONTACT US
Features:
Agilent Technologies IMG 300 UHV Inverted Magnetron Vacuum Gauge, 2 3/4" CFF, R0343301
Agilent IMG 300 UHV Overview:
The Agilent Technologies IMG-300 Inverted Magnetron Gauge combines excellent ultra-high vacuum measurement capability where stable UHV pressure measurement and fast pressure response are equally critical.
Minimal outgassing from within the gauge occurs, since there is no hot filament. The gauge is electron or photon emission-free, so there is no disruption to the experimental process. The IMG-300 is easily interfaced with the Agilent XGS-600 gauge controller for integration into a variety of vacuum systems, or for use as a stand-alone pressure measurement tool.
This sensor is optimized for UHV applications such as particle accelerators, synchrotron light beam lines and energy research applications.
Agilent IMG 300 UHV Features:
- Optimized for UHV applications
- Superior sensitivity at UHV pressures
- Minimal outgassing from within the gauge
- Radiation-resistant and bakeable to 250º C during operation
*THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED*

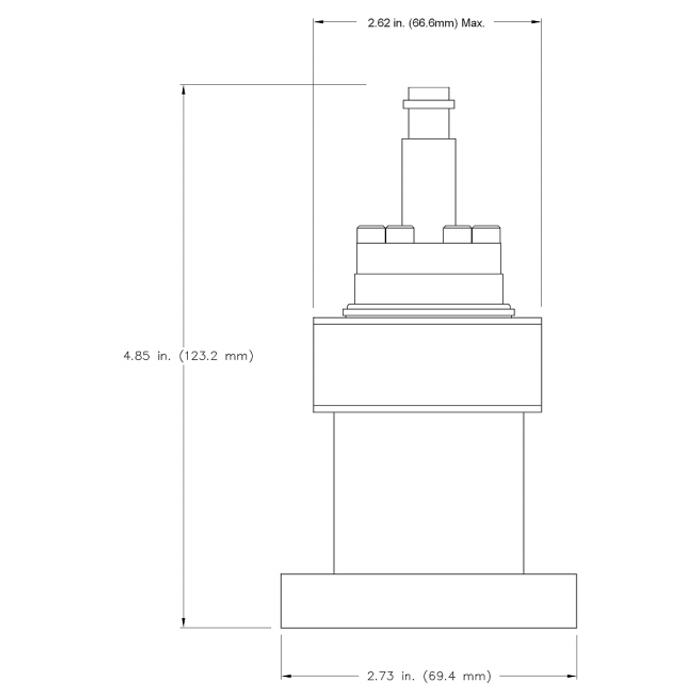

Agilent IMG 300 Dimensions:
Click Here for Agilent IMG 300 Manual
A&J Vacuum Services offers full repair/service of Agilent, along with all other brands offered on our website. AJVS also services Agilent pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
This item is non-returnable/non-refundable
Agilent Technologies IMG 300 UHV Inverted Magnetron Vacuum Gauge, 2 3/4" CFF, R0343301
Agilent IMG 300 UHV Technical Data:
|
Measurement range
|
1 x 10-3 Torr to 1 x 10-11 Torr
1 x 10-1 Torr to 1 x 10-9 Pascal
|
|
Measurement precision
|
+ 50 % within a pressure decade standard
+ 20 % with STARRS Calibration
|
|
Temperature limits
|
Operating: 0? C to 250? C
Storage: -15 to 80? C
Bake out: 250? C maximum with cable and magnet attached
|
|
Pressure response time
|
< 50 milliseconds @ UHV pressures
|
|
Ignition response (starting time)
|
< 30 seconds @ 1 x 10-10 Torr
|
|
Operating voltage
|
3 kilovolts
|
|
Materials exposed to vacuum
|
Stainless steel, nickel, glass, nickel alloy 52
|
|
Sensitivity
|
2 A / Torr + 20% at 5 x 10-6 Torr
|
Click Here for Agilent IMG 300 Manual
A&J Vacuum Services offers full repair/service of Agilent, along with all other brands offered on our website. AJVS also services Agilent pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Agilent_XGS_600_Gauge_Controller_Instruction_Manual.pdf
Agilent_Technologies_IMG_300_Vacuum_Gauge_Manual.pdf
Agilent_Technologies_Vacuum_Measurement_Catalog.pdf
