Found 3 products
Item#: PN20038 Mfr Part#: 378-001 Manufacturer: Inficon
Price upon request

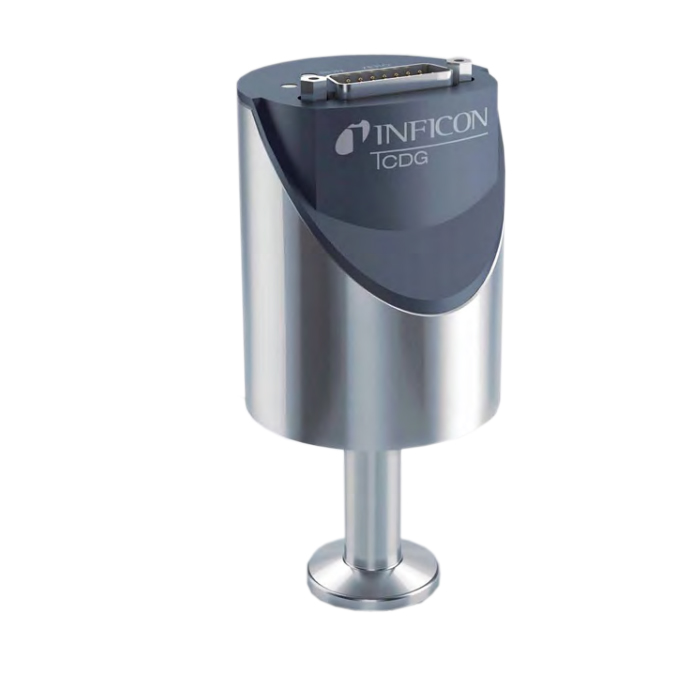

Inficon Capacitance Diaphragm Transmitter. CDG025D, DN16ISO-KF, 1Torr.



Inficon CDG 025D Overview:


The INFICON SKY CDG025D Capacitance Diaphragm Gauge line of highly accurate temperature compensated manometers is designed for stable performance in harsh manufacturing tool environments. Advanced digital electronics improve gauge performance and offer easy handling features such as one pushbutton zero function and setpoint adjustment. The corrosion resistant ceramic sensor provides excellent zero stability with a long life expectancy of several million pressure cycles, including atmospheric bursts. A unique sensor shielding (patent pending) protects the gauge from process contamination. A robust mechanical design and digital electronics improve EMC compatibility, long term stability and temperature compensation. The CDG025D sets new standards for fast stability after power on and fast recovery from atmospheric pressure exposure.

The INFICON SKY CDG025D Capacitance Diaphragm Gauges are direct replacements for the Oerlikon Leybold CTR 100 transmitters. Get the original from the manufacterer with global support and solutions for all applications.



Inficon CDG 025D Features:


  • Fully compatible with CTR 100 transmitters
  • Full scale ranges from 100 mTorr … 1000 Torr
  • Fast stability after power on
  • Fast recovery from atmospheric pressure
  • Corrosion resistant ceramic sensor
  • Excellent long term signal stability
  • Temperature compensated
  • Sensor protected from contamination
  • One pushbutton zero function
  • Wide range power supply



*THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED*

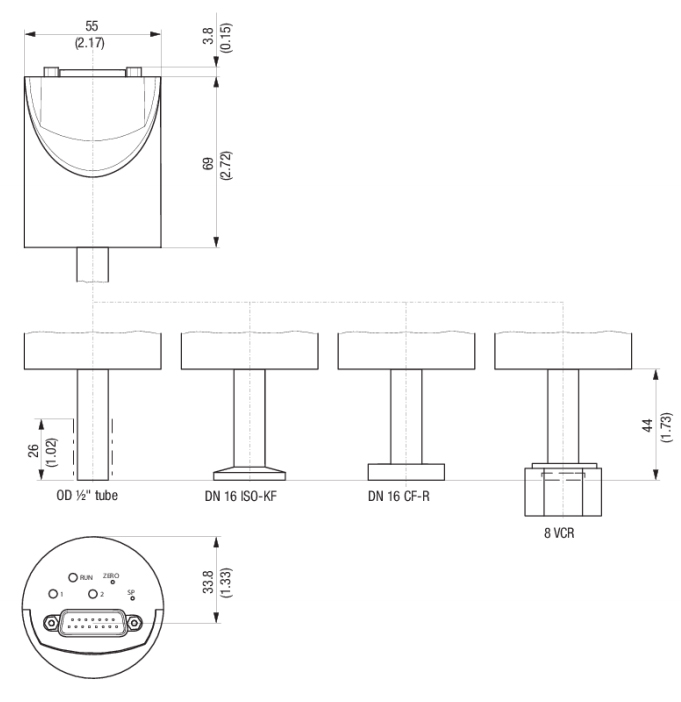

Inficon CDG025D Dimensions:


Inficon Capacitance Diaphragm Transmitter. CDG025D, DN16ISO-KF, 1Torr.


Click Here for Inficon CDG 025 D Manual

Click Here for Inficon Product Brochure


A&J Vacuum Services offers full repair/service of Inficon Vacuum Measurement, along with all other brands offered on our website. AJVS also services Inficon. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.


Condition: New
Item#: PN24132 Mfr Part#: 376-000 Manufacturer: Inficon
Price upon request

Inficon Capacitance Diaphragm Transmitter, CDG025D, 1/2” tube connection, 100 Torr, 376-000



Inficon CDG 025D Overview:


The INFICON SKY CDG025D Capacitance Diaphragm Gauge line of highly accurate temperature compensated manometers is designed for stable performance in harsh manufacturing tool environments. Advanced digital electronics improve gauge performance and offer easy handling features such as one pushbutton zero function and setpoint adjustment. The corrosion resistant ceramic sensor provides excellent zero stability with a long life expectancy of several million pressure cycles, including atmospheric bursts. A unique sensor shielding (patent pending) protects the gauge from process contamination. A robust mechanical design and digital electronics improve EMC compatibility, long term stability and temperature compensation. The CDG025D sets new standards for fast stability after power on and fast recovery from atmospheric pressure exposure.

The INFICON SKY CDG025D Capacitance Diaphragm Gauges are direct replacements for the Oerlikon Leybold CTR 100 transmitters. Get the original from the manufacterer with global support and solutions for all applications.



Inficon CDG 025D Features:


  • Fully compatible with CTR 100 transmitters
  • Full scale ranges from 100 mTorr … 1000 Torr
  • Fast stability after power on
  • Fast recovery from atmospheric pressure
  • Corrosion resistant ceramic sensor
  • Excellent long term signal stability
  • Temperature compensated
  • Sensor protected from contamination
  • One pushbutton zero function
  • Wide range power supply



*THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED*

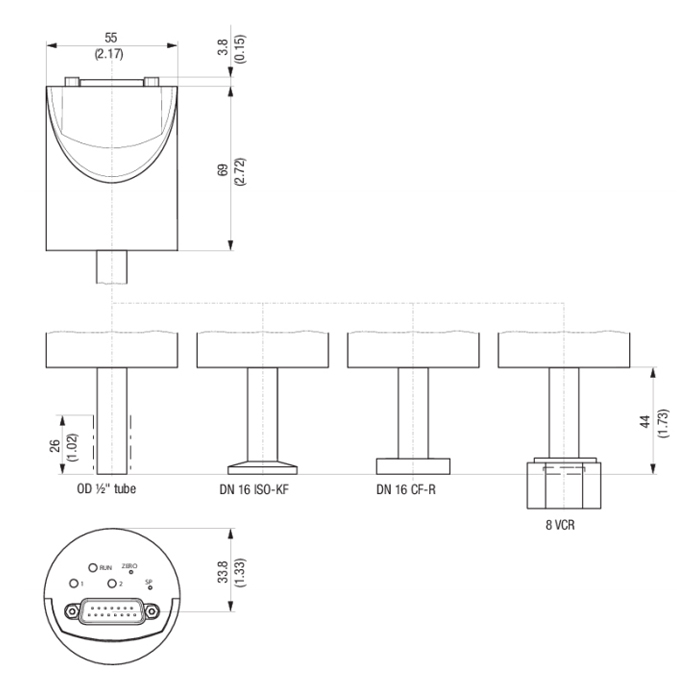

Inficon CDG025D Dimensions:


Inficon Capacitance Diaphragm Transmitter. CDG025D, DN16ISO-KF, 1Torr.


Click Here for Inficon CDG 025 D Manual

Click Here for Inficon Product Brochure


A&J Vacuum Services offers full repair/service of Inficon Vacuum Measurement, along with all other brands offered on our website. AJVS also services Inficon. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.


Condition: New
Item#: PN34688 Mfr Part#: 3CB1-85E-01E0 Manufacturer: Inficon
Price upon request

Inficon CDG025D Wide Range Vacuum Gauge, 5 Torr, 8VCR, 4-20mA, 3CB1-85E-01E0



Inficon CDG 025D Overview:


The INFICON SKY CDG025D Capacitance Diaphragm Gauge line of highly accurate temperature compensated manometers is designed for stable performance in harsh manufacturing tool environments. Advanced digital electronics improve gauge performance and offer easy handling features such as one pushbutton zero function and setpoint adjustment. The corrosion resistant ceramic sensor provides excellent zero stability with a long life expectancy of several million pressure cycles, including atmospheric bursts. A unique sensor shielding (patent pending) protects the gauge from process contamination. A robust mechanical design and digital electronics improve EMC compatibility, long term stability and temperature compensation. The CDG025D sets new standards for fast stability after power on and fast recovery from atmospheric pressure exposure.

The INFICON SKY CDG025D Capacitance Diaphragm Gauges are direct replacements for the Oerlikon Leybold CTR 100 transmitters. Get the original from the manufacterer with global support and solutions for all applications.



Inficon CDG 025D Features:


  • Fully compatible with CTR 100 transmitters
  • Full scale ranges from 100 mTorr … 1000 Torr
  • Fast stability after power on
  • Fast recovery from atmospheric pressure
  • Corrosion resistant ceramic sensor
  • Excellent long term signal stability
  • Temperature compensated
  • Sensor protected from contamination
  • One pushbutton zero function
  • Wide range power supply



*THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED*



Inficon CDG025D Dimensions:


Inficon Capacitance Diaphragm Transmitter. CDG025D, DN16ISO-KF, 1Torr.


Click Here for Inficon CDG 025 D Manual

Click Here for Inficon Product Brochure


A&J Vacuum Services offers full repair/service of Inficon Vacuum Measurement, along with all other brands offered on our website. AJVS also services Inficon. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.


Condition: New
