Found 7 products
Item#: PN17303 Mfr Part#: L6141303 Manufacturer: Agilent Technologies / Varian
PRICE: $235.00
WEB SAVINGS: $26.00
YOU PAY: $209.00

Agilent Technologies / Varian 536 Thermocouple Gauge Tube, 1/8" NPT, L6141303



Agilent / Varian 536 Overview:


The Agilent Technologies / Varian 536 Thermocouple Gauge Tube is ideally suited to your rough vacuum applications. It measures total pressures in the 1 x 10-3 torr to 2 torr absolute range. Meanwhile, the Thermocouple Gauge Simulator provides a way of calibrating and adjusting the zero setting on a thermocouple gauge controller. Set it to simulate either 1 atmosphere or <10-4 torr.



*THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED*



Agilent / Varian 536 Dimensions:


Agilent / Varian 536, Dimensions


Click Here for Agilent / Varian 536 Manual


A&J Vacuum Services offers full repair/service of Agilent / Varian, along with all other brands offered on our website. AJVS also services Agilent / Varian. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.


Condition: New In Stock
Item#: PN17305 Mfr Part#: L6141305 Manufacturer: Agilent Technologies / Varian
PRICE: $0.00
YOU PAY: $304.00

Agilent Technologies / Varian 536 Thermocouple Gauge Tube, 4 VCR, Stainless Steel, L6141305



Agilent / Varian 536 Overview:


The Agilent Technologies / Varian 536 Thermocouple Gauge Tube is ideally suited to your rough vacuum applications. It measures total pressures in the 1 x 10-3 torr to 2 torr absolute range. Meanwhile, the Thermocouple Gauge Simulator provides a way of calibrating and adjusting the zero setting on a thermocouple gauge controller. Set it to simulate either 1 atmosphere or <10-4 torr.



*THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED*



Agilent / Varian 536 Dimensions:


Agilent / Varian 536, Dimensions


Click Here for Agilent / Varian 536 Manual


A&J Vacuum Services offers full repair/service of Agilent / Varian, along with all other brands offered on our website. AJVS also services Agilent / Varian. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.


Condition: New In Stock
Item#: PN17306 Mfr Part#: L6141307 Manufacturer: Agilent Technologies / Varian
PRICE: $235.00
WEB SAVINGS: $26.00
YOU PAY: $209.00

Agilent Technologies / Varian 536 Thermocouple Gauge Tube, KF 10 (NW10), L6141307



Agilent / Varian 536 Overview:


The Agilent Technologies / Varian 536 Thermocouple Gauge Tube is ideally suited to your rough vacuum applications. It measures total pressures in the 1 x 10-3 torr to 2 torr absolute range. Meanwhile, the Thermocouple Gauge Simulator provides a way of calibrating and adjusting the zero setting on a thermocouple gauge controller. Set it to simulate either 1 atmosphere or <10-4 torr.



*THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED*



Agilent / Varian 536 Dimensions:


Agilent / Varian 536, Dimensions


Click Here for Agilent / Varian 536 Manual


A&J Vacuum Services offers full repair/service of Agilent / Varian, along with all other brands offered on our website. AJVS also services Agilent / Varian. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.


Condition: New In Stock
Item#: PN17307 Mfr Part#: L6141308 Manufacturer: Agilent Technologies / Varian
PRICE: $238.00
WEB SAVINGS: $29.00
YOU PAY: $209.00

Agilent Technologies / Varian 536 Thermocouple Gauge Tube, KF 16 (NW16), L6141308



Agilent / Varian 536 Overview:


The Agilent Technologies / Varian 536 Thermocouple Gauge Tube is ideally suited to your rough vacuum applications. It measures total pressures in the 1 x 10-3 torr to 2 torr absolute range. Meanwhile, the Thermocouple Gauge Simulator provides a way of calibrating and adjusting the zero setting on a thermocouple gauge controller. Set it to simulate either 1 atmosphere or <10-4 torr.



*THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED*



Agilent / Varian 536 Dimensions:


Agilent / Varian 536, Dimensions


Click Here for Agilent / Varian 536 Manual


A&J Vacuum Services offers full repair/service of Agilent / Varian, along with all other brands offered on our website. AJVS also services Agilent / Varian. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.


Condition: New In Stock
Item#: PN07420 Mfr Part#: FRG700CF35 Manufacturer: Agilent Technologies / Varian
Price upon request

Agilent Technologies FRG700 Full Range Pirani IMG Vacuum Gauge, FRG700CF35, FRG



Agilent FRG 700 Overview:


The gauge consists of two separate measurement systems (Pirani and cold cathode system) the signals of which are combined in such a way that one measurement signal is output. The Pirani measurement circuit is always on.

Over the whole measuring range, the measuring signal is output as a logarithm of the pressure.

The gauge is factory-calibrated. If used under different climatic conditions, through extreme temperatures, aging or contamination, and after exchanging the sensor, the characteristic curve can be offset and readjustment may become necessary.

The cold cathode measuring circuit, which is dominant for low pressures (<1×10-3mbar), is factory-calibrated and cannot be adjusted. By way of contrast, the Pirani measuring circuit can be adjusted. Any adjustment has a negligible effect on the pressure range between approx. 10-2mbar and 102mbar.



Agilent FRG 700 Features:


  • Provides 2 measuring technologies in a single, compact, economical package
  • Measures process and base pressure from 5 x 10-9 mbar to atmosphere (3.8 x 10-9 Torr to atmosphere)
  • A single, compact unit with one logarithmic analog output signal significantly reduces the complexity of installation, setup and integration
  • Ideal for high vacuum pressure monitoring, base pressure for evaporation and sputtering systems, and general vacuum measurement and control in the medium and high vacuum range
  • Wide measurement range from 5 x 10-9 mbar to atmosphere
  • No filament to burn out
  • Excellent ignition properties
  • Easy to clean



*THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED*



Agilent FRG 700 Dimensions:


Agilent FRG 700, Dimensions


Click Here for Agilent FRG 700 Manual


A&J Vacuum Services offers full repair/service of Agilent / Varian, along with all other brands offered on our website. AJVS also services Agilent / Varian pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.


Condition: New
Item#: PN16237 Mfr Part#: 9715014 Manufacturer: Agilent Technologies / Varian
Price upon request

Agilent Technologies UHV 24P Ion Gauge, 9715014



Agilent UHV 24P Overview:


The Agilent Technologies hot-cathode ionization gauge tubes employ a heated filament for the source of electrons. The Agilent UHV-24 has a wide range of operating pressure capabilities. It can measure pressures below 2 x 10-10 Torr. Because of its small diameter and closed structure, its ionization rate is at least twice that of other ionization gauges. The small collector diameter limits the X-ray current, which also helps extend the lower pressure limit of the gauge.



*THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED*




A&J Vacuum Services offers full repair/service of Agilent, along with all other brands offered on our website. AJVS also services Agilent pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.


Condition: New
Item#: PN17366 Mfr Part#: R0343301 Manufacturer: Agilent Technologies / Varian
Price upon request

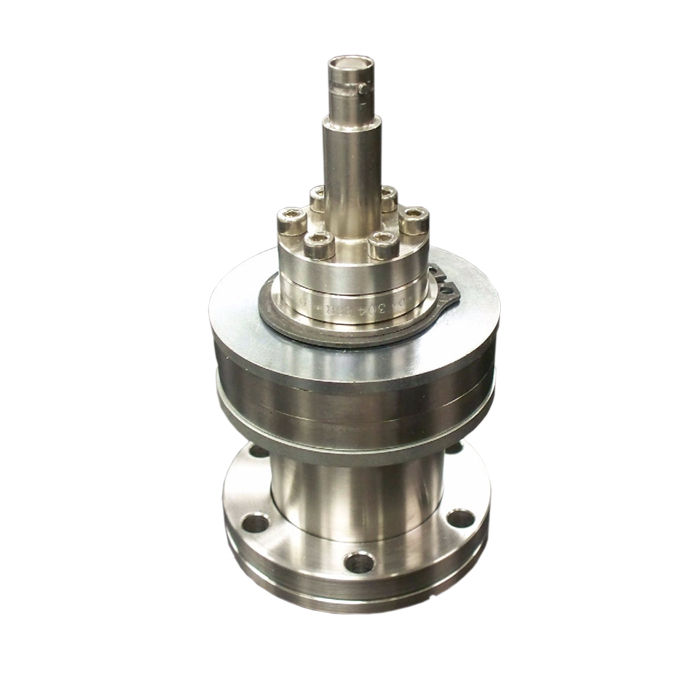

Agilent Technologies IMG 300 UHV Inverted Magnetron Vacuum Gauge, 2 3/4" CFF, R0343301



Agilent IMG 300 UHV Overview:


The Agilent Technologies IMG-300 Inverted Magnetron Gauge combines excellent ultra-high vacuum measurement capability where stable UHV pressure measurement and fast pressure response are equally critical.

Minimal outgassing from within the gauge occurs, since there is no hot filament. The gauge is electron or photon emission-free, so there is no disruption to the experimental process. The IMG-300 is easily interfaced with the Agilent XGS-600 gauge controller for integration into a variety of vacuum systems, or for use as a stand-alone pressure measurement tool.

This sensor is optimized for UHV applications such as particle accelerators, synchrotron light beam lines and energy research applications.



Agilent IMG 300 UHV Features:


  • Optimized for UHV applications
  • Superior sensitivity at UHV pressures
  • Minimal outgassing from within the gauge
  • Radiation-resistant and bakeable to 250º C during operation



*THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED*



Agilent IMG 300 Dimensions:


Agilent IMG 300, R0343301


Click Here for Agilent IMG 300 Manual


A&J Vacuum Services offers full repair/service of Agilent, along with all other brands offered on our website. AJVS also services Agilent pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.


Condition: New
