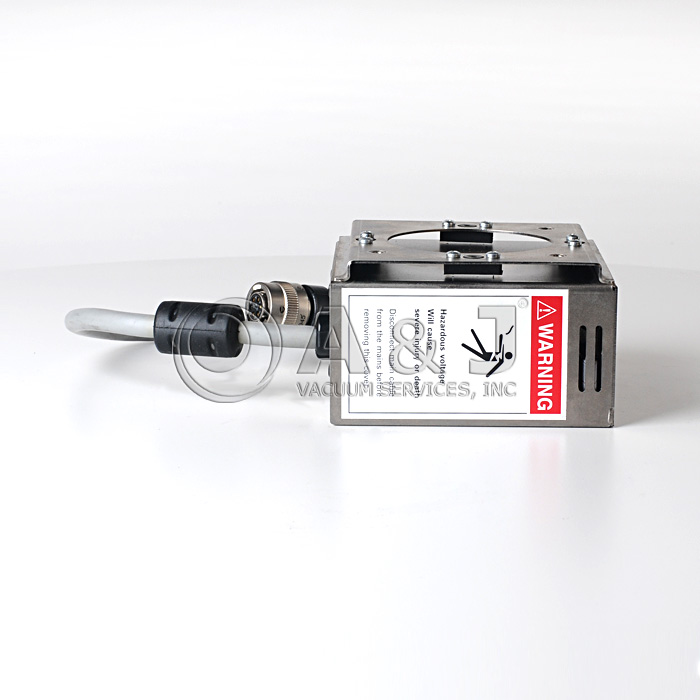

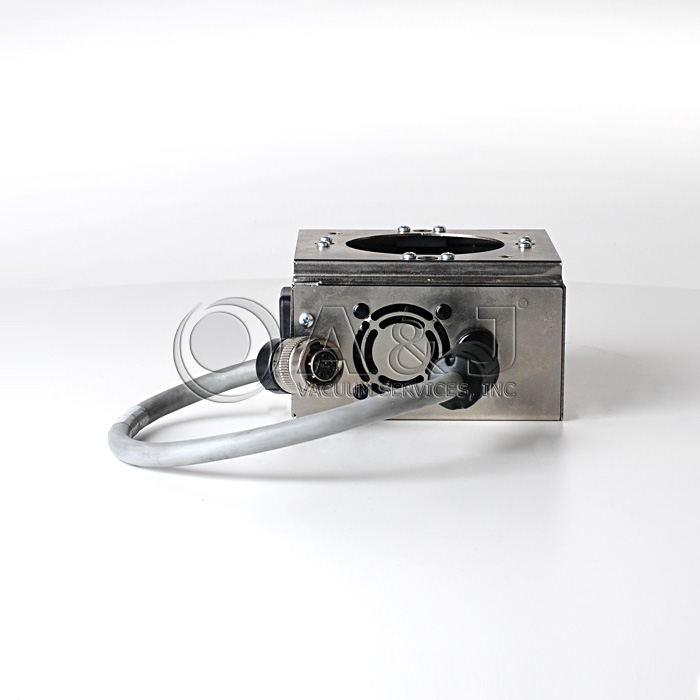

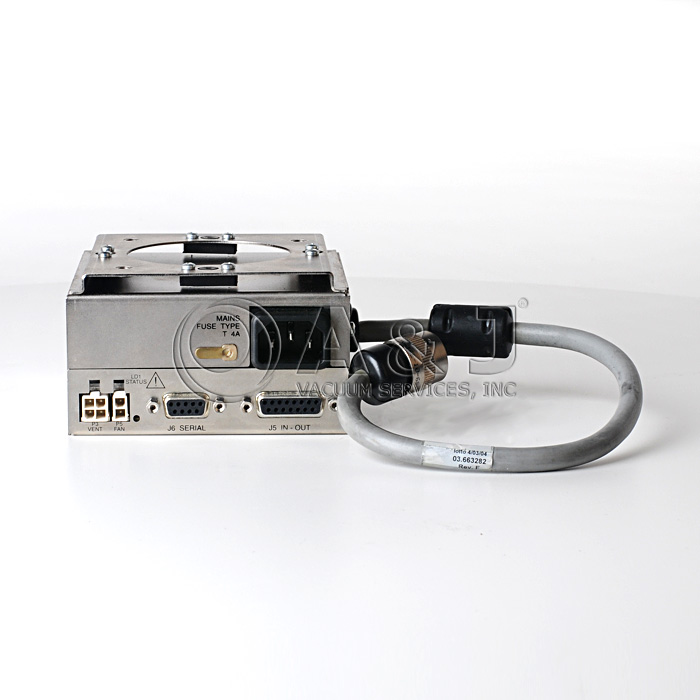

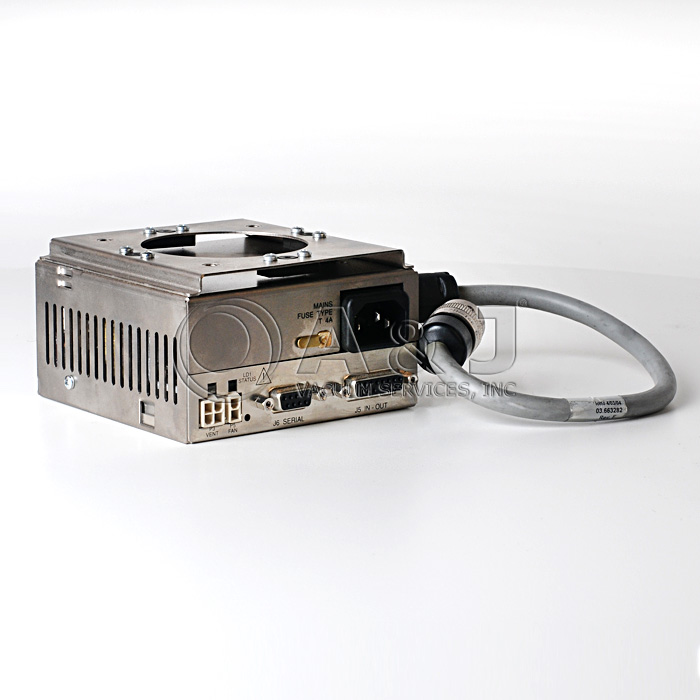

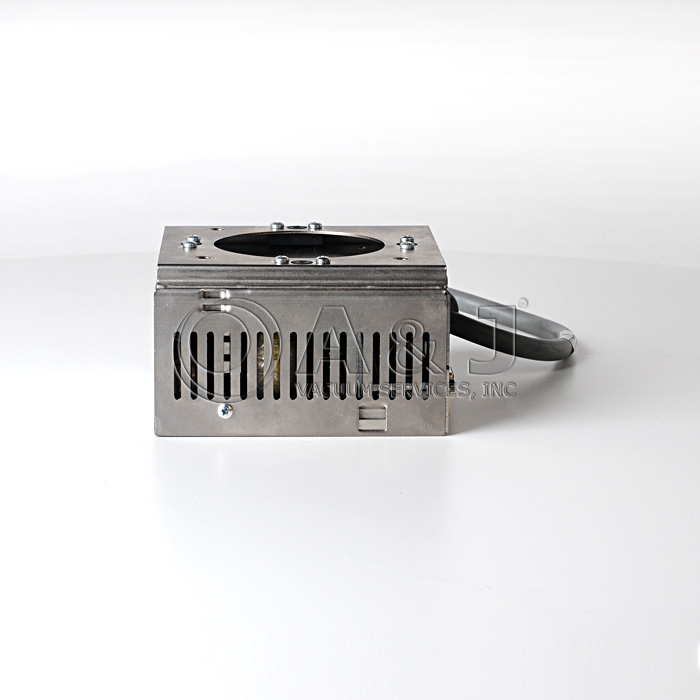

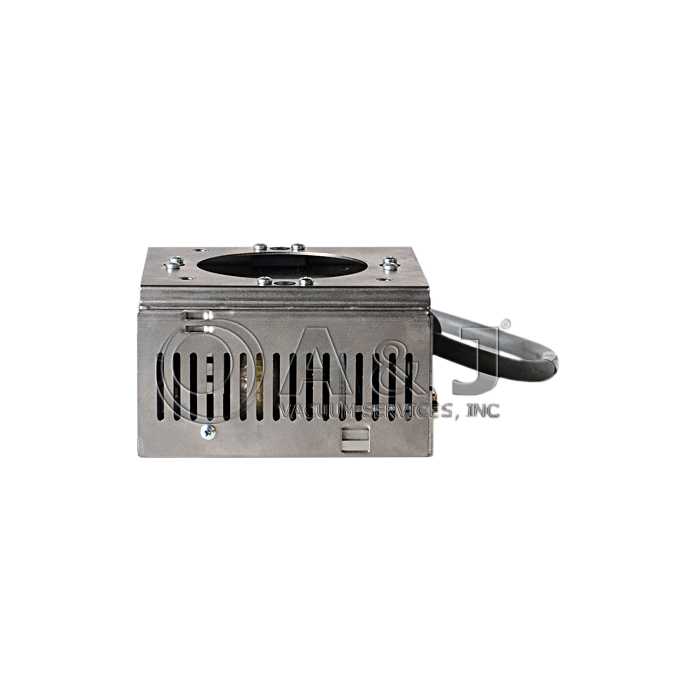

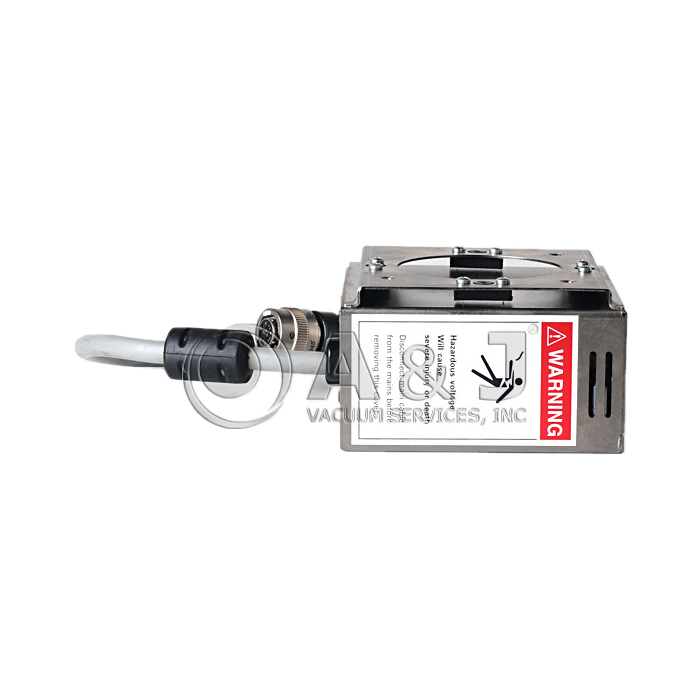

Agilent X350764003 TwisTorr 304 FS On Board Turbo Pump Controller, 100-240 VAC, X3507-64003
The dedicated controller is a solid-state frequency converter which is driven by a single chip microcomputer and consists of two PCBs which include power supply and 3-phase output, analog and input/output section, microprocessor and digital section. The power supply, together with the 3-phase output, converts the single phase AC mains supply or 24Vdc supply into a 3-phase, low voltage, medium frequency output which is required to power the pump. The controller can be operated by a remote host computer via the serial connection. A Windows-based software is available (optional).
Features:
- Drives the pumps of the 304 NAV family
- Powers the pump cooling fan
- Drives the vent valve
- Provides and acquires teh pressure of the wide range gauge
- Remote I/Os compatible with the previous version
- TwisTorr 304 default serial compatible with the previous RS 232 and 485 version
THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.
Agilent X350764003 TwisTorr 304 FS On Board Turbo Pump Controller, 100-240 VAC, X3507-64003
Input Voltage: 100-240 Vac
Input Frequency: 50/60 Hz
Max Input Power: 300 VA
Stand-by Power: 10 W
Max Operating Power: 150 W with water or air cooling
Protection Fuse: 4 A
Input: 75 Vac, three phase, 1010 Hz
Agilent_TwisTorr_304_FS_Turbo_Pump_Manual.pdf
Agilent Varian TwisTorr 304 FS Turbo Pump Brochure X3500-64000.pdf
Agilent_TwisTorr_304_FS_On_Board_Controller_Manual.pdf
AJVS_Agilent_TwisTorr_304_FS_On_Board_Controller_Sales_and_Repair.pdf
AJVS_Vacuum_Pump_Turbo_Pump_Service_and_Repair.pdf
|
Service and Repair - Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
Overview
Agilent X350764003 TwisTorr 304 FS On Board Turbo Pump Controller, 100-240 VAC, X3507-64003
The dedicated controller is a solid-state frequency converter which is driven by a single chip microcomputer and consists of two PCBs which include power supply and 3-phase output, analog and input/output section, microprocessor and digital section. The power supply, together with the 3-phase output, converts the single phase AC mains supply or 24Vdc supply into a 3-phase, low voltage, medium frequency output which is required to power the pump. The controller can be operated by a remote host computer via the serial connection. A Windows-based software is available (optional).
Features:
- Drives the pumps of the 304 NAV family
- Powers the pump cooling fan
- Drives the vent valve
- Provides and acquires teh pressure of the wide range gauge
- Remote I/Os compatible with the previous version
- TwisTorr 304 default serial compatible with the previous RS 232 and 485 version
THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.
Specifications
Agilent X350764003 TwisTorr 304 FS On Board Turbo Pump Controller, 100-240 VAC, X3507-64003
Input Voltage: 100-240 Vac
Input Frequency: 50/60 Hz
Max Input Power: 300 VA
Stand-by Power: 10 W
Max Operating Power: 150 W with water or air cooling
Protection Fuse: 4 A
Input: 75 Vac, three phase, 1010 Hz
