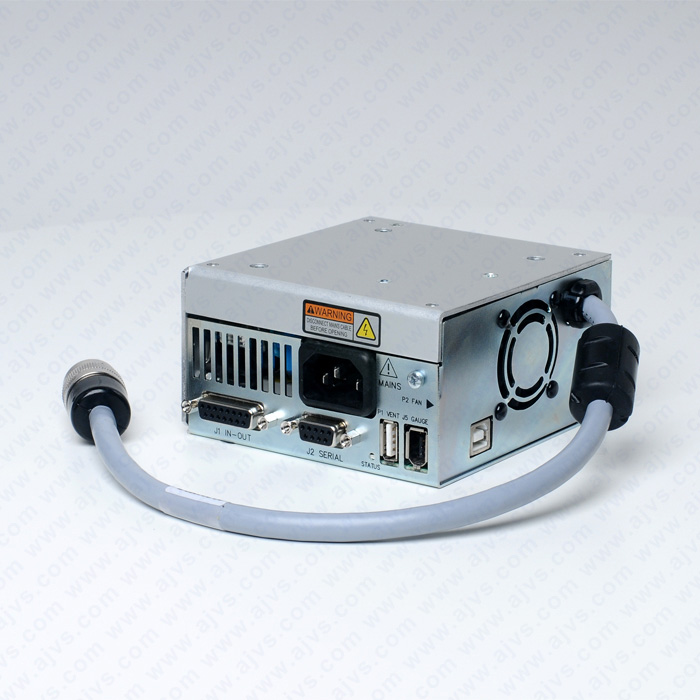

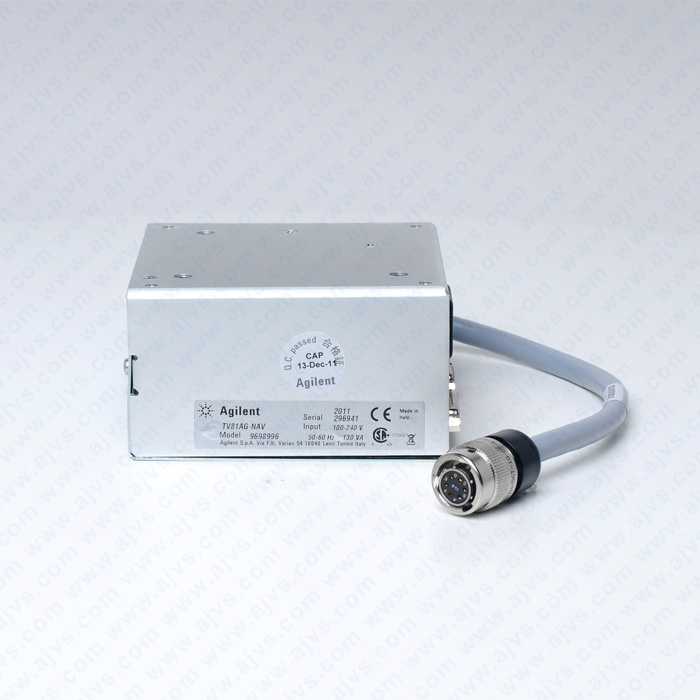

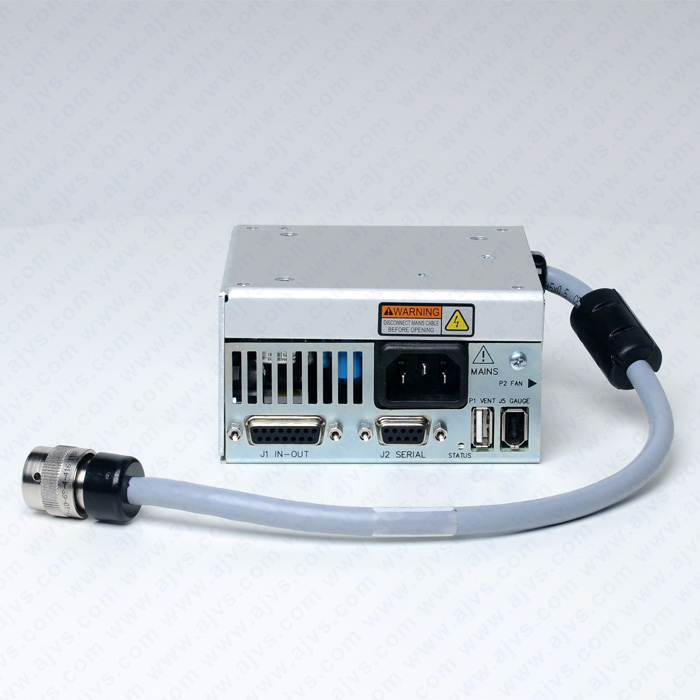

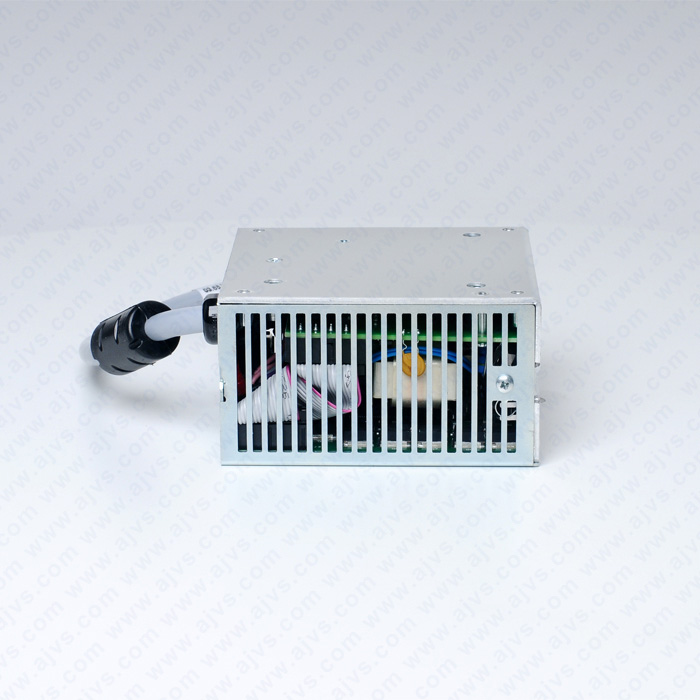

Agilent Varian Turbo V 81 Navigator Turbo Pump Controller, 9698996, 120/220 VAC, 969-8919
The controller is a solid-state frequency converter with the following features:
- Drives the pumps of the 81-NAV family.
- Powers the pump cooling fan.
- Drives the vent valve.
- Provides and acquires the pressure of the wide range gauge.
- Remote I/Os compatible with the previous version.
- Navigator default serial compatible with the previous RS 232 and 485 version.
The dedicated controller is a solid-state frequency converter which is driven by a single chip microcomputer and consists of two PCBs which include power supply and 3-phase output, analog and input/output section, microprocessor and digital section. The power supply, together with the 3-phase output, converts the single phase AC mains supply or 24Vdc supply into a 3-phase, low voltage, medium frequency output which is required to power the pump. The controller can be operated by a remote host computer via the serial connection. A Windows- based software is available (optional).
THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.

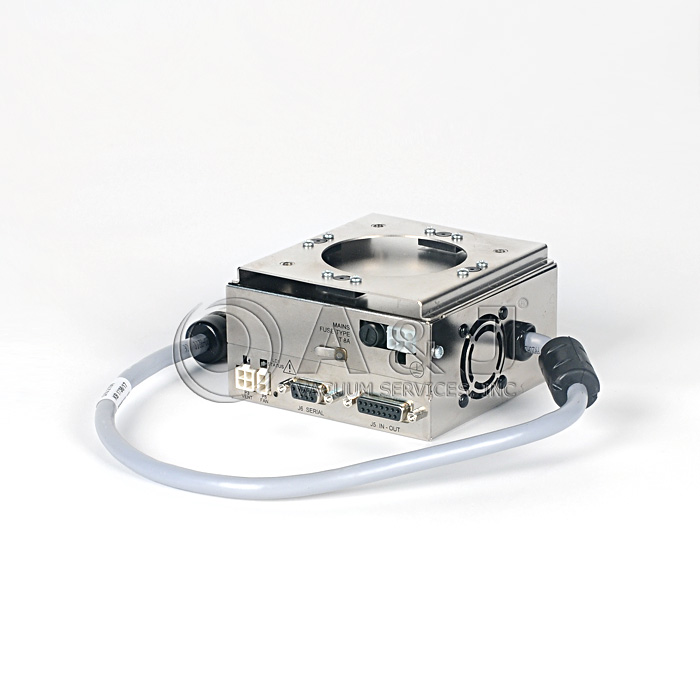

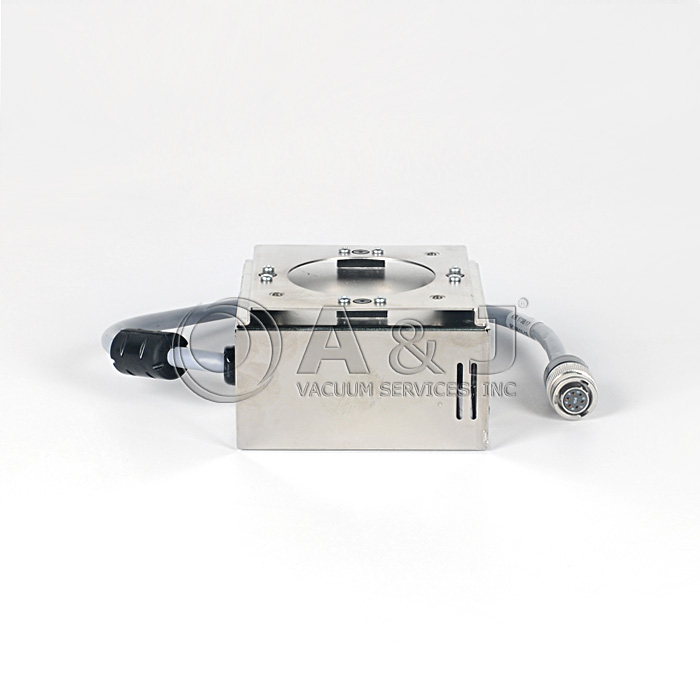

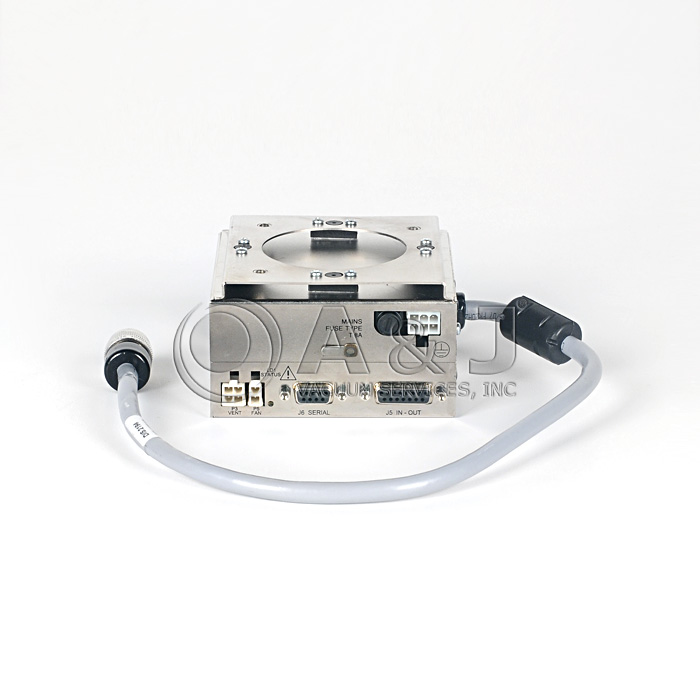

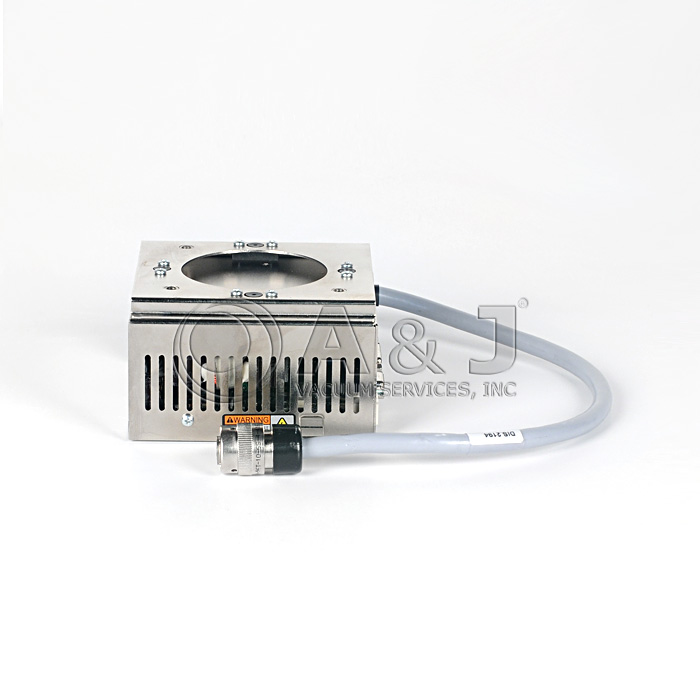

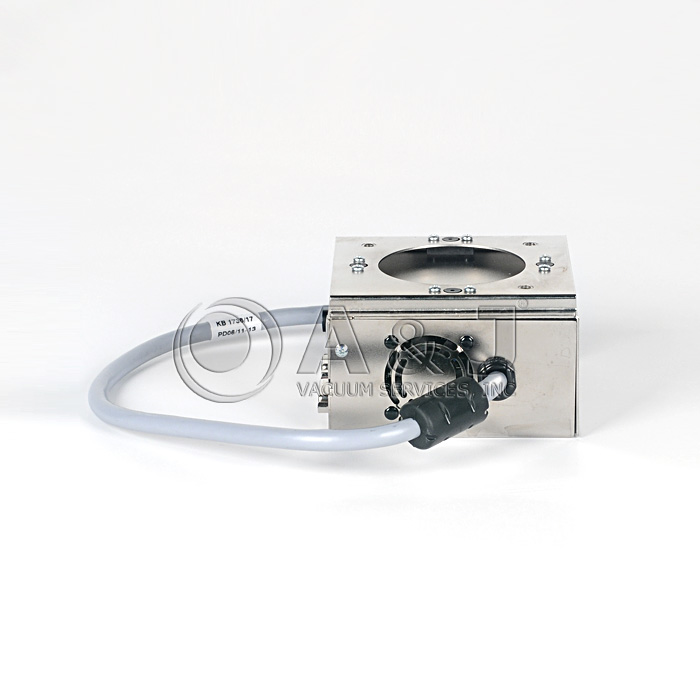

Agilent Technologies / Varian TV 301 Navigator Turbo Vacuum Pump Controller, 24 VDC, 9698972M009, Bruker, 9300010200
The Varian Turbo V 301 Navigator controller is a solid-state frequency converter which is driven by a single chip microcomputer and is composed of two PCBs which include power supply and 3-phase output, analog and input/output section, microprocessor and digital section.
The power supply, together with the 3-phase output, converts the single phase AC mains supply into a 3-phase, low voltage, medium frequency output which is required to power the pump.
The controller can be operated by a remote host computer via the serial connection. A Windows based software is available (optional).
This controller is designed to be used with the Varian TV 301 Turbomolecular Pump.
Unit is NEW and comes with a FULL 3-MONTH WARRANTY!
THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.
Agilent TV 304 C.U. Navigator Turbo Pump Controller, 240 V, Agilent G3870-80020 / G387080020
The Agilent Turbo TV 304 controller is a solid-state frequency converter which is driven by a single chip microcomputer and is composed of two PCBs which include power supply and 3-phase output, analog and input/output section, microprocessor and digital section.
The power supply, together with the 3-phase output, converts the single phase AC mains supply into a 3-phase, low voltage, medium frequency output which is required to power the pump.
The controller can be operated by a remote host computer via the serial connection. A Windows based software is available (optional).
Agilent Technologies TwisTorr 84 FS AG Rack Turbo Pump Controller With Profibus, X3508-64002, X350864002
The Agilent Technologies TwisTorr 84 FS-AG Rack Controllers are micro-processor controlled, solid-state, frequency converter with selfdiagnostic and self-protection features. The enhaned features of these controllers allow grater control and communication capabilities, such as vent valve control, active gauge pressure reading, and pump operation parameters control.
The Agilent Technologies TwisTorr 84 FS-GS Rack Controller offers the following features:
-
desgined for use with 84 FS family
-
powers the pump cooling fan
-
drives the vent valve
-
provides and acquires pressure of the gauge
-
remote is compatible with previous version
-
speed reading after stop

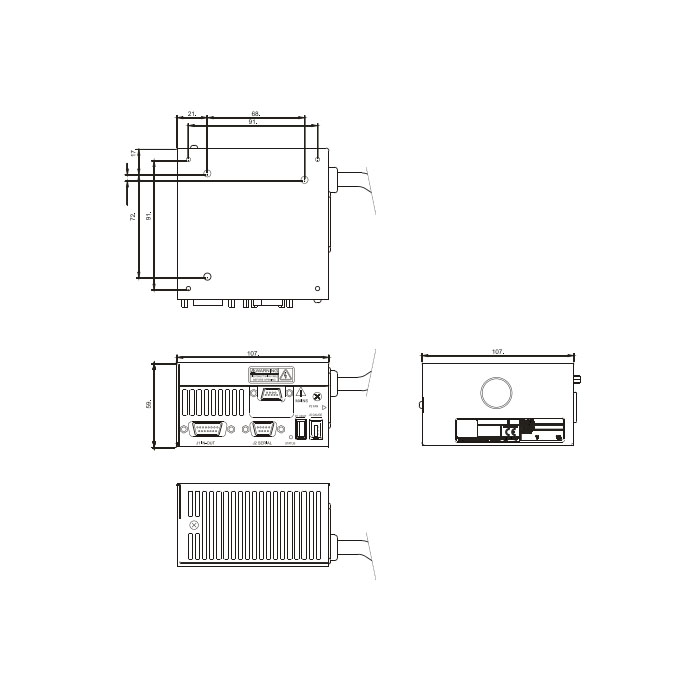

The Agilent TwisTorr 84 FS AG Rack Controller dimensions
Click here to view Agilent Technologies TwissTor 84 FS AG Rack Controller operating instructions.
Click here to view Agilent Technologies TwisTorr 84 FS Turbo Pump Operating Instructions.
A&J Vacuum repairs / rebuilds and services all Agilent TwisTorr Turbo Pumps, including Agilent TwissTorr 304 FS, Agilent TwisTorr 84 FS, along with all other Varian, Alcatel, Edwards, Bush, Leybold, Pfeiffer, Ulvac Turbo Pumps, and Turbo Pump Systems. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Agilent Technologies TwisTorr 84 FS PCB Controller, 24Vdc Voltage with Serial Communication, X3510-64000, X351064000
The TwisTorr 84 FS PCB Controller is a microprocessorcontrolled, solid-state, frequency converter with selfdiagnosis and protection features.
The controller drives the TwisTorr 84 FS pump series by controlling the voltage and current respect to the speed reached by pump.
A&J Vacuum repairs / rebuilds and services all Agilent TwisTorr Turbo Pumps, including Agilent TwissTorr 304 FS, Agilent TwisTorr 84 FS, along with all other Varian, Alcatel, Edwards, Bush, Leybold, Pfeiffer, Ulvac Turbo Pumps, and Turbo Pump Systems. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Agilent Technologies TwisTorr 84 FS AG Rack Turbo Pump Controller With RS 232/485, X3508-64001, X350864001
The Agilent Technologies TwisTorr 84 FS-AG Rack Controllers are micro-processor controlled, solid-state, frequency converter with selfdiagnostic and self-protection features. The enhaned features of these controllers allow grater control and communication capabilities, such as vent valve control, active gauge pressure reading, and pump operation parameters control.
The Agilent Technologies TwisTorr 84 FS-GS Rack Controller offers the following features:
-
desgined for use with 84 FS family
-
powers the pump cooling fan
-
drives the vent valve
-
provides and acquires pressure of the gauge
-
remote is compatible with previous version
-
speed reading after stop

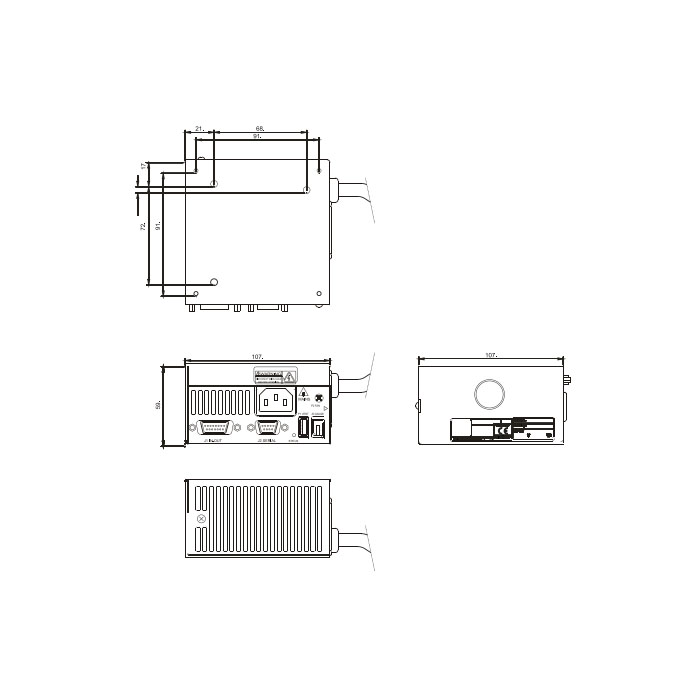

The Agilent TwisTorr 84 FS AG Rack Controller dimensions
Click here to view Agilent Technologies TwissTor 84 FS AG Rack Controller operating instructions.
Click here to view Agilent Technologies TwisTorr 84 FS Turbo Pump Operating Instructions.
A&J Vacuum repairs / rebuilds and services all Agilent TwisTorr Turbo Pumps, including Agilent TwissTorr 304 FS, Agilent TwisTorr 84 FS, along with all other Varian, Alcatel, Edwards, Bush, Leybold, Pfeiffer, Ulvac Turbo Pumps, and Turbo Pump Systems. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.

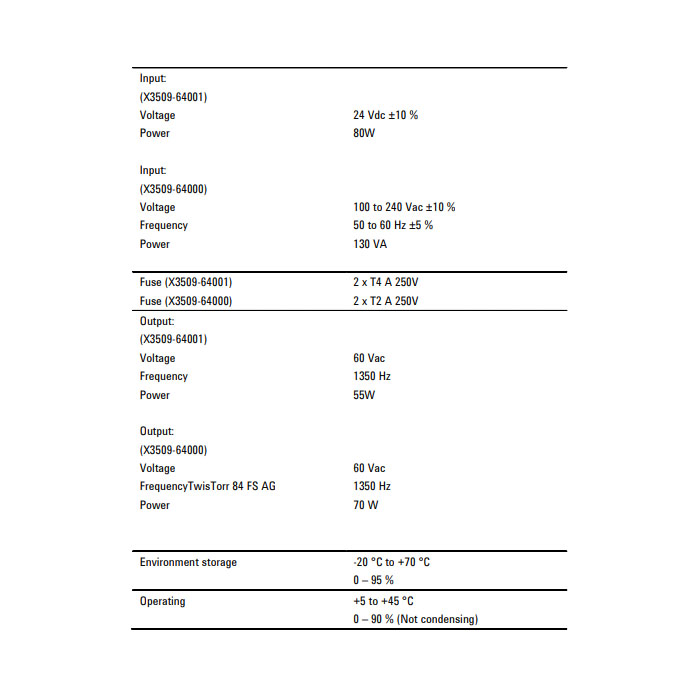

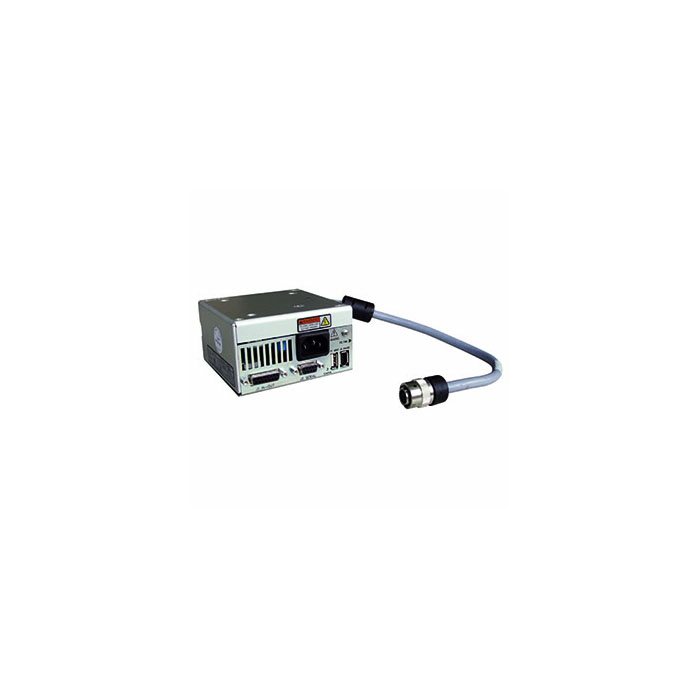

Agilent Technologies TwisTorr 84 FS Onboard Turbo Pump Controller, 110/220 V, X3509-64000, X350964000
The Agilent Technologies TwisTorr 84 FS on-board controller is driven by a single chip microcomputer. It consists of two PCBs, analog and input/output section, microprocessor, and digital section. The controller can be connected to a host computer and be operated via the serial connection. Windows software is also available for this controller. The TwisTorr 84 FS on-board controller can be installed on the bottom of the TwisTorr 84 Fs Turbo Pumps. The controller is also equipped with connectors that enable powering of additional fan to control the vent valve.
The Agilent TwisTorr 84 FS Onboard Controller offers the following features:
-
powers the pump cooling fan
-
drives the vent valve
-
provides and acquires the pressure of the gauge
-
navigator default compatible with previous versions
-
compatible with TwisTorr 84 FS Turbo Pump family
The Agilent Technologies TwisTorr 84 FS Turbo Pump Onboard Controller dimensions
Click here to view Agilent Technologies TwissTor 84 FS On-board Controller operating instructions.
Click here to view Agilent Technologies TwisTorr 84 FS Turbo Pump Operating Instructions.
A&J Vacuum repairs / rebuilds and services all Agilent TwisTorr Turbo Pumps, including Agilent TwissTorr 304 FS, Agilent TwisTorr 84 FS, along with all other Varian, Alcatel, Edwards, Bush, Leybold, Pfeiffer, Ulvac Turbo Pumps, and Turbo Pump Systems. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Agilent Technologies TwisTorr 84 FS Onboard Turbo Pump Controller, 24 V, X3509-64001, X350964001
The Agilent Technologies TwisTorr 84 FS on-board controller is driven by a single chip microcomputer. It consists of two PCBs, analog and input/output section, microprocessor, and digital section. The controller can be connected to a host computer and be operated via the serial connection. Windows software is also available for this controller. The TwisTorr 84 FS on-board controller can be installed on the bottom of the TwisTorr 84 Fs Turbo Pumps. The controller is also equipped with connectors that enable powering of additional fan to control the vent valve.
The Agilent TwisTorr 84 FS Onboard Controller offers the following features:
-
powers the pump cooling fan
-
drives the vent valve
-
provides and acquires the pressure of the gauge
-
navigator default compatible with previous versions
-
compatible with TwisTorr 84 FS Turbo Pump family
The Agilent Technologies TwisTorr 84 FS Turbo Pump Onboard Controller dimensions
Click here to view Agilent Technologies TwissTor 84 FS On-board Controller operating instructions.
Click here to view Agilent Technologies TwisTorr 84 FS Turbo Pump Operating Instructions.
A&J Vacuum repairs / rebuilds and services all Agilent TwisTorr Turbo Pumps, including Agilent TwissTorr 304 FS, Agilent TwisTorr 84 FS, along with all other Varian, Alcatel, Edwards, Bush, Leybold, Pfeiffer, Ulvac Turbo Pumps, and Turbo Pump Systems. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.

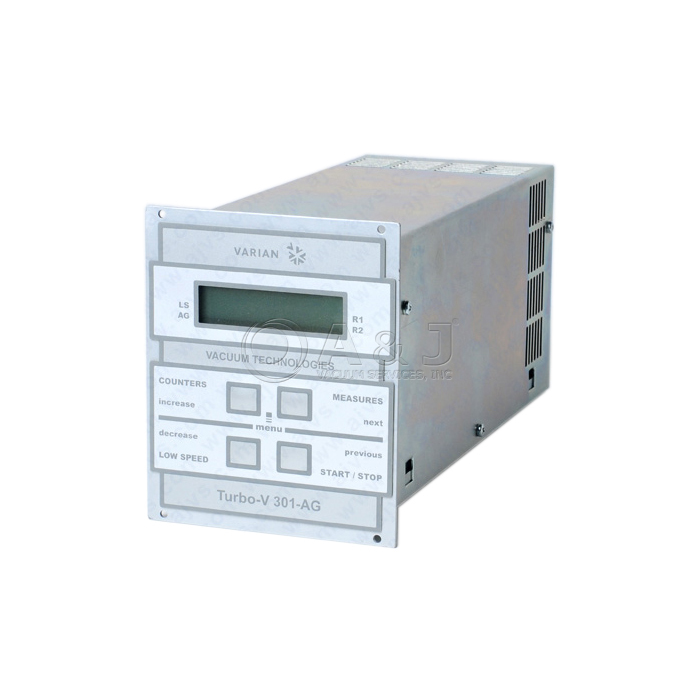

The Turbo-V 301 Rack controllers are micro-processorcontrolled, solid-state, frequency converter with selfdiagnostic and self-protection features. The controllers drive (within ten steps) the Turbo-V 301 pump during the starting phase by controlling the voltage and current respect to the speed reached by the pump.
They incorporate all the facilities required for the automatic operation of the Turbo-V 301 pump series. Remote start/stop, pump status signals, forepump start/stop, interlock control (for pressure switch, water flow switch, etc.) capability, are provided via auxiliary connectors.
The controller is available in two versions which differ only in the factory-set input voltage:
• Model 969-9437 (220 Vac, 50-60 Hz)
• Model 969-9537 (120 Vac, 50-60 Hz)
Controller Designed to operate with Varian Agilent TV 301 Navigator Turbomolecular Pump. TV301.
The controller is a solid-state frequency converter which is driven by a single chip microcomputer and is composed of:
- Power transformer
- Front panel display and keyboard
- Rear panel with input/output connectors
- PCB including: power supply and 3-phase output, analog and input/output section, microprocessor and digital section, display and keyboard circuits.
The power supply converts the single phase (50-60 Hz) AC mains supply into a 3-phase, low voltage, medium frequency output which is required to power the Turbo-V pump. The microcomputer generates the variable output frequency and controls the 3-phase output voltage according to the software and the gas load condition of the pump.
Moreover, it manages signals from sensors, input/output connection information to be displayed, and gives outputs for a fully automatic operation. A dedicated non-volatile RAM is used to store pump operating parameters and the input/output programmed information upon failure for a period of 10 years accumulated off time.
THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.
This product is discontinued with no replacement.
The Turbo-V 301 Rack controllers are micro-processorcontrolled, solid-state, frequency converter with selfdiagnostic and self-protection features. The controllers drive (within ten steps) the Turbo-V 301 pump during the starting phase by controlling the voltage and current respect to the speed reached by the pump.
They incorporate all the facilities required for the automatic operation of the Turbo-V 301 pump series. Remote start/stop, pump status signals, forepump start/stop, interlock control (for pressure switch, water flow switch, etc.) capability, are provided via auxiliary connectors.
The controller is available in two versions which differ only in the factory-set input voltage:
• Model 969-9437 (220 Vac, 50-60 Hz)
• Model 969-9537 (120 Vac, 50-60 Hz)
Controller Designed to operate with Varian Agilent TV 301 Navigator Turbomolecular Pump. TV301.
The controller is a solid-state frequency converter which is driven by a single chip microcomputer and is composed of:
- Power transformer
- Front panel display and keyboard
- Rear panel with input/output connectors
- PCB including: power supply and 3-phase output, analog and input/output section, microprocessor and digital section, display and keyboard circuits.
The power supply converts the single phase (50-60 Hz) AC mains supply into a 3-phase, low voltage, medium frequency output which is required to power the Turbo-V pump. The microcomputer generates the variable output frequency and controls the 3-phase output voltage according to the software and the gas load condition of the pump.
Moreover, it manages signals from sensors, input/output connection information to be displayed, and gives outputs for a fully automatic operation. A dedicated non-volatile RAM is used to store pump operating parameters and the input/output programmed information upon failure for a period of 10 years accumulated off time.
THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.
