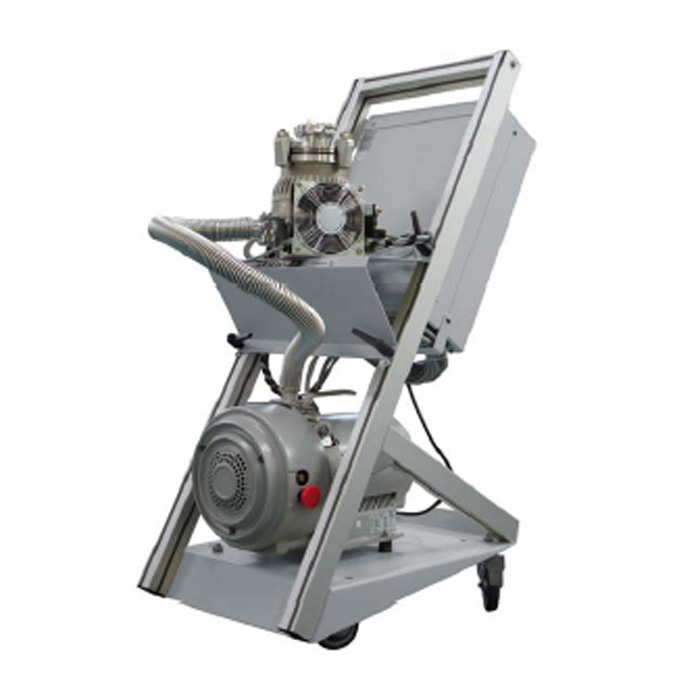

Agilent TPS Turbo Pumping Station Mobile, with TV 304 Turbo Pump and IDP-7 Scroll Pump, ISO 100, G8701A

Condition: New

Item#:PN18545

Mfr Part#:G8701A

Manufacturer:Agilent Technologies / Varian

Price upon request

Request a repair estimate Request sales quote Financing available

New Agilent TPS Turbo Pumping Station Mobile, with TV 304 Turbo Pump and IDP-7 Scroll Pump, ISO 100, G8701A

Features:

Inlet flange: ISO 100
Pressure monitor
Portable
High capacity system

Overview
Specifications
Service & Repair

Agilent TPS Turbo Pumping Station Mobile, with TV 304 Turbo Pump and IDP-7 Scroll Pump, ISO 100, G8701A

TPS Turbo Pumping Station Mobile / G8701A Overview:

Agilent Technologies TPS Turbo Pumping Station - Mobile, with TV304 Turbo Pump, ISO 100, IDP-7 Dry Scroll Pump, G8701A

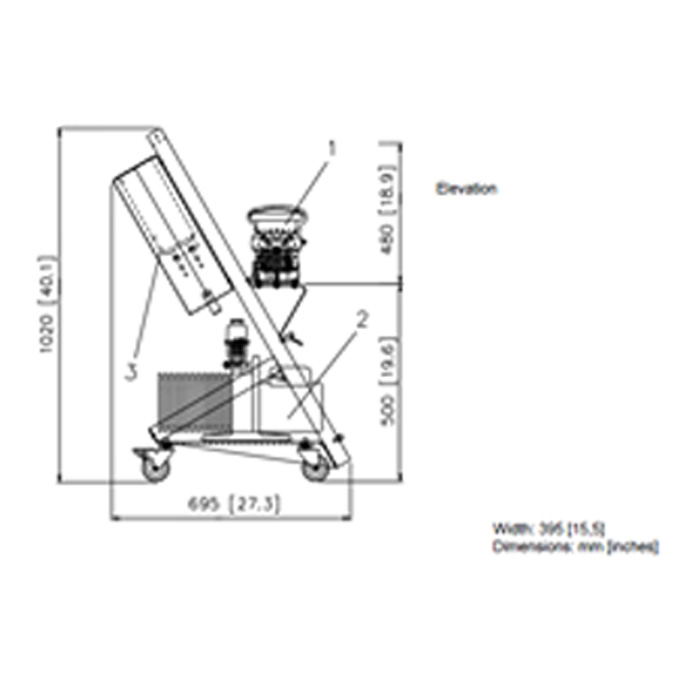

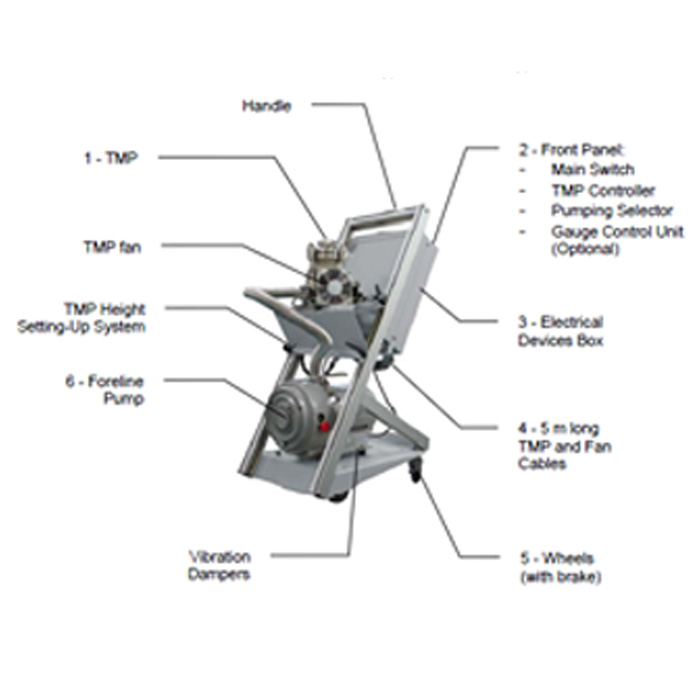

The TPS-mobile front Panel is the system user interface where all controller elements are located. In particular, it contains:

Main Switch
- It is a protection thermal switch able to provide electrical power to the system protecting all the devices integrated in the system against overcurrents or shortcircuits. The nominal current of the switch is fitted in according to the system configuration. By means of the Main Switch you provide power to the system activating the TMP controller and its ability to read pressure by means of an optional gauge (if connected).
TMP Controller
- The integrated controller is a solid-state frequency converter which is driven by a single chip microcomputer and is composed of a PCB which includes a power supply with a 3-phase AC output, analogical and input/output section, microprocessor and digital section. The controller recognizes the mains presence and converts the single phase AC mains supply into a 3-phase, medium frequency output which is required to power the pump.
Pumping Selector
- TPS-mobile versions equipped with TV81M or TV301 include an electrical selector named “Pumping” on the left side of the front panel. It is aimed to pumps management (ON/OFF). By means of “Pumping” selector you are able to start pumping; activating the pumping effect of TMP an Foreline pump. TPS-mobile equipped with TV551 is not provided with the “Pumping” selector; the same function is provided by the “ON” button of the TMP controller.
Gauge Control Unit (optional)
- If needed is possible to order a special version of TPS-mobile equipped with an optional gauge controller named Varian XGS-600. By means of XGS-600 is possible to manage a couple of gauges to monitor pressure on system foreline by means of a convector gauge (1x10-3 Torr to atm) and high vacuum pressure by means of a IMG-100 (1x10-3 to 5x10-9 Torr).
Electrical Devices Box
- It is a metal box containing all the electrical equipments useful to manage the vacuum components integrated in the TPS-mobile. The rear panel of the Electrical Box is equipped
  with:
  - Main socket – IEC 320 electrical socket for pumping system power cable connection (except the model 969-8433 equipped with an integrated power cable).
  - Gauge Port – Fireware connector for active gauge FRG-700 connection (see Chapter “Gauge Connector”).
5m TMP and Fan Cables
- On the rear side of Electrical Box 5 m long TMP and Fan cables are wrapped up. They are useful for the TMP and its fan and operation far from the pumping system.
Wheels
- TPS-mobile is provided with four wheels allowing the system to be moved and located where vacuum is needed. Two out of four wheels are provided with a breaking system to avoid accidental moving of the pumping system during operation.
Foreline Pumps Description
- TPS-mobile can be equipped both with a dry pump (scroll type) or with an oil sealed Rotary Vane Pump. TPS-mobile versions equipped with a scroll pump are free of contaminating agents and therefore are suitable for applications requiring “clean” vacuum.
