- Main Area of Application: Cryogenic Vacuum Processes
- Wide Range of Working Temperature: -269 to 30 Degrees Celsius
- Silicone-Free, Eliminating Contamination and Creep Effect
- Product Arrives in a 100-Gram Tube

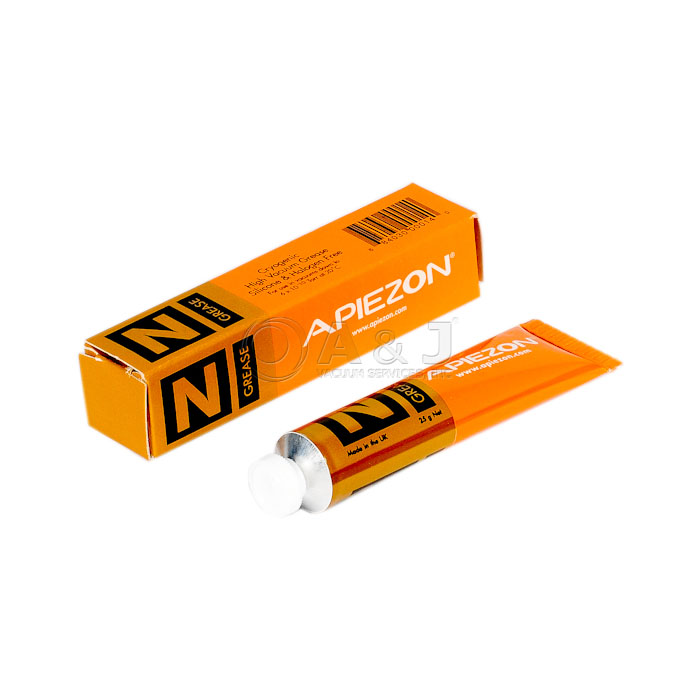

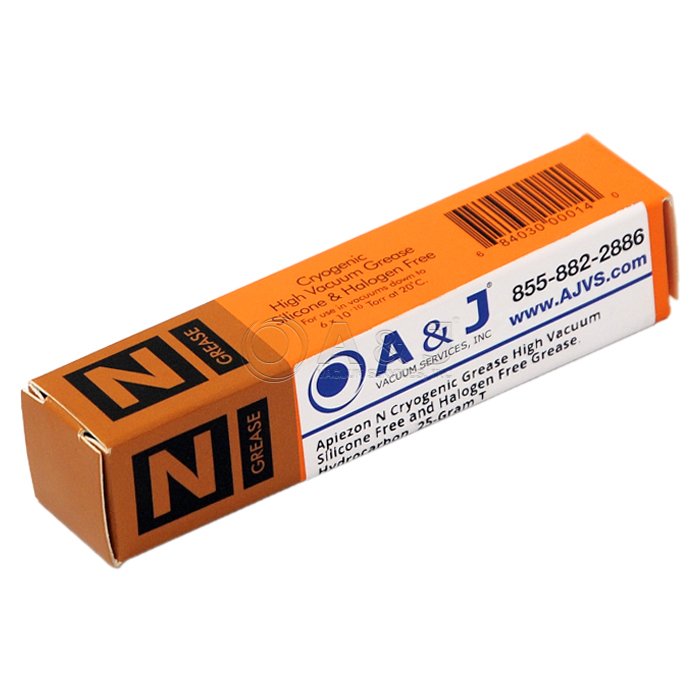

Apiezon N Cryogenic High Vacuum Grease, Silicone Free and Halogen Free Grease, Hydrocarbon, 25-Gram Tube
N Cryogenic High Vacuum Grease / APIEZON N Overview:
The Apiezon N family of hydrocarbon high vacuum greases has been serving the market for a number of years and features products highly regarded worldwide for their quality, consistency, and excellent performance within cyrogenic vacuum applications. The greases are silicone-free and highly resistant to creep - the undesirable phenomenon traditionally associated with silicone-based lubrication products.
Apiezon N Grease is silicone-free and widely recognized and recommended as the cryogenic vacuum grease of choice. This cryogenic grease is specially formulated to exhibit craze-free performance characteristics at low temperatures and withstand frequent cycling between cryogenic temperatures ranging as low as -273 degrees Celsius.
The grease is a high vacuum grease having the ability to fill micro pores of adjoining surfaces, thereby improving overall thermal contact. It does not suffer from contamination problems associated with silicone-based greases, in reference to phenomena such as 'creep' and 'carry over' - giving the Apiezon N a significant advantage over standard silicone-based lubricants. The grease exhibits a vapor pressure of 6 x 10^[-10] Torr at 20 degrees Celsius. It likewise features powerful 'gettering' action, allowing the Apiezon N to absorb potentially harmful chemical impurities on metal and glass surfaces. It is also easy to clean and remove, as it is soluble in hydrocarbon and chlorinated solvents.
N HighVacuumGrease Applications:
- Cryosystems
- Thermal Coupling
- Sensor Mounting
- Sample Mounting
- Ambient Temperature Applications
Apiezon N Cryogenic High Vacuum Grease, Silicone Free and Halogen Free Grease, Hydrocarbon, 25-Gram Tube
Apiezon N Cryogenic High Vacuum Grease Technical Data:
- Main Areas of Application: Cryogenic Grease
- Working Temperature: -269 to 30 Degrees Celsius / -452 to 86 Degrees Fahrenheit
- Vapor Pressure at 20 Degrees Celsius: 6 x 10^[-10] Torr
- Relative Density at 20 Degrees Celsius: 0.911
Apiezon_N_Grease_Cryogenic_Thermal_Conductance.pdf
Apiezon_N_Cryogenic_High_Vacuum_Grease_Datasheet.pdf
|
Service and Repair - Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
Overview
Apiezon N Cryogenic High Vacuum Grease, Silicone Free and Halogen Free Grease, Hydrocarbon, 25-Gram Tube
N Cryogenic High Vacuum Grease / APIEZON N Overview:
The Apiezon N family of hydrocarbon high vacuum greases has been serving the market for a number of years and features products highly regarded worldwide for their quality, consistency, and excellent performance within cyrogenic vacuum applications. The greases are silicone-free and highly resistant to creep - the undesirable phenomenon traditionally associated with silicone-based lubrication products.
Apiezon N Grease is silicone-free and widely recognized and recommended as the cryogenic vacuum grease of choice. This cryogenic grease is specially formulated to exhibit craze-free performance characteristics at low temperatures and withstand frequent cycling between cryogenic temperatures ranging as low as -273 degrees Celsius.
The grease is a high vacuum grease having the ability to fill micro pores of adjoining surfaces, thereby improving overall thermal contact. It does not suffer from contamination problems associated with silicone-based greases, in reference to phenomena such as 'creep' and 'carry over' - giving the Apiezon N a significant advantage over standard silicone-based lubricants. The grease exhibits a vapor pressure of 6 x 10^[-10] Torr at 20 degrees Celsius. It likewise features powerful 'gettering' action, allowing the Apiezon N to absorb potentially harmful chemical impurities on metal and glass surfaces. It is also easy to clean and remove, as it is soluble in hydrocarbon and chlorinated solvents.
N HighVacuumGrease Applications:
- Cryosystems
- Thermal Coupling
- Sensor Mounting
- Sample Mounting
- Ambient Temperature Applications
Specifications
Apiezon N Cryogenic High Vacuum Grease, Silicone Free and Halogen Free Grease, Hydrocarbon, 25-Gram Tube
Apiezon N Cryogenic High Vacuum Grease Technical Data:
- Main Areas of Application: Cryogenic Grease
- Working Temperature: -269 to 30 Degrees Celsius / -452 to 86 Degrees Fahrenheit
- Vapor Pressure at 20 Degrees Celsius: 6 x 10^[-10] Torr
- Relative Density at 20 Degrees Celsius: 0.911
Videos
Service & Repair
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
