- Meets or Exceeds OEM specifications
- P/N 110910
- Complete Major Rebuild Kit
- AJVS Kit
Shopping Cart ( )
Alcatel Adixen ADP122L Maintenance Major Repair Rebuild Kit, 110910, ADP 122 AJVS Kit
Condition:
New
Item#:PN18349
Mfr Part#:110910 AJVS
Manufacturer:Adixen / Alcatel
Features:
Alcatel ADP 122L also known as Adixen ADP 122 L PN 110910 Maintenance Major Rebuild Kit.
This Alcatel ADP 122 L Kit contains all the necessary parts to perform complete overhaul of your Alcatel ADP122L Dry Pump.
Kit OEM P/N 110910, Ordering # PN18349
For Optimum performance and to obtain full satisfaction from your ADP 122L Dry Pump it is recomended to study your ADP122 Operation Manual before any intervation on your pumnp.
It is recomended to familiarize yourself with Installation and Startup procedures.
Also refer to Service Section in your ADP122 manual for more information regarding Service and Repair of your ADP 122 Dry Pump. A&J Vacuum Services does service all ADP122 Dry pumps in our service facility in Clifton, NJ.
Adixen ADP122 can be also coupled with RSV601, and RSV602 Booster pumps to make ADS 602 Vacuum Systems Those systems are very robust and well proven within industry.
Alcatel / Adixen RSV301, RSV301B, RSV601, RSV601B Major Repair / Rebuild Kit OEM P/N 51992, and Ordering # PN09899
Alcatel ADP 122 Dry pump is a multi stage roots technology, water cooled pump.
Please refer to ADP 122 Operational Manual Section D20 for Maintenance Frequency recomendations on all ADP122 pump versions.
A&J Vacuum also repair / rebuild and service all Alcatel ADP 122L, ADP 122P and Adixen ADP122L, ADP122P Dry Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page.
THERE ARE NO RETURNS ON THIS PRODUCT.
This item is non-returnable/non-refundable
|

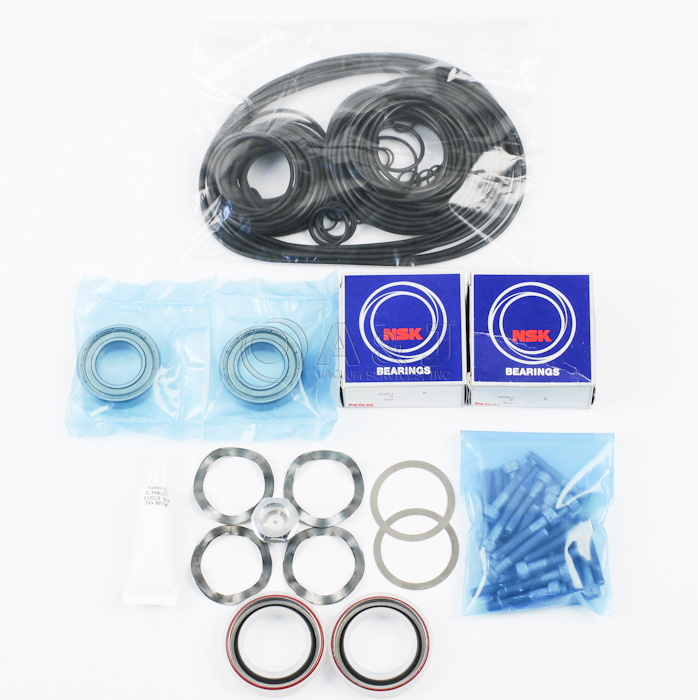

Alcatel ADP122L Maintenance Major Kit 110910 |
||
|
Part # |
Description |
Qty |
|
2120051 |
O'RING,VITON,44.6 X 2.4 MM |
2 |
|
02122009V |
O'RING,VITON,11 X 1.5 MM |
17 |
|
330059 |
Bearing,Ceramic,PFPE |
2 |
|
320113 |
O'RING,VITON,38 X 3.5 MM |
1 |
|
320166 |
O'RING,VITON,16 X 2MM |
1 |
|
320304 |
O'ring,Viton,28 x 2.5mm |
1 |
|
320340 |
O'ring,Viton,72.6x3.5mm |
1 |
|
320341 |
O'ring,Viton,66.3x2.6 mm |
1 |
|
320342 |
O'ring,Viton,56.8x2.6mm |
1 |
|
320371 |
O'ring,Viton,54x2.5mm |
1 |
|
320359 |
O'ring,Viton,50x2mm |
1 |
|
320345 |
O'ring,Viton,53.3x5.3mm |
1 |
|
320349 |
O'ring,Viton,35x2 mm |
1 |
|
320350 |
O'ring,Viton,155x3 mm |
1 |
|
320351 |
O'ring,Viton,150x4 mm |
1 |
|
320352 |
O'ring,Viton,213x3mm |
11 |
|
320353 |
O'ring,Viton,51x2.5 mm |
2 |
|
320357 |
O'ring,Viton,145x3 mm |
6 |
|
330053 |
Bearing,Ball |
2 |
|
400072 |
Bolt,M6X1.0,35mm LG |
24 |
|
410014 |
Insert,Oval,Threaded |
2 |
|
420053 |
Washer,Wave 4 |
4 |
|
500020 |
Sight,Glass,Assy,G1/2,Alum |
1 |
|
51963 |
RING,SHIM |
2 |
|
612159A |
O'RING,VITON,18.72 X 2.62 MM |
2 |
|
660204 |
O'RING,VITON,58.42 X 2.62 MM |
5 |
|
71237312 |
O'RING,VITON,41 X 3 MM |
1 |
|
310105 |
Seal,Shaft,Teflon,Single Lip |
2 |
|
82013 |
O'RING,VITON,40.64 X 5.33 MM |
4 |
|
870019 |
Grease,PFPE,12 Grams Tube |
1 |
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
We can repair your:
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
