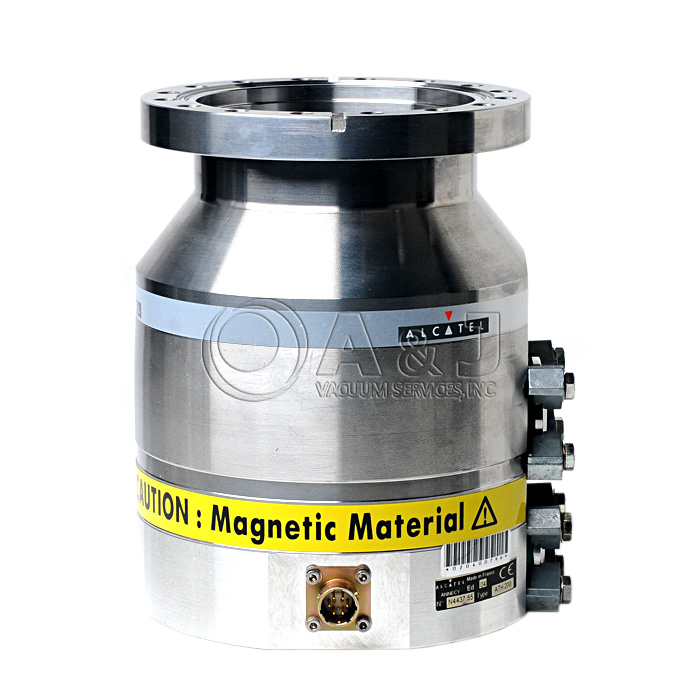

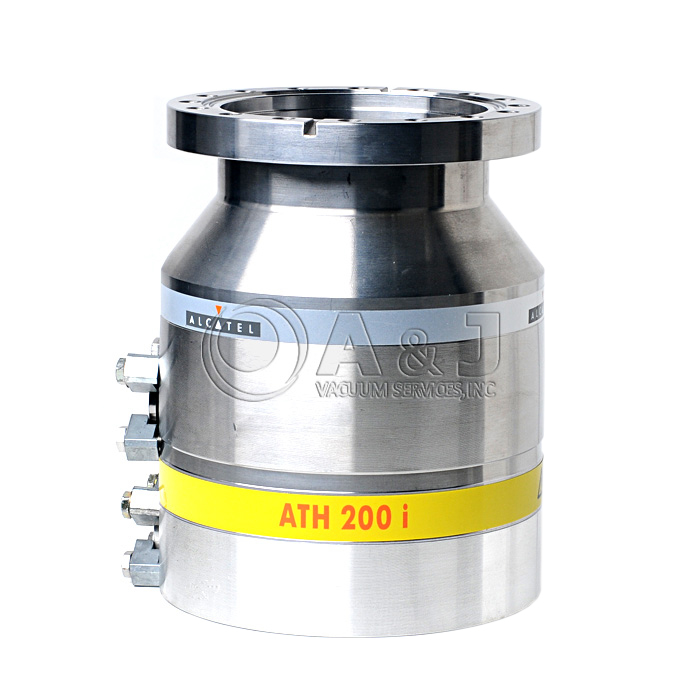

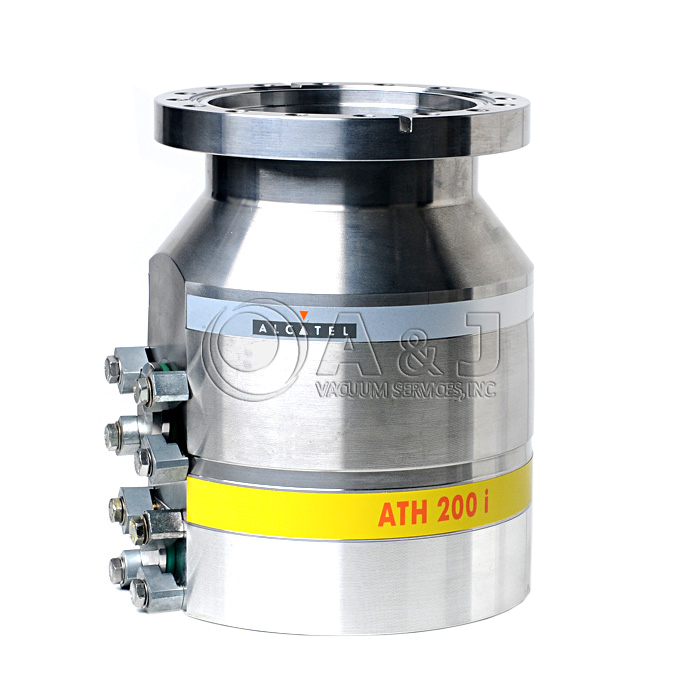

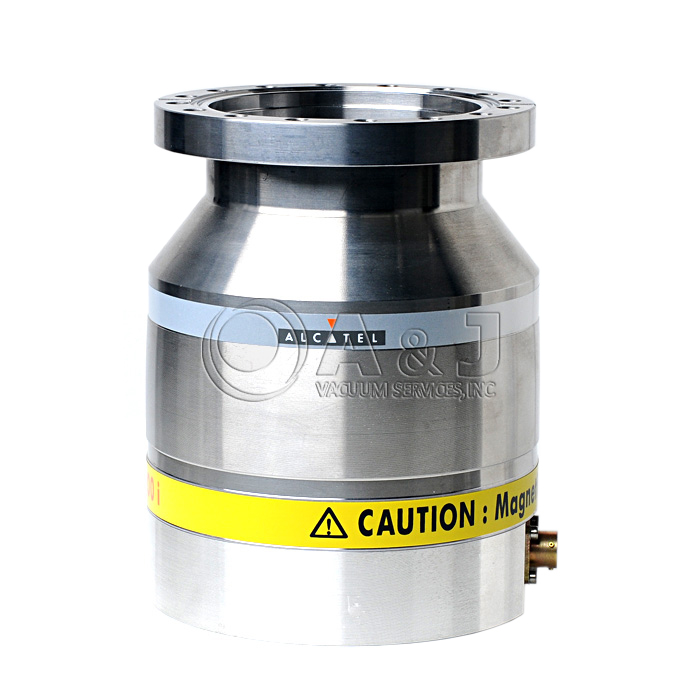

Alcatel Adixen ATH200i Turbomolecular Pump, DN 100 CF-F, S13D11C2

Alcatel Adixen ATH200i Turbomolecular Pump, DN 100 CF-F, S13D11C2

ATH200i / S13D11C2 Overview:

Alcatel offers the ATH series of hybrid turbomolecular pumps with pumping speeds ranging from 30 to 300 l/s. Some models have been optimized for instrumentation or R&D applications while others for heavy cycling applications.

The Adixen ATH200i series hybrid turbomolecular pumps incorporate turbomolecular stages with moledular drag stages, resulting in:

• High pumping speed
• High compression ratio, resulting in high exhaust pressure tolerance

The low rotational speed and the machined rotors of the Adixen ATH200i series make these pumps very robust against:

• Unexpected air inrushes
• Shocks
• Gyroscopic effects
• Bearing failures

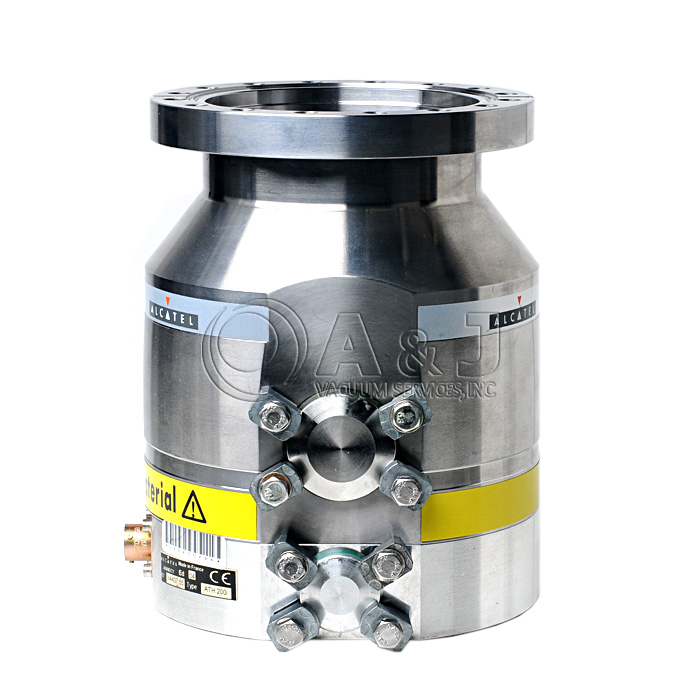

The Adixen ATH200i pumps can be equipped with intermediate vacuum ports to offer application flexibility such as:

• Additional pumping capacity
• Management of a pressure set point
• Venting

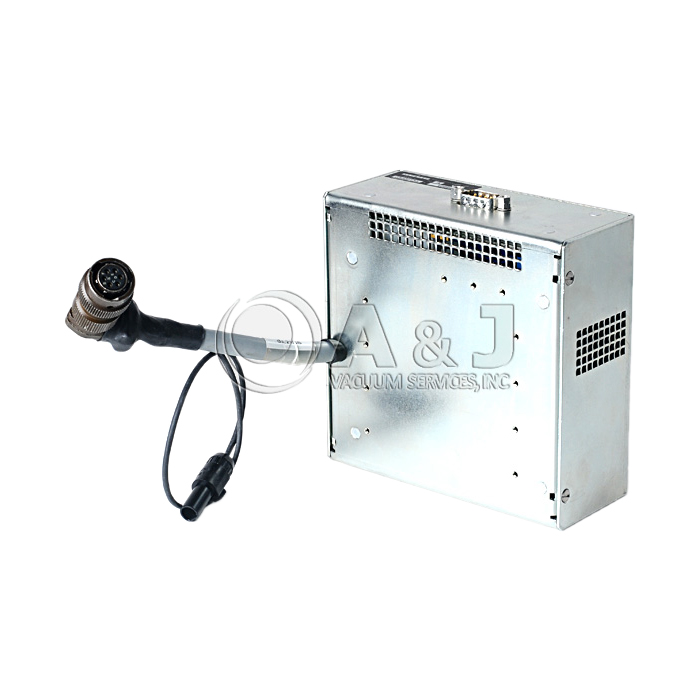

To control the pump, three types of electronics are available:

• A controller with minimum I/O interface: switches and logical interface
• A sophisticated controller with a high level communication interface
• Controller electronics that may be mounted on the pump or integrated into a system

A&J Vacuum Services offers full repair/service of Alcatel/Adixen Pumps, along with all other brands offered on our website. AJVS also services Alcatel/Adixen Turbo Pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
