Found 2 products

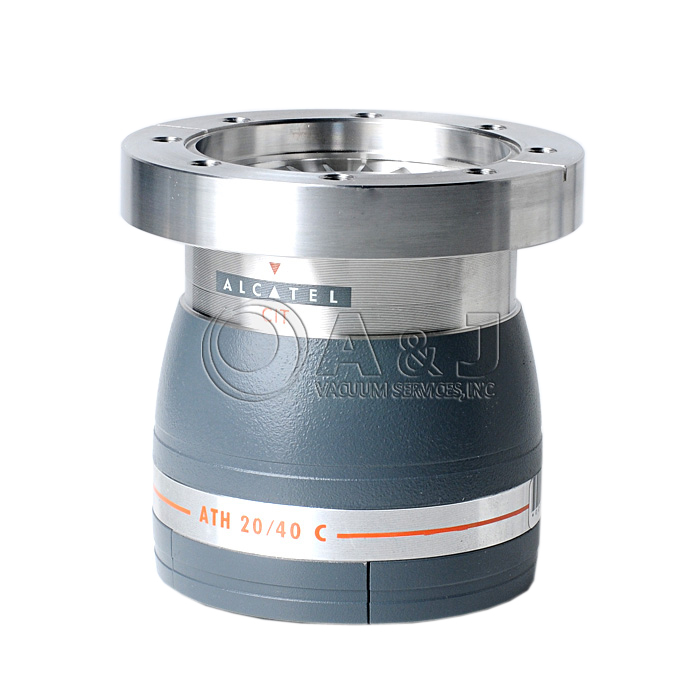

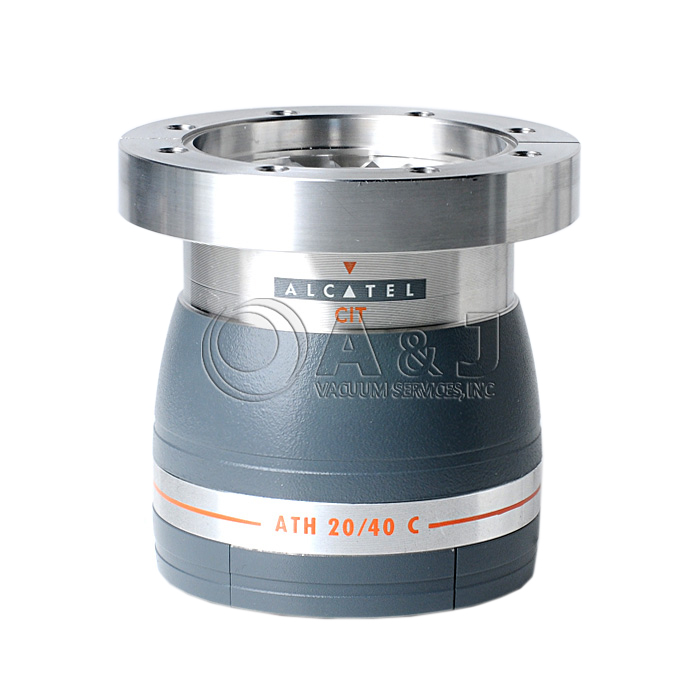

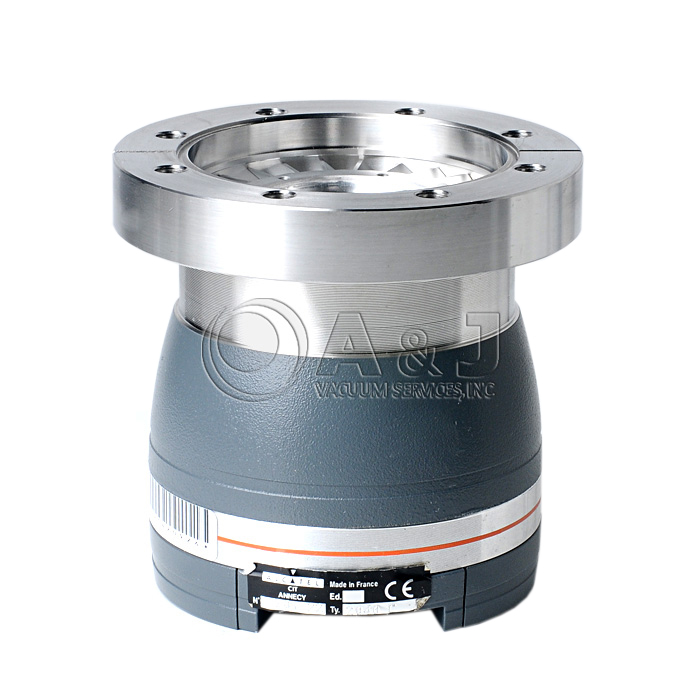

Alcatel ATH 2040 CF63 Turbo Pump, 20/40 C
Item#: PN00189 Mfr Part#: ATH2040 Manufacturer: Adixen / Alcatel
Price upon request

Alcatel ATH 2040 CF63 Turbo Pump, 20/40 C

  • Pumping speed: for N2 20/40 l/s,
  • Ultimate pressure with rotary vane pump 1x10-9 mbar,
  • Recommended Backing Pump 1.5-16 m3.
  • Air Cooling available.
  • Turbo pump designed for a wide range of applications in research industry, Space simulation, Thin film deposition, Ion source, Mass spectrometer, leak detection.
  • The Alcatel ACT 200 Turbo Pump controller is needed to operate Alcatel ATH 20/40 Turbo Pump.
  • This Pump is fully rebuilt and comes with FULL 12-MONTHS WARRANTY !
Condition: Remanufactured Out of Stock
Alcatel Adixen ATH200i Turbomolecular Pump DN 100 CF-F, S13D11C2, ATH 200
Item#: PN07076 Mfr Part#: S13D11C2 Manufacturer: Adixen / Alcatel
Price upon request

Alcatel Adixen ATH200i Turbomolecular Pump DN 100 CF-F, S13D11C2, ATH 200



Alcatel ATH200i Overview:

Alcatel offers the ATH series of hybrid turbomolecular pumps with pumping speeds ranging from 30 to 300 l/s. Some models have been optimized for instrumentation or R&D applications while others for heavy cycling applications.

The Adixen ATH200i series hybrid turbomolecular pumps incorporate turbomolecular stages with moledular drag stages, resulting in:

  • High pumping speed
  • High compression ratio, resulting in high exhaust pressure tolerance

The low rotational speed and the machined rotors of the Adixen ATH200i series make these pumps very robust against:

  • Unexpected air inrushes
  • Shocks
  • Gyroscopic effects
  • Bearing failures

The Adixen ATH200i pumps can be equipped with intermediate vacuum ports to offer application flexibility such as:

  • Additional pumping capacity
  • Management of a pressure set point
  • Venting

To control the pump, three types of electronics are available:

  • A controller with minimum I/O interface: switches and logical interface
  • A sophisticated controller with a high level communication interface
  • Controller electronics that may be mounted on the pump or integrated into a system



Alcatel ATH200i Pumping Speed:

Alcatel Adixen Pumping Speed ATH200i, S13D11C2



Alcatel ATH200i Dimensions:

Alcatel Adixen Dimensions ATH200i, S13D11C2

Click Here for Alcatel ATH200i Brochure

A&J Vacuum Services offers full repair/service of Alcatel/Adixen Pumps, along with all other brands offered on our website. AJVS also services Alcatel/Adixen Turbo Pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.

Condition: Remanufactured Out of Stock
