- PN 066695
- Shaft D11, 995
- OEM Bearing Kit
Shopping Cart ( )

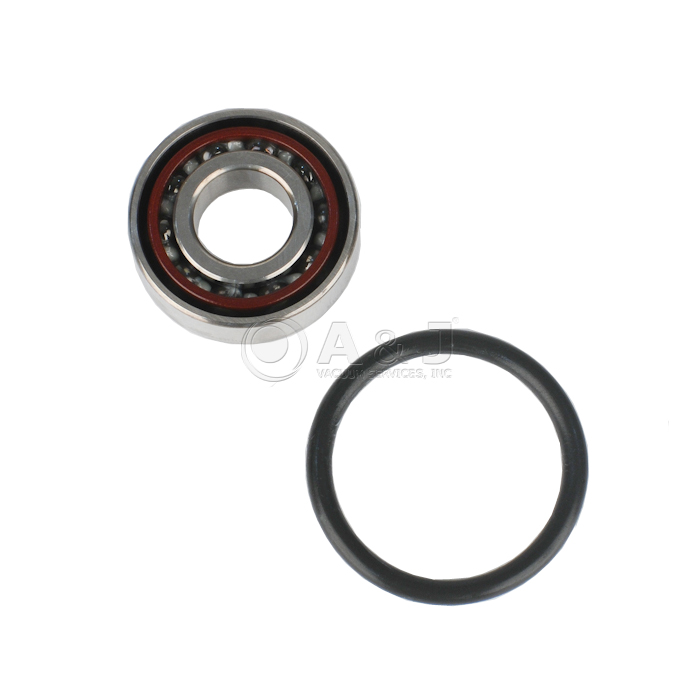

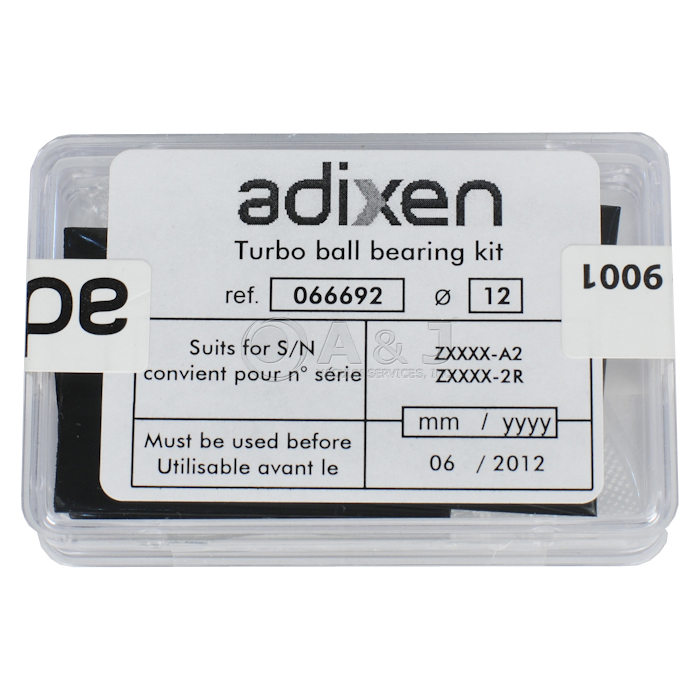

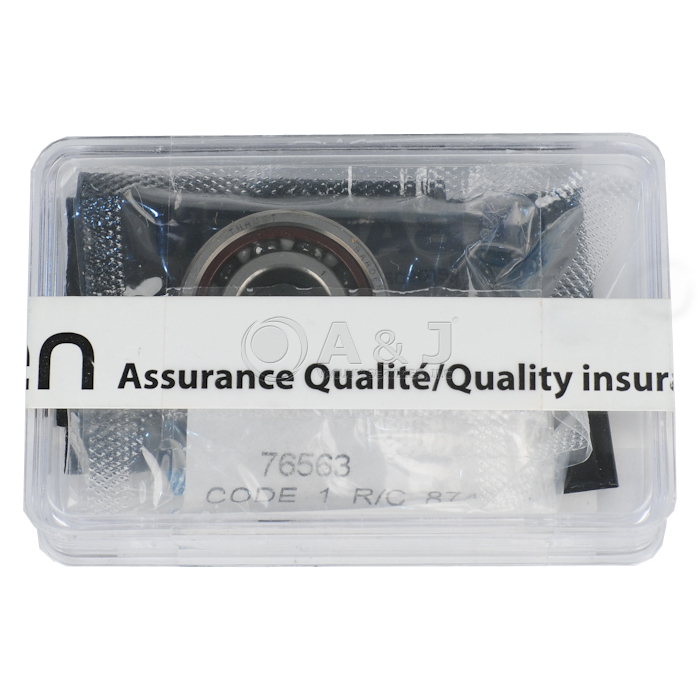

Alcatel Adixen Ceramic Bearing Replacement Kit for 5150, 5400, 5402, ATP 150, ATP 400, ATP 900 Turbo Pumps, OEM Kit, Shaft D11, 995 (-5) 066695
Condition:
New
Item#:PN20028
Mfr Part#:2000051772 / 66695
Manufacturer:Barden
Features:
Alcatel Adixen Ceramic Bearing Replacement Kit for 5150, 5400, 5402, ATP 150, ATP 400, ATP 900 Turbo Pumps OEM, Shaft D11, 995 (-5) 066695
Alcatel Adixen Ceramic Bearing Replacement Kit is design and ready to be installed in one of the following pump models listed below.
- Alcatel 5150
- Alcatel 5400
- Alcatel 5402
- Alcatel Adixen ATP 150
- Alcatel Adixen ATP 400
- Alcatel Adixen ATP 900
Each pump contains two bearings, we highly recomend replacement of both bearings during the pump service. Please refer to the two last digits of the serial number for proper bearing kit selection
Example:
Serial No. 12345 34

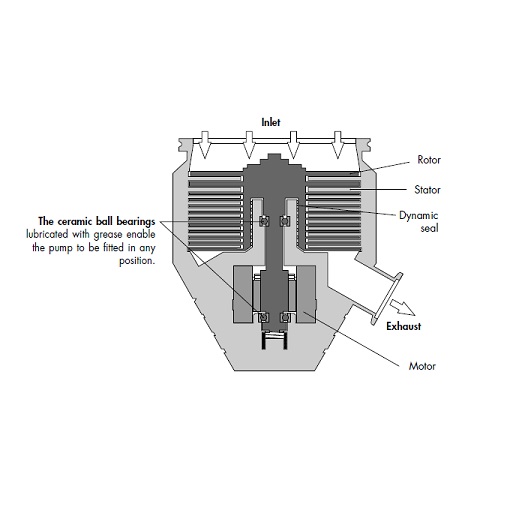

Number 3 reference upper bearing (closer to Inlet flange of the pump) Bearing No. 066693
Number 4 reference lower bearing (closer to the exhaust of the pump) Bearing No. 066694
Please feel free to contact our sales department for help with bearing size verification, we will be glad to assist you.
This OEM Bearing kit is designed to be installed in "C" Corrosive models.
A&J Vacuum also repair / rebuild and service Alcatel 5150, Alcatel 5400, Alcatel 5402, Alcatel Adixen ATP 150, Alcatel ADixen ATP 400, Alcatel ATP 900 Turbo Pumps. Pump Service is very important to keep your Vacuum Pump and Vacuum System in good working order. A&J also service all other Pfeiffer, Varian, Agilent, Alcatel , EdwardsTurbo Pumps and Pfeiffer Adixen Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
THERE ARE NO RETURNS ON THIS PRODUCT.
This item is non-returnable/non-refundable
Shaft D11, 995 (-5) 066695
Bearings are lubricated with grease and ready for instalation.
A&J Vacuum also repair / rebuild and service Alcatel 5150, Alcatel 5400, Alcatel 5402, Alcatel Adixen ATP 150, Alcatel ADixen ATP 400, Alcatel ATP 900 Turbo Pumps. Pump Service is very important to keep your Vacuum Pump and Vacuum System in good working order. A&J also service all other Pfeiffer, Varian, Agilent, Alcatel , EdwardsTurbo Pumps and Pfeiffer Adixen Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
