- Pumping Speed 18.4 CFM
- Ultimate Pressure: 2.25 E-1 Torr
- Inlet Connection: NW 25
- Outlet Connection: NW 25
Shopping Cart ( )
Anest Iwata DVS-501C Dry Scroll Pump Module, WITHOUT MOTOR, for DVSL-501C Dry Scroll Pump, DVS 501C
Condition:
New
Item#:PN22604
Mfr Part#:DVS-501C
Manufacturer:Anest Iwata
Features:
Anest Iwata DVS-501C Dry Scroll Pump Module, WITHOUT MOTOR, for DVSL-501C Dry Scroll Pump, DVS 501C
Click here to view the Anest Iwata DVSL-501C Dry Scroll Vacuum Pump.
Anest Iwata DVSL 501C Dry Scroll Vacuum Pump Overview:
The oil-free DVSL Series Vacuum Pumps provide increased pumping efficiency for high vapor and particle pumping load applications.
The Anest Iwata DVS Modules are desgined to be used with the DVSL Dry Scroll Vacuum Pumps. All the DVS Series Modules come WITHOUT MOTOR.
The single lap scroll design of the DVSL 500C Dry Scroll Pump is simple, lower cost and has been proven with over 3 years of industrial experience. This design removes all seals, shafts and bearings from the gas path for guaranteed hydrocarbon free performance.
Pumping humid gases can cause condensed moisture to remain in the pump. In order to extend the life of the pump, we utilized the Air Flush System to remove any moisture. The DVSL Vacuum Pump is equipped with Air Flush Port, which pumps out the remaining moisture left over from pumping humid gases and maintains the ultimate pressure.
The difference between the 500C and the 501C is the type of backing for the P-Seal. The 501C uses a Fluorine rubber V-ring, making it ideal for solvent-type applications, while the 500C uses a silicone tube which is ideal for clean dry applications.
Anest Iwata DVSL Series Vacuum Pumps Applications:
- Vacuum drying / cooling for sensitive electrical parts in food processing industries in pharmaceutical industries
- Roughing Turbo Pumps
- Roughing and Regenerating Cryo Pumps
- High vapor and particle pumping applications
- Analytical equipment
- Vacuum Forming
- Deairator
- Vacuum Chuck
- Regenerative
- Vacuum Cooling
- Vacuum Drying only for water based
- Ceramic Industry
- Gas Substitution
- Pumping for Electron Tube
Click Here to view Anest Iwata DVSL-501C Dry Scroll Vacuum Pump Instruction Manual.
A&J Vacuum Services, Inc is Anest Iwata authorized repair / rebuild and service center for all Scroll Dry Vacuum Pumps along with all other. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
This item is non-returnable/non-refundable
Anest Iwata DVS-501C Dry Scroll Pump Module, WITHOUT MOTOR, for DVSL-501C Dry Scroll Pump, DVS 501C

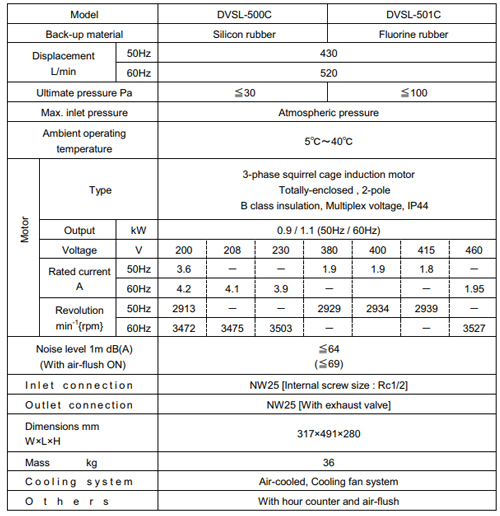

Anest Iwata DVSL 501C Dry Scroll Vacuum Pump Technical Data:
Click Here to view Anest Iwata DVSL-501C Dry Scroll Vacuum Pump Instruction Manual.
A&J Vacuum Services, Inc is Anest Iwata authorized repair / rebuild and service center for all Scroll Dry Vacuum Pumps along with all other. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
