- Motor: 300 watts
- Ultimate Pressure: 380 mTorr (50 Pa)
- Inlet Connection: NW 25
- Outlet Connection: NW 16
Shopping Cart ( )

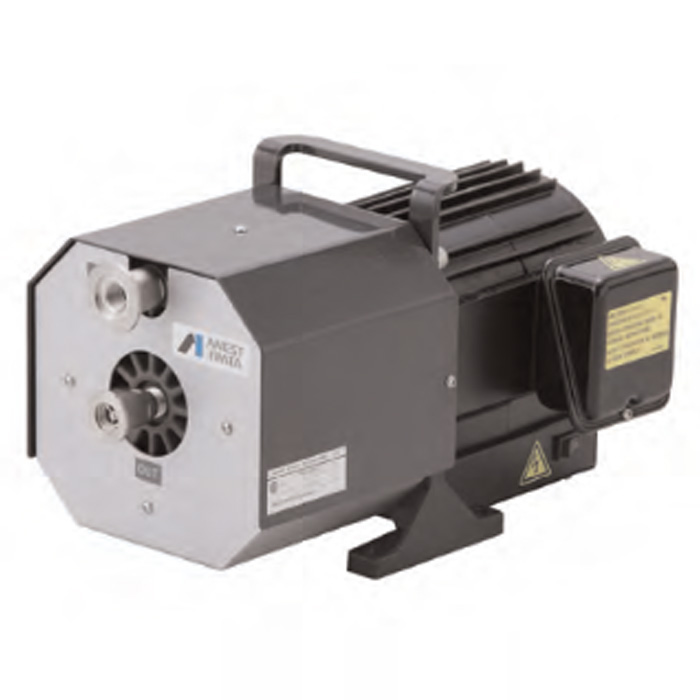

Anest Iwata DVSL-100C-B Dry Scroll Vacuum Pump, Vertical Inlet, Single Phase Motor, DVSL 100C
Condition:
New
Item#:PN07394
Mfr Part#:DVSL-100C-B
Manufacturer:Anest Iwata
Features:
Anest Iwata DVSL-100C-B Dry Scroll Vacuum Pump, Vertical Inlet, Single Phase Motor, DVSL-100C
Anest Iwata DVSL 100C Pump Overview:
The oil-free DVSL Series Vacuum Pumps provide increased pumping efficiency for high vapor and particle pumping load applications.
The single lap scroll design of the DVSL 100C Dry Scroll Pump is simple, lower cost and has been proven with over 3 years of industrial experience. This design removes all seals, shafts and bearings from the gas path for guaranteed hydrocarbon free performance.
Pumping humid gases can cause condensed moisture to remain in the pump. In order to extend the life of the pump, we utilized the Air Flush System to remove any moisture. The DVSL Vacuum Pump is equipped with Air Flush Port, which pumps out the remaining moisture left over from pumping humid gases and maintains the ultimate pressure.
Putting it all together, the DVSL 100C Scroll Pump provides oil-free pumping for higher moisture and particle pumping applications in a proven design at an exceptional value.
Anest Iwata DVSL 100C Features:
- Oil-free
- No seals, bearings or shafts in gas path
- High vapor and particle pumping capacity
- Single scroll design
- Proven design
- Includes air purge

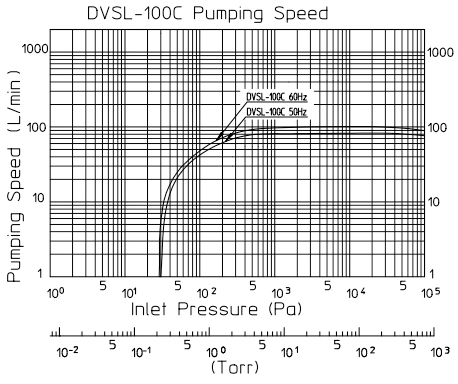

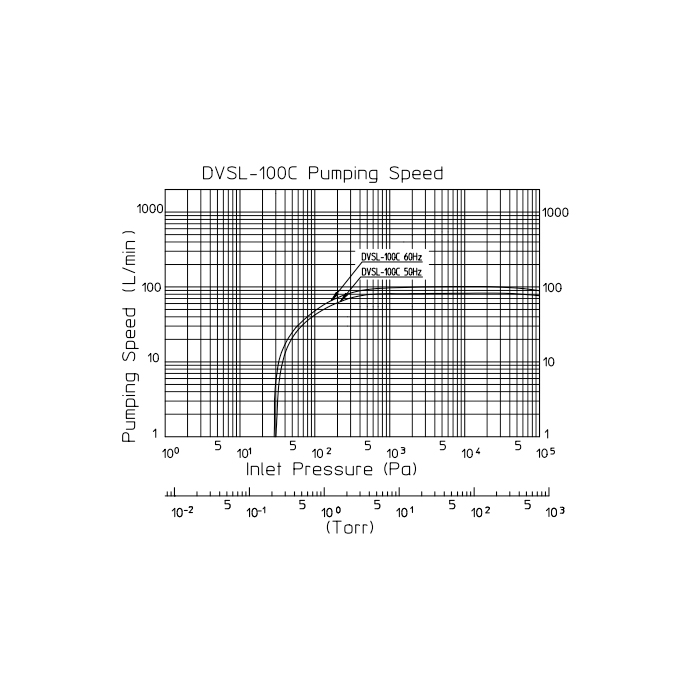

Anest Iwata DVSL 100C Pumping Speed:
Anest Iwata DVSL Series Vacuum Pumps Applications:
- Vacuum drying / cooling for sensitive electrical parts in food processing industries in pharmaceutical industries
- Roughing Turbo Pumps
- Roughing and Regenerating Cryo Pumps
- High vapor and particle pumping applications
- Analytical equipment
- Vacuum Forming
- Deairator
- Vacuum Chuck
- Regenerative
- Vacuum Cooling
- Vacuum Drying only for water based
- Ceramic Industry
- Gas Substitution
- Pumping for Electron Tube

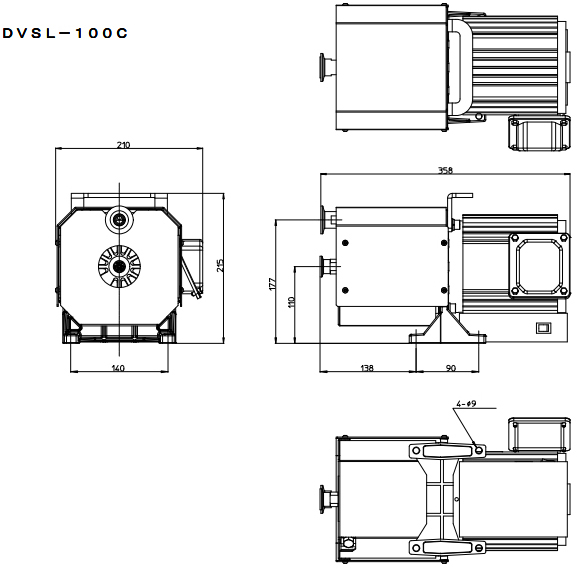

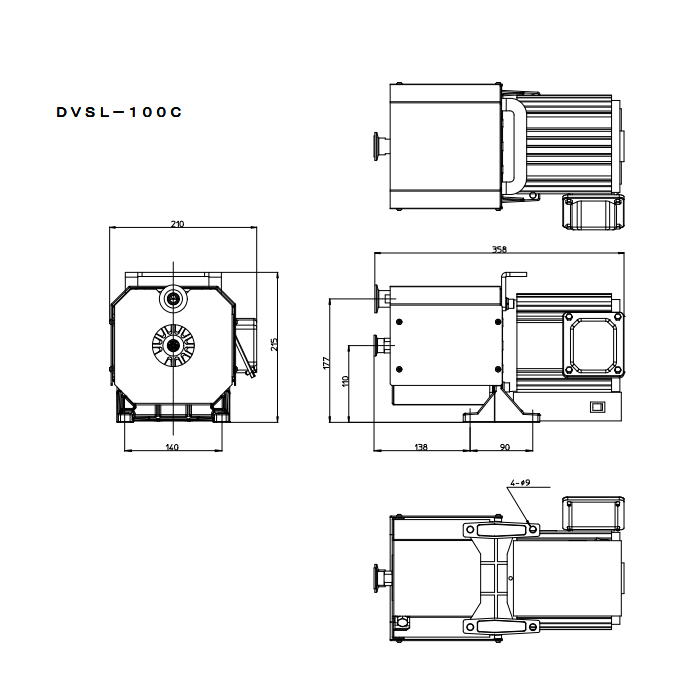

Anest Iwata DVSL 100C Dimensions:
Click Here to view Anest Iwata DVSL-100C Dry Scroll Vacuum Pump Instruction Manual.
A&J Vacuum Services, Inc is Anest Iwata authorized repair / rebuild and service center for all Scroll Dry Vacuum Pumps along with all other. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
This item is non-returnable/non-refundable
Anest Iwata DVSL-100C Dry Scroll Vacuum Pump, Vertical Inlet, Single Phase Motor, DVSL 100C

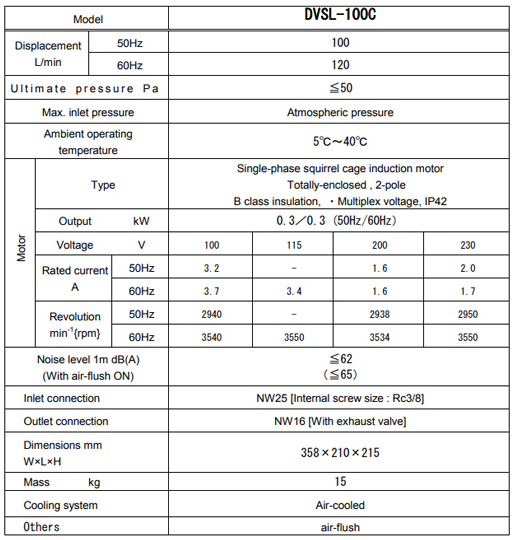

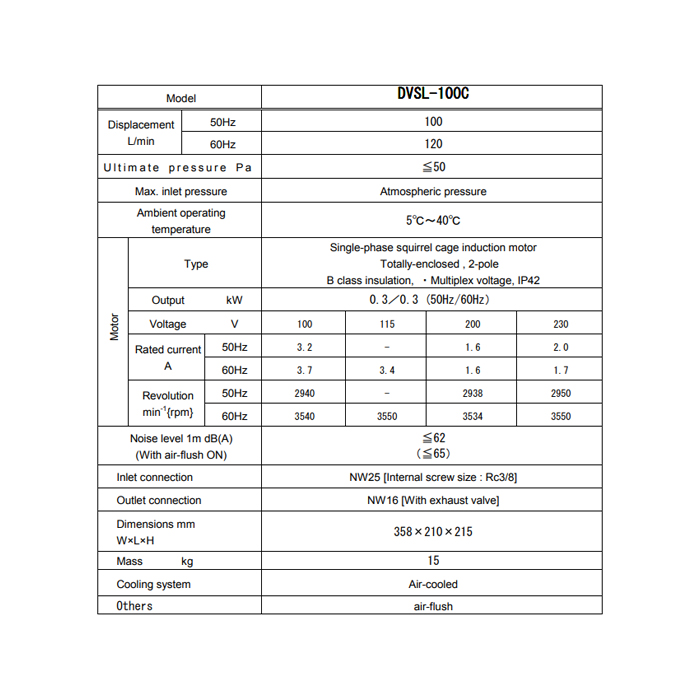

Anest Iwata DVSL 100C Pump Technical Data:
Click Here to view Anest Iwata DVSL-100C Dry Scroll Vacuum Pump Instruction Manual.
A&J Vacuum Services, Inc is Anest Iwata authorized repair / rebuild and service center for all Scroll Dry Vacuum Pumps along with all other. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
