- Nonrotatable
- Stainless Steel
- Inch spec.: 2-3/4"
- P.C.D.: 2.31 in / 58.7 mm
Shopping Cart ( )
CF 35 (275) Blank Off Flange - Nonrotatable, Stainless Steel, CF35B
Condition:
New
In Stock
Item#:PN14586
Mfr Part#:CF35B
Manufacturer:AJVS
Features:
CF 35 (275) Blank Off Flange - Nonrotatable, Stainless Steel, CF35B
CF 35 (275) Blank Off Flange Features:
- The blank off flanges are available in the following sizes: CF 16, CF 35, CF 63, CF 100, CF 150, CF 200, CF 250, CF 300, CF 350
- Stainless steel
CF 35 (275) Blank Off Flange / CF35B Overview:
The Blank Off Flanges - Nonrotatable are available in the following sizes: CF 16, CF 35, CF 63, CF 100, CF 150, CF 200, CF 250, CF 300, CF 350. They are made out of Stainless Steel.
The high sealing and the low leak rate performance of the CF Flange connection is due to the gasket material.
When the CF Flange is correctly assembled, the knife edge is compressed onto the flat copper gasket forcing the seal material outwards to the flange. The gasket is entirely enclosed and will not edge out even under the highest bakeout temperatures.
The CF Flange is offered in both rotable and nonrotatable versions, with through holes, or tapped bolt holes.
CF 35 (275) Blank Off Flange - Nonrotatable, Stainless Steel, CF35B
CF 35 (275) Blank Off Flange Technical Data:

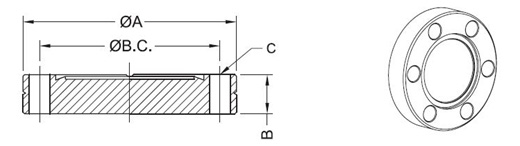

- Dimensions (refer to photo):
- A: 2.74 in / 69.5 mm
- B: 0.50 in / 12.7 mm
- C*No.: 0.264 x 6 in / 6.7 x 6 mm
- Inch spec.: 2-3/4"
- P.C.D.: 2.31 in / 58.7 mm
