Found 2 products
Item#: PN00258 Mfr Part#: 3620-00253 Manufacturer: Toyota
Price upon request

Toyota T1000 Dry Pump, Industrial Dry Pumping System T 1000 Pump, 3620-00253



Toyota T1000 Overview:


T1000 is an ultra compact new generation dry vacuum pump jointly developed by Toyota Industries Corp. and Applied Materials, Inc., which is designed for installation on semiconductor equipment in cleanroom

Toyota Dry Pumps T1800, T1200, T1000, T600, T100P are roots type vacuum pumps that rotate a pair of synchronized, timing gears, and incorporate a roots type booster pump. Bearings and gears on the high pressure side are lubricated by fluoric type oil. Ceramic balls are used in the bearings on the low pressure side, and those bearings are lubricated by fluoric type grease.


The Toyota T1000 Dry Pump and motor are equipped with an indirect cooling system by cooling water, which enables thermal control by automatic switching of internal valve.
The Toyota T 1000 Vacuum Pump has a N2 purge structure, and N2 is used for diluting various process gases and shaft seals.



Toyota T1000L Dimensions:


Toyota T1000L Dry Pump, Industrial Dry Pumping System T 1000 Pump, 3620-00253


Click Here for Toyota IPUP T1000 L Manual


A&J Vacuum Repair / Rebuild and Service Toyota T100, T600, T1000 Dry Vacuum  Pumps  and Toyota Vacuum Boosters Pumps along with all other Vacuum Rotary Vane Pumps, Varian Dry Scroll Pump repair, ULVAC Leak Detector Repair and Service. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854


Condition: Remanufactured Out of Stock
Item#: PN07503 Mfr Part#: VP0100L00005A Manufacturer: Toyota
Price upon request

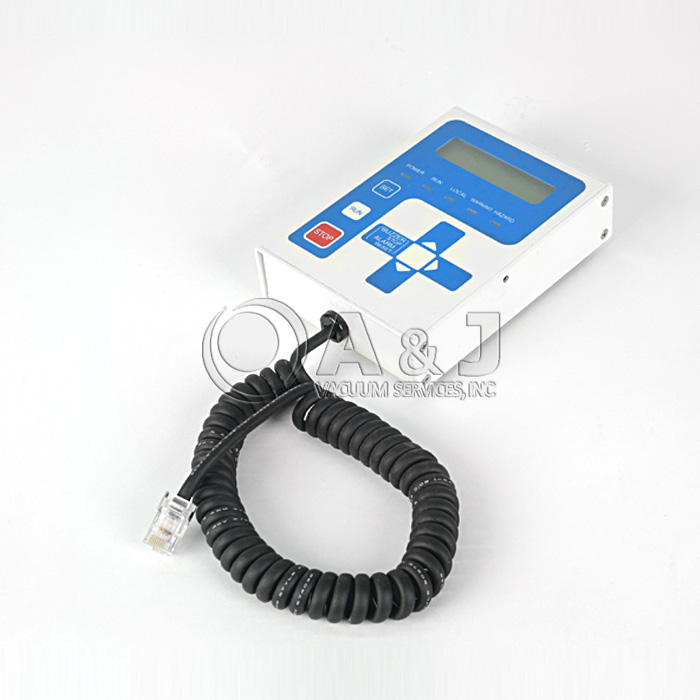

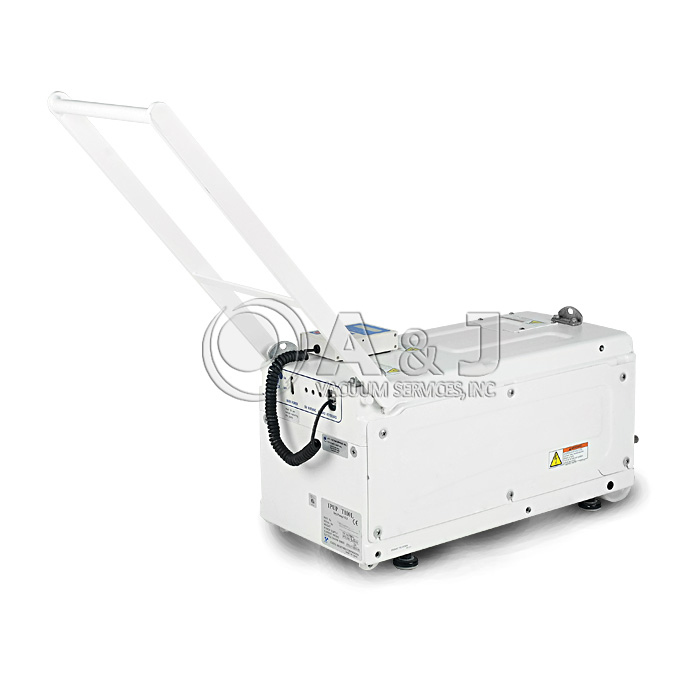

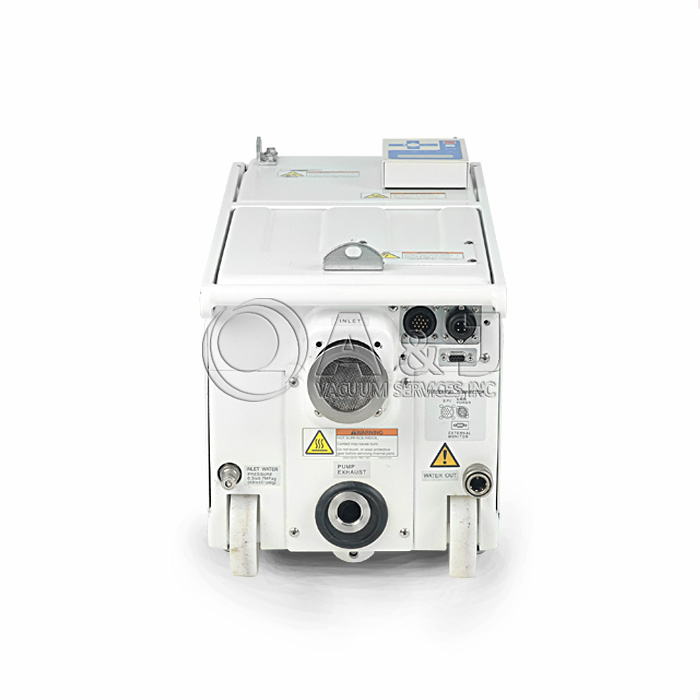

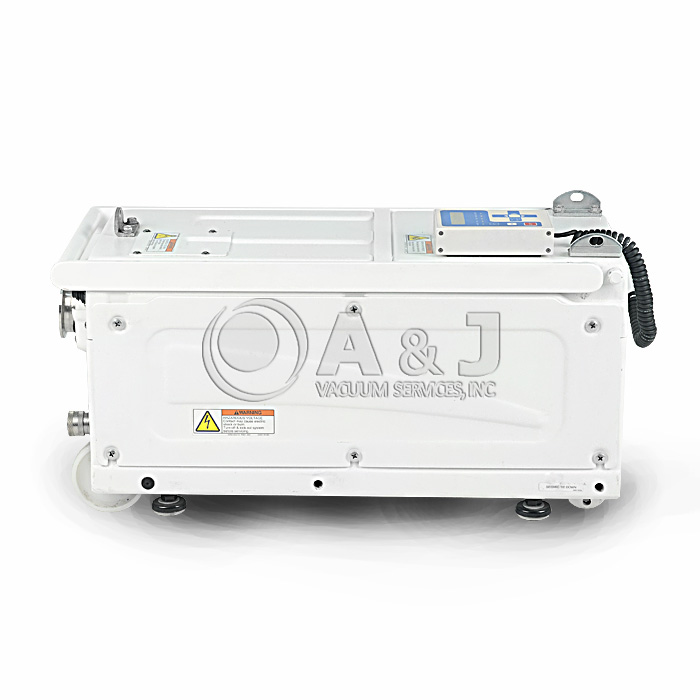

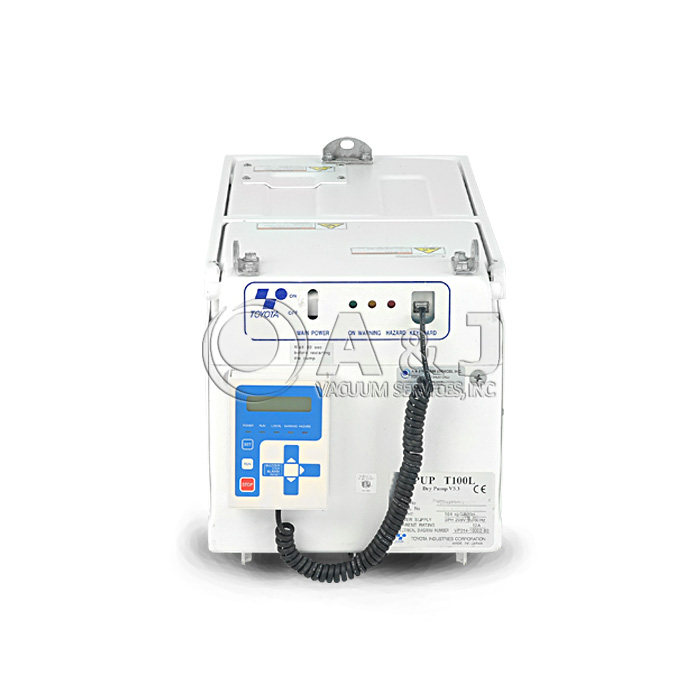

Toyota IPUP T100 L Dry Vacuum Pump, Remote Included, VP0100L00005A



Toyota IPUP T100 L Overview:


The IPUP T100L is a roots type vacuum pump that rotates a pair of synchronized, timing gears. The pump is driven by a 3-phase induction motor. Bearings and gears on the high pressure side are lubricated by fluoric type oil. Nitrogen is not required for shaft seals. Ceramic balls are used in the bearings on the low pressure side which are lubricated by fluoric type grease. The pump and motor are equipped with an indirect cooling system.

This product has following features including high reliability and low running cost in addition to low power consumption taking the global ecology into account and specifications that ensure customer satisfaction.



Toyota IPUP T100 L Features:


  • ATL listing
  • Automatic restart in case of 1 second power loss
  • Low power consumption
  • RoHS Compliance



Toyota IPUP T100 L Dimensions:


Toyota IPUP T100 L Dry Vacuum Pump, Remote Included, VP0100L00005A


Click Here for Toyota IPUP T100 L Manual


A&J Vacuum Services offers full repair/service of Toyota Vacuum Pumps, along with all other brands offered on our website. AJVS also services Toyota turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.


Condition: Remanufactured Out of Stock
