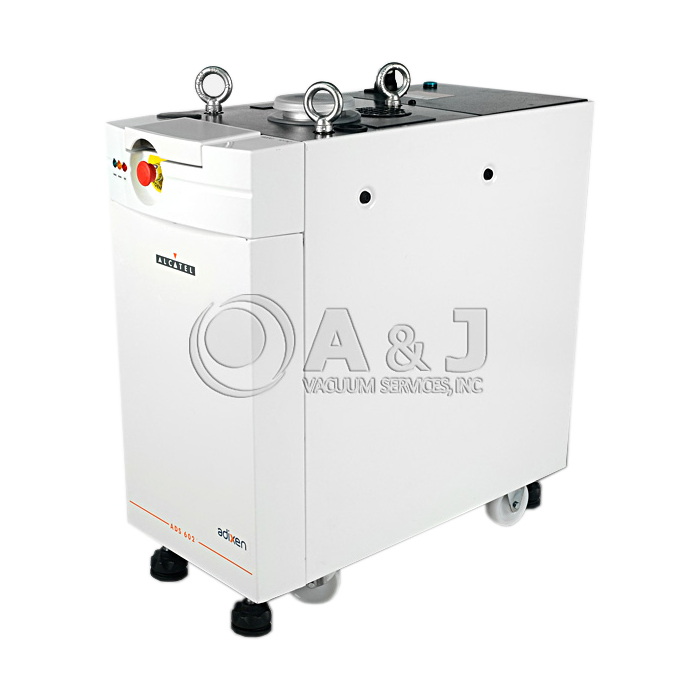

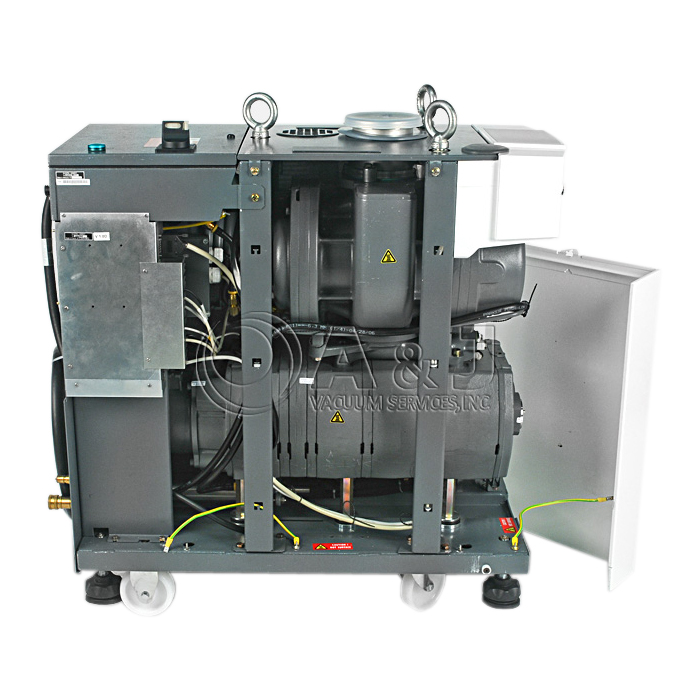

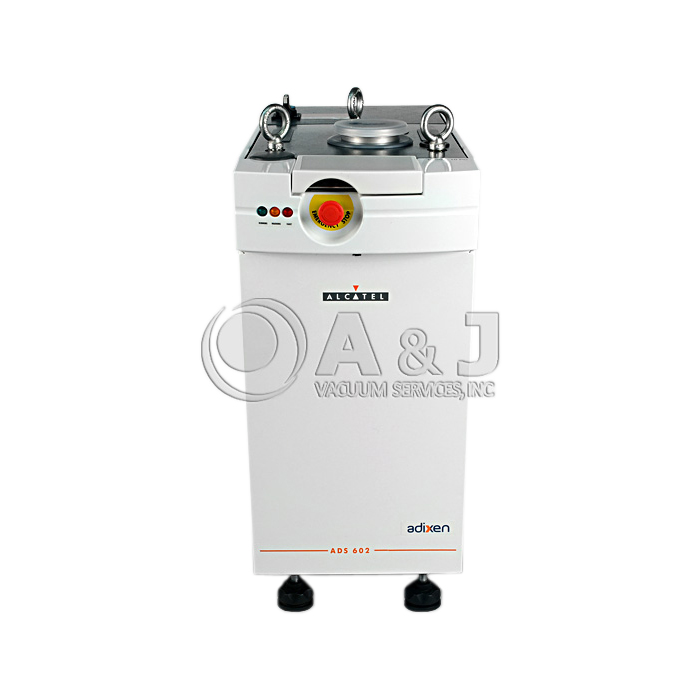

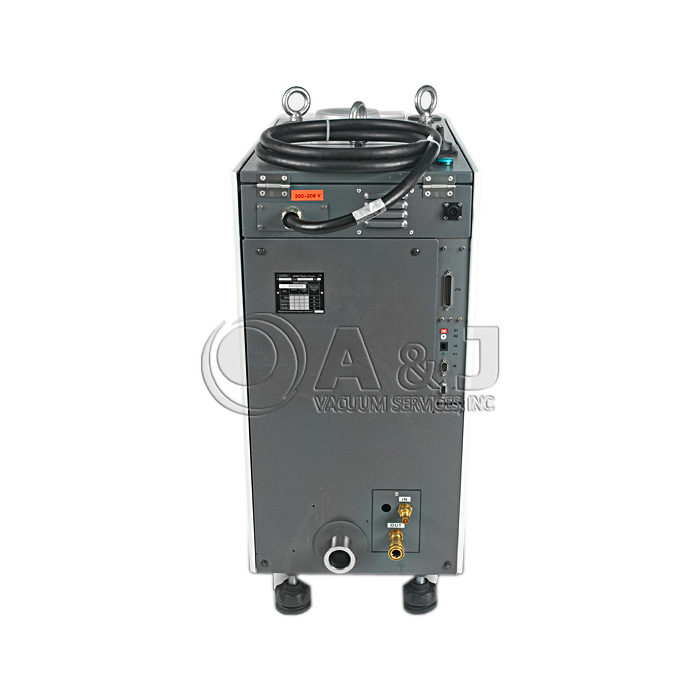

Alcatel Adixen ADS 602P (ADS602P) Series 2 Dry Vacuum Pump, 380/400 V, 50 Hz, P2WW300001102
Alcatel / Adixen ADS 602P Overview:
The Alcatel Adixen ADP ADS Series Two Dry Pump design brings high benefits for applications where cleanliness and reliability are key features. The Series Two family covers a large range of vacuum requirements with 4 models. These models can be chosen in LM versions for clean applications, P versions for light/medium applications, and H for harsh applications. Many major manufacturers from the semi-conductor industry have already selected this product. This choice allows them to reduce unscheduled downtime and overall running cost and increase profitability features and benefits.
The Alcatel Adixen ADP ADS Series Two Dry Pumps were designed to minimize potential residue deposits. This process is achieved by internal gas limitation, diluting the gas on each pump stage with N2, and adjusting the temperature in order to control gas condensation.
The Alcatel Adixen ADP ADS Dry Vacuum Pumps consist of 5 roots type stages (three stages of low pressure, and two of high pressure), and the two rotors that rotate without touching each other.
The Alcatel Adixen ADP ADS Series Two Dry Pumps offer M4 Monitoring, which consists of an electrical cabinet, hand held remote control, and an electronic cabinet. The ADP ADS Series Two Dry Pumps M4 Monitoring can be interfaced with the main production equipment.

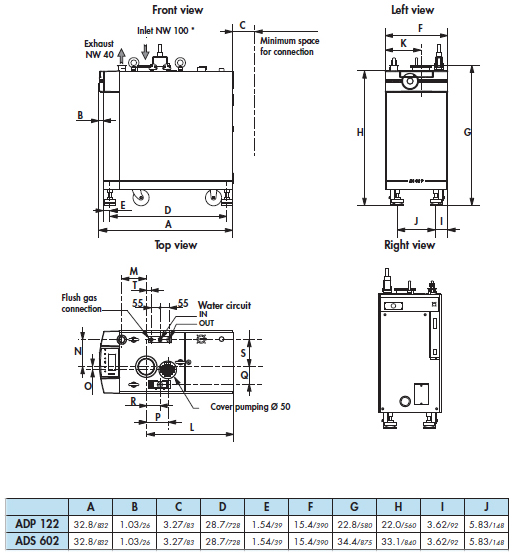

Alcatel / Adixen ADS 602P Dimensions:
The Alcatel Adixen ADP ADS Series Two Dry Pumps offer the following features:
-
Wide inter-stage channels are able to store large quantities of powder and particles.
-
High operating temperature with closed-loop management system controls gas from inlet to outlet.
-
Vertical pumping on each stage prevents particulate accumulation.
-
Compact design: The series 3 ADP ADS Models are only 390 mm wide.
-
Clean: oil-free, dry pump providing no risk of contamination.
-
Quiet: all models include an integrated silencer.
-
Low power consumption.
-
Nitrogen Purge levels can be easily controlled by the user.
Click here to view Alcatel Adixen ADP ADS Series Two Dry Pump Operating Instructions.
A&J Vacuum Services offers full repair/service of Pfeiffer Vacuum Pumps, along with all other brands offered on our website. AJVS also services Pfeiffer turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Alcatel 122L Industrial Dry Vacuum Pump, also known as Adixen 122 L Pump
Alcatel 122L Overview:
• Wide interstage channels are able to accommodate large quantities of powder and particles.
• High operating temperature with a precise closed-loop temperature management system, and a linear increase of gas temperature from inlet to outlet makes ADP 122 one of the best on market
• Vertical pumping on each stage which prevents particulate accumulation in the swept volume.
Semiconductor fab rules compliant:
• Compact: the series 2 model is only 390 mm wide.
• Clean: Alcatel technology is a frictionless and oil-free pump mechanism. There is no risk of particulate contamination.
• Quiet: All models include an integrated silencer, eliminating the need for an additional external silencer.
• Semi S2 compliant.
ADP 122 L has a Low cost of ownership
• Low power consumption at working pressures and at Ultimate Pressure.
• With moderate heat generation, series 2 water consumption is extremely low.
• Nitrogen Purge level is easily set by the customer. Pumps for clean applications do not require any purge.
Typical applications:
• ADP 122 LM, ADS 602 LM:
Load Lock, Transfer Chambers, PVD, Sputtering
• ADP 122 P, ADS 602 P, ADS 1202 P, ADS 1802 P:
Ashing, Stripping, Dielectric - Poly Etch, Implant Source, Medium CVD
• ADS 602 H, ADS 1202 H, ADS 1802 H:
PECVD, LPCVD
Alcatel 122 L Dimensions:
Click Here for Alcatel ADP 122L Manual
A&J Vacuum Services offers full repair/service of Pfeiffer Vacuum Pumps, along with all other brands offered on our website. AJVS also services Pfeiffer turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Pfeiffer Adixen ACP 40 Compact Dry Vacuum Pump, V8SACSFAMF
Pfeiffer ACP 40 Overview:
- Type Multi-stage Roots primary pump
- frictionless technology
- reliability
- aluminium pump body - Dry and clean vacuum
- no particulate contamination
- residual gas spectrum free of traces of hydrocarbons - Sealed air-cooled motor
- permanent air cooling (built-in fan)
- safety: certified leaktight - Single-phase frequency converter
- multi-voltage, dual frequency 50/60 Hz - 2 pump models according to different applications
- standard version
- G version - Thermal protection based on temperature sensors
- RS 485 Serial link
Unit is fully rebuilt and comes with a FULL 12-MONTH WARRANTY!
A&J Vacuum services and repairs Pfeiffer Dry Vacuum Pump, along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.

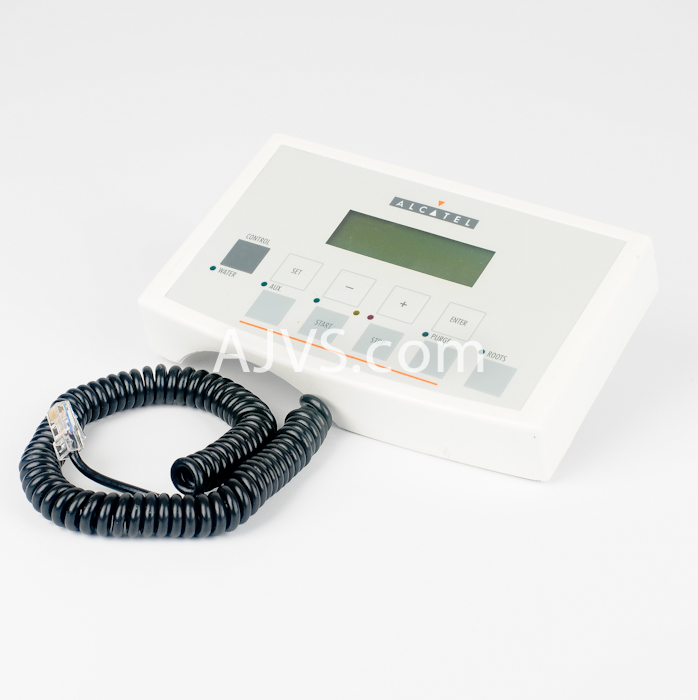

Hand Held Control for Alcatel Adixen ADP and ADS Dry Semiconductor Vacuum Pumps, 119988S
Replacement for Hand Held Control for Alcatel Adixen ADP and ADS Dry Semiconductor Vacuum Pumps, 110942, V2.06
Alcatel ADP122LM Industrial Dry Pump, also known as Adixen ADP 122LM
Alcatel 122LM Overview:
• Wide interstage channels are able to accommodate large quantities of powder and particles.
• High operating temperature with a precise closed-loop temperature management system, and a linear increase of gas temperature from inlet to outlet makes ADP 122 one of the best on market
• Vertical pumping on each stage which prevents particulate accumulation in the swept volume.
Semiconductor fab rules compliant:
• Compact: the series 2 model is only 390 mm wide.
• Clean: Alcatel technology is a frictionless and oil-free pump mechanism. There is no risk of particulate contamination.
• Quiet: All models include an integrated silencer, eliminating the need for an additional external silencer.
• Semi S2 compliant.
ADP 122 LM has a Low cost of ownership
• Low power consumption at working pressures and at Ultimate Pressure.
• With moderate heat generation, series 2 water consumption is extremely low.
• Nitrogen Purge level is easily set by the customer. Pumps for clean applications do not require any purge.
Typical applications:
• ADP 122 LM, ADS 602 LM:
Load Lock, Transfer Chambers, PVD, Sputtering
• ADP 122 P, ADS 602 P, ADS 1202 P, ADS 1802 P:
Ashing, Stripping, Dielectric - Poly Etch, Implant Source, Medium CVD
• ADS 602 H, ADS 1202 H, ADS 1802 H:
PECVD, LPCVD
Alcatel 122 LM Dimensions:
Click Here for Alcatel ADP 122LM Manual
A&J Vacuum Services offers full repair/service of Pfeiffer Vacuum Pumps, along with all other brands offered on our website. AJVS also services Pfeiffer turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Hand Held Control for Alcatel Adixen ADP and ADS Dry Semiconductor Vacuum Pumps 110942, V2.06
OEM direct replacement for this hand held could be found at https://www.ajvs.com/new/product_info.php?products_id=23569.
Fully Re-manufactured Alcatel ADP122P Industrial Dry Pump, also known as Adixen ADP122P with N2 Purge option
Alcatel ADP 122P Overview:
• Wide interstage channels are able to accommodate large quantities of powder and particles.
• High operating temperature with a precise closed-loop temperature management system, and a linear increase of gas temperature from inlet to outlet makes ADP 122 one of the best on market
• Vertical pumping on each stage which prevents particulate accumulation in the swept volume.
Semiconductor fab rules compliant:
• Compact: the series 2 model is only 390 mm wide.
• Clean: Alcatel technology is a frictionless and oil-free pump mechanism. There is no risk of particulate contamination.
• Quiet: All models include an integrated silencer, eliminating the need for an additional external silencer.
• Semi S2 compliant.
Alcatel ADP 122P has a Low cost of ownership
• Low power consumption at working pressures and at Ultimate Pressure.
• With moderate heat generation, series 2 water consumption is extremely low.
• Nitrogen Purge level is easily set by the customer. Pumps for clean applications do not require any purge.
Typical applications:
• ADP 122 LM, ADS 602 LM:
Load Lock, Transfer Chambers, PVD, Sputtering
• ADP 122 P, ADS 602 P, ADS 1202 P, ADS 1802 P:
Ashing, Stripping, Dielectric - Poly Etch, Implant Source, Medium CVD
• ADS 602 H, ADS 1202 H, ADS 1802 H:
PECVD, LPCVD
Alcatel ADP 122 P Dimensions:
Click Here for Alcatel ADP 122P Manual
A&J Vacuum Services offers full repair/service of Pfeiffer Vacuum Pumps, along with all other brands offered on our website. AJVS also services Pfeiffer turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Pfeiffer Adixen ACP 40 G Compact Dry Vacuum Pump, V8GACSFABF
Pfeiffer ACP 40 Overview:
- Type Multi-stage Roots primary pump
- frictionless technology
- reliability
- aluminium pump body - Dry and clean vacuum
- no particulate contamination
- residual gas spectrum free of traces of hydrocarbons - Sealed air-cooled motor
- permanent air cooling (built-in fan)
- safety: certified leaktight - Single-phase frequency converter
- multi-voltage, dual frequency 50/60 Hz - 2 pump models according to different applications
- standard version
- G version - Thermal protection based on temperature sensors
- RS 485 Serial link
Unit is fully rebuilt and comes with a FULL 6-MONTH WARRANTY!
A&J Vacuum services and repairs Pfeiffer Dry Vacuum Pump, along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Pfeiffer Adixen ACP 28 Compact Dry Vacuum Pump, V6SATSFAMF
Pfeiffer ACP 28 Overview:
- The multi-stage technology of the ACP series meets the requirements of applications where clean and dry vacuum is needed.
- The frictionless pumping module is optimized to operate without internal lubricant and provides outstanding oil-free vacuum with no hydrocarbon vapor backstreaming. Without any seals between rotor and stator no particles are generated.
- The absence of wearing parts inside the pumping module allows for unsurpassed long-term stability and high reliability in even the most demanding applications.
- The frequency converter driven motor provides constant rotational speed, thus stable pumping speed and consistent ultimate pressure are achieved all over the world.
- High flow gas ballast ports and drainable silencers allow the ACP to pump high amounts of condensable vapors (up to 1,000 g/h of pure water vapor).
- The ACP 28 is designed for applications that require pumping of clean (dust-free) and non-corrosive gases. Standard pumps are equipped with a gas ballast device to improve pumping of light gases and avoid vapor condensation inside the pump. Three gas ballast options are available to satisfy customer needs.
Pfeiffer ACP 28 Dimensions:
Click Here for Pfeiffer ACP 28 SD Manual
A&J Vacuum services and repairs Pfeiffer Dry Vacuum Pump, along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Alcatel Adixen ADS 602P (ADS602P) Series 2 Dry Vacuum Pump, 480 V, 60 Hz, P2WW600001102
Alcatel / Adixen ADS 602P Overview:
The Alcatel Adixen ADP ADS Series Two Dry Pump design brings high benefits for applications where cleanliness and reliability are key features. The Series Two family covers a large range of vacuum requirements with 4 models. These models can be chosen in LM versions for clean applications, P versions for light/medium applications, and H for harsh applications. Many major manufacturers from the semi-conductor industry have already selected this product. This choice allows them to reduce unscheduled downtime and overall running cost and increase profitability features and benefits.
The Alcatel Adixen ADP ADS Series Two Dry Pumps were designed to minimize potential residue deposits. This process is achieved by internal gas limitation, diluting the gas on each pump stage with N2, and adjusting the temperature in order to control gas condensation.
The Alcatel Adixen ADP ADS Dry Vacuum Pumps consist of 5 roots type stages (three stages of low pressure, and two of high pressure), and the two rotors that rotate without touching each other.
The Alcatel Adixen ADP ADS Series Two Dry Pumps offer M4 Monitoring, which consists of an electrical cabinet, hand held remote control, and an electronic cabinet. The ADP ADS Series Two Dry Pumps M4 Monitoring can be interfaced with the main production equipment.
Alcatel / Adixen ADS 602P Dimensions:
The Alcatel Adixen ADP ADS Series Two Dry Pumps offer the following features:
-
Wide inter-stage channels are able to store large quantities of powder and particles.
-
High operating temperature with closed-loop management system controls gas from inlet to outlet.
-
Vertical pumping on each stage prevents particulate accumulation.
-
Compact design: The series 3 ADP ADS Models are only 390 mm wide.
-
Clean: oil-free, dry pump providing no risk of contamination.
-
Quiet: all models include an integrated silencer.
-
Low power consumption.
-
Nitrogen Purge levels can be easily controlled by the user.
Click here to view Alcatel Adixen ADP ADS Series Two Dry Pump Operating Instructions.
