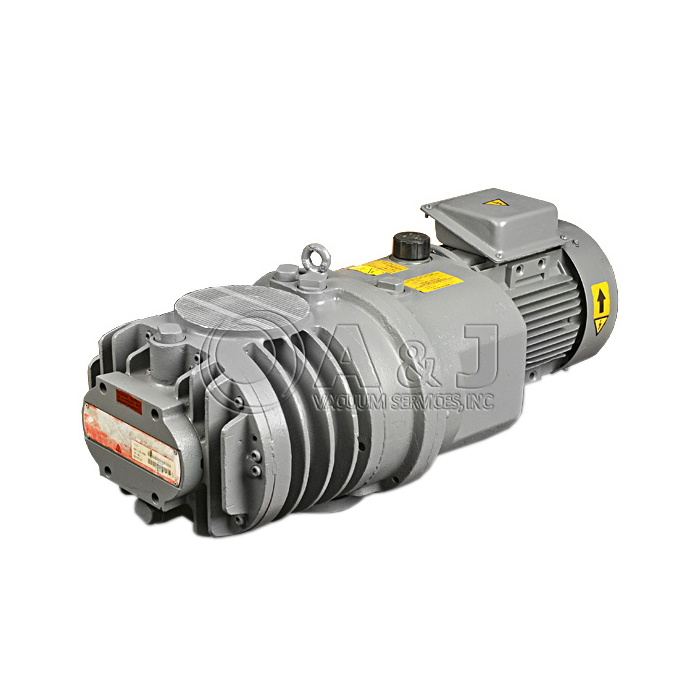

Edwards EH 250 FX Vacuum Booster Pump, PFPE Oil, 208-230 / 460 V, A30108946 / A301-08-946, EH-250
Condition:
Remanufactured
Call us for Availability
Item#:PN15771
Mfr Part#:A30108946 / A301-08-946
Manufacturer:Edwards Vacuum
Price upon request
CONTACT US
Features:
Edwards EH 250 FX Vacuum Booster Pump, PFPE Oil, 208-230 / 460 V, A30108946 / A301-08-946, EH-250
Edwards EH 250 FX (PFPE Prepared) Overview:
The Edwards EH250FX Vacuum Booster pumps are compact and have high pumping speeds. You must use the EH 250FX pump with a suitable backing pump. The Edwards EH250FX Booster pumps can operate with a maximum continuous inlet pressure of 1000 mBar. You can achieve lower system pressures by the use of two or more EH250 pump in series.
On all EH250 pumps, the hydrokinetic drive/gearbox is connected to the pump outlet by a pressure equalisation passageway, and forms an integral part of the vacuum system. The connecting passageway has a filter which removes debris and so prevents contamination of the lubricating oil and bearings. For an even cleaner system, you can evacuate the end-cover/gear cover by connection of the evacuation port to the pump-inlet or to an external vacuum pump.
The hydrocarbon safe area, ATEX compliant and chemical EH 250 pumps use hydrocarbon oils, such as Edwards Ultragrade 20. Versions of the safe area EH 250 pumps for use with PFPE (perfluoropolyether) oils are also available for vacuum systems in which oxygen or other reactive or corrosive gases are pumped. The EH 250 pumps must not be used to pump peroxides.
The EH pumps are positive displacement Roots vacuum pumps. The pump mechanism is driven by a three-phase electric motor through a hydrokinetic drive.
The pump shafts and rotors are made of cast SG iron. The internal and external shaft-seals are made of polytetrafluoroethylene (PTFE) or fluoro-elastomer. The pump-bearings, gears and seals are lubricated by oil fed from reservoirs in the hydrokinetic drive/gearbox. A series of seals stops the oil from reaching the vacuum side of the EH-250 pump. The hydrokinetic drive/gearbox is evacuated. You can inspect the oil-levels through sight-glasses which are fitted to the hydrokinetic drive/gearbox. Oil-filler, oil-drainage and external evacuation connections are provided on the hydrokinetic drive/gearbox. A30152936,
We repair and service all Edwards Booster pump, such EH250, EH500, EH1200, EH2800, QMB250, QMB500, QMB1200, QMB2600 Boster pump repair.
This item is non-returnable/non-refundable
Edwards EH 250 FX Vacuum Booster Pump, PFPE Oil, 208-230 / 460 V, A30108946 / A301-08-946, EH-250
Technical Data:
60 Hz Electrical Supply:
208-230 / 460 V
- 0 to 150 mbar
- 0 to 1.5 x 104 Pa
Weight: 61 kg / 140 lbs
Vibration Level: 72 dB(A)
Inlet Connection: ISO 63
Outlet Connection: ISO 40
AJVS_Vacuum_Pump_Turbo_Pump_Service_and_Repair.pdf
AJVS_Edwards_EH250_Vacuum_Booster_Service_and_Repair.pdf
Item#:PN01501
Mfr Part#:30151800
Condition: Ships Within 1-3 Days
New
$883.00
Item#:PN15236
Mfr Part#:Krytox 1514
Condition: In Stock
New
In Stock
$1,495.00
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
