The most noteworthy feature of RSV-151 and RSC-151B bosster pump is the motor coupling which is made only with static parts.
The roots RSV151 units are called ”in vacuum rotor” machines, i.e., the rotor of the electric motor is completely isolated by
a stainless steel cylindrical sleeve. This sleeve is centred inside the motor stator and attached to the machine casing,
with a static o-ring providing the necessary seal. In this way, any possibility of leaks around the motor/pump coupling
is precluded by eliminating the shaft passage with dynamic seal used in conventional set-ups.
The oil casings of Adixen RSV 151B are sealed from the pumping chamber by means of a link tube connecting the casings to the outlet of
the machine. This avoids the creation of any pressure difference between the pumping chamber and the casing which
would otherwise be conducive to oil migration. An oil mist filter avoids any oil back-streaming into casing tubes.
Features of Adixen RSV-151 B Blower Pump:
Alcatel RSV 151B Boosters with built-in by-pass valve. This valve provides a means of direct communication between the delivery outlet
and suction inlet when the maximum permissible differential pressure is exceeded
In such an event, part of the gas flow is recycled, there by avoiding any overload on the electric motor.
This device enables the Adixen RSV Roots booster and the roughing pump to be started up simultaneously from atmospheric pressure
without the need of pressure switches for delaying start-up of the roots machine. A higher flow rate is thus
obtained in high-pressure ranges, with a resulting reduction in pumping time.
Note : Machines with built-in by-pass valve can operate only with vertical pumping axis arrangement
(valve operation under gravity).
Typical applications:
We repair / rebuild and service Alcatel RSV-151 Adixen RSV151B Booster Pumps along with all other Alcatel Adixen Dry Pumps and Alcatel Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854

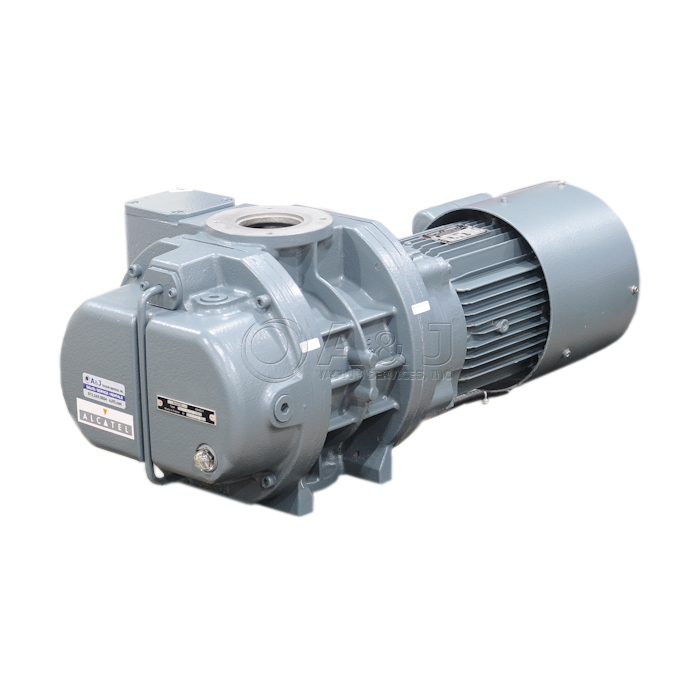

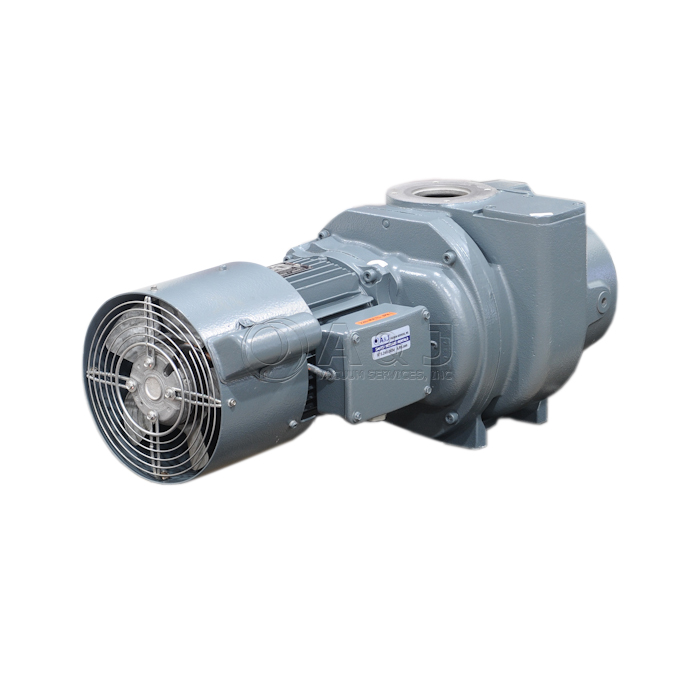

The most noteworthy feature of RSV-301 and RSC-301B bosster pump is the motor coupling which is made only with static parts.
The roots RSV301 units are called ”in vacuum rotor” machines, i.e., the rotor of the electric motor is completely isolated by
a stainless steel cylindrical sleeve. This sleeve is centred inside the motor stator and attached to the machine casing,
with a static o-ring providing the necessary seal. In this way, any possibility of leaks around the motor/pump coupling
is precluded by eliminating the shaft passage with dynamic seal used in conventional set-ups.
The oil casings of Adixen RSV 301B are sealed from the pumping chamber by means of a link tube connecting the casings to the outlet of
the machine. This avoids the creation of any pressure difference between the pumping chamber and the casing which
would otherwise be conducive to oil migration. An oil mist filter avoids any oil back-streaming into casing tubes.
Features of Adixen RSV-301 B Blower Pump:
Alcatel RSV 151B Boosters with built-in by-pass valve. This valve provides a means of direct communication between the delivery outlet
and suction inlet when the maximum permissible differential pressure is exceeded
In such an event, part of the gas flow is recycled, there by avoiding any overload on the electric motor.
This device enables the Adixen RSV Roots booster and the roughing pump to be started up simultaneously from atmospheric pressure
without the need of pressure switches for delaying start-up of the roots machine. A higher flow rate is thus
obtained in high-pressure ranges, with a resulting reduction in pumping time.
Note : Machines with built-in by-pass valve can operate only with vertical pumping axis arrangement
(valve operation under gravity).
Typical applications:
We repair / rebuild and service Alcatel RSV-301 Adixen RSV301B Booster Pumps along with all other Alcatel Adixen Dry Pumps and Alcatel Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
The most noteworthy feature of RSV-601 and RSC-601B bosster pump is the motor coupling which is made only with static parts.
The roots RSV601 booster units are called ”in vacuum rotor” machines, i.e., the rotor of the electric motor is completely isolated by
a stainless steel cylindrical sleeve. This pump sleeve is centred inside the motor stator and attached to the machine casing,
with a static o-ring providing the necessary seal. In this way, any possibility of leaks around the motor/pump coupling
is precluded by eliminating the shaft passage with dynamic seal used in conventional set-ups.
The oil casings of Adixen RSV 601B are sealed from the pumping chamber by means of a link tube connecting the casings to the outlet of
the machine. This avoids the creation of any pressure difference between the pumping chamber and the casing which
would otherwise be conducive to oil migration. An oil mist filter avoids any oil back-streaming into casing tubes.
Features of Adixen RSV-601 B Blower Pump:
Alcatel RSV 601B Boosters with built-in by-pass valve. This pump valve provides a means of direct communication between the delivery outlet
and suction inlet when the maximum permissible differential pressure is exceeded
In such an event, part of the gas flow is recycled, there by avoiding any overload on the electric motor.
This pump device enables the Adixen RSV 601 Roots booster and the roughing pump to be started up simultaneously from atmospheric pressure
without the need of pressure switches for delaying start-up of the roots machine. A higher flow rate is thus
obtained in high-pressure ranges, with a resulting reduction in pumping time.
Note : RSV 601 Machines with built-in by-pass valve can operate only with vertical pumping axis arrangement
(valve operation under gravity).
Typical applications:
We Service / Rebuild and Repair all Alcatel RSV-601 Adixen RSV601B Booster Pumps along with all other Alcatel Adixen Dry Pumps and Alcatel Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
