- Rated Flow: 12 m3h-1
- Inlet / Outlet Flange: NW 25
- Odor Filter Element: Activated carbon
- Mist Filter Element: Epoxy impregnated borosilicate glass fibre
Shopping Cart ( )
Edwards EMF 10 Oil Mist Exhaust Filter, Includes Mist Element and Odor Element, A46226000
Condition:
New
In Stock
Item#:PN00837
Mfr Part#:A46226000
Manufacturer:Edwards Vacuum
Features:
Edwards EMF10 Oil Mist Exhaust Filter, Includes Mist Element and Odor Element, A46226000
Edwards EMF10 Overview:
Edwards EMF 10 Oil Mist Filters are used to separate and trap oil mist and odors discharged with the exhaust from oil sealed rotary vacuum pumps. The Oil Mist Filters have two-part injection molded plastic bodies which contain a fiber composite oil mist filter and an activated carbon odor filter.
Exhaust gases from the pump travel upwards to the center of the Oil Mist Filter and through the filter element to the outside. Oil droplets that are trapped by the fiber composite element travel down the filter and collect in a reservoir in the base of the Oil Mist Filter.

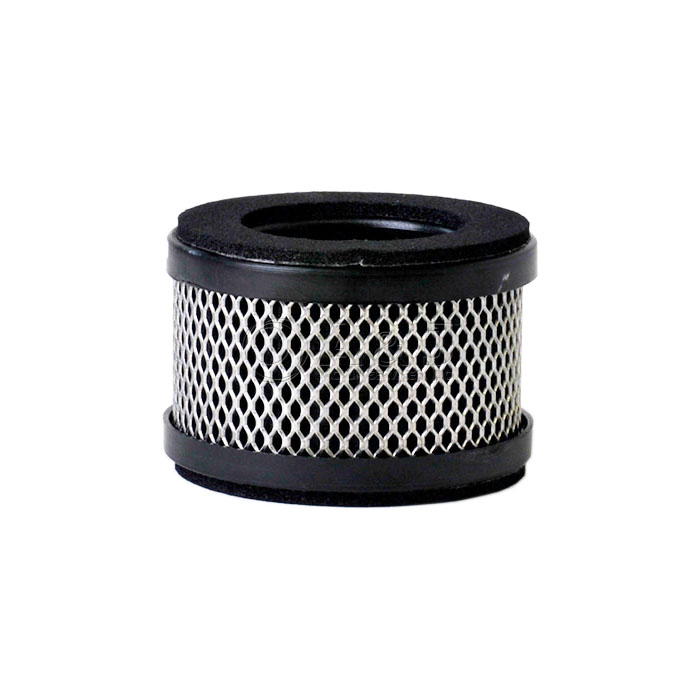

Replacement Filter Elements: A22304198, and A22304079
The Edwards EMF10 Oil Mist Exhaust Filter is designed to be used with the following Edwards Rotary Vane Pumps:
- Edwards RV3
- Edwards RV 5
- Edwards RV8
- Edwards E1M5
- Edwards E2M5
- Edwards E1M8
- Edwards E2M8
- Edwards E2M12
Edwards EMF 10 Dimensions:
Click Here for Edwards EMF 20 Manual
A&J Vacuum Services offers full repair/service of Edwards, along with all other brands offered on our website. AJVS also services Edwards rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Edwards EMF10 Oil Mist Exhaust Filter, Includes Mist Element and Odor Element, A46226000
Edwards EMF10 Technical Data:
| Rated Flow: | 12 m3h-1 |
| Maximum Back Pressure: | 12 psig |
| Relief Pressure: | 20 psig |
| Odor Filter Element: | Activated carbon |
| Mist Filter Element: | Epoxy impregnated borosilicate glass fibre |
| Outlet Flange: | NW 25 |
| Inlet Flange: | NW 25 |
| Ambient temperature range (storage) | -10 to 90 °C |
| Ambient temperature range (operation) | 0 to 45 °C |
| Weight: | .5 kg / 1.1 lbs |
Click Here for Edwards EMF 20 Manual
