- 17.6 CFM at 50 Hz
- 21.2 CFM at 60 Hz
- Ambient operating temperature range: 5 to 40 o C
- Ultimate pressure: 1 x 10-2 mbar, 1 Pa
Shopping Cart ( )

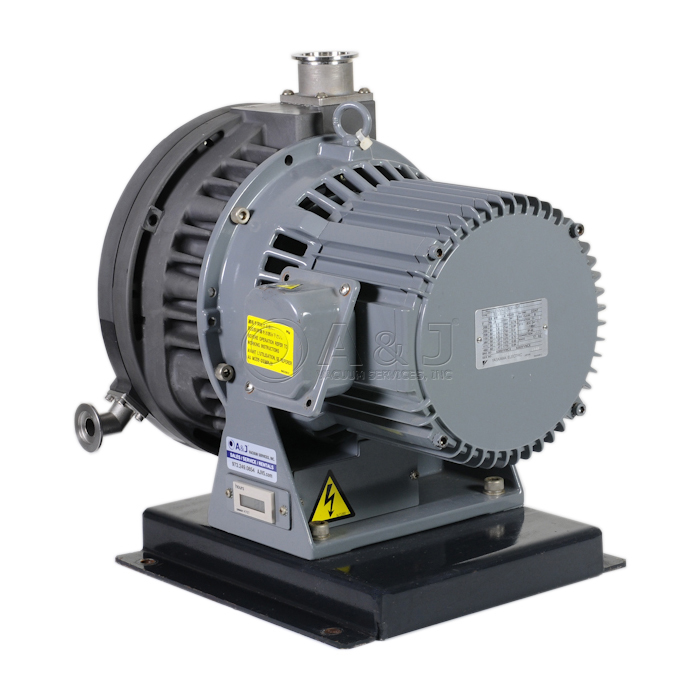

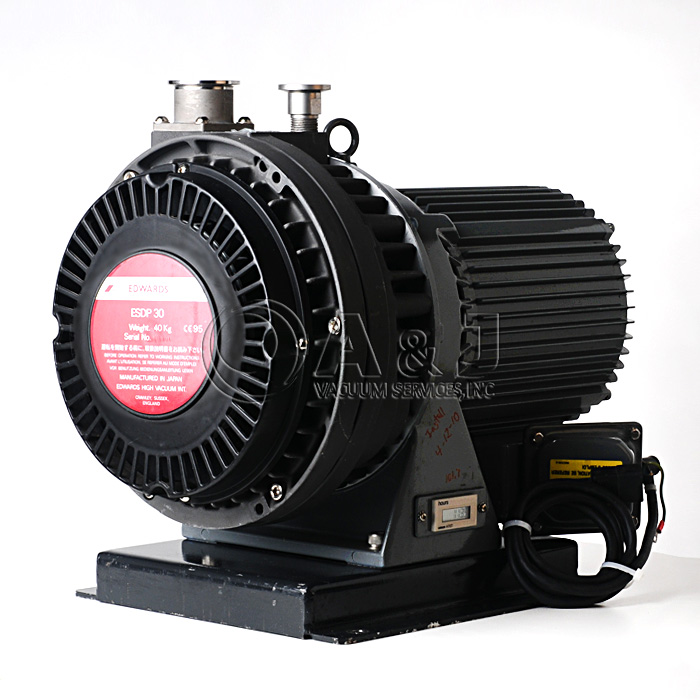

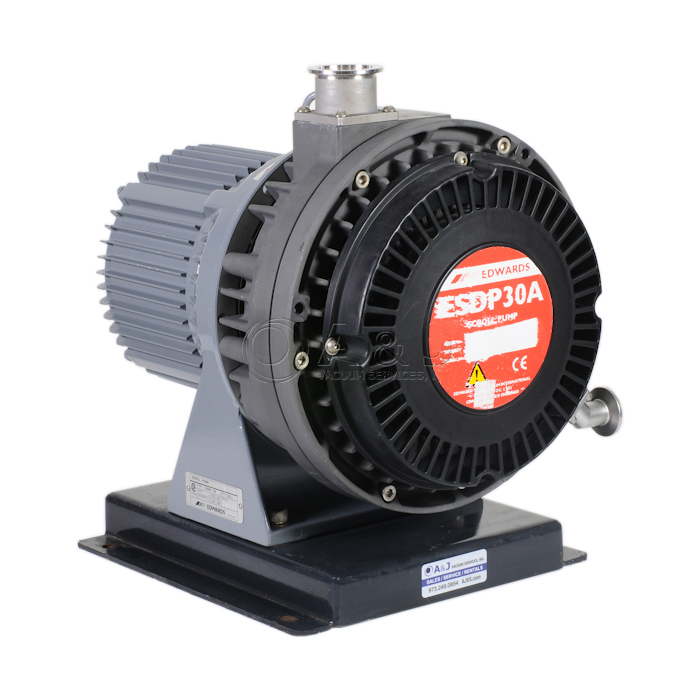

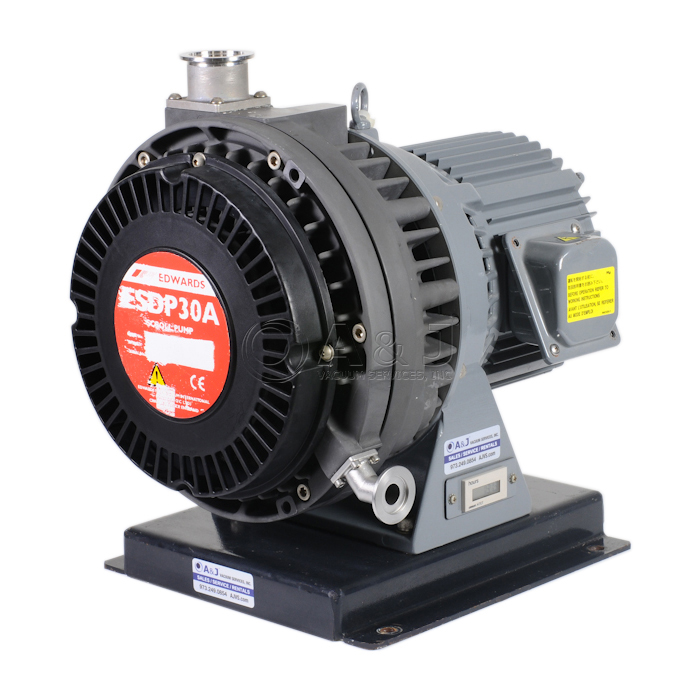

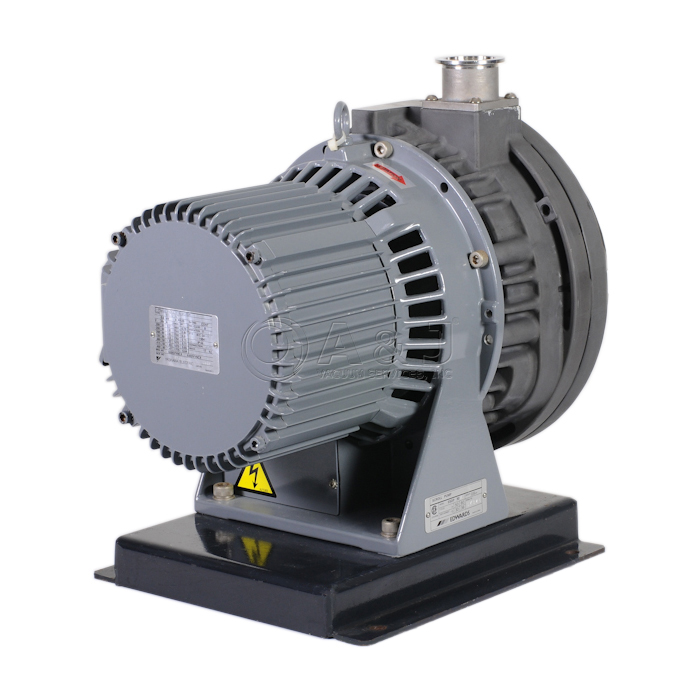

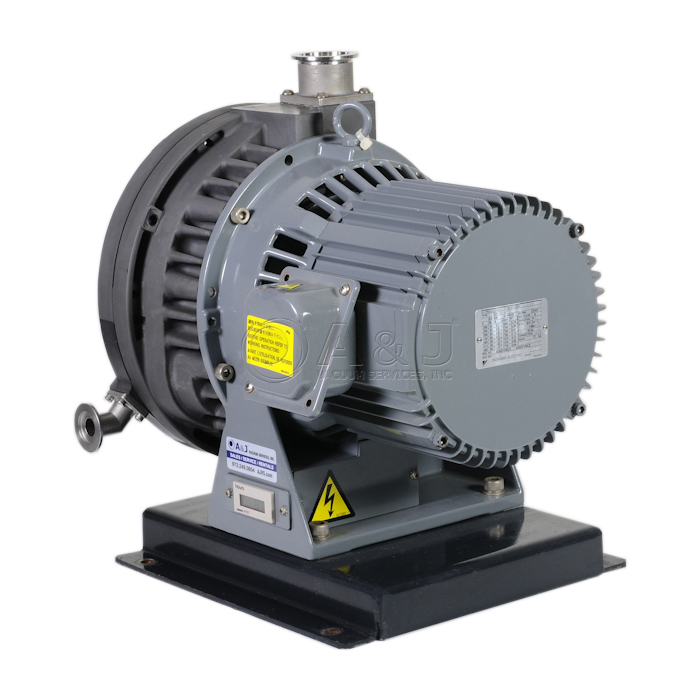

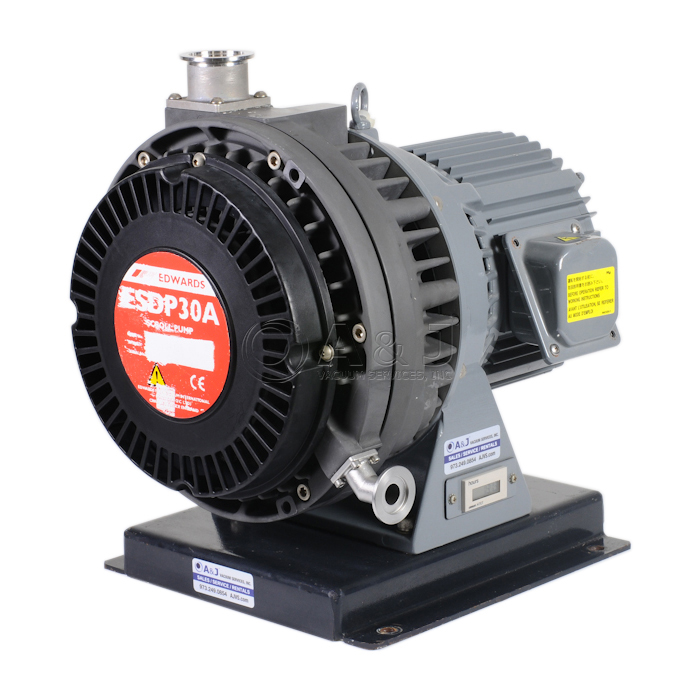

Edwards ESDP 30A Scroll Vacuum Pump, 3 Phase, 200-208 V / 50Hz, 230 V /60 Hz, 380-415 V / 50Hz, 460 V / 60Hz
Condition:
Remanufactured
Call us for Availability
Item#:PN07063
Mfr Part#:ESDP30A
Manufacturer:Edwards Vacuum
Price upon request
CONTACT US
Features:
Edwards ESDP30A Scroll Vacuum Pump, 3 Phase, 200-208 V / 50Hz, 230 V /60 Hz, 380-415 V / 50Hz, 460 V / 60Hz
This Item Has Been Discontinued - It Has Been Replaced By The Anest Iwata ISP 500 Series - Click Here
Edwards ESDP 30 Overview:
The ESDP12 and ESDP30 Scroll Pumps are compact, reliable vacuum vacuum pumps use on clean dry processes. The pumps ar nopt suitable for use with explosive, flammable, toxic or corrosive substances, or substances which contain particulates powders or vapour.
The body of the pump has stationary scrolls and an orbiting scroll. The orbiting scroll is driven by the electric pump-motor through an eccentric cam on the motor drive shaft. The movement of the orbiting scroll, meshed with the stationary scrolls, forms succesive crescent shaped volumes in the pump.
Edwards ESDP30 Features:
- The ESDP 30A Scroll Pumps are known to be reliable vacuum pumps for use on clean dry processes. The Edwards ESDP-30A pumps are not suitable for use with explosive, flammable, toxic or corrosive
substances, or substances which contain particulates, powders or vapour
- The body of the EDSP30A pump has stationary scrolls and an orbiting scroll. The orbiting scroll is driven
by the electric pump-motor through an eccentric cam on the motor drive shaft. The movement of the orbiting scroll, meshed with the stationary scrolls, forms successive crescent shaped
volumes in the pump.
- Gas which enters the pump through the inlet is compressed by the movement of the orbiting
scroll and swept towards the center of the stationary scrolls. The compressed gas enters the
exhaust-port near the centre of the stationary scrolls and is exhausted from the pump through
the outlet.
- The inlet of the pump has an inlet screen which prevents the entry of debris into the pump.
The pump is air-cooled and has an electric motor and an hours counter which operates when
the electrical supply to the pump is switched on.

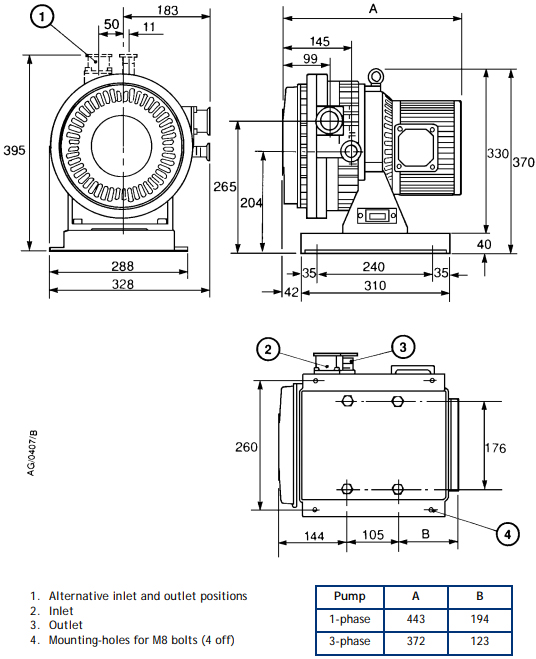

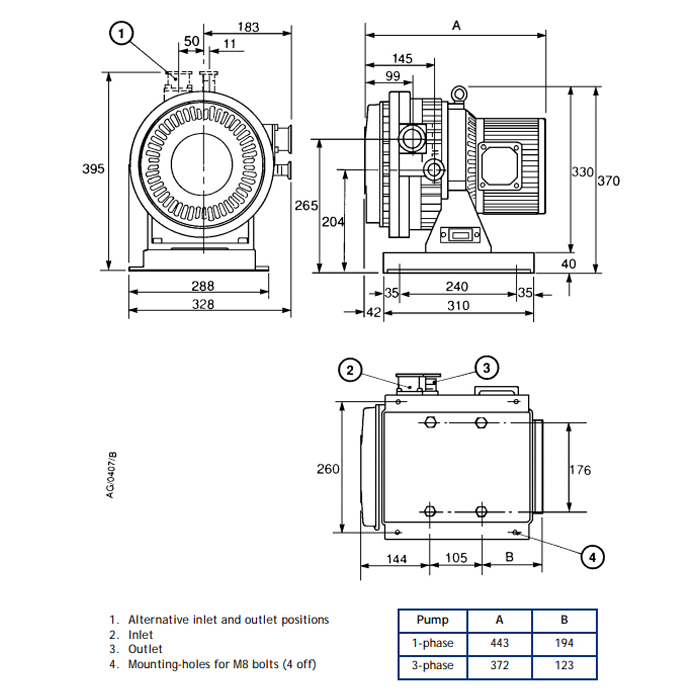

Edwards ESDP30 Dimensions:
A&J Vacuum Repair / Rebuild and Service EDWARDS SCROLL PUMPS and all pump service along with all other EdwardsVacuum Rotary Vane Pumps, Edwards Turbomolecular Pumps repair, Edwards Leak Detector Repair and all other Edwards Vacuum pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
This item is non-returnable/non-refundable
Edwards ESDP30A Scroll Vacuum Pump, 3 Phase, 200-208 V / 50Hz, 230 V /60 Hz, 380-415 V / 50Hz, 460 V / 60Hz
Edwards ESDP 30 Technical Data:
A&J Vacuum Repair / Rebuild and Service EDWARDS SCROLL PUMPS and all pump service along with all other EdwardsVacuum Rotary Vane Pumps, Edwards Turbomolecular Pumps repair, Edwards Leak Detector Repair and all other Edwards Vacuum pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Item#:PN01504
Mfr Part#:P71004800
Condition: Out of Stock
New
$2,290.00
Item#:PN06966
Mfr Part#:71004026
Condition: Ships Within 1-3 Days
New
$1,641.00
Item#:PN11198
Mfr Part#:71003012
Condition: Ships Within 1-3 Days
New
$780.00
Item#:PN11199
Mfr Part#:71004006
Condition: In Stock
New
In Stock
$466.00
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
