Edwards iXH 100 Dry Semiconductor Vacuum Pump, 380-460 V, 50/60 Hz, ACA102121000
Condition:
New
Item#:PN07415
Mfr Part#:ACA102121000
Manufacturer:Edwards Vacuum
Price upon request
CONTACT US
Features:
Edwards iXH 100 Dry Semiconductor Vacuum Pump, 380-460 V, 50/60 Hz, ACA102121000
Edwards iXH100 Overview:

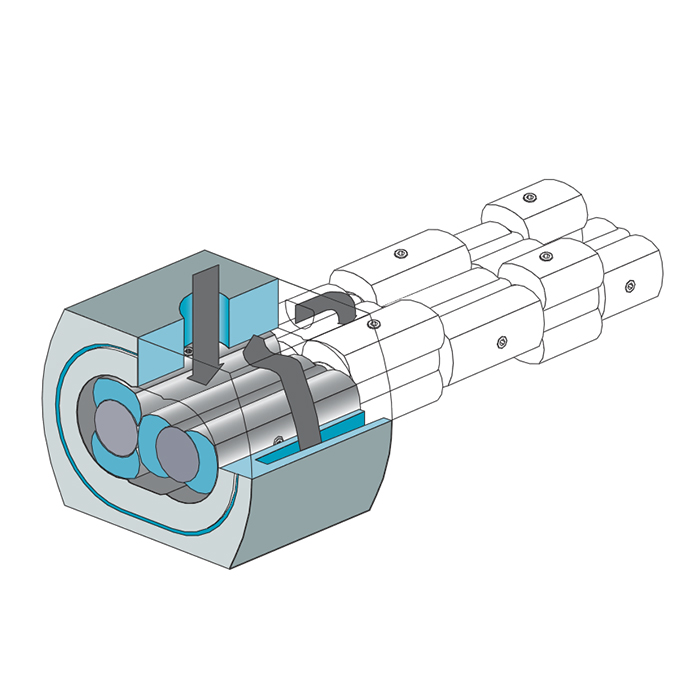

Hydrogen is a difficult gas to pump due to its small molecular size and low viscosity. The iXH pumping system uses a series of large capacity pumps and boosters to attain the optimum compression ratio required to pump this gas efficiently. The system is modular and highly configurable, making it easy to meet the site installation and performance requirements for a variety of solar and semiconductor manufacturing processes. The components can be stacked on top of one another to achieve the smallest footprint in the industry. Multiple iXH modules, configured to meet application-specific requirements and managed by a single controller, appear to the operator as an easy-to-use, seamlessly integrated vacuum system.
The iXH series of dry pumps for harsh processes offer greater process capability and reduced cost of ownership (CoO) compared to previous-generation Edwards pumps. Reduced CoO is achieved through a ten percent reduction in energy consumption, longer overhaul intervals and reduced unscheduled downtime. They feature a wide temperature range (which helps minimize by-product accumulation), greatly increased powder-handling capabilities, and unique Gas Buster™ technology, as well as an innovative pump seal technology that helps lengthen process life and reduce leakage risks.
Unit is NEW and comes with a FULL 12-MONTH WARRANTY!
A&J Vacuum Services offers full repair/service of Pfeiffer Vacuum Pumps, along with all other brands offered on our website. AJVS also services Pfeiffer turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
This item is non-returnable/non-refundable
Edwards iXH 100 Dry Semiconductor Vacuum Pump, 380-460 V, 50/60 Hz, ACA102121000
Edwards iXH100 Technical Data:
| Dry pump size: | 100 m3/h |
| Peak speed | 100 m3/h |
| Ultimate Vac (Typical) | 1.5x10-2 Torr |
| System Power at Ult | 2.1 kW |
| Inlet Connection | ISO 63 |
| Outlet Connection | NW 40 |
| Typical Water Flow | 2.0 l/m |
| Purge Flow Range | 28/44 slm |
| Weight | 260 kg |
A&J Vacuum Services offers full repair/service of Pfeiffer Vacuum Pumps, along with all other brands offered on our website. AJVS also services Pfeiffer turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
